30" Built-In CleanDesign Electric Cooktop - JP346WMWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Built-In CleanDesign Electric Cooktop

Model: JP346WMWW

30" Built-In CleanDesign Electric Cooktop JP346WMWW30" Built-In CleanDesign Electric Cooktop JP346WMWW30" Built-In CleanDesign Electric Cooktop JP346WMWW
30" Built-In CleanDesign Electric Cooktop JP346WMWW
30" Built-In CleanDesign Electric Cooktop JP346WMWW
30" Built-In CleanDesign Electric Cooktop JP346WMWW

Color : White

30" Built-In CleanDesign Electric Cooktop JP346WMWW
White

Key Features

  • Frameless ceramic glass cooktop

  • Ribbon heating elements

  • Power Boil element

  • Hot surface indicator lights

Description

Powerful heat beneath the smooth surface provides high-speed warm-up and even heating.Accommodates various-size pots or pans and 3,000 watts of power speeds the boiling process.3 1/4 H x 29 3/4 W x 21 3/8 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Frameless ceramic glass cooktop

Attractive cooktop is designed to contain spills and make cleaning quick and easy

Ribbon heating elements

Powerful heat beneath the smooth surface provides high-speed warm-up and even heating

Power Boil element

Accommodates various-size pots or pans and 3,000 watts of power speeds the boiling process

Hot surface indicator lights

Cooktop lights let you know when the surface is hot

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Other

Cooktop Size30 in

Dimensions & Weight

Width29.75 in.
Height3.25 in.
Length21.38 in.
Weight33 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height8.25 in.
Shipping Length26.38 in.
Shipping Weight73 lbs.
Total of Shipping Weight73 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.2 ft³
Dimensional Weight14.87 lbs.
Total of Cubes1.2 ft³
Total of Dimensional Weight14.87 lbs.

FEATURES

Dishwasher Safe KnobsYes
8" Heating Element (s)1 Ribbon (Power Boil)
Cooktop Burner TypeSmoothtop
Indicator LightsSurface Element "ON"
12" Heating Element1 Ribbon (2,700W)
Control LocationRight Side
Cooktop SurfacePatterned White on Black Glass Ceramic
6" Heating Element(s)2 Ribbon (1,200W)
Control TypeInfinite Heat Rotary
Cooktop Burner Type4 Ribbon
Indicator Lights1 Hot Surface

WEIGHTS & DIMENSIONS

Cooktop Size30 in
Cabinet Width30 in
Approximate Shipping Weight38 lb
Net Weight33 lb
Overall Depth21 3/8 in
Overall Height3 1/4 in

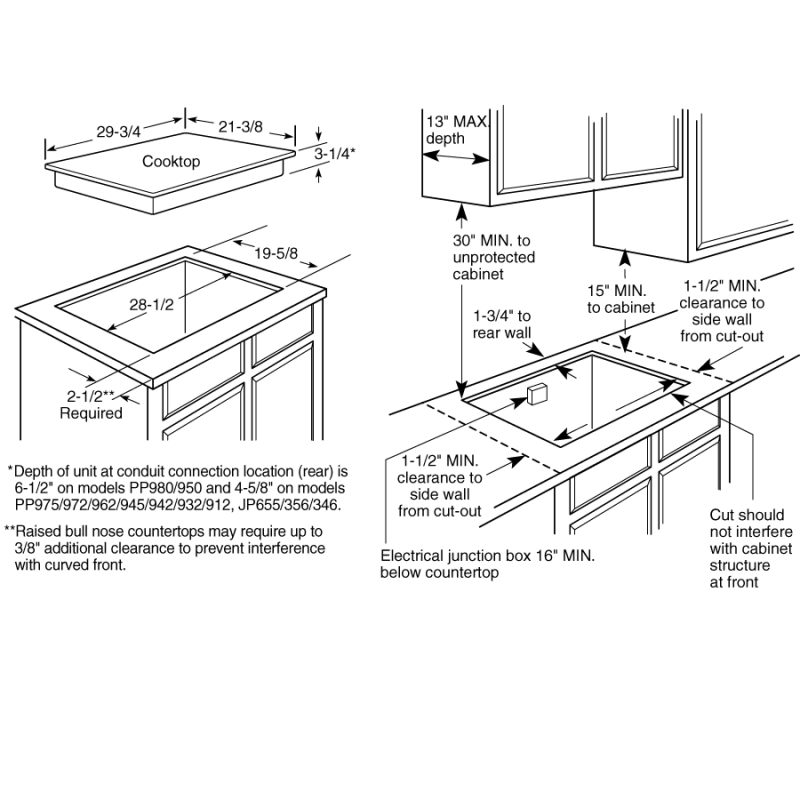

Overall Height at Conduit (rear)4 3/16 in
Overall Width29 3/4 in
Cutout Width (in)28.5
Cutout Depth (in)19.625

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance

APPEARANCE

Color AppearanceWhite on White
FramelessYes

POWER / RATINGS

KW Rating at 208V5.7
Amp Rating at 240V40
KW Rating at 240V7.6
Amp Rating at 208V30

ACCESSORIES

Optional Flush Mount KitJXFLMTW (True White)
