4 Cu.Ft. MOMCUBE Freezer, ADA Height - AFZ5PVBIADAMC

This product has been discontinued by the manufacture and is no longer available.

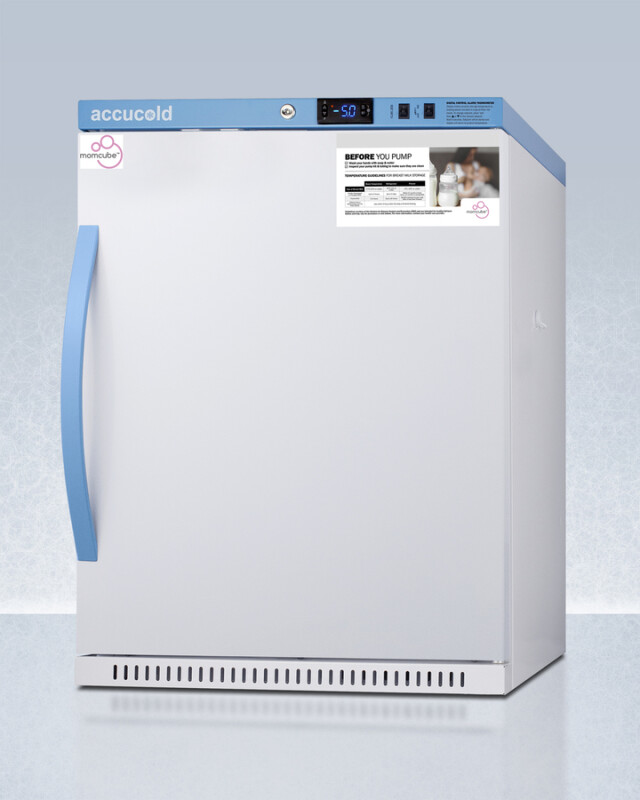

4 Cu.Ft. MOMCUBE Freezer, ADA Height

Model: AFZ5PVBIADAMC

4 Cu.Ft. MOMCUBE Freezer, ADA Height AFZ5PVBIADAMC4 Cu.Ft. MOMCUBE Freezer, ADA Height AFZ5PVBIADAMC4 Cu.Ft. MOMCUBE Freezer, ADA Height AFZ5PVBIADAMC
4 Cu.Ft. MOMCUBE Freezer, ADA Height AFZ5PVBIADAMC
4 Cu.Ft. MOMCUBE Freezer, ADA Height AFZ5PVBIADAMC
4 Cu.Ft. MOMCUBE Freezer, ADA Height AFZ5PVBIADAMC

Color : White

product image
White

Key Features

  • Performance MOMCUBE Breast Milk Freezer freezer

  • Purpose-built design

  • Adjustable temperature

  • Recessed or freestanding use

  • ADA Compliant

  • +/-1ºC Variation

  • Temperature alarm

  • Remote alarm contacts

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Performance MOMCUBE Breast Milk Freezer freezer

Purpose-built Performance Series freezer for the long-term storage of breast milk

Purpose-built design

Designed and purpose-built for breast milk storage in accordance with the CDC's guidelines

Adjustable temperature

Intuitive controls let you adjust the interior temperature between -18°F to -4ºF

Recessed or freestanding use

Versatile design allows recessed installation under counters or freestanding use

ADA Compliant

Just under 32" tall designed to fit under ADA compliant counters

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Manual defrost operation

Static cooling system for an efficient and stable interior

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

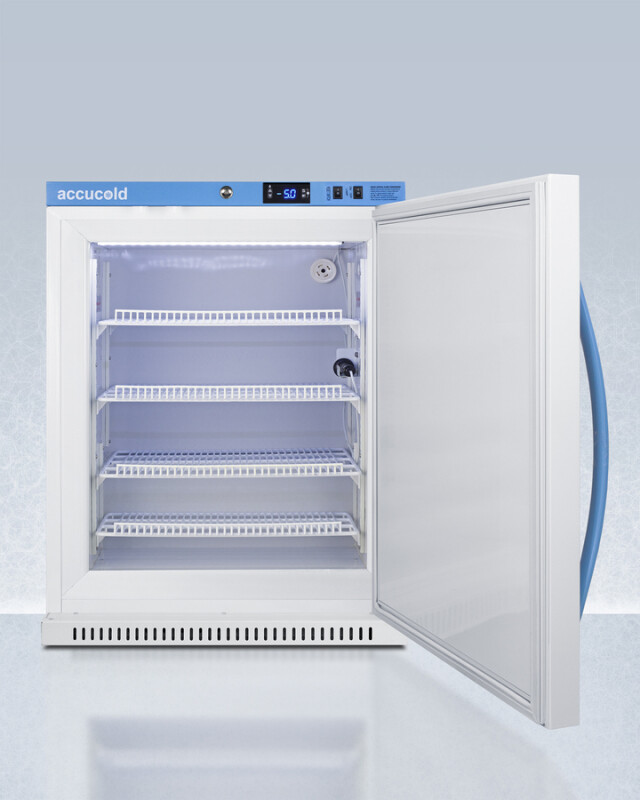

Adjustable plastic-coated wire shelves for improved circulation

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings

Reversible door

User-reversible door swing for added flexibility

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet

Allows the unit to be used freestanding

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Versatile design

Compatible with Pyxis, Omnicell®, and AcuDose RX®

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS", as well as breast milk storage guidelines

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

Nominal Height32.0" (81 cm)
Height of Cabinet31.75" (81 cm)
Nominal Width24.0" (61 cm)
Width23.38" (59 cm)
Width with Door Open23.88" (61 cm)
Nominal Depth25.0" (64 cm)
Depth25.0" (64 cm)
Depth with Handle26.75" (68 cm)
Depth with door at 90°47.0" (119 cm)
Capacity3.88 cu.ft. (110 L)
Defrost TypeManual
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.3
Voltage/Frequency115 V AC/60 Hz
Weight125.0 lbs. (57 kg)
Parts & Labor Warranty2 Years
Compressor Warranty5 Years
UPC761101107509

Freezer

Door SwingRHD
ReversibleYes
Interior Height22.5" (57 cm)
Interior Width18.0" (46 cm)
Interior Depth18.0" (46 cm)
Shelf TypeWire
Shelf Qty4
Adjustable ShelvesYes
Thermostat TypeDigital
Interior LightYes
Refrigerant TypeR290
Refrigerant Amount1.73 oz.
High Side PSI280.0
Low Side PSI130.0
Compressor Step Height6.5" (17 cm)
Compressor Step Width18.0" (46 cm)
Compressor Step Depth7.13" (18 cm)
Temperature Range-18 to -4ºF

Dimensions & Weight

Width23.38 in.
Height31.75 in.
Length25 in.
Weight125 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.38 in.
Shipping Height36.75 in.
Shipping Length30 in.
Shipping Weight165 lbs.
Total of Shipping Weight165 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.74 ft³
Dimensional Weight133.51 lbs.
Total of Cubes10.74 ft³
Total of Dimensional Weight133.51 lbs.

Other

Number of Boxes1
SourceCalculation
Capacity3.88 cu.ft. (110 L)
Defrost TypeManual
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.3
Voltage/Frequency115 V AC/60 Hz
Parts & Labor Warranty2 Years
Compressor Warranty5 Years
UPC761101107509
