19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator - KRBR109ESS

KitchenAidKitchenAid brand logo
This product has been discontinued by the manufacture and is no longer available.

19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator

Model: KRBR109ESS

19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
+2more

Color : Stainless Steel

19 cu. ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
Stainless Steel

Key Features

  • Produce Preserver

  • Humidity-Controlled Crispers

  • Full-Width Pantry

  • LED Lighting

  • Metal Wine Rack

  • ENERGY STAR® Qualified

  • ExtendFresh™ Temperature Management System

Description

KitchenAid 30" Bottom-Freezer Refrigerator with 19 Cu. Ft. Capacity and Full-Width Pantry

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Produce Preserver

Absorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.

Humidity-Controlled Crispers

Provide a dedicated storage option with adjustable humidity levels. They let you select the high humidity that keeps romaine crisp, or the arid environment that helps figs and apricots stay fresh.

Full-Width Pantry

lets you properly store everything from meats to produce in a full width compartment.

LED Lighting

Uses less energy than incandescent bulbs. Multiple lights are purposefully placed throughout the refrigerator and freezer, making it easy to find items at a glance.

Metal Wine Rack

provides a durable storage solution for up to four bottles of wine or 2-liter containers and can be removed for additional storage flexibility.

ENERGY STAR® Qualified

products conserve energy by exceeding minimum federal energy efficiency.

ExtendFresh™ Temperature Management System

Separately monitors the temperatures in the refrigerator and freezer through a sensor located in each, to help ensure fresh fruit juices don't become frozen and prawns avoid freezer burn.

Specifications

Controls

Automatic DefrostYes
Control LocationInterior Up Front
Control LockoutNo
Door Ajar/Open AlarmNo
LCD Touch ScreenNo
Max Cool/Fast CoolNo
Cooling TypeSingle Evaporator

Certifications

ADA CompliantNo
Energy Rating (kWh/year)469
ULYes
ULe Environmentally Preferred CertifiedPassed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
CEE Tier RatingTier I
prop65Standard

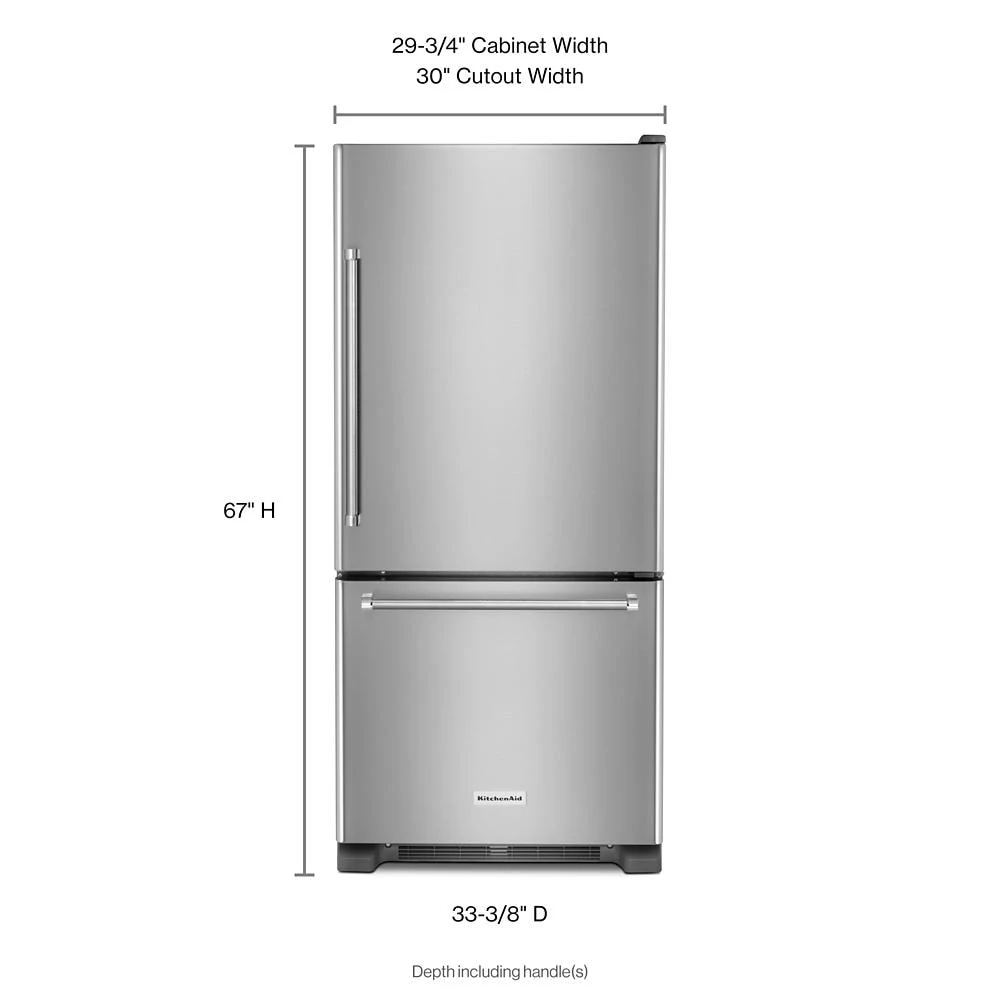

Dimensions & Weight

Width29.75 in.
Height67 in.
Length33.38 in.
Weight239 lbs.
Cabinet Width (in)29 5/8
Carton Depth36
Carton Height69 1/2
Carton Width32 1/2
Depth Closed Excluding Handles30 7/8
Depth Closed Including Handles33 3/8
Depth Excluding Doors28 1/8
Depth With Door Open 90 Degree59
Gross Weight239
Height To Top Of Cabinet65 1/2
Height To Top Of Door Hinge67
Net Weight239.0
Cabinet Width (IN,inches)29.6250
Cutout Height(IN,inches)67.0000
Cutout Width(IN,inches)30.0000
Depth Closed Excluding Handles(IN,inches)30.8750
Depth Closed Including Handles(IN,inches)33.3750
Depth Excluding Doors(IN,inches)28.1250
Depth With Door Open 90 Degree(IN,inches)59.0000
Height To Top Of Cabinet(IN,inches)65.5000
Height To Top Of Door Hinge(IN,inches)67.0000
Net Weight(LB,pounds)239
Carton Depth(IN,inches)36.0000
Carton Height(IN,inches)69.5000
Carton Width(IN,inches)32.5000
Gross Weight(LB,pounds)239

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height72 in.
Shipping Length38.38 in.
Shipping Weight279 lbs.
Total of Shipping Weight279 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement38.5 ft³
Dimensional Weight478.6 lbs.
Total of Cubes38.5 ft³
Total of Dimensional Weight478.6 lbs.

Dimensions

Capacity(FT3,cubic feet)18.67
Depth Closed Excluding Handles(IN,inches)30.8750
Depth Excluding Doors(IN,inches)28.1250
Depth With Door Open 90 Degree(IN,inches)59.0000
Height To Top Of Cabinet(IN,inches)65.5000
Cabinet Width29.625
Cutout Height67
Cutout Width30
Depth Closed Excluding Handles30.875
Depth Closed Including Handles33.375
Depth Excluding Doors28.125
Depth With Door Open 90 Degree59
Dispenser OptionsN/A
Dispenser TypeNo Dispenser
Freezer Capacity Volume5.73
Height To Top Of Cabinet65.5
Height To Top Of Door Hinge67
Refrigerator Capacity Volume12.94
carton depth36
carton height69.5
carton width32.5
gross weight239
net weight239

Dimension

Capacity (Cu Ft)18.67
Depth Closed Excluding Handles30 7/8
Depth Excluding Doors28 1/8
Depth With Door Open 90 Degree59
Height To Top Of Cabinet65 1/2

Details

Door Opening DirectionRight
Installation ConfigurationFreestanding
Refrigeration ConfigurationRefrigerator
Refrigerator TypeBottom Freezer

Exterior Details

Cabinet FinishTextured
Counter DepthNo
Door StyleFlat
Hidden HingeNo
Reversible DoorNo

Filter Details

Air Filter Indicator/ResetNo
Fresh Flow Air Filter IncludedNo
Water Filter Indicator/ResetNo
Water Filter LocationN/A

Freezer Details

Freezer Compartment TypeSlide-Out Door 2 Tier
Freezer Door BinsNo
Freezer Door TypePull-Out
Freezer Drawer/Basket1 Full Width Lower Wire; 1 Full Width Upper Wire
Freezer LightingLED
Freezer Number of Shelves0
Freezer ShelvesNone

Icemaker Details

IcemakerOptional
Icemaker LocationFreezer
Types of IceNo
Icemaker Kit Part NumberW11762633

Refrigerator Details

Conventional ShelvesNo
Deli DrawerNo
Humidity-Controlled Crispers2 Half-Width
Non Climate Control DrawersNone
Number of Interior Shelves5
Pantry DrawerYes
Refrigerator Door Bins1 Dairy; 1 Fixed Full-Width; 4 Adjustable Half-Width
Refrigerator LightingLED
Spill-Proof Glass Shelves1 Fixed Full Width; 4 Adjustable Half Width
Supplementary ContainersYes
Temperature-Controlled Drawers1 Full Width

Product Details

Energy Star® QualifiedENERGY STAR® Qualified
