24" Wide Built-In All-Freezer, ADA Compliant - VT65MLBIMED2ADA

This product has been discontinued by the manufacture and is no longer available.

24" Wide Built-In All-Freezer, ADA Compliant

Model: VT65MLBIMED2ADA

24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA
24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA
24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA
24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA
24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA
24" Wide Built-In All-Freezer, ADA Compliant VT65MLBIMED2ADA
+3more

Color : White

product image
White

Key Features

  • Reliable temperature stability

  • ADA compliant design

  • Built-in capable

  • -25º C/-13º F capable

  • Digital thermostat

  • NIST calibrated temperature display

  • Buffered temperature probe

  • High/low temperature alarm

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Reliable temperature stability

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

ADA compliant design

32" height allows installation under lower ADA compliant counters

Built-in capable

Front-breathing design allows built-in installation under counters

-25º C/-13º F capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

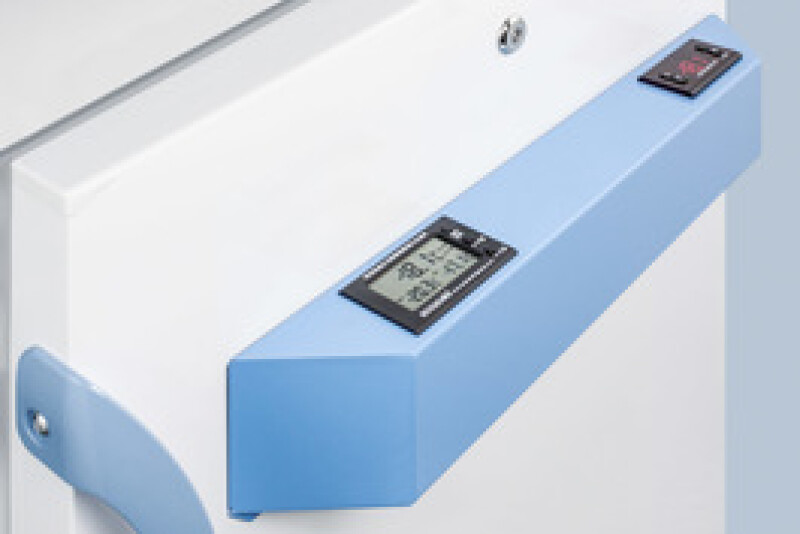

Digital thermostat

Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

NIST calibrated temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Manual defrost

Static cooling system for reduced temperature fluctuations

Hospital grade cord and plug

Secure three-pronged cord for added unit safety

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

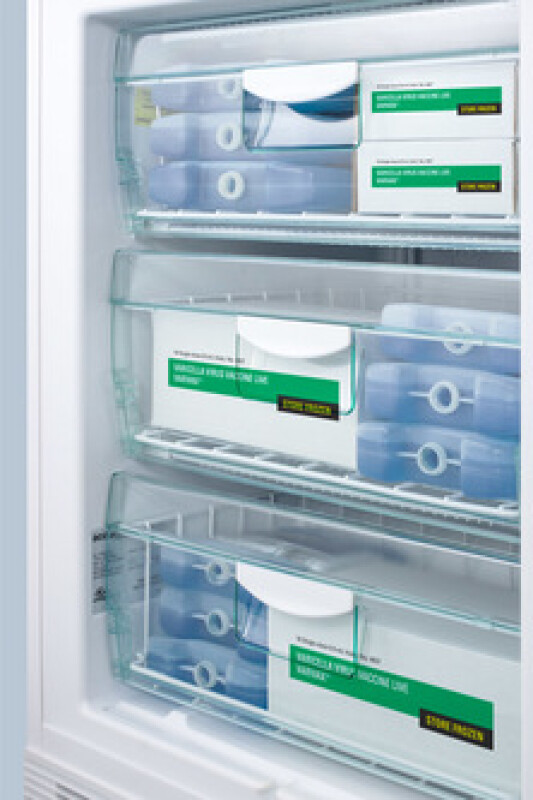

Three slide-out drawers

Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Fully finished white cabinet

Allows the unit to be used freestanding

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching refrigerator available

Pair with the FF7LBIMED2 to create a complete set

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

Extended warranty

This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Specifications

Freezer

Door SwingRHD
ReversibleFactory Reversible
Interior Height24.25" (62 cm)
Interior Width17.75" (45 cm)
Interior Depth16.5" (42 cm)
Thermostat TypeDigital
Fan TypeExterior
Refrigerant TypeR134a
Refrigerant Amount2.76 oz.
High Side PSI235.0
Low Side PSI88.0
Level Legs4
Interior DrawersYes
Drawers Qty3
Compressor Step Height6.0" (15 cm)
Compressor Step Width17.75" (45 cm)
Compressor Step Depth6.0" (15 cm)
Temperature Range-12ºC to -25ºC

Dimensions & Weight

Width23.63 in.
Height32 in.
Length23.63 in.
Weight105 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement10.34 ft³
Dimensional Weight128.55 lbs.
Total of Cubes10.34 ft³
Total of Dimensional Weight128.55 lbs.

Other

Number of Boxes1
SourceCalculation
Capacity3.2 cu.ft. (91 L)
Defrost TypeManual
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.3
Voltage/Frequency115 V AC/60 Hz
Parts & Labor Warranty2 Years
Compressor Warranty5 Years
UPC761101056548
