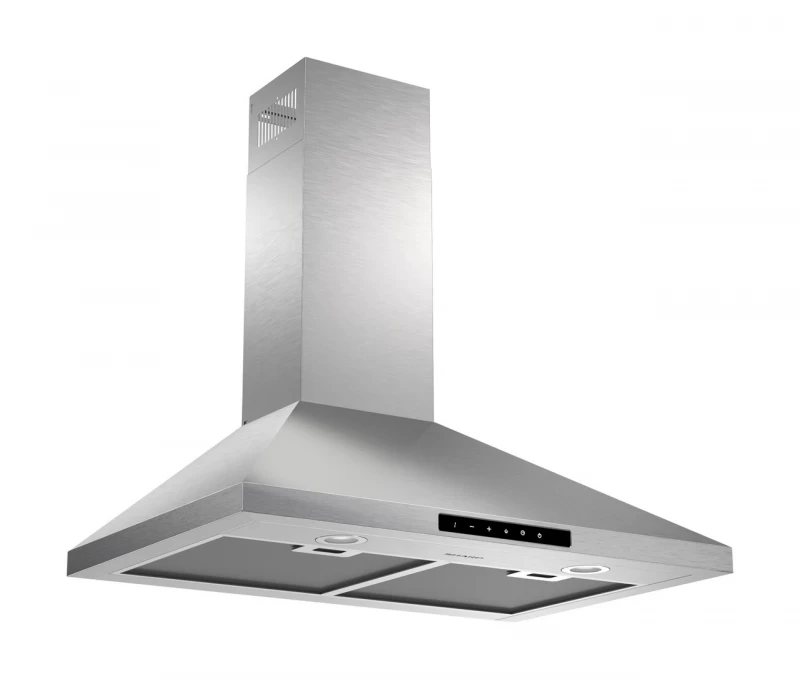

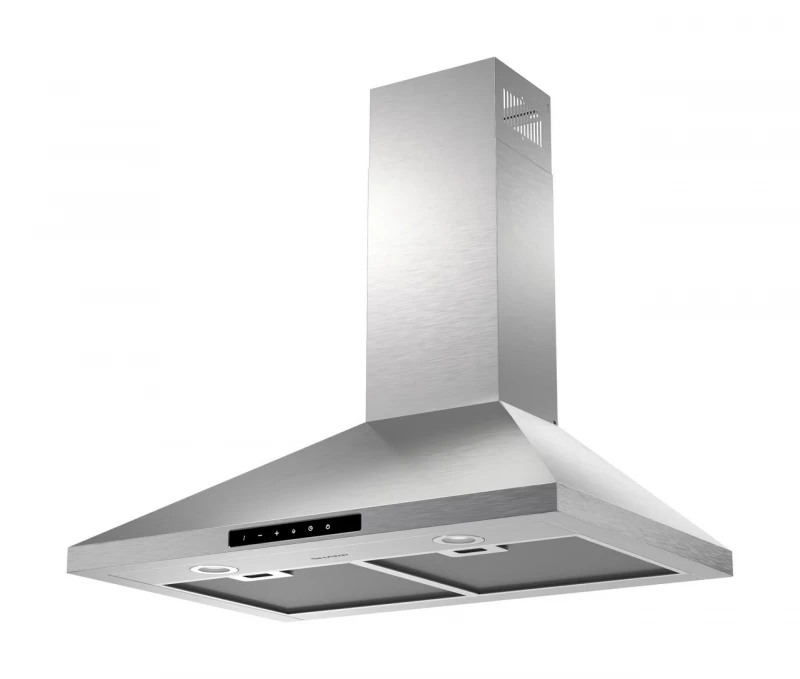

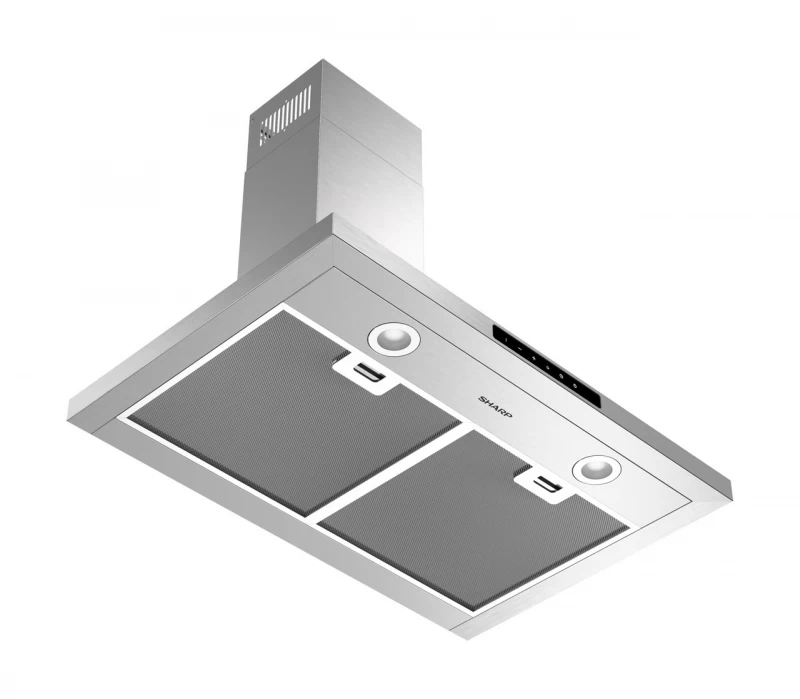

30 In. Wall Mount Chimney Range Hood - SHC3042FS
30 In. Wall Mount Chimney Range Hood
Model: SHC3042FS








30 In. Wall Mount Chimney Range Hood
Model: SHC3042FS
Key Features
3-Speed Stainless Steel Hood
450CFM for Fast Ventilation
Premium LED Task Lighting
15-Minute Delay Off Timer
Option to Convert to Ductless Venting
Dishwasher-Safe Mesh Grease Filters
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
3-Speed Stainless Steel Hood
450CFM for Fast Ventilation
Premium LED Task Lighting
15-Minute Delay Off Timer
Option to Convert to Ductless Venting
Dishwasher-Safe Mesh Grease Filters
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Sones
| Normal | 2.5 |
| High | 9.0 |
CFM
| Normal | 190 |
| High 0.25 in.w.g. | 385 |
| High 0.1 in.w.g. | 450 |
DESIGN
| Size | 30" |
| Finish | Stainless Steel |
| Controls | Capacitive Touch Control |
FEATURES
| Speed Levels | 3 Levels |
| Fan Speeds (CFM) | 190 / 350 / 450 |
| Sones | 2.5 - 9.0 |
| Delay Off | Yes, 15 Minutes |
| Lighting | 2 LED Lights450 lux, 3200K |
| Lighting Levels | HI / LOW / OFF |
| Grease Filters | 2 Dishwasher Safe Aluminum Filters |
| Duct Size | 6" Round |
| Ductless Option | Yes, Requires Non-Duct Kit |
SPECIFICATIONS
| Accommodates Ceiling Height | 8'-9' (9'-10' with Extension Flue) |
| HVI Certification | Yes |
| Agency Certification | ETL |
| AC Power | 2.7A, 120V, 60Hz |
OPTIONAL ACCESSORIES
| Product Name | Non-Ducted Kit |
| Model | SKCH62DLK |
| UPC | 074000621398 |
| Product Name | Charcoal Filters |
| Model | SKCH62CFL |
| UPC | 074000621404 |
| Product Name | Extension Flue |
| Model | SKCH62EXF |
| UPC | 074000621411 |
WARRANTY/UPC
| Parts and Labor | 1 Year Parts/ 1 Year Labor |
| UPC | 074000621381 |
Dimensions & Weight
| Width | 29.5 in. |
| Height | 30.5 in. |
| Length | 19.69 in. |
| Weight | - |
| Shipping Dimensions | 34-11/16" x 24-27/32" x 13-15/16" |
| Product Weight / Shipping Weight | 22.5 lbs. / 30.5 lbs. |
| Shipping Dimensions | 34-11/16" x 24-27/32" x 13-15/16" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.69 in. |
| Shipping Height | 24.84 in. |
| Shipping Length | 13.94 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.25 ft³ |
| Dimensional Weight | 127.44 lbs. |
| Total of Cubes | 10.25 ft³ |
| Total of Dimensional Weight | 127.44 lbs. |
Product Details
| Duct Orientation | Round Vertical |
| Size | 6 in. |
| Damper | Included |
DIMENSIONS & WEIGHT (in./lbs.) (w x h x d)
| Product Dimensions | 29-1/2" x 25-3/8" x 19-11/16" |
| Shipping Dimensions | 34-11/16" x 24-27/32" x 13-15/16" |
| Product Weight / Shipping Weight | 22.5 lbs. / 30.5 lbs. |
