$2,199.00

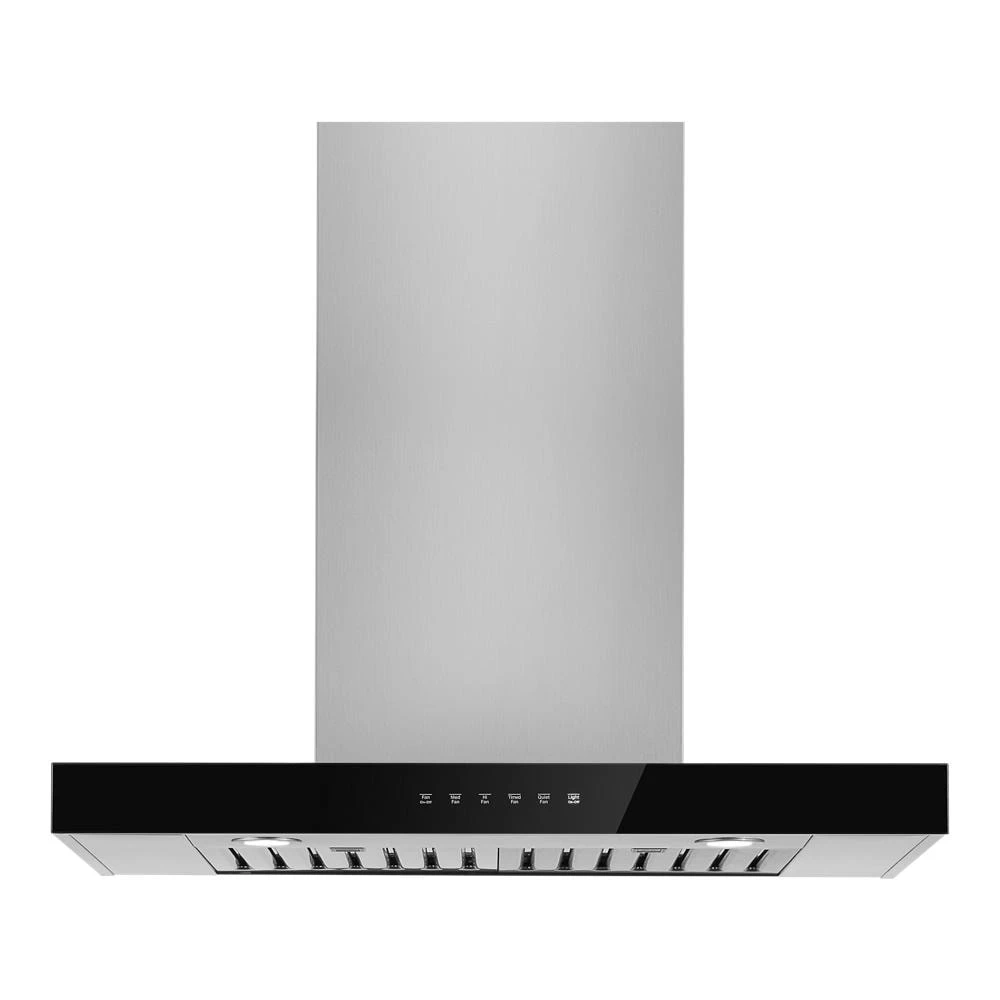

Lustre Stainless 30" Recirculating Wall-Mount Canopy Hood - JVR0430HS
$2,199.00
Current Rebates
Key Features
Quiet Fan Mode
Three Fan Speed Settings with Additional Quiet Mode
Boost Mode
Recirculating Installation
No Make Up Required
Saturation Indicator for Filter
Timed Fan
Emotive Controls
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Quiet Fan Mode
Let a hush fall over the room. The lower speed of Quiet Fan mode reduces sound levels to 55 dBA.
Three Fan Speed Settings with Additional Quiet Mode
JennAir® ventilation systems feature adjustable controls that allow the motor to operate at a level that will optimize performance.
Boost Mode
Sends the fan into high gear, removing high volumes of smoke and steam for 10 minutes.
Recirculating Installation
This ventilation system comes recirculating-ready, making it a desirable choice for locations where in-wall ducting is not possible.
No Make Up Required
No kits. No outside air. No backdrafts. By scrubbing and recirculating air instead of removing it, no make up air kit is necessary for use or installation.
Saturation Indicator for Filter
The LED timer light on the control panel will flash to indicate it is time to change the charcoal filter.
Timed Fan
This function allows the vent fan to run for up to 20 minutes and then automatically turn off.

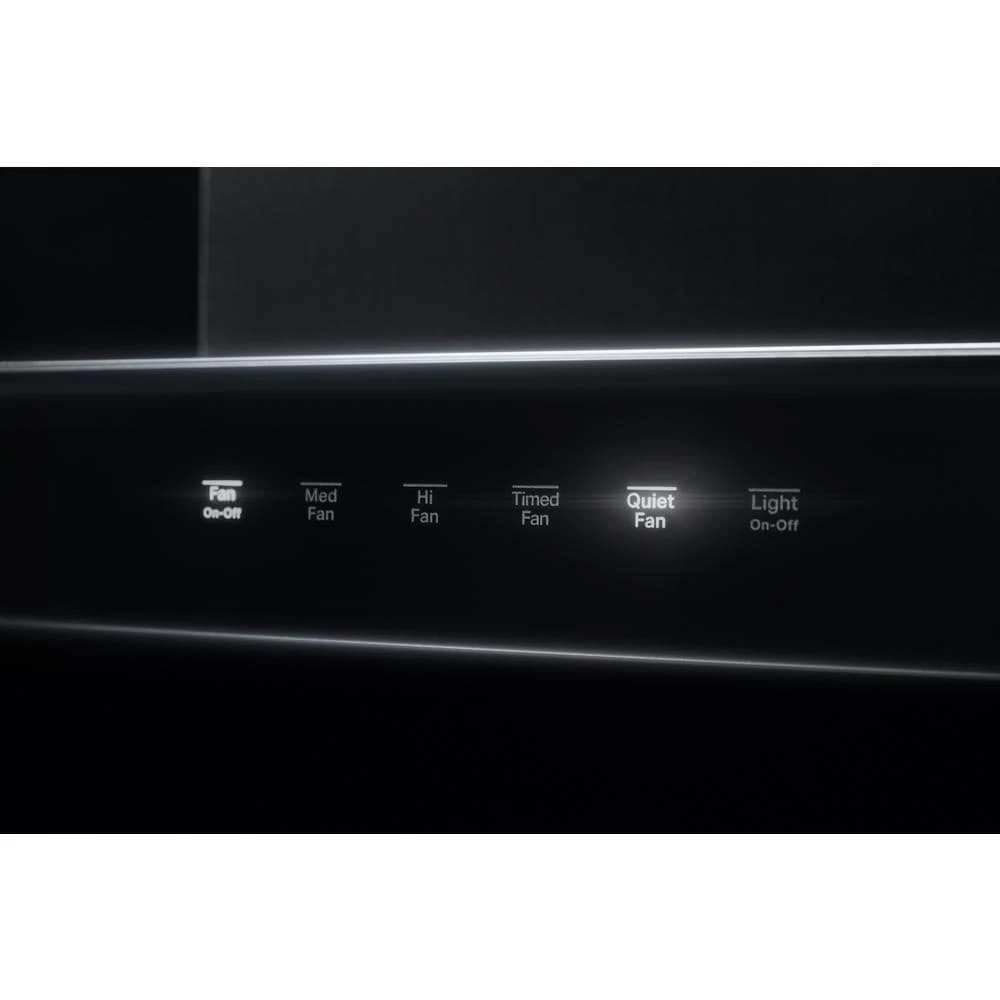

Emotive Controls
Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.
Sonic Hush
Composed to please the ear. Advanced sound reduction in Quiet Fan mode means cleaner air happens in the background at only 55 dBA.

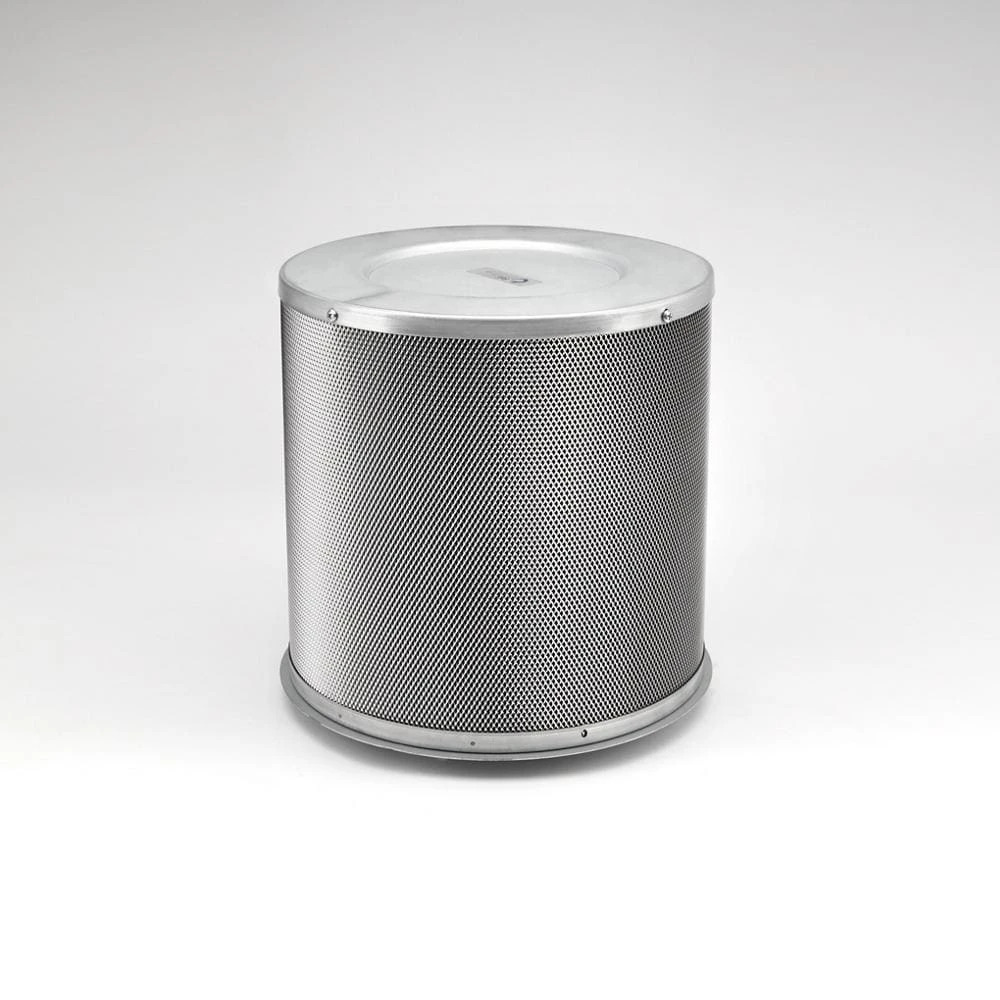

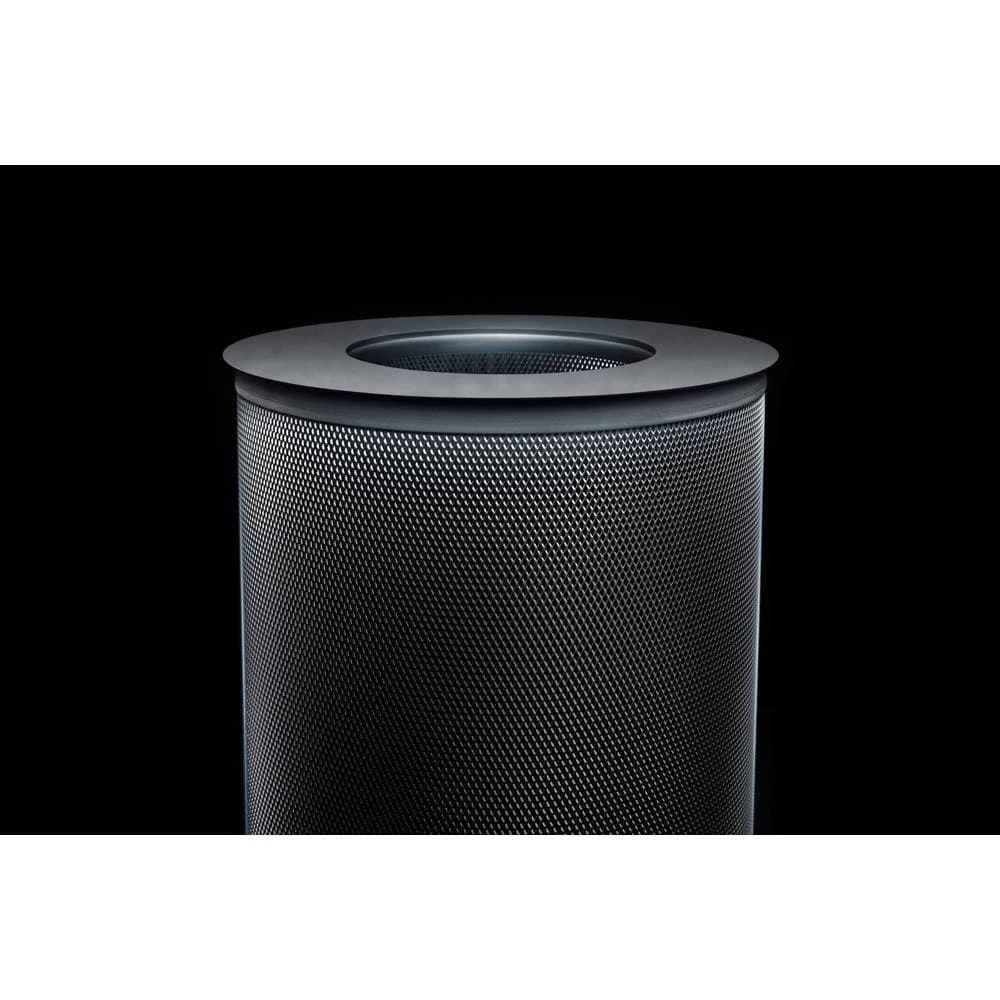

Cylindric Charcoal Refinement
No smoke and mirrors—just premier-grade charcoal removing 97% of odors and 90% of grease before air returns to your kitchen.

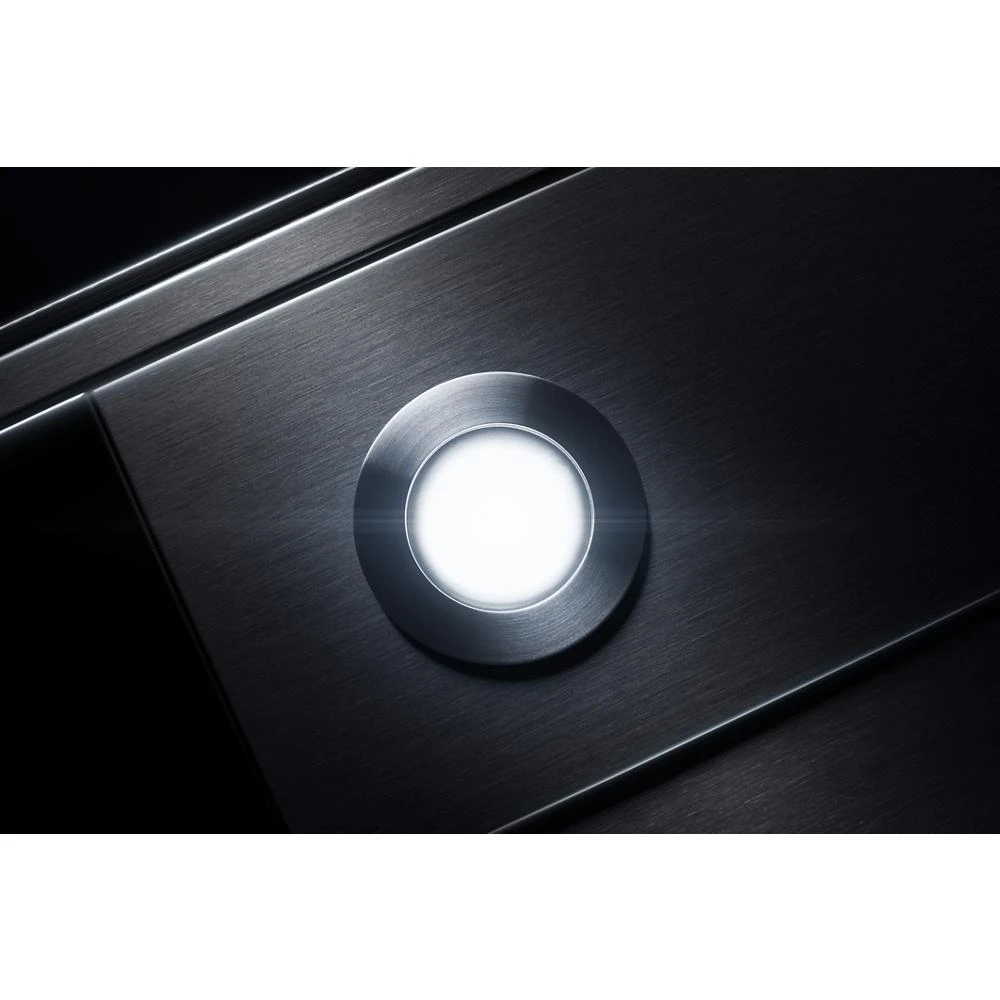

LED Lighting
LED lights instinctively come alive, chasing away shadows to reveal vivid details. Longer lasting, cooler and more efficient than incandescent bulbs.

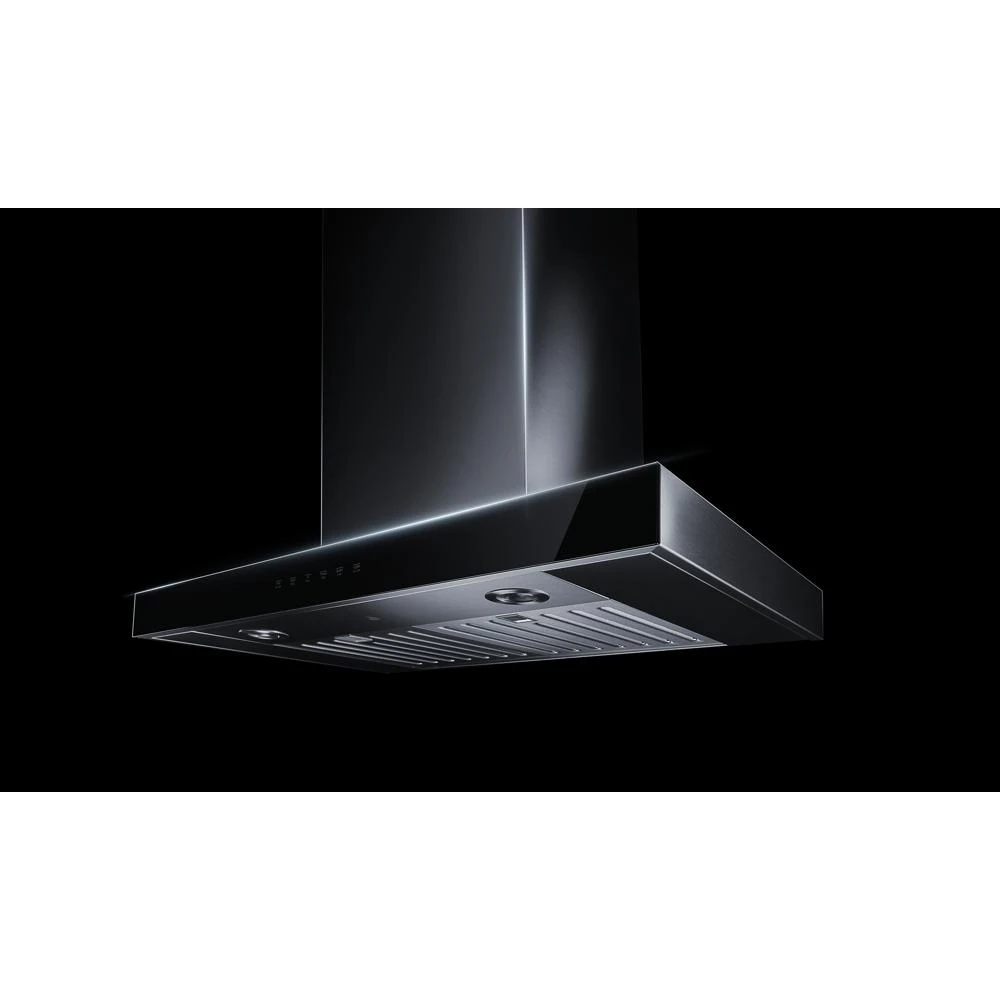

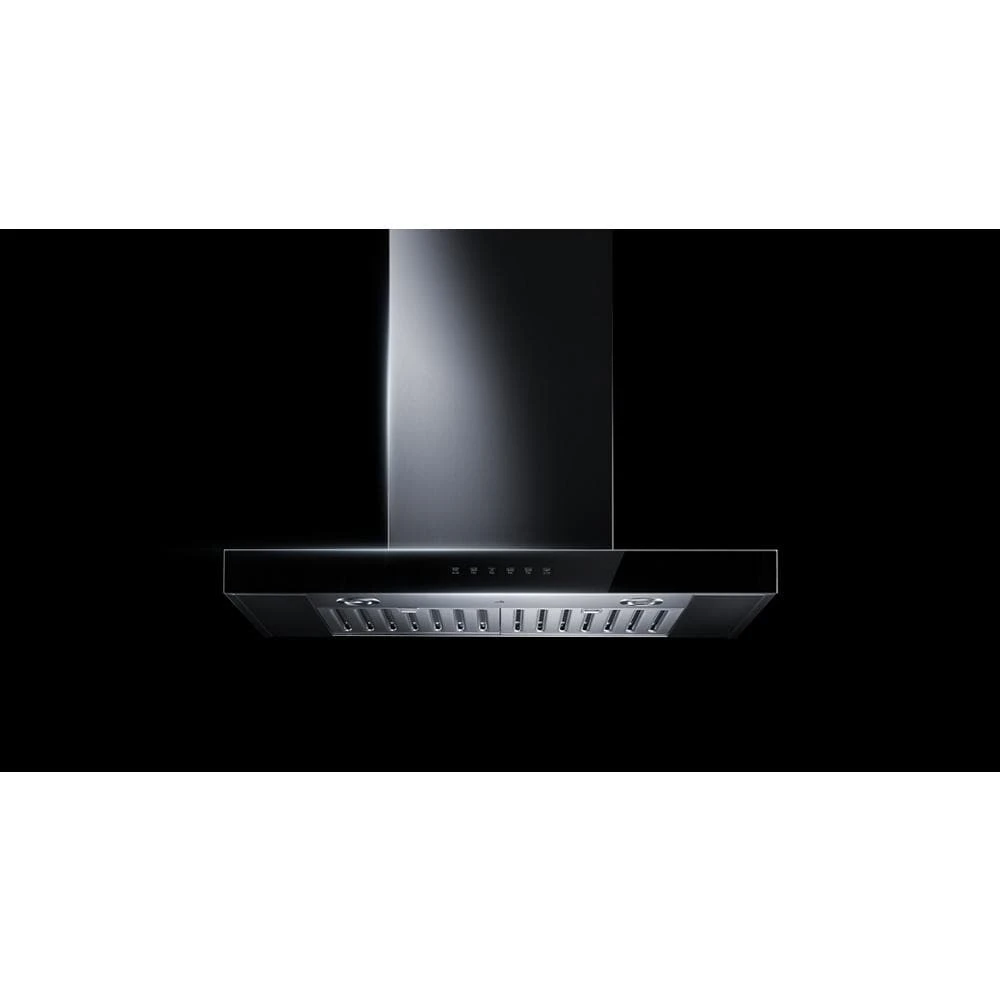

Wall-Mount Hood
Wall installation allows the hood to blend in seamlessly with kitchens that follow a more traditional layout.
High-Heat Rated
Sear fearlessly. This hood can handle the heat—mastering up to 68,000 BTUs.
Specifications
Electrical
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
| Watts | 460 |
| Power Cord Included | Yes |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.56 ft³ |
| Dimensional Weight | 156.16 lbs. |
| Total of Cubes | 12.56 ft³ |
| Total of Dimensional Weight | 156.16 lbs. |
Dimensions & Weight
| Width | 37.4 in. |
| Height | 26.5 in. |
| Length | 21.9 in. |
| Weight | 82.23 lbs. |
| Carton Depth | 21 15/16 |
| Carton Height | 26 1/2 |
| Carton Width | 37 7/16 |
| Gross Weight | 82 |
| Net Weight | 69.2 |
| Gross Weight | 82.23 |
| Canopy Height (IN,inches) | 2.37500 |
| Depth(IN,inches) | 17.9375 |
| Net Weight(LB,pounds) | 69 |
| Carton Depth(IN,inches) | 21.9375 |
| Carton Height(IN,inches) | 26.5000 |
| Carton Width(IN,inches) | 37.4375 |
| Gross Weight(LB,pounds) | 82 |
| Lower Chimney Height | 15.75 |
| Canopy Height | 2.375 |
| carton depth | 21.9 |
| carton height | 26.5 |
| carton width | 37.4 |
| gross weight | 82.23 |
| net weight | 69.23 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 37.44 in. |
| Shipping Height | 26.5 in. |
| Shipping Length | 26.9 in. |
| Shipping Weight | 122.23 lbs. |
| Total of Shipping Weight | 122.23 lbs. |
| Source | Calculation |
Details
| Hood Type | Wall Mount |
| Blower Type | Centrifugal |
| Design Expression | Lustre Stainless |
Ventilation Details
| Auto Function | Auto On |
| Blower Motor | Blower Motor Included |
| Duct Direction | Vertical |
| Duct Type | Recirculating |
| Maximum Motor CFM | 550 |
| Night Light | No |
| Venting | Recirculating |
| Filters | Charcoal Odor Removing Filter, Grease Filters |
| Lighting Control Type | Touch Button |
| Task Lighting | Yes |
| Duct Outlet Size | 6 In |
| Night Light Type | N/a |
| Task Light Type | Led |
Controls
| Control Location | Front |
| Control Type | Electronic Touch |
| Number of Vent Speeds | 4 |
Dimensions
| Canopy Height | 2-3/8 In |
| Common Size | 30 In |
| Depth | 12-5/8 In |
| Gross Weight | 82-23/100 Lbs |
| Height | 2-3/8 In |
| Net Weight | 69-23/100 Lbs |
| Width | 29-15/16 In |
Certifications
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
