Professional Pyramid Chimney Wall Hood 48" - HPCN48WS
$3,899.00
Key Features
Be reminded when you need to clean your grease filter
4 Fan speeds for the perfect air flow for any cooking situation
Commercial-style baffle filters are designed for heavy-duty high heat cooking
Powerfully Quiet system: accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
Chimney wall hood design offers a contemporary feel
Delay Shut Off & Automatic Mode: features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
LED Lighting: highlights your meal from first course to last with multi-level vivid LED Lighting.

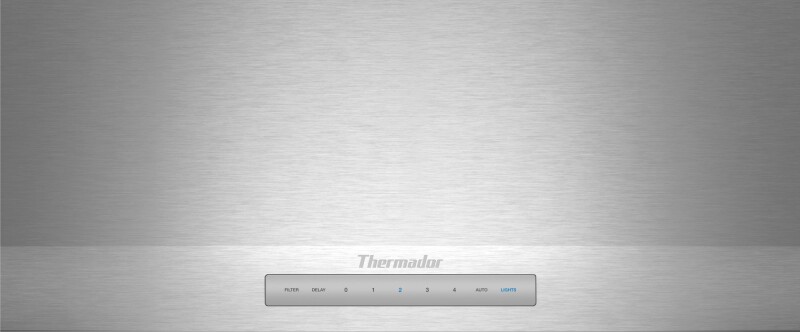

Sleek Electronic Touch Control Panel: convenient control that is easy-to-use and easy-to-clean.
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Be reminded when you need to clean your grease filter
The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
4 Fan speeds for the perfect air flow for any cooking situation
Thermador hoods can handle high-power cooking for any cooking situation with 4 fan speeds so you can choose the perfect power level to pull air and filter contaminants.

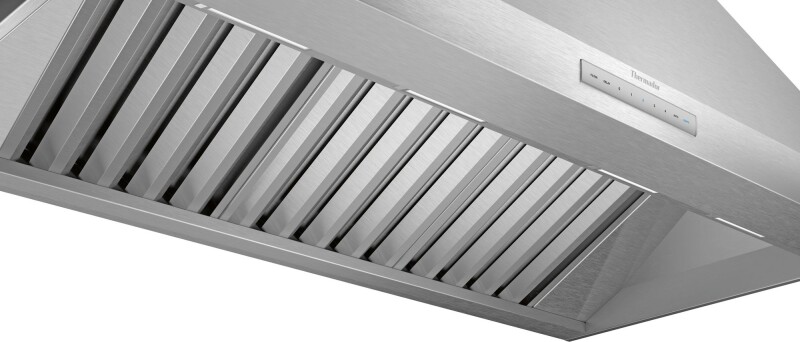

Commercial-style baffle filters are designed for heavy-duty high heat cooking
Commercial-style baffle filters are durable and designed for heavy-duty high-heat cooking. The filtration system uses interlocking baffles that effectively and efficiently captures grease and collects within the canopy grease tray preventing it from falling onto your stove, cabinet, and food.
Powerfully Quiet system: accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
Chimney wall hood design offers a contemporary feel
The Chimney design provides a focal point in the kitchen.
Delay Shut Off & Automatic Mode: features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
LED Lighting: highlights your meal from first course to last with multi-level vivid LED Lighting.
Sleek Electronic Touch Control Panel: convenient control that is easy-to-use and easy-to-clean.
Powerfully Quiet system:
accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
Delay Shut Off & Automatic Mode:
features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
LED Lighting:
highlights your meal from first course to last with multi-level vivid LED Lighting.
Sleek Electronic Touch Control Panel:
convenient control that is easy-to-use and easy-to-clean.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Construction type
| Grease Filter Material | Washable Stainless Steel |
| Installation Type | Wall-mounted |
| Material chimney | Stainless steel |
| Motor location | without motor |
| Number of motors | 0 |
| Venting | Ducted |
| Typology | Wall-mounted |
| Color body | Stainless Steel |
Connection
| Watts | 1,428 W |
| Frequency | 60 Hz |
| Total output power of the motors | 0 W |
| Volts | 120 V |
Comfort and Convenience
| Clean Filter Reminders | Yes |
| Delay Shut Off Modes | yes |
| Boost Speed | no |
| Remote Control (Accessory Sold Separately) | yes |
| ADA Compliant (When Installed to ADA requirements) | no |
Light
| Light Type | Low Consumption |
| Number of Lights | 4 |
| Color Temperature | Cold White (4.000 K) |
| Total Luminance | 150 lm |
| Heat Lamps | no |
Connectivity
| Home Connect® WiFi-enabled | no |
| Cooktop Hood Sync | no |
Other
| Required Distance Above Cooktop/Ranges | 30''/30'' |
| Damper | yes |
| Product Packaging Dimensions (HxWxD) | 29 1/4" x 52 3/8" x 23 3/16" |
| Design | Built-in |
| Venting | Ducted |
| Type of Control | Illuminated Buttons, Touch Control |
| Size | 48 Inch |
| Installation Type | Wall-mounted |
| Grease Filter Material | Washable Stainless Steel |
| Material | Stainless Steel |
| Filter Type | Baffle |
| Speed Settings | 4 Fan Speeds |
Dimensions & Weight
| Width | 47.94 in. |
| Height | 18 in. |
| Length | 24 in. |
| Weight | - |
| Product Packaging Dimensions (HxWxD) | 29 1/4" x 52 3/8" x 23 3/16" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.94 in. |
| Shipping Height | 23 in. |
| Shipping Length | 29 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.98 ft³ |
| Dimensional Weight | 148.99 lbs. |
| Total of Cubes | 11.98 ft³ |
| Total of Dimensional Weight | 148.99 lbs. |
