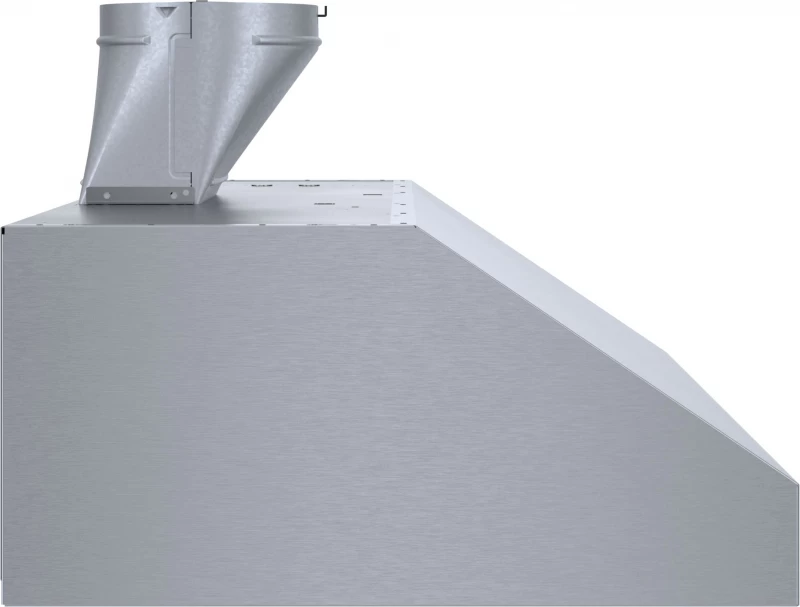

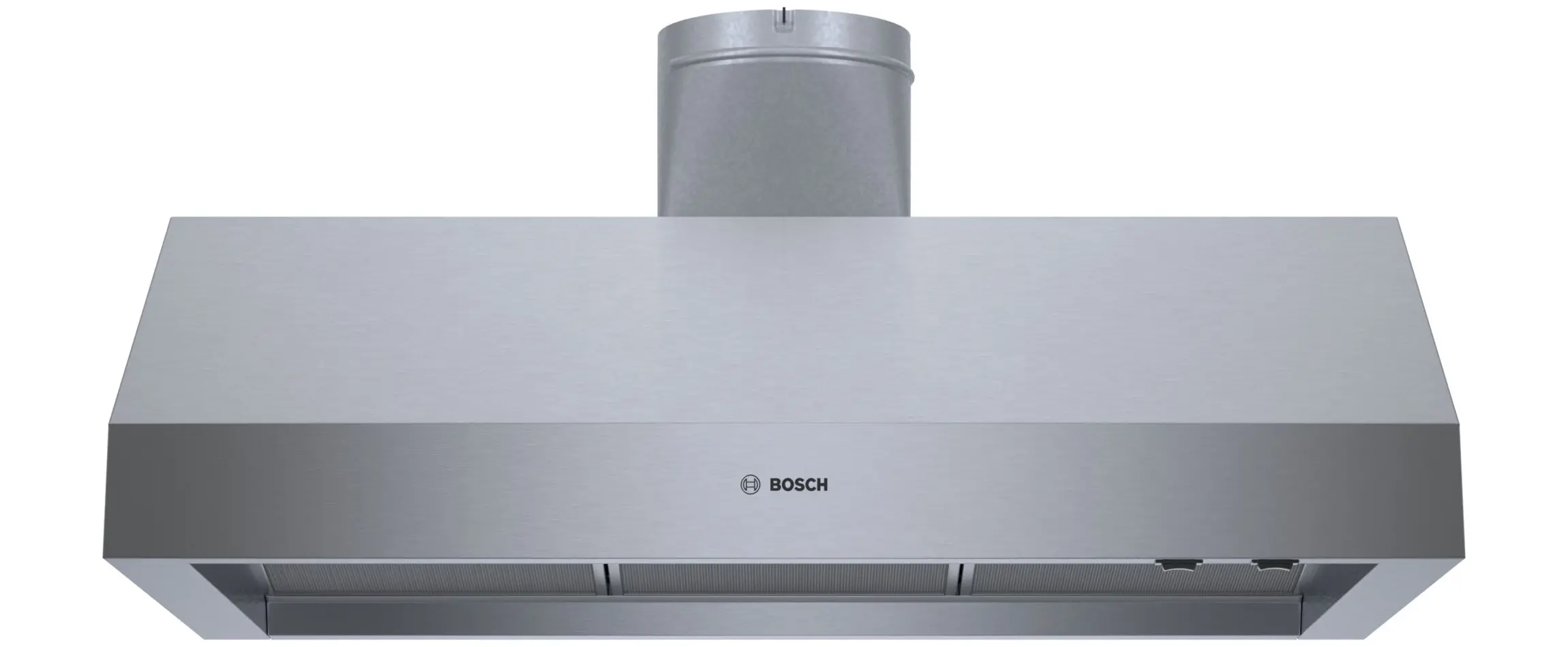

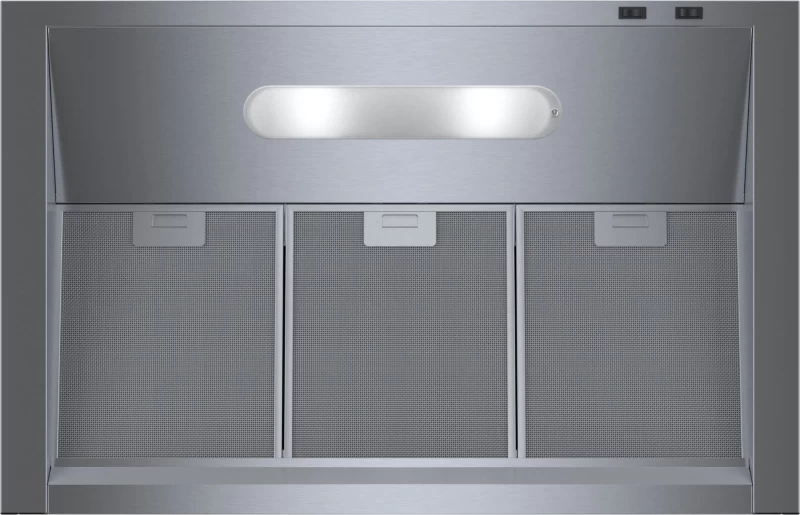

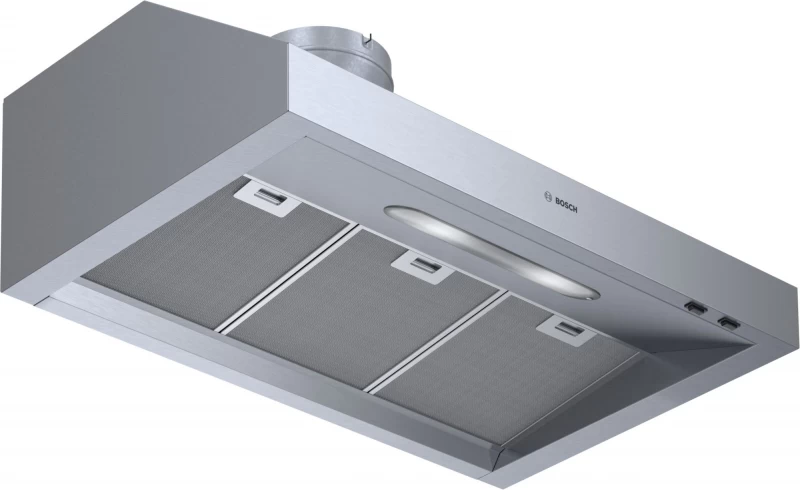

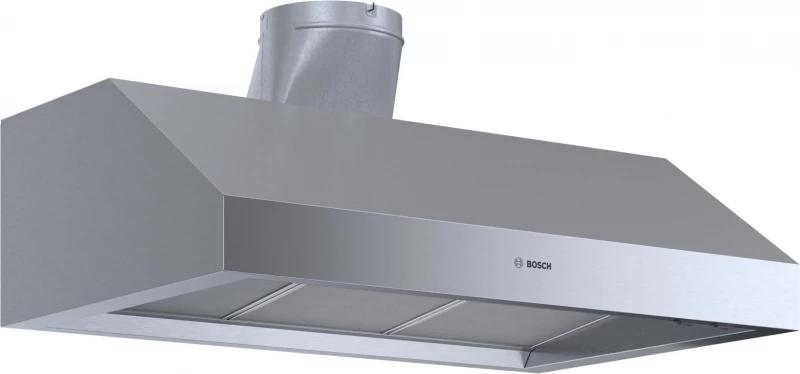

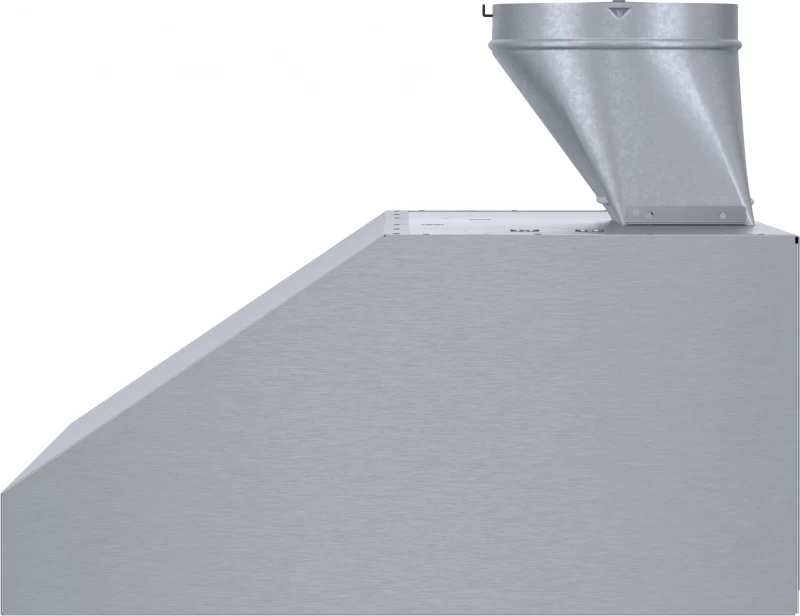

800 Series Undercabinet Hood 36'' - DPH36652UC

This product is discontinued and has been replaced by the model below.

800 Series Undercabinet Hood 36''

Model: DPH36652UC

800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC800 Series Undercabinet Hood 36'' DPH36652UC
800 Series Undercabinet Hood 36'' DPH36652UC
800 Series Undercabinet Hood 36'' DPH36652UC
800 Series Undercabinet Hood 36'' DPH36652UC
800 Series Undercabinet Hood 36'' DPH36652UC
800 Series Undercabinet Hood 36'' DPH36652UC
+3more

Color : Stainless Steel

800 Series Undercabinet Hood 36'' DPH36652UC
Stainless Steel
Replaced By

800 Series Undercabinet Hood 36''

Model: DUH86553UC

Product - DUH86553UC

$1,699.00

Was$1,899.00Save $200.00 (11%)

View Product

Key Features

  • Filters that are Dishwasher Safe

  • Can convert to Recirculation Mode

  • Get rid of odors with charcoal

  • Two Halogen Lights

  • Dishwasher Safe Filters: these mesh filters are easy to clean by putting in the dishwasher.Close

  • Recirculation Mode: With the right accesory, your kitchen can eliminate foul odors.Close

  • Absorbs Odors with Charcoal: air is passed through a charcoal filter that decreases bad odor.Close

  • Filters Solid Particles: efficiently filters grease and other solid particles out of the extracted air.

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Filters that are Dishwasher Safe

Dishwasher safe mesh filters makes cleaning and maintenance easy.

Can convert to Recirculation Mode

Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)

Get rid of odors with charcoal

When the vent hood is installed in recirculation mode, the air is picked up and passes through multiple filters including the charcoal filter that absorbs odors. This freshened air is then pushed back into the kitchen. Over time, activated charcoal particles saturate and stop blocking off odors leaving your kitchen with strong smells.

Two Halogen Lights

2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base

Dishwasher Safe Filters: these mesh filters are easy to clean by putting in the dishwasher.Close

Dishwasher safe mesh filters makes cleaning and maintenance easy.

Recirculation Mode: With the right accesory, your kitchen can eliminate foul odors.Close

Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)

Absorbs Odors with Charcoal: air is passed through a charcoal filter that decreases bad odor.Close

When the vent hood is installed in recirculation mode, the air is picked up and passes through multiple filters including the charcoal filter that absorbs odors. This freshened air is then pushed back into the kitchen. Over time, activated charcoal particles saturate and stop blocking off odors leaving your kitchen with strong smells.

Filters Solid Particles: efficiently filters grease and other solid particles out of the extracted air.

Two Speeds: Switch between two different speed levels to best suit your cooking style.

Dishwasher Safe Filters:

these mesh filters are easy to clean by putting in the dishwasher.

Recirculation Mode:

With the right accesory, your kitchen can eliminate foul odors.

Absorbs Odors with Charcoal:

air is passed through a charcoal filter that decreases bad odor.

Filters Solid Particles:

efficiently filters grease and other solid particles out of the extracted air.

Two Speeds:

Switch between two different speed levels to best suit your cooking style.

Specifications

Connectivity

Home Connect™no
Cooktop-Based Hood Controlno

Construction type

ColorStainless Steel
Grease Filter MaterialWashable Aluminum
Grease filter typeMultilayer cassette
Installation TypeBuilt-under
MaterialStainless Steel
Motor locationIntegrated motor in hood body
Number of motors1
TypologyBuilt-in/Built-under

Connection

Watts253 W
Frequency60 Hz
Total output power of the motors214 W
Volts120 V

Warranty

Parts1 Year
Labor1 Year

Comfort and Convenience

Clean Filter RemindersNo
Delay Shut Off Modesno
Boost Speedno
Remote Controlno
ADA Compliant (When Installed to ADA requirements)no

Light

Light TypeBulbs
Number of Lights2
Total Luminance123 lm
Heat Lampsno

Dimensions & Weight

Width36 in.
Height11 in.
Length23 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width41 in.
Shipping Height16 in.
Shipping Length28 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.27 ft³
Dimensional Weight65.53 lbs.
Total of Cubes5.27 ft³
Total of Dimensional Weight65.53 lbs.
