48" Custom Hood Insert - UVC9480SLSS

48" Custom Hood Insert

Model: UVC9480SLSS

48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS48" Custom Hood Insert UVC9480SLSS
48" Custom Hood Insert UVC9480SLSS
48" Custom Hood Insert UVC9480SLSS
48" Custom Hood Insert UVC9480SLSS
48" Custom Hood Insert UVC9480SLSS
48" Custom Hood Insert UVC9480SLSS
+15more

Product Video

Cafe 48" Custom Hood Insert Stainless Steel UVC9480SLSS Picture
rebate iconRebate Available

Color : Stainless Steel

48" Custom Hood Insert UVC9480SLSS
Stainless Steel

Current Rebates

Café + NMG: Up to $4,000 Exclusive Rebate
Expires: June 30, 2026

Key Features

  • LED Hood Light

  • 1200 CFM Range Hood Blower Motor

  • Built-In WiFi

  • ADA Compliant

  • Baffle Filters

  • Chef Connect

  • Backlit Push Button Controls

  • 4-Speed Fan

Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

LED Hood Light

Get a bright view of your cooktop as you prepare your favorite meals with LED lighting in this range hood

1200 CFM Range Hood Blower Motor

This high-CFM range hood offers powerful ventilation that keeps your kitchen fresh and free of cooking fumes and odors

Built-In WiFi

This smart range hood lets you adjust vent speed and turn on lights using your phone, for the ultimate in kitchen convenience

ADA Compliant

This ADA compliant range hood can be operated with a mobile device, eliminating reaching and improving safety for users of all abilities

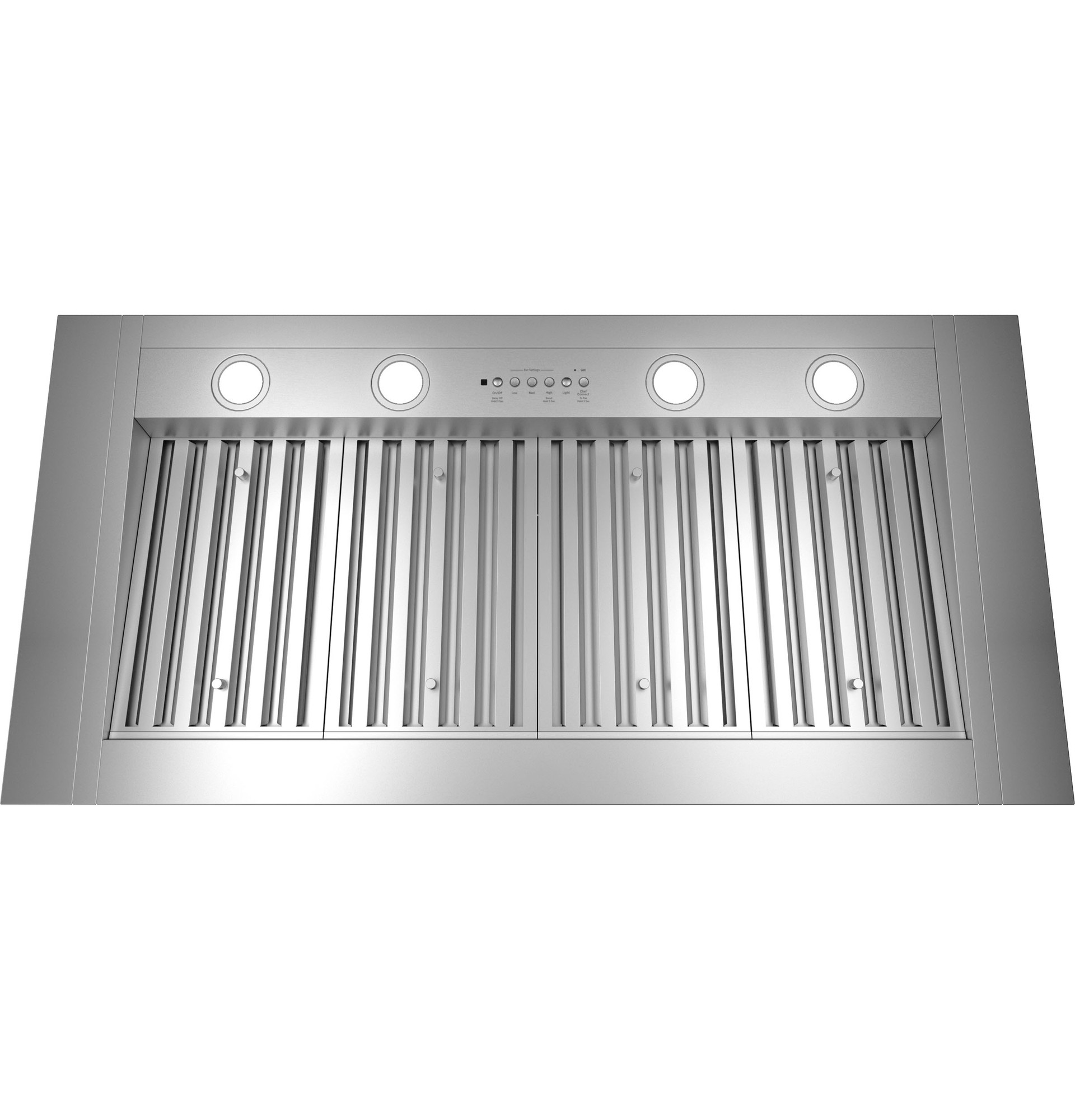

Baffle Filters

The baffle filters in this range hood trap more grease and require less frequent cleaning than standard filters

Chef Connect

Synchronize your oven and GE Appliances hood insert so the hood turns on when the cooktop turns on and the lights illuminate when a burner is activated

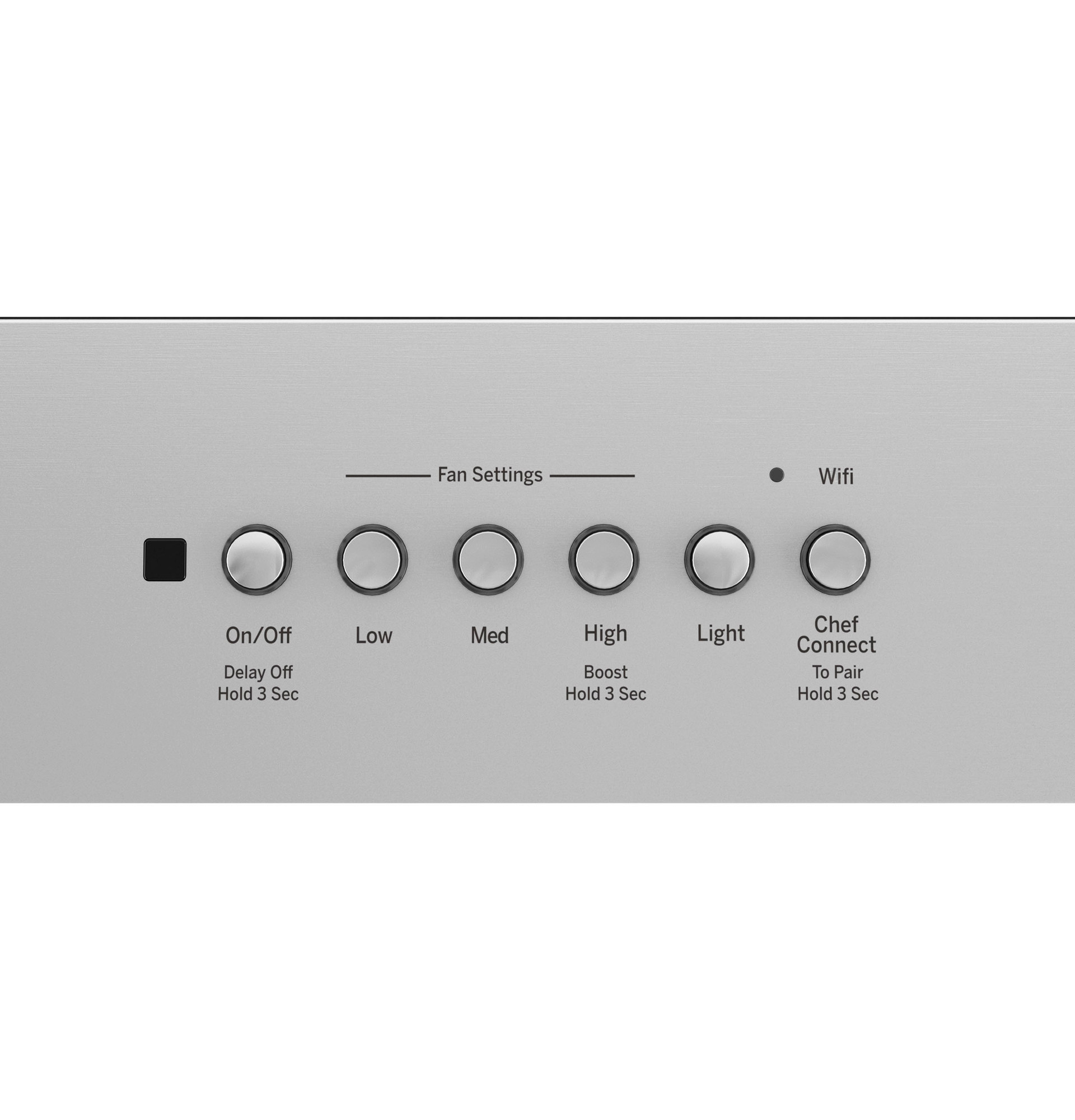

Backlit Push Button Controls

Easily operate this range hood with push buttons that are illuminated from behind and simple to find and reach

4-Speed Fan

Have strong ventilation at four fan speeds that you can adjust to match your cooking techniques

Night Light Setting

Turn on the range hood night light setting for a soft glow in the kitchen at night

Heat Sensor

This temperature sensor range hood will automatically turn on if the heat sensor detects high temperatures, preventing damage by reducing heat

Customizable Fit

The included side panels are designed to seamlessly attach to the hood insert, allowing it to perfectly fit into a 45" cutout.

Control at your fingertips

Share your favorite stories without interruption thanks to an included remote control that can change lighting and fan speed settings from anywhere in the kitchen

Specifications

FEATURES

Baffle Stainless Steel Filters4
Blower Levels4 Including Boost
Charcoal FilterYes
Control FeaturesPower On/Off
Control FeaturesLight Off/On/Night Light
Control FeaturesFan Speed (+) (-)
Control FeaturesFan Speed Boost
Control FeaturesDelay Off
Control FeaturesTime to clean filter warning (in app feature)
Control TypePushbutton
Control TypeBacklit
Cooktop Lighting4
Cooktop LightingLED
Dual BlowersYes
Exhaust OptionsVertical
Exhaust Options10 in. Round Duct
LightingLED
LightingOn/Off/Night Light
Product TypeCustom Hood Insert
Recirculating CapableNo
Remote ControlIncluded
Removable FilterYes
Required Duct Size10 in. Round
Sones Rating : Top Exhaust-Round10.0
Time Delay Shut-OffYes
Variable Speed FanYes
Vertical Exhaust Blower Rating (CFM)1220
WiFi ConnectBuilt-In
CFM/ Sones Rating780/7.0 (Boost speed) - Vertical venting
Max CFM780
Control FeaturesHeat Sensor
Connected CapabilitiesAmazon Alexa
Connected CapabilitiesGoogle Home
CollectionStatement
CollectionMinimalist
Control FeaturesChef Connect

APPEARANCE

Color AppearanceStainless Steel
Custom InsertYes
Design StyleCustom
MaterialSteel

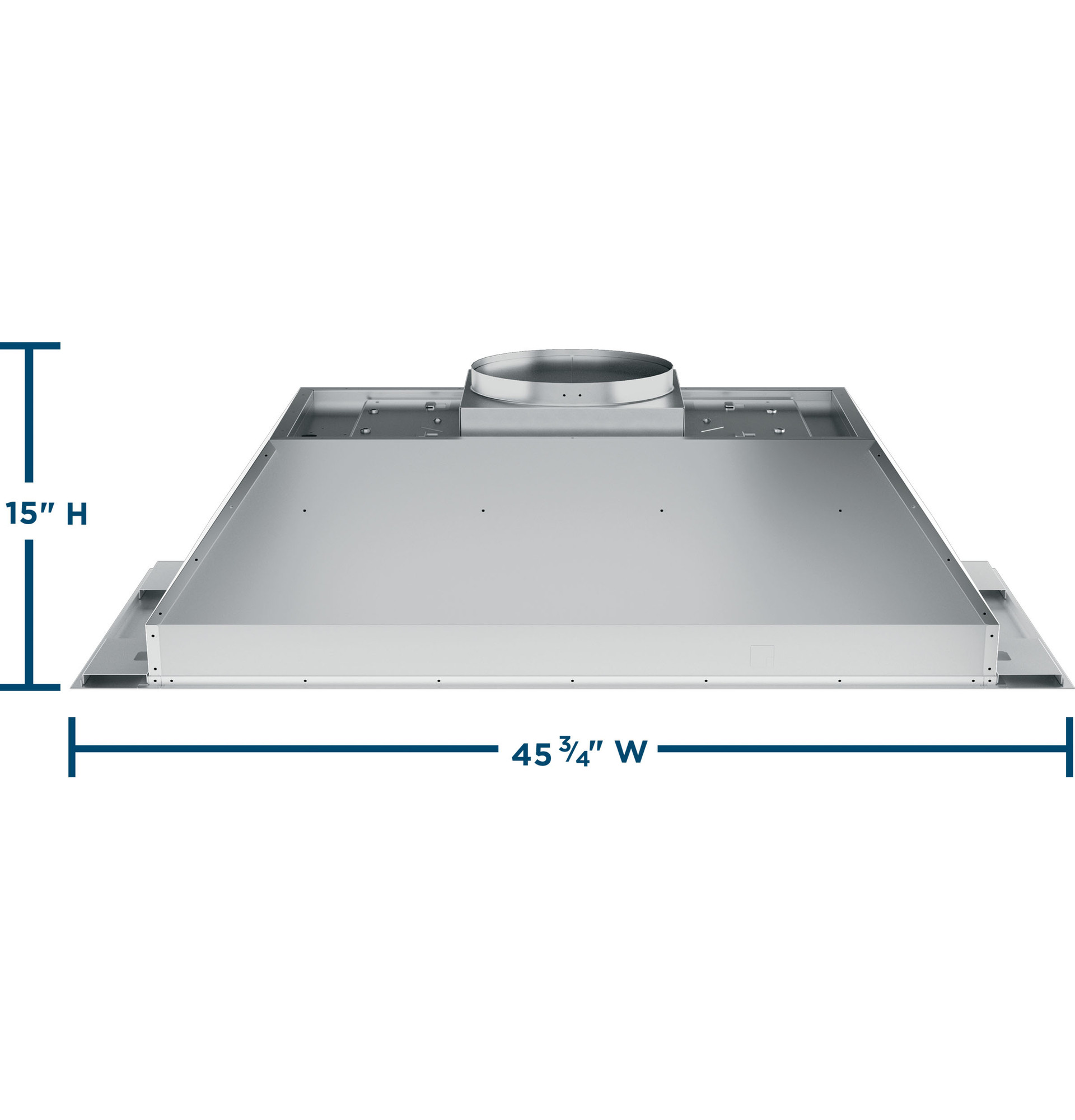

WEIGHTS & DIMENSIONS

Approximate Shipping Weight121 lb
Cabinet Width48 in
Net Weight97 lb
Overall Depth21.875 in
Overall Height12.5 in
Overall Width with side panels installed46.3125 in
Overall Width39.625 in

POWER / RATINGS

Amp Rating at 120V6.0
Electrical Requirements120V ; 60Hz ; 6.0A
Hertz60
Watts470

ACCESSORIES

Optional AccessoriesJXHC1 - Power Cord Kit

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

ECONOMICAL / QUIET

Venting TypeExternally Vented
