4.8 Cu. Ft. Guided Electric Front Control Range With The Easy-wipe Ceramic Glass Cooktop - WEE510S0FB
4.8 Cu. Ft. Guided Electric Front Control Range With The Easy-wipe Ceramic Glass Cooktop
Model: WEE510S0FB
4.8 Cu. Ft. Guided Electric Front Control Range With The Easy-wipe Ceramic Glass Cooktop
Model: WEE510S0FB
Color : Black
Key Features
Guided Cooktop Controls
FlexHeat™ Dual Radiant Elements
Frozen Bake™ Technology
Documents
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

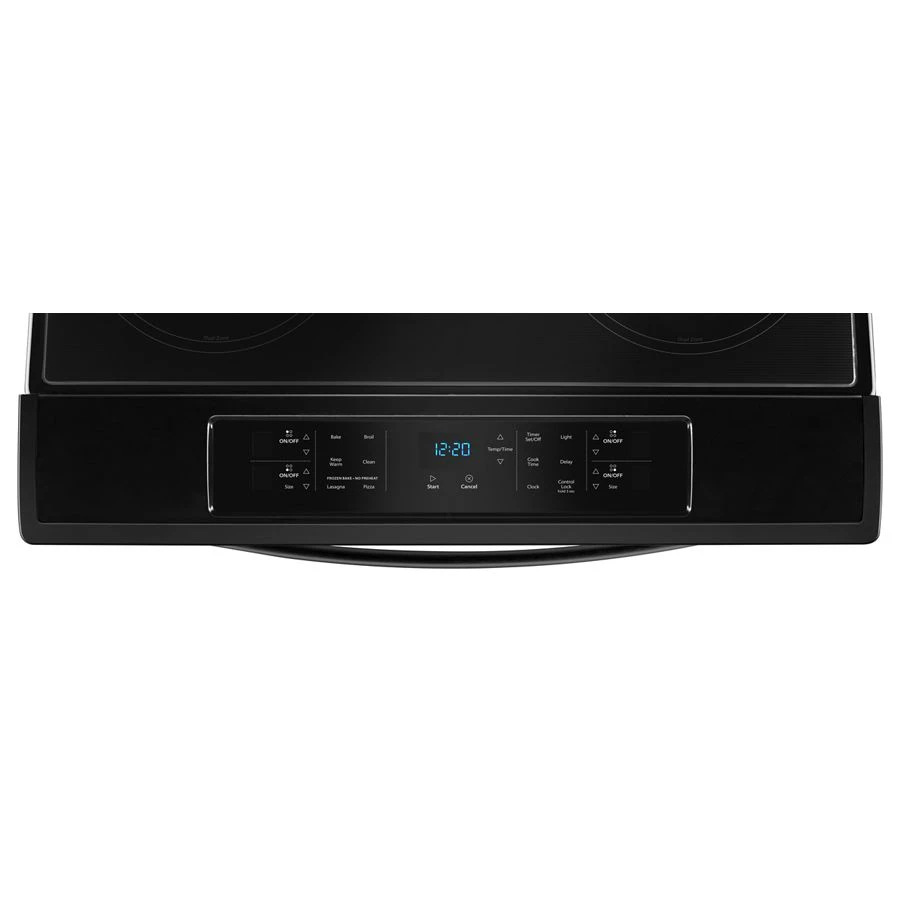

Guided Cooktop Controls
Control the heat without the guesswork. The knobless design uses up/down arrows to select the temperature you need, while heat level indicators show when you are simmering and melting.

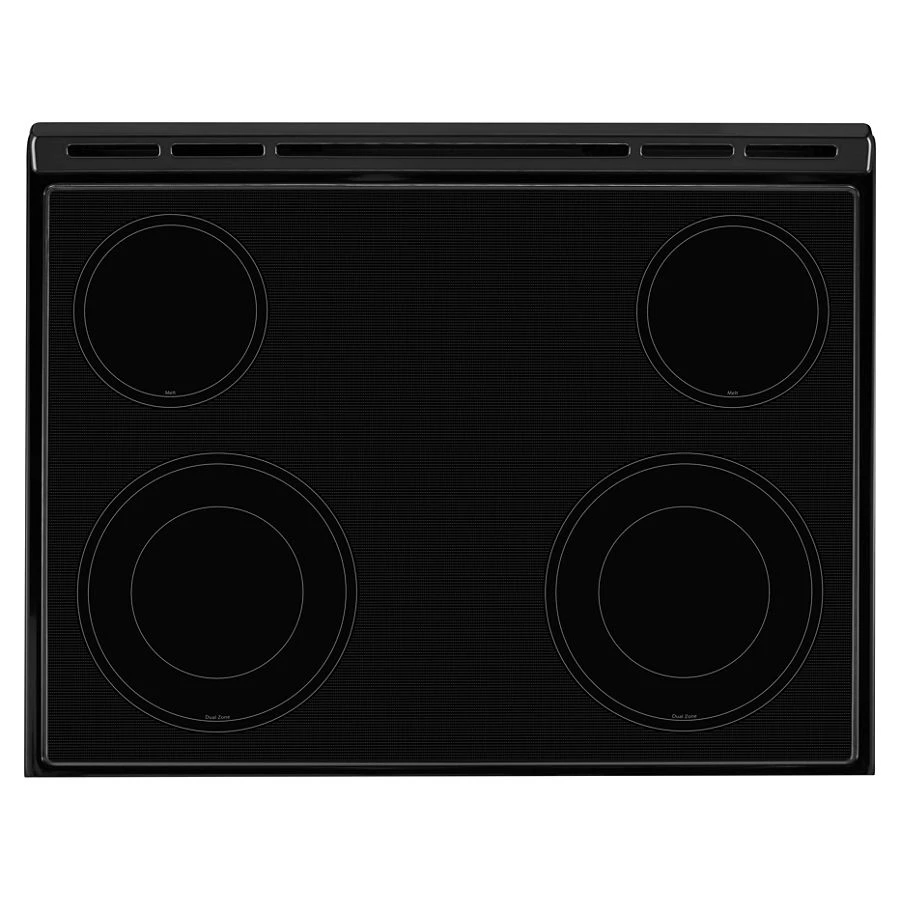

FlexHeat™ Dual Radiant Elements
Get two elements in one with a 6" inner ring that’s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.
Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Specifications
Other
| Capacity | 4.8 cu. ft. |
| Common Size | 30 in |
| Capacity | 4.8 cu. ft. |
| Common Size | 30 in |
| Capacity | 4.8 cu. ft. |
| Common Size | 30 in |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 18.51 ft³ |
| Dimensional Weight | 230.12 lbs. |
| Total of Cubes | 18.51 ft³ |
| Total of Dimensional Weight | 230.12 lbs. |

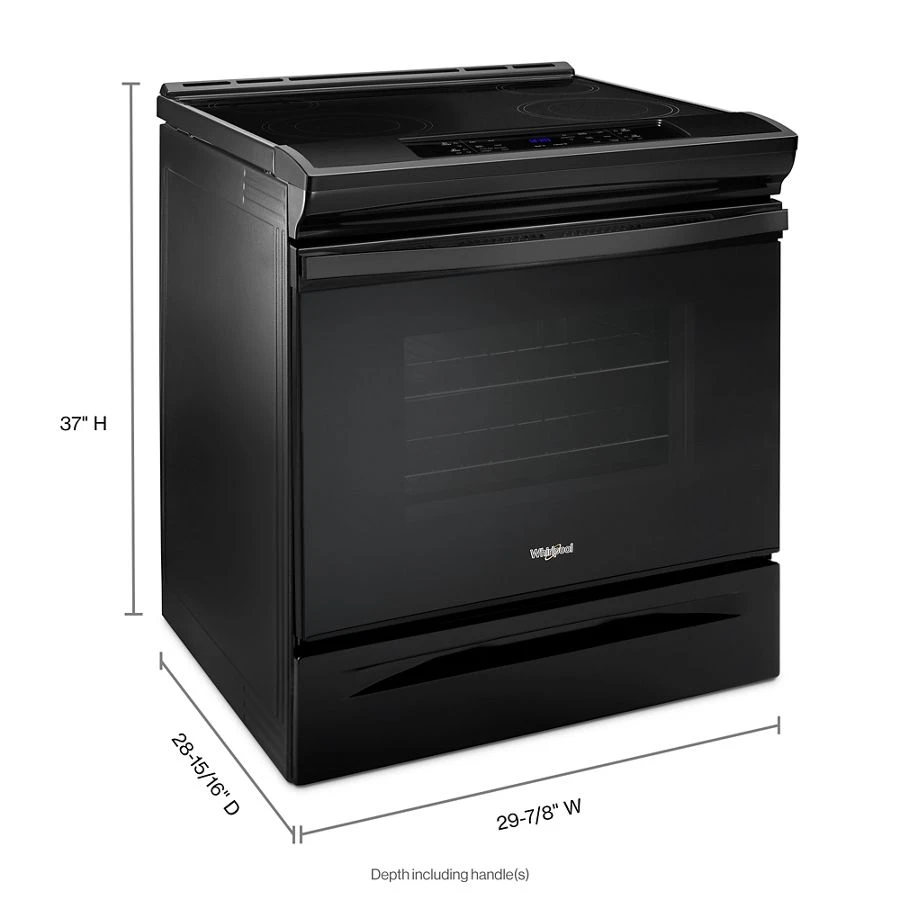

Dimensions
| Capacity | 4.8 cu. ft. |
| Common Size | 30 in |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30-1/8 in |
| Depth | 28-15/16 in |
| Depth With Door Open 90 Degree | 47-3/8 in |
| Depth Closed Excluding Handles | 28-1/8 in |
| Maximum Height | 37 in |
| Minimum Height | 36 in |
| Net Weight | 175 lbs |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Width | 24-1/2 in |
| Width | 29-7/8 in |
| Gross Weight | 172 lbs |
Cooktop Details
| Cooktop Control Location | Front |
| Cooktop Surface Color | Black on Stainless |
| Cooktop Surface Material | Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |

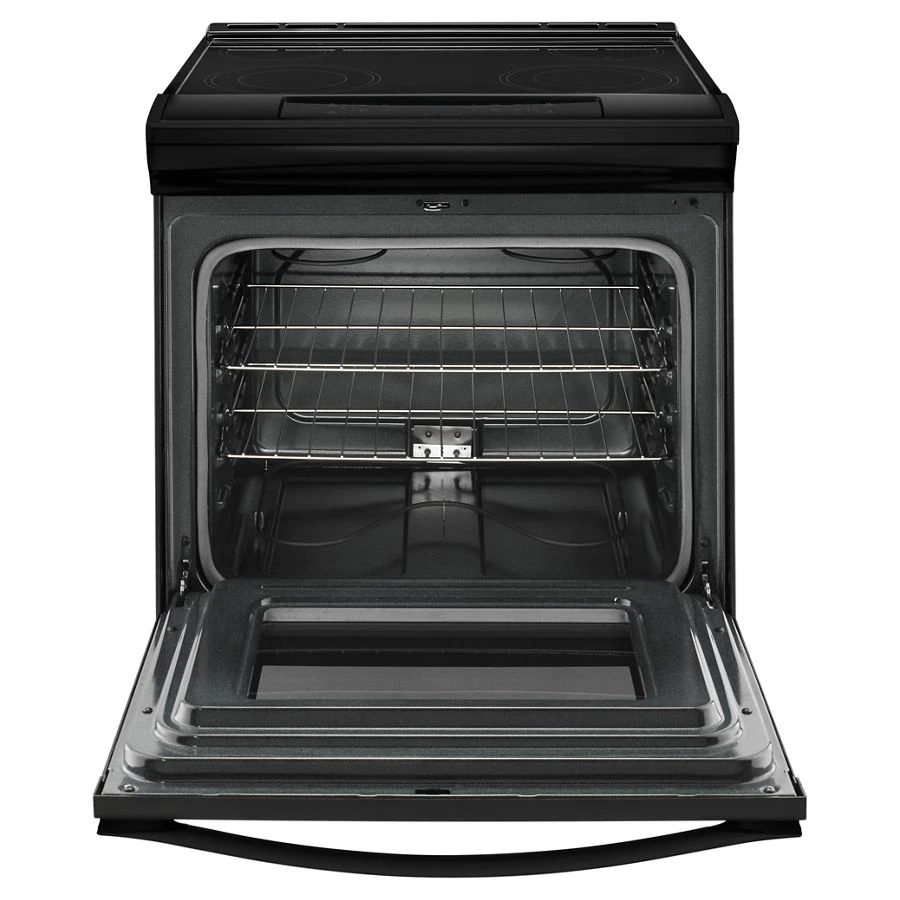

Oven Cavity Details
| Convection Element Type | None |
| Convection Functions | No |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Interior Color | Grey |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard (Both) |
| Bake Element Power | 2,400 W |
| Broiler Element Power | 3,400 W |
Exterior Details
| Door Type | Metal & Glass |
| Oven Control Location | Front |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
Details
| Fuel Type | Electric |
| Oven Configuration | Single Oven |
| Oven Selections | Audible Signal, Clock, Control Lock, Cook Time Indicator, Delay Start, Frozen Bake, Sabbath Mode, Timer, Warm Hold |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
Element/Burner Details
| Cooktop Element Style | Smoothtop |
| Left Front Element-Burner Size | 9in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant |
| Number of Cooking Element-Burners | 4 |
| Right Front Element-Burner Size | 9in./6in. |
| Right Front Element-Burner Type | Dual |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Radiant |
| Left Front Element-Burner Power | 3,000W |
| Left Rear Element-Burner Power | 1,200W |
| Right Front Element-Burner Power | 3,000W |
| Right Rear Element-Burner Power | 1,200W |
Controls
| Display Color | Blue |
| Electronic Display Type | LED |
Refinements
| Features | ADA Compliant, FlexHeat™ Dual Element, Frozen Bake™ Technology, Guided Cooktop Controls, Sabbath Mode/Star-K Certification, Self-Cleaning, Whirlpool Handle |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 120 |
Features
| Range Features | ADA Compliant, FlexHeat™ Dual Element, Frozen Bake™ Technology, Guided Cooktop Controls, Sabbath Mode/Star-K Certification, Self-Cleaning, Whirlpool Handle |
Certifications
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 37 in. |
| Length | 28.94 in. |
| Weight | 180 lbs. |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30-1/8 in |
| Depth With Door Open 90 Degree | 47-3/8 in |
| Depth Closed Excluding Handles | 28-1/8 in |
| Gross Weight | 180 lbs |
| Maximum Height | 37 in |
| Minimum Height | 36 in |
| Net Weight | 175 lbs |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Width | 24-1/2 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 42 in. |
| Shipping Length | 33.94 in. |
| Shipping Weight | 220 lbs. |
| Total of Shipping Weight | 220 lbs. |
| Source | Calculation |
