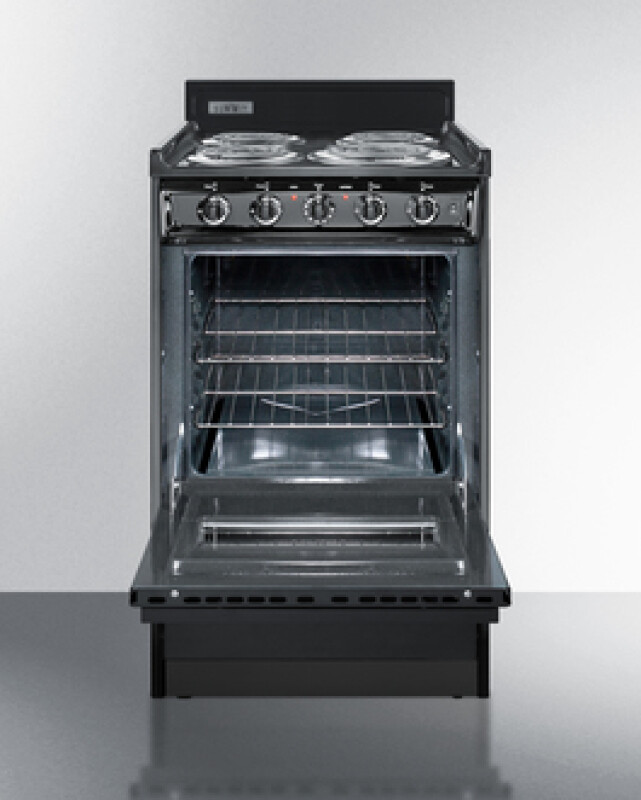

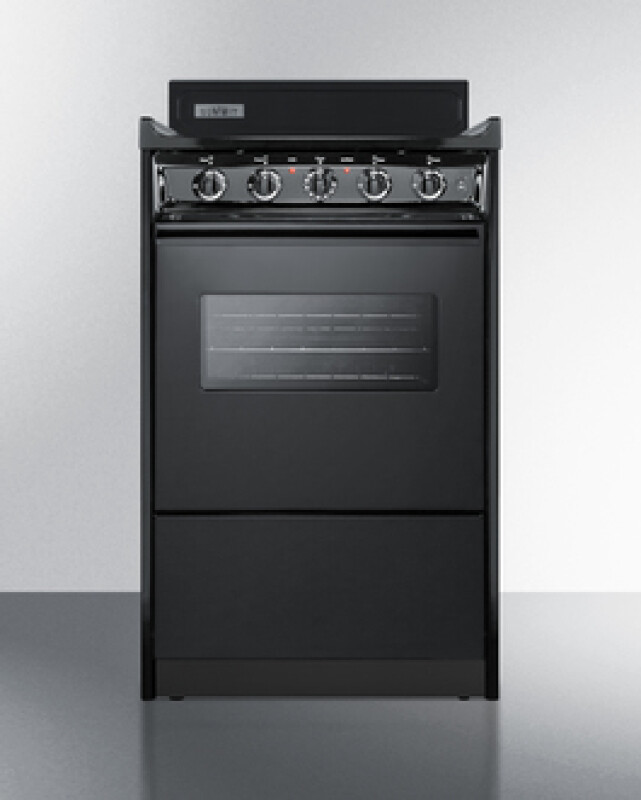

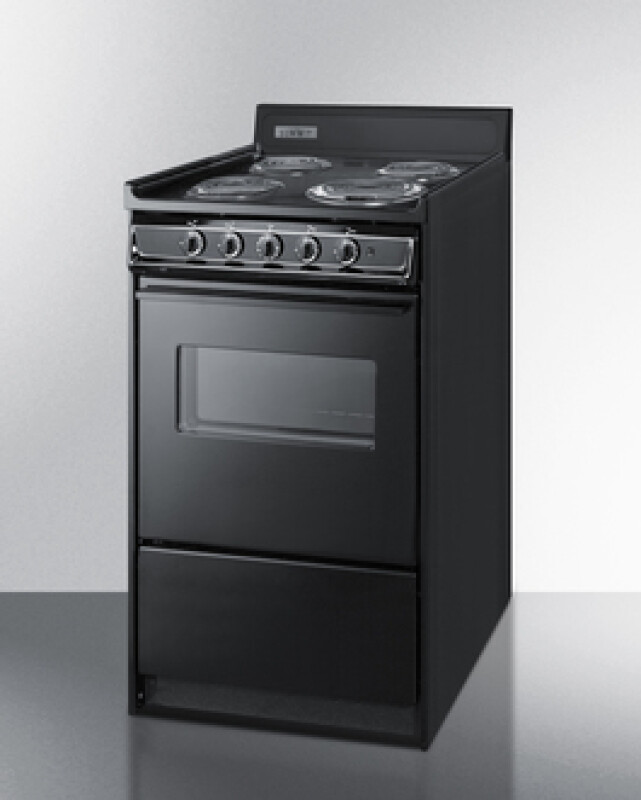

20" Wide Electric Coil Range - TEM110CW
20" Wide Electric Coil Range
Model: TEM110CW
20" Wide Electric Coil Range
Model: TEM110CW
Color : Black
Key Features
Safety burners with low wattage outputs
Made in the USA
Slim 20 inch width
24 inch depth
Chrome drip pans
Four coil elements
Oven window and interior lighting
Lower storage compartment
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Safety burners with low wattage outputs
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Made in the USA
Designed and constructed domestically
Slim 20 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint
24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
Chrome drip pans
Each element includes a removable chrome pan for easier cleaning
Four coil elements
Three standard 6" and one large 8" element
Oven window and interior lighting
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Lower storage compartment
Keep pots and pans inside the lower compartment for easy storage
Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction
Solid construction built to hold up to everyday use
Upfront controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn burner knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Removable oven door and range top
Allows for easier cleaning as needed
Broiler tray included
Two-piece porcelain broiler tray with grease well
Anti-tip bracket
Included for user installation to help prevent tipping
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 20 in. |
| Height | 40 in. |
| Length | 24 in. |
| Weight | 140 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.11 ft³ |
| Dimensional Weight | 138.13 lbs. |
| Total of Cubes | 11.11 ft³ |
| Total of Dimensional Weight | 138.13 lbs. |
Overview Electric Range
| Nominal Height | 40.0" (102 cm) |
| Height of Cabinet | 40.0" (102 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 20.0" (51 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Amps | 23.2 |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101019574 |
| Oven Capacity | 2.46 cu.ft. (70 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 975.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Window | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 16.0" (41 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Storage Compartment | Yes |
| Broiler Location | Inside Oven |
| Oven Door | Black |
