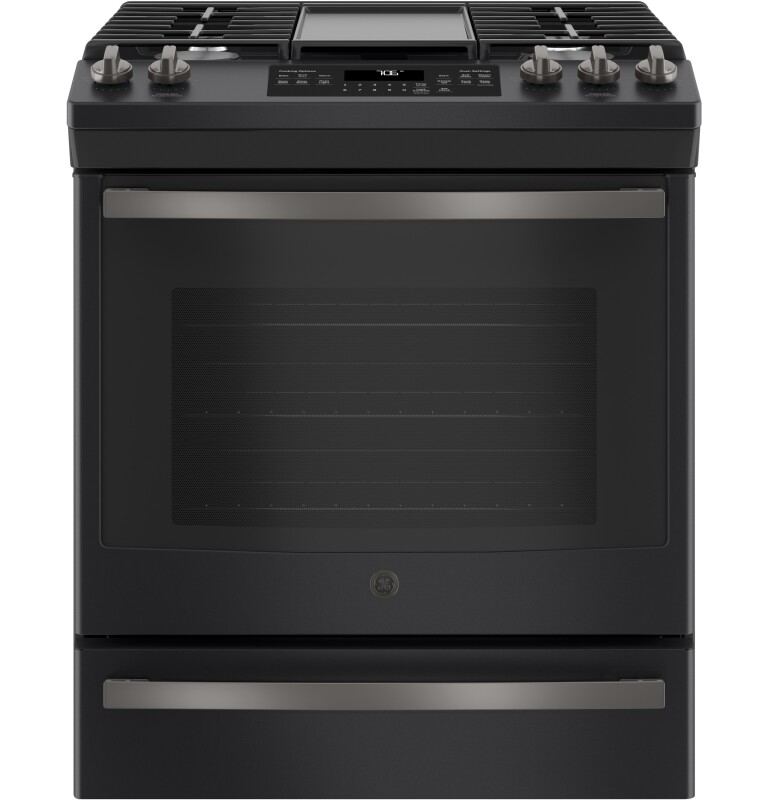

30" Slide-In Front-Control Convection Gas Range - JGS760FELDS
30" Slide-In Front-Control Convection Gas Range
Model: JGS760FELDS














Product Video

30" Slide-In Front-Control Convection Gas Range
Model: JGS760FELDS
Key Features
Fit Guarantee
Edge-to-edge cooktop
Extra-large integrated griddle
18,000 BTU Power Boil burner
Gas convection
Self-clean with Steam Clean option
10,000 BTU oval burner
Heavy duty, dishwasher safe grates
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Fit Guarantee
Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.

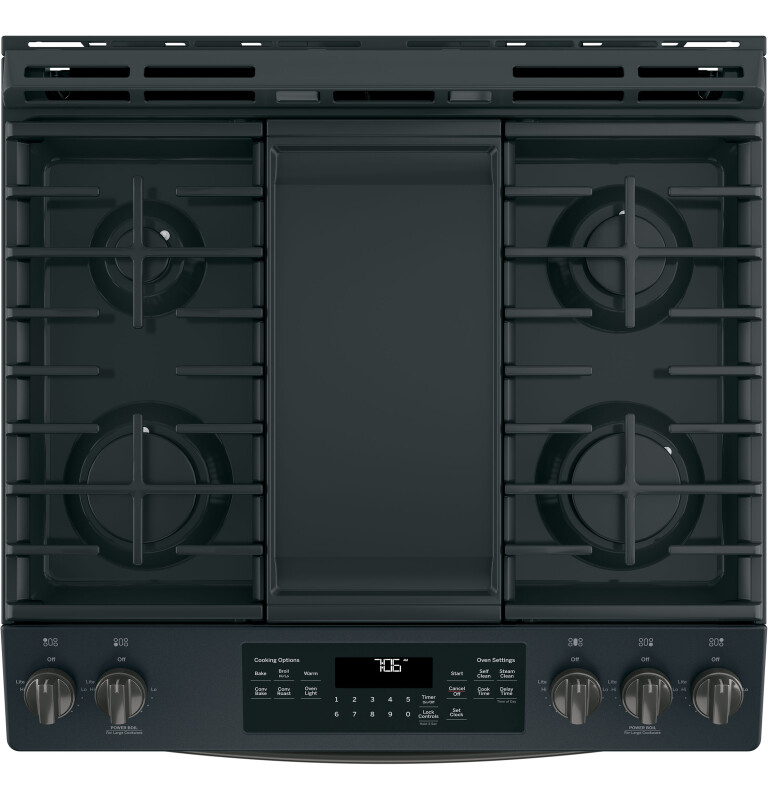

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
Extra-large integrated griddle
Cook up to six grilled cheeses at once on the industry’s largest integrated griddle
18,000 BTU Power Boil burner
Prepare your favorite pasta dishes faster by boiling water in less time

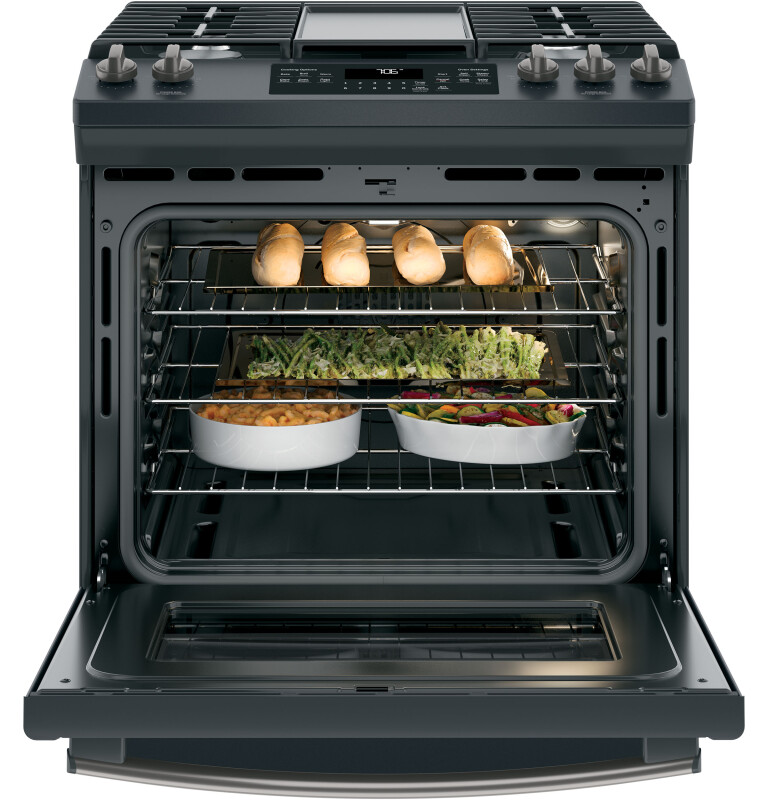

Gas convection
Evenly bake foods like roasts and cookies with this helpful feature that uses a fan to circulate heated air

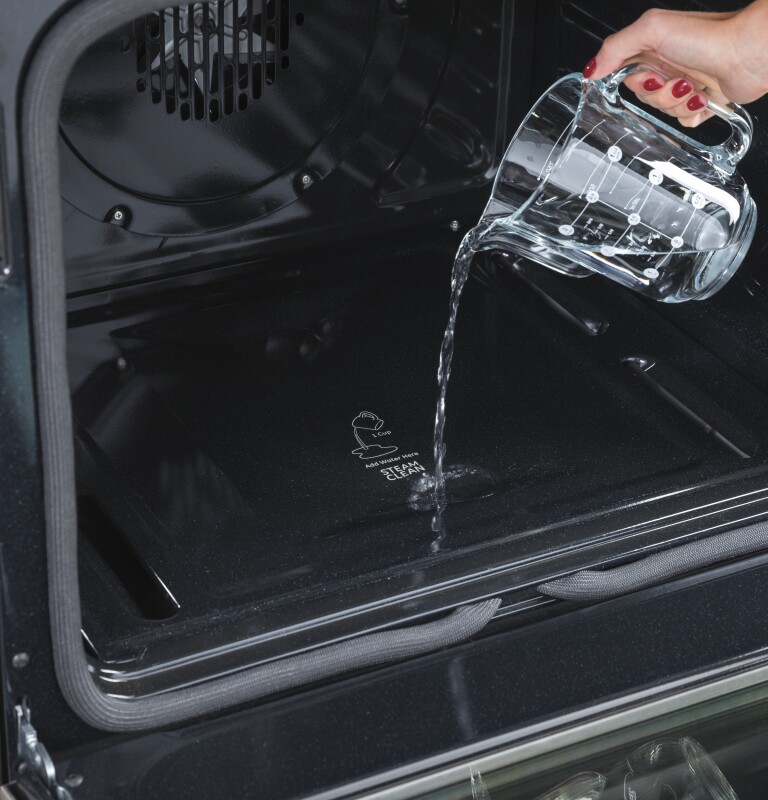

Self-clean with Steam Clean option
Clean your oven the way you want
10,000 BTU oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
Precise Simmer burner
Delicate foods don’t burn with low, even heat
Smooth-glide storage drawer
Drawer opens and closes easily for instant access and extra storage
Certifications
ADA Compliant
CSA
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

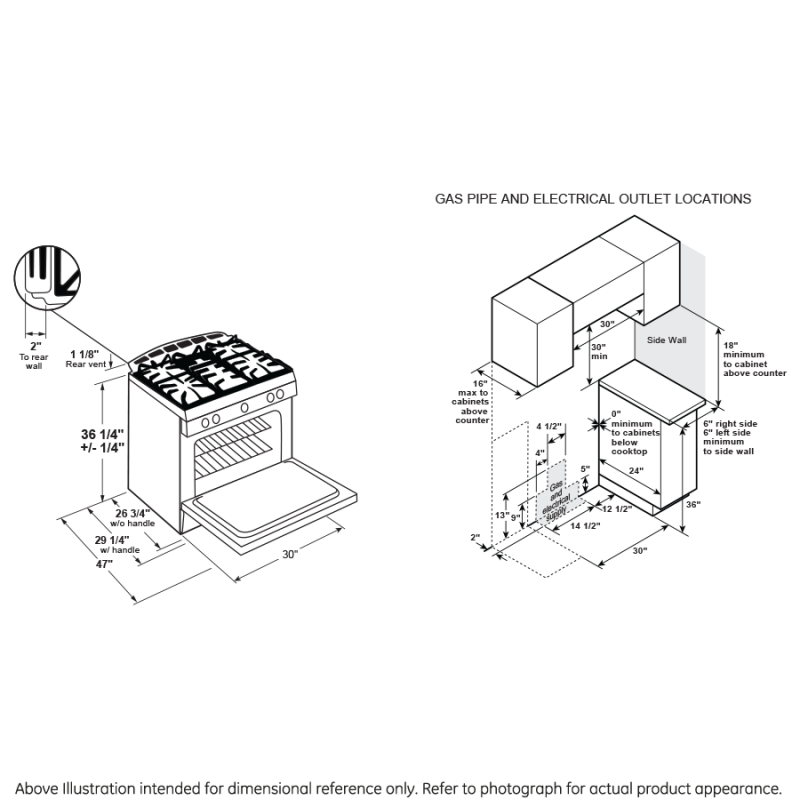

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 36.25 in |
| Overall Depth | 29.25 in |
| Net Weight | 224 lb |
| Depth Without Handle | 26.75 in |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 244 lb |
| Cabinet Opening | 30 in |
| Height to Top of Rear Vent Trim | 37.375 in |
| Depth with Door Open | 47.5 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
Other
| Cabinet Opening | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
Dimensions & Weight
| Width | 30 in. |
| Height | 36.25 in. |
| Length | 29.25 in. |
| Weight | 224 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 41.25 in. |
| Shipping Length | 34.25 in. |
| Shipping Weight | 264 lbs. |
| Total of Shipping Weight | 264 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 18.41 ft³ |
| Dimensional Weight | 228.84 lbs. |
| Total of Cubes | 18.41 ft³ |
| Total of Dimensional Weight | 228.84 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Installation | Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Handle Color | Black Stainless |
| Control Knobs | Black Stainless |
| Color Appearance | Fingerprint Resistant Black Slate |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Oven Interior | Black |
| Oven Rack Features | 3 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Integrated (Included) |
| Product Type | Slide-In Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |

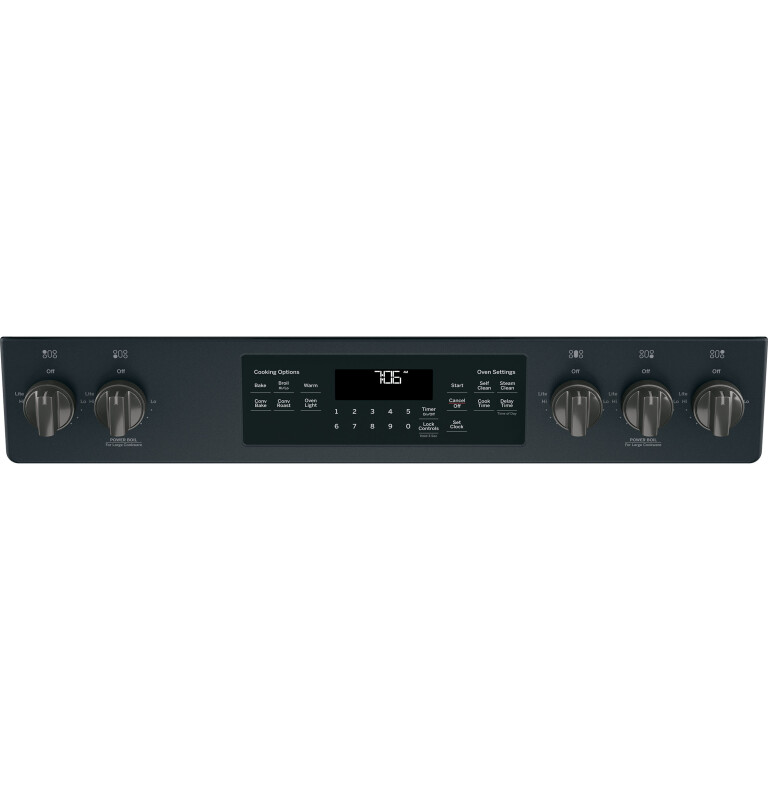

| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU |
| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Smooth Glide Storage Drawer |
| Oven Cooking Modes | Convection Roast |
| Cooktop Burner Type | Sealed |
| Cooktop Surface | Edge-to-Edge |
| Burner - Right Front | 15,000 BTU Power Boil |
| Self-Clean Oven Door Lock | Automatic |
| Oven Control Features | Auto Recipe Conversion |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 14.5 Broiler |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
FILTER
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Slide-In Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Convection |
| App Filter - Convection | Yes |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Cooktop Type | Continuous Grates |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | Integrated Griddle (Included) |
| LP Conversion Kit | Included |
| Trim Kit | Optional |
CAPACITY
| Total Capacity (cubic feet) | 5.6 cu ft |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
