$14,600.00
Was$16,060.00Save $1,460.00 (9%)
Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle - ZDP486NDTSS



























360 View

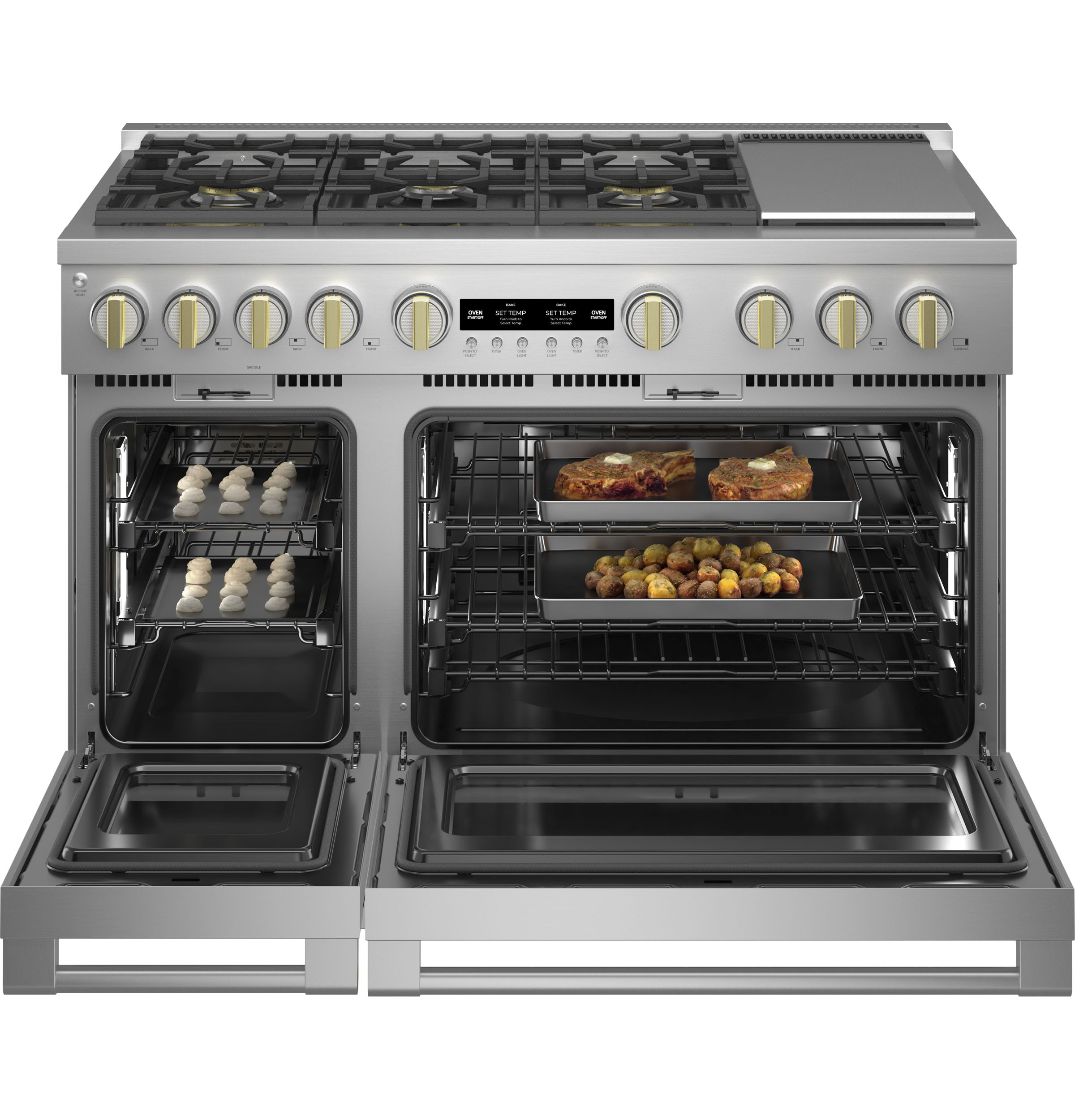

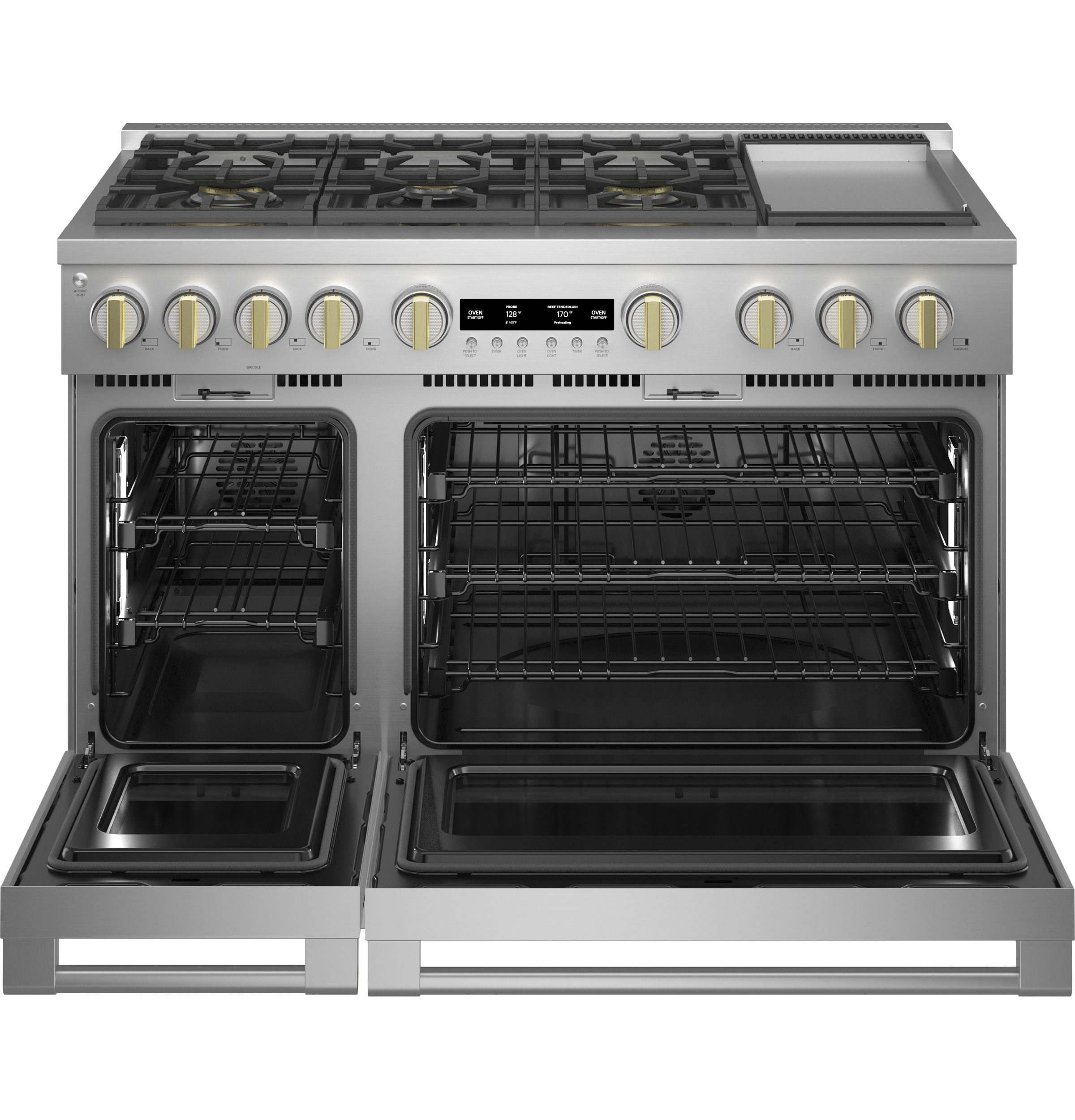

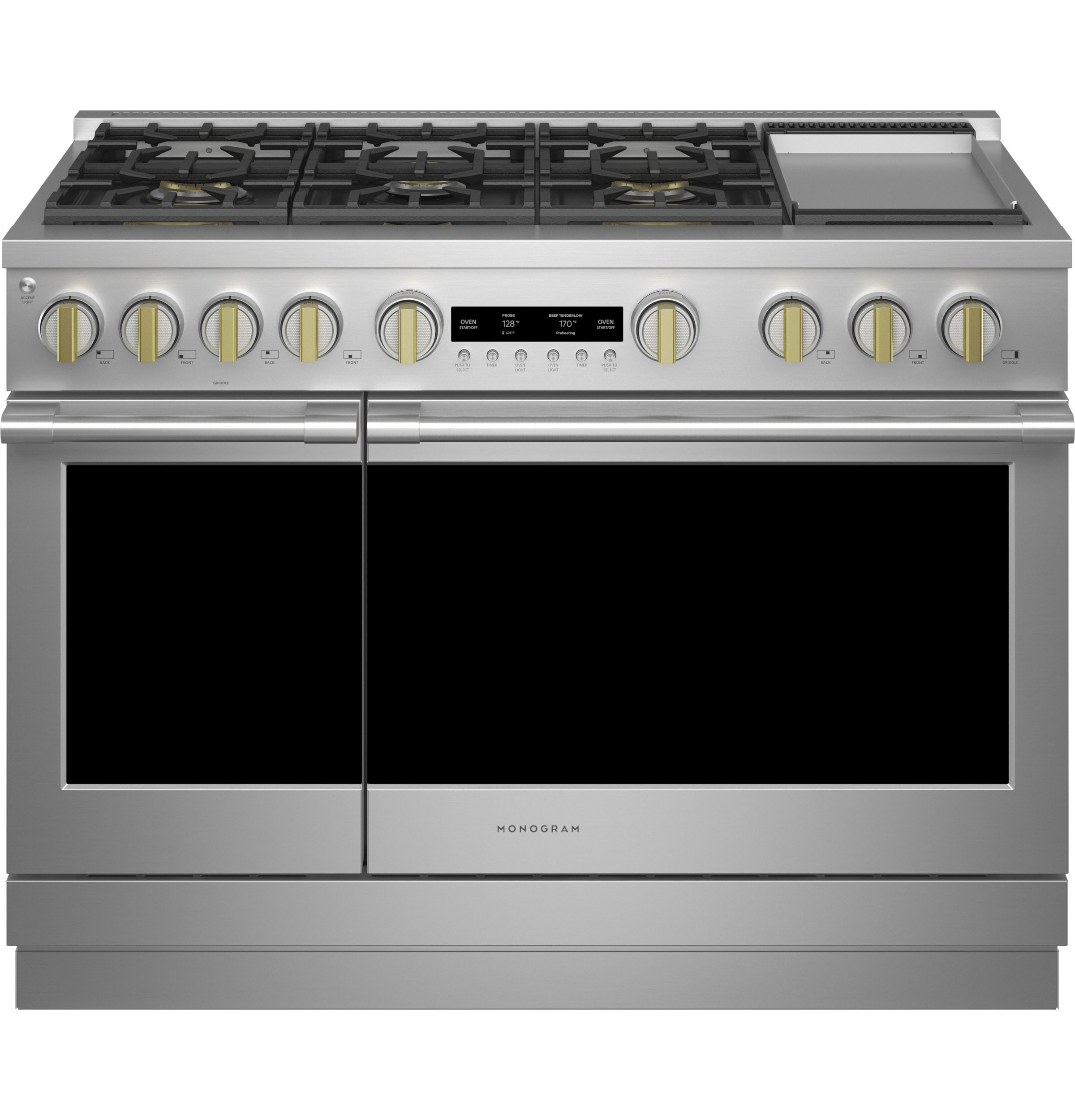

Monogram 48" Dual-Fuel Professional Range with 6 Burners and Griddle
Model: ZDP486NDTSS
$14,600.00
Was$16,060.00Save $1,460.00 (9%)
Current Rebates
Key Features
Versatile Gas Burner Configuration
3-Piece Grates with Reversible Wok Feature
WiFi Monitoring and Remote Control with the SmartHQ app
Dynamic Oven LCD
Solid Brass Burners
Chef Connect
Industry Exclusive—Custom Color LED Accent Lighting
Ring-Lit Knobs
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

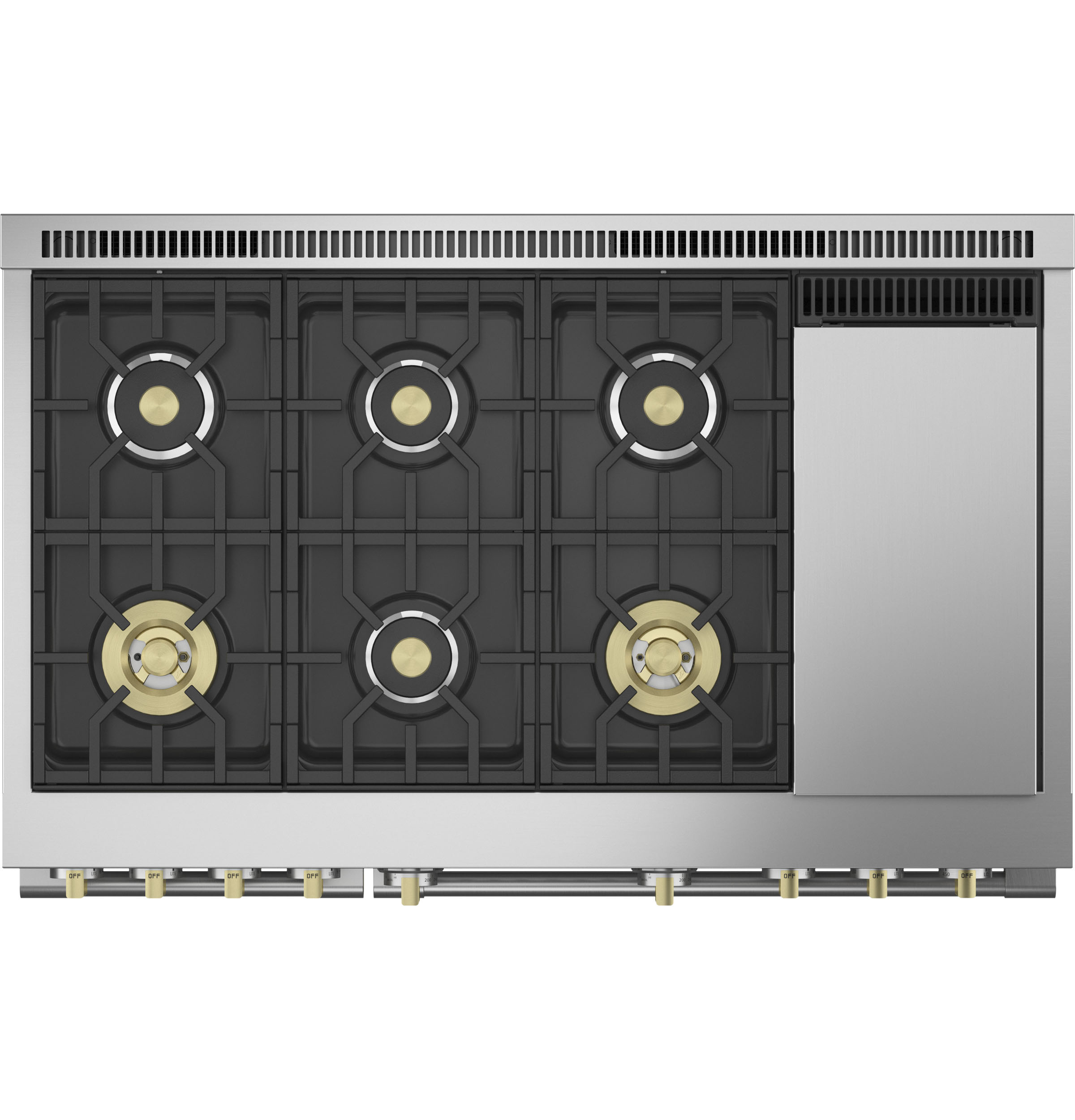

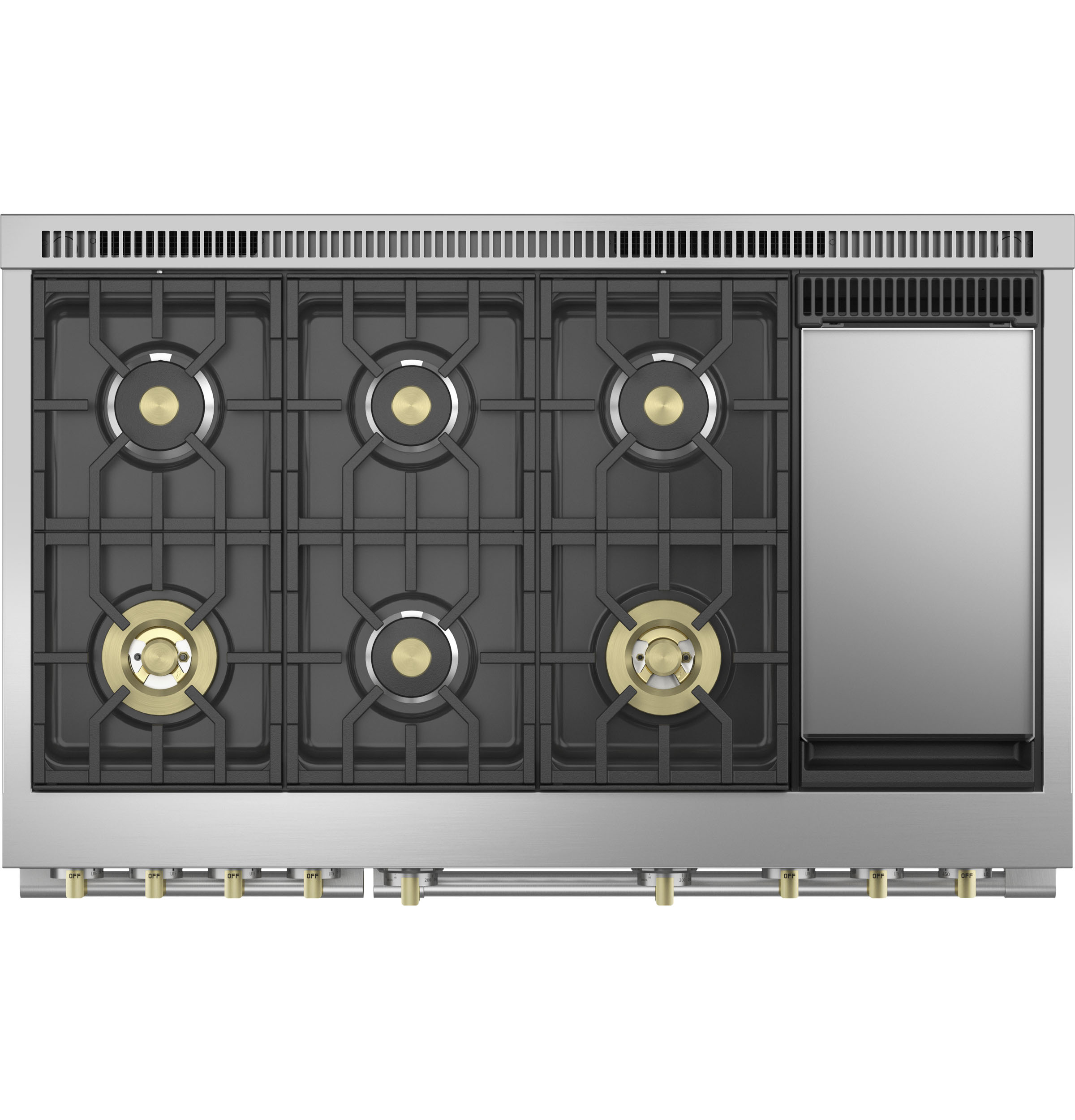

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

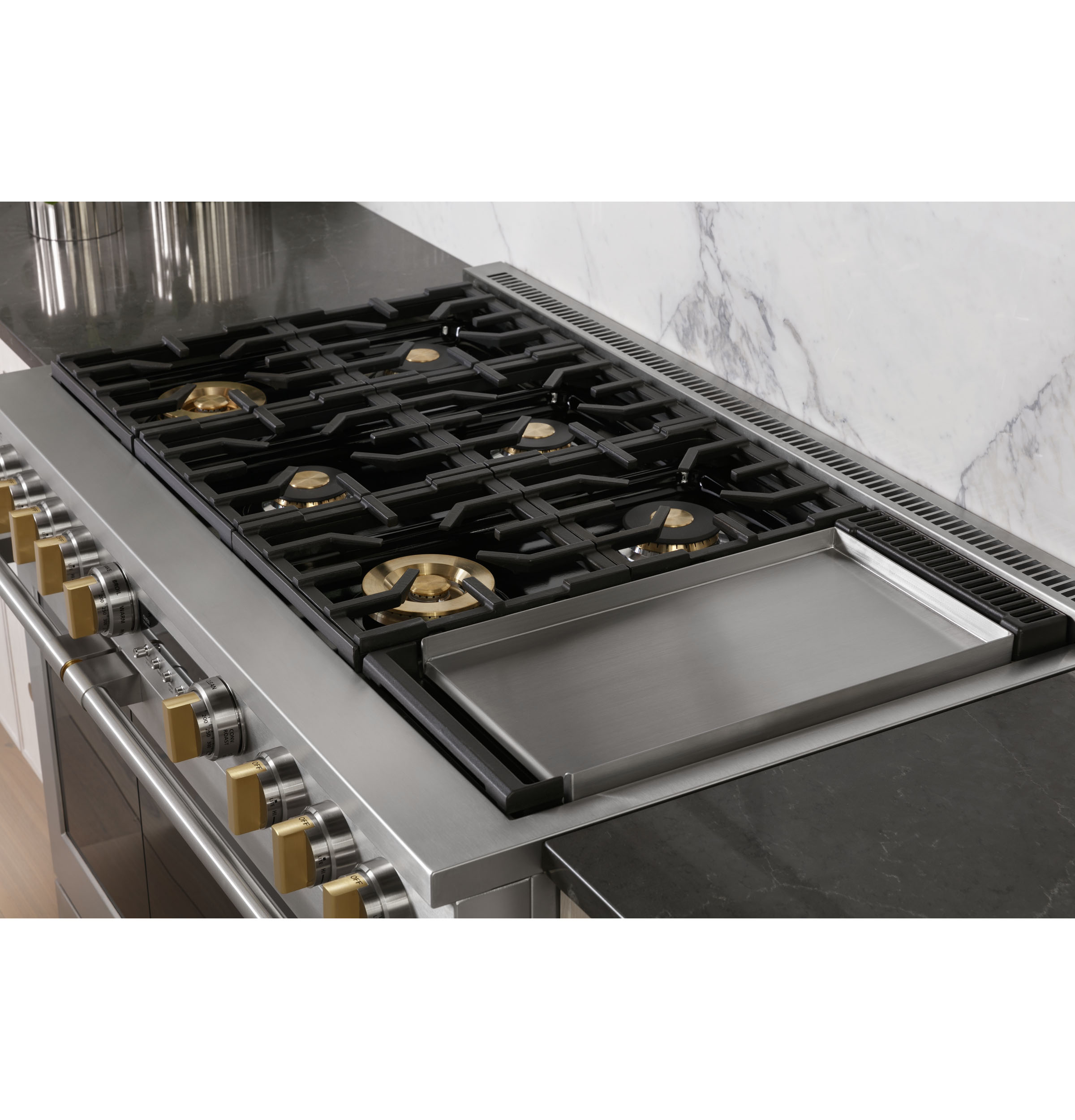

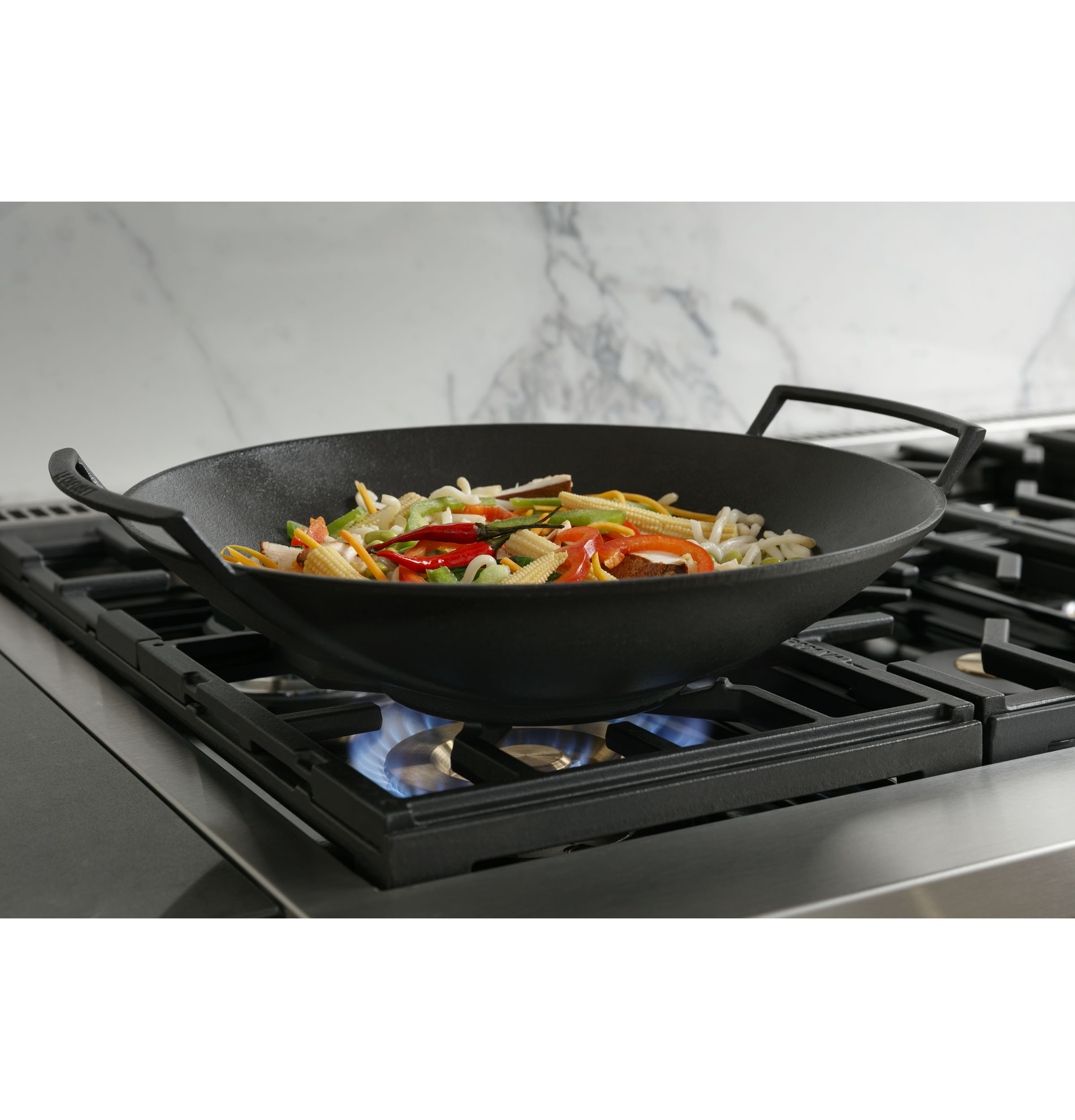

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

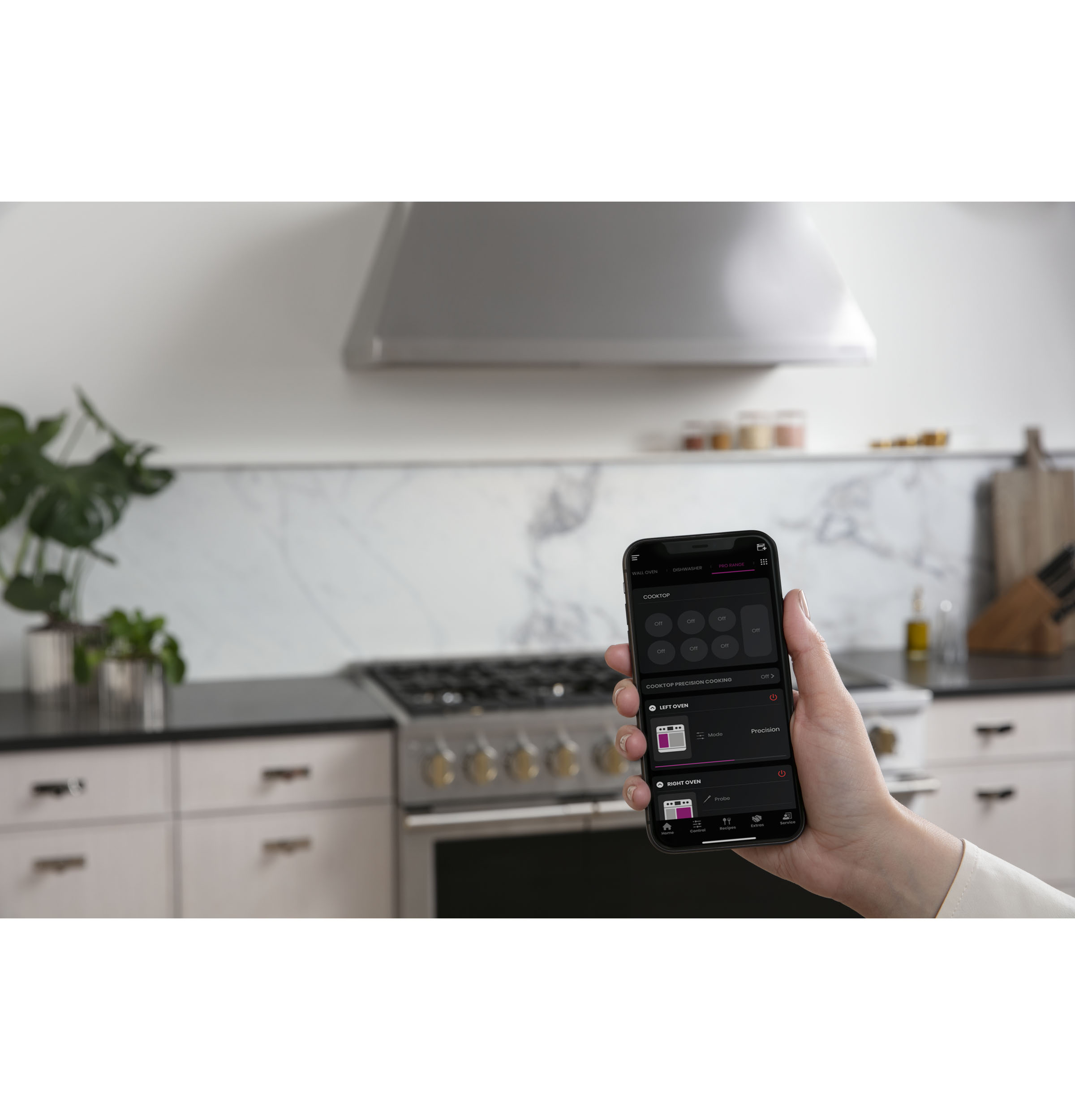

WiFi Monitoring and Remote Control with the SmartHQ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

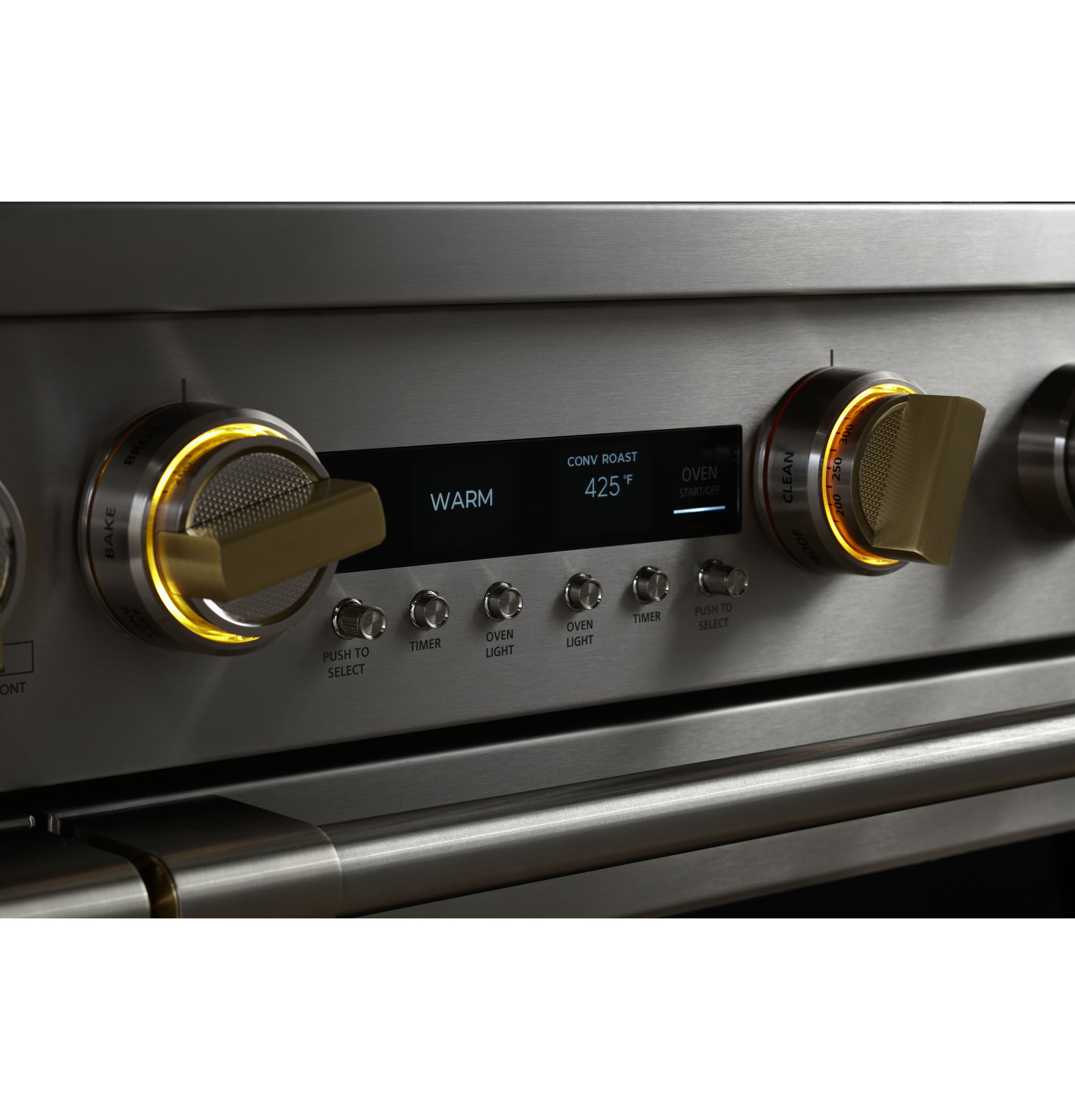

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive—Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

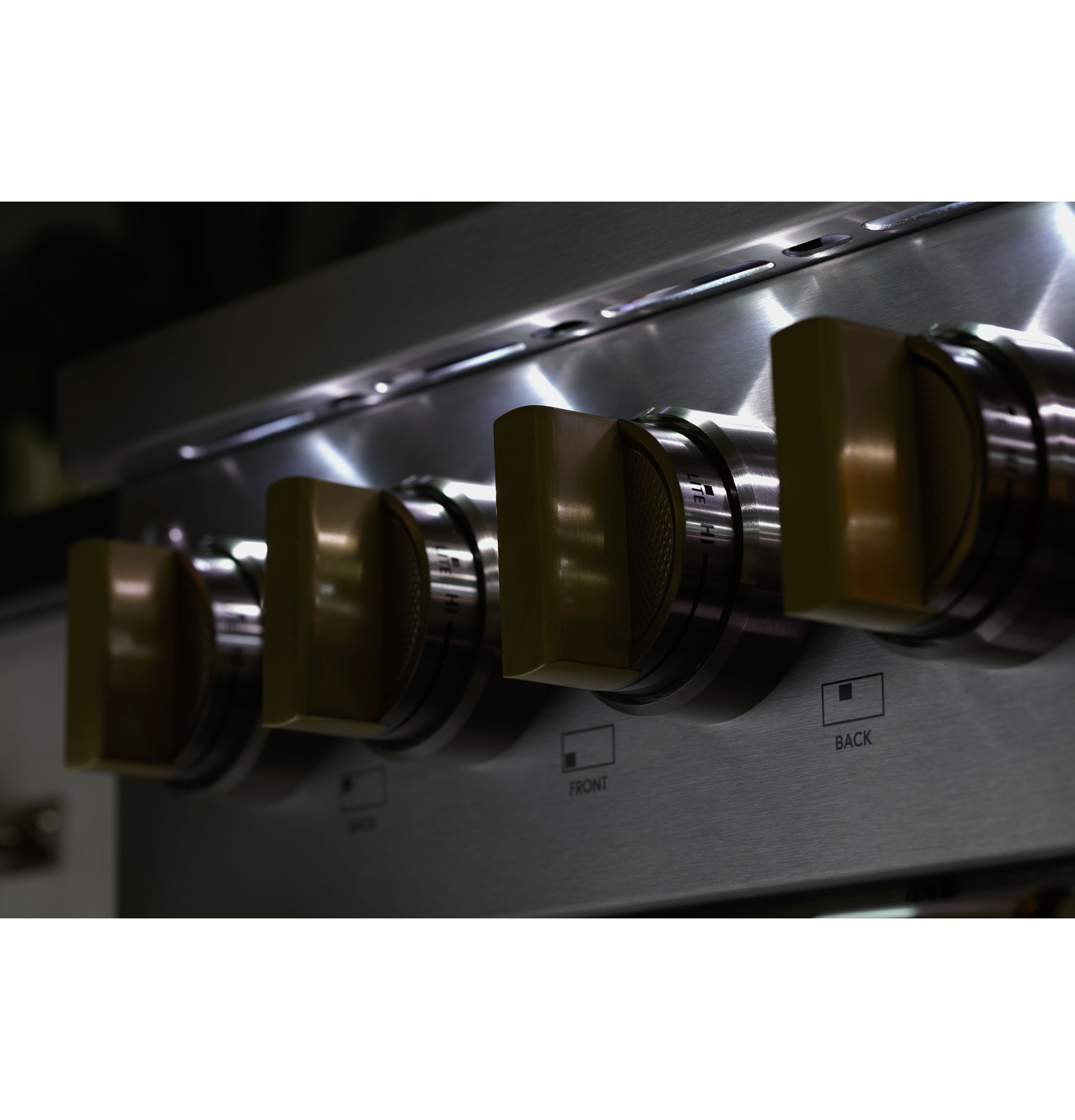

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

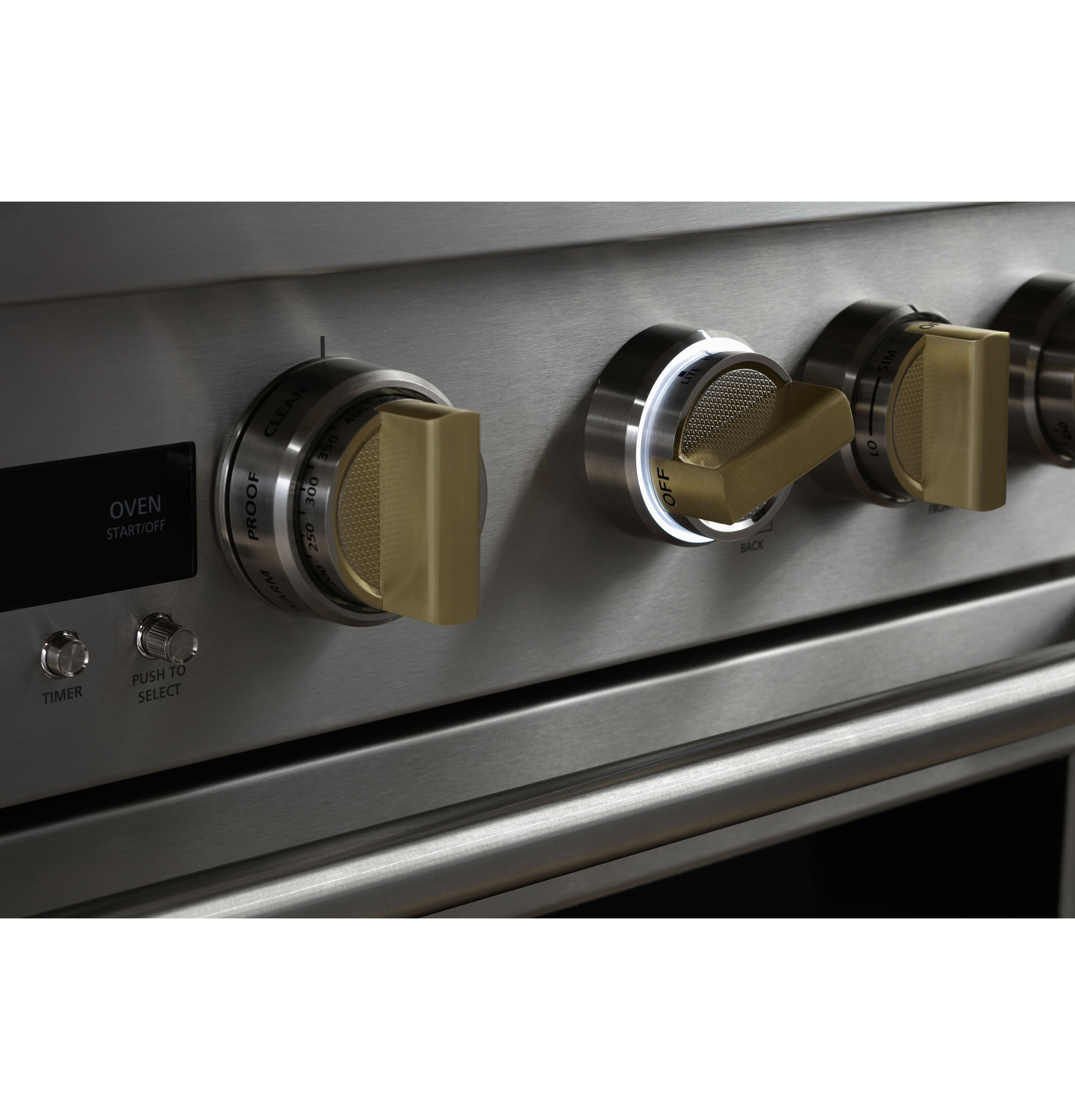

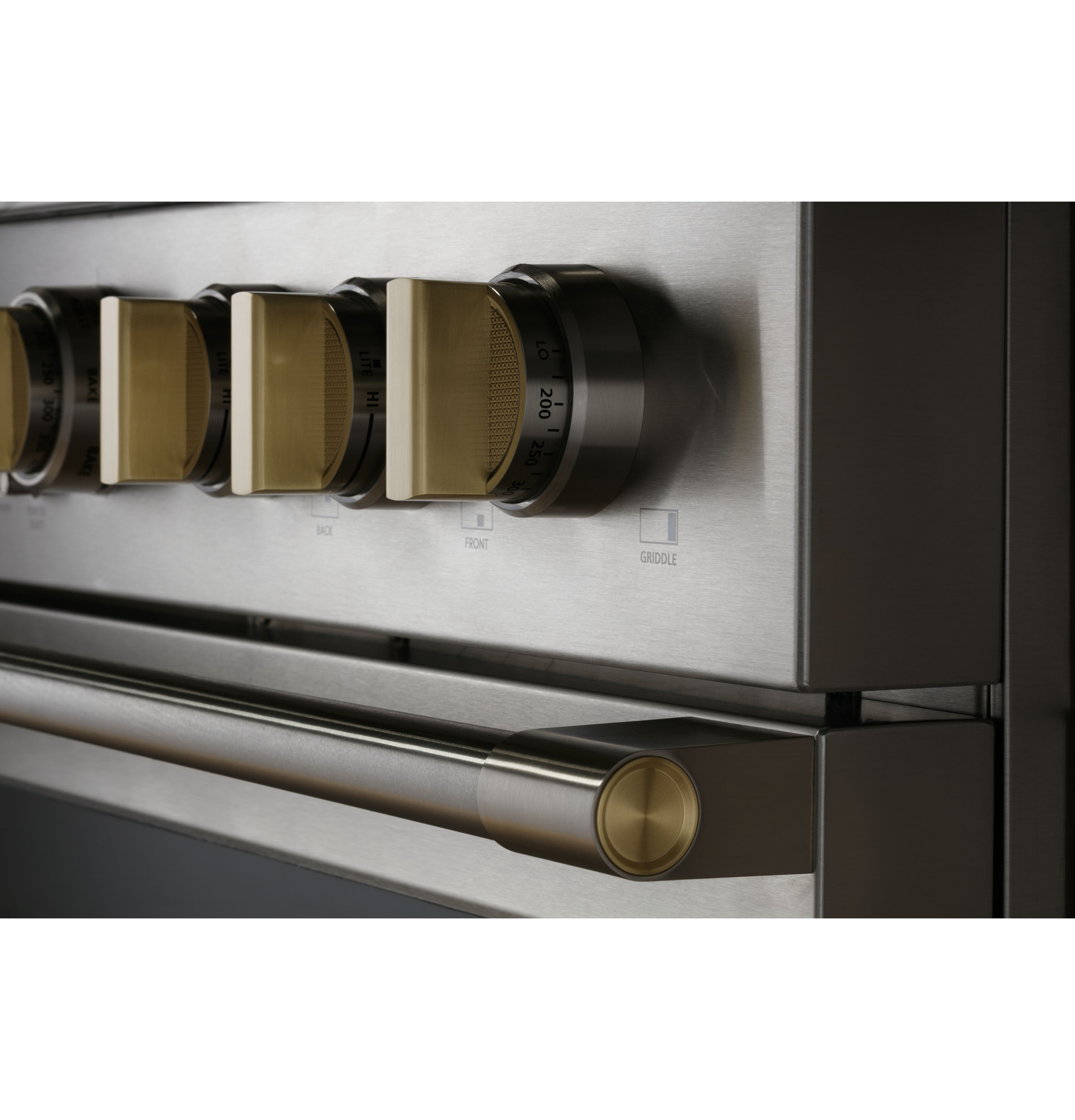

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

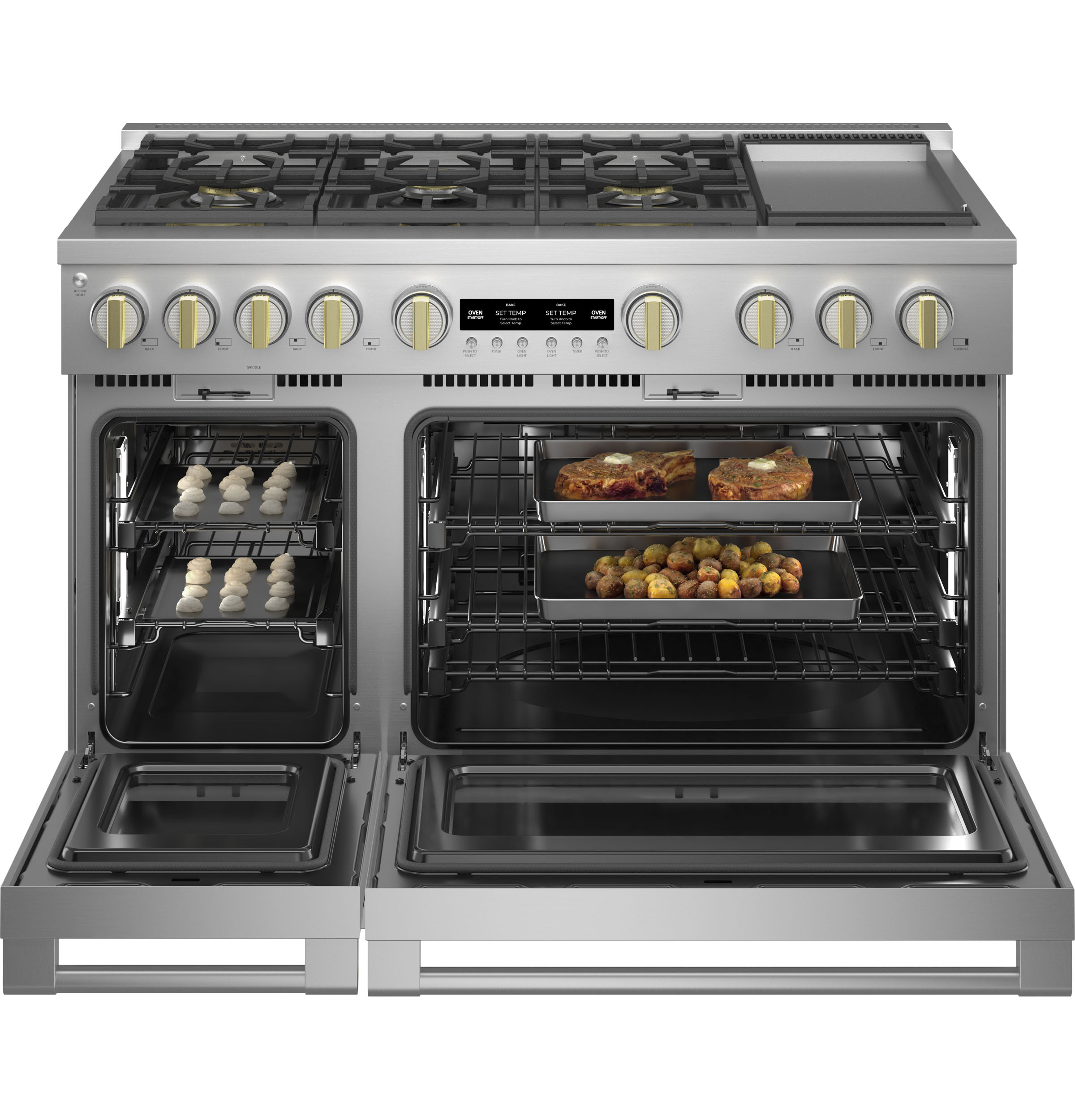

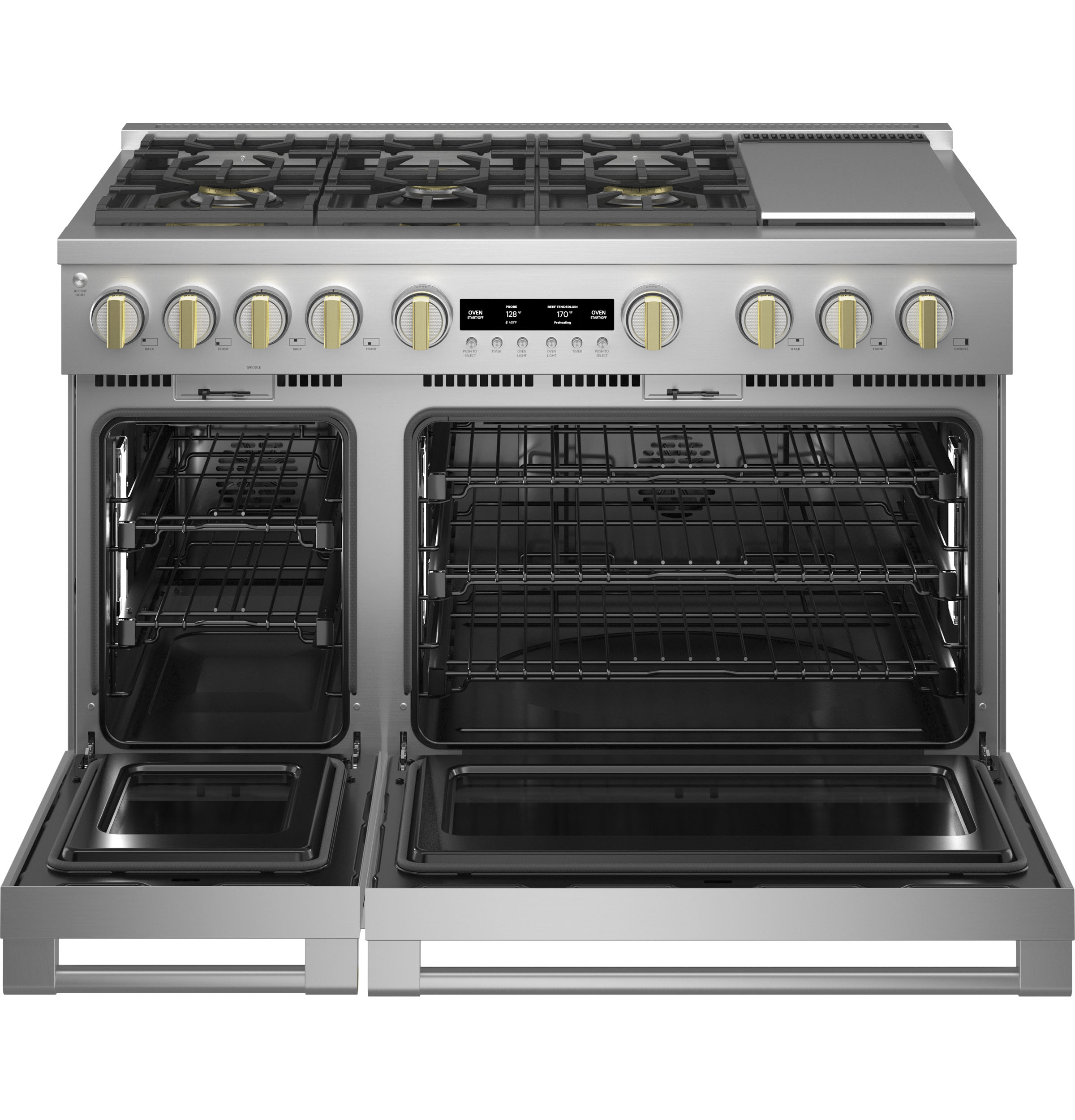

5 Oven Racks (Full-Extension)
Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle
Precision Oven Modes with SmartHQ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Certifications
ADA Compliant
CSA
California Prop 65
Specifications
FEATURES
| Cleaning Time | 3-5 Hours (Both Ovens) |
| Ignition System | Electronic w/Auto Reignition |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | 2 |
| Product Type | Professional Range |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Control Type | Digital Temperature LCD Display (Both Ovens) with Timer Display |
| Lighting | LED Bullnose Task Lighting |
| Collection | Statement |
| Removable Grease Trough | (1) Beneath Griddle |
| Cooktop Surface | Porcelain-Enamel |
| Stainless Steel Grill / Griddle Covers | 1 |
| Oven Rack Positions (Single or Upper/Lower) | 5 / 4 |
| Self-Clean Oven Door Lock | Automatic |
| Fuel Type | Dual Fuel (with Natural Gas) |
| Connected Capabilities | Bluetooth,Innit,Amazon Alexa,Google Home |
| Cooking System | True European Convection,Reverse Air Convection |
| Cooking Technology | Convection,Dual Fuel (with natural gas) |
| Cooktop Burner Grate Features | Continuous Grates,Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked,2 Sealed, Dual Flame Stacked (Removable Brass Accents) |
| Cooktop Type | 6 Burners,Griddle |
| Griddle | 18,000-BTU,Thermostatically Controlled,Stainless Steel and Aluminum Clad |
| Indicator Lights | Burner On |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven),3 Halogen Lamps (Everyday Oven) |
| Oven Cleaning Type | Self-Clean (Both Ovens),Steam Clean (Both Ovens) |
| Oven Control Features | Delay Clean Option (Both Ovens),Proof Mode (Both Ovens),WiFi Connect,Chef Connect,Audible Preheat Signal,Timer,Self & Steam Clean Modes,Probe Mode,Remote Enabled,12-Hour Shut-Off Capability,C |
| Oven Cooking Modes | Convection Bake Multi-Rack (Both Ovens),Convection Broil Hi/Lo (Both Ovens),Convection Roast (Both Ovens),Convection Crisp,Warming (Both Ovens),Proof (Both Ovens),No-Preheat Air Frying (Both |
| Oven Features | Hidden Bake,8-Pass Bake Element,8-Pass Broil Element,4-Pass Bake Element (Everyday Oven),4-Pass Broil Element (Everyday Oven) |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven),5 Rack Positions (Caterer Oven),4 Rack Positions (Everyday Oven),Full-Extension |
| Short Description | 48 Pro Range - Dual Fuel with 6 Burners and Griddle |
ACCESSORIES
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Reversible Griddle/Grill Accessory | UXPRRGG |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |
| 48 Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| Optional Backguard | 12 stainless steel backsplash (UX12BS48PSS),30-36 adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
| Convection Wattage | 2500W (Main Oven); 1500W (Companion Oven) |
| Bake/Broil Wattage - Main Oven | 2700/4000W |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Bake/Broil Wattage - Companion Oven | 1600/2750W |
| Hertz | 60 |
APPEARANCE
| Toe kick | Included |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Color Appearance | Stainless Steel |
| Control Knobs | Diecast Metallic (Included),Stainless Steel with Brass Accents |
CAPACITY
| Total Capacity (cubic feet) | 8.25 cu ft |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |

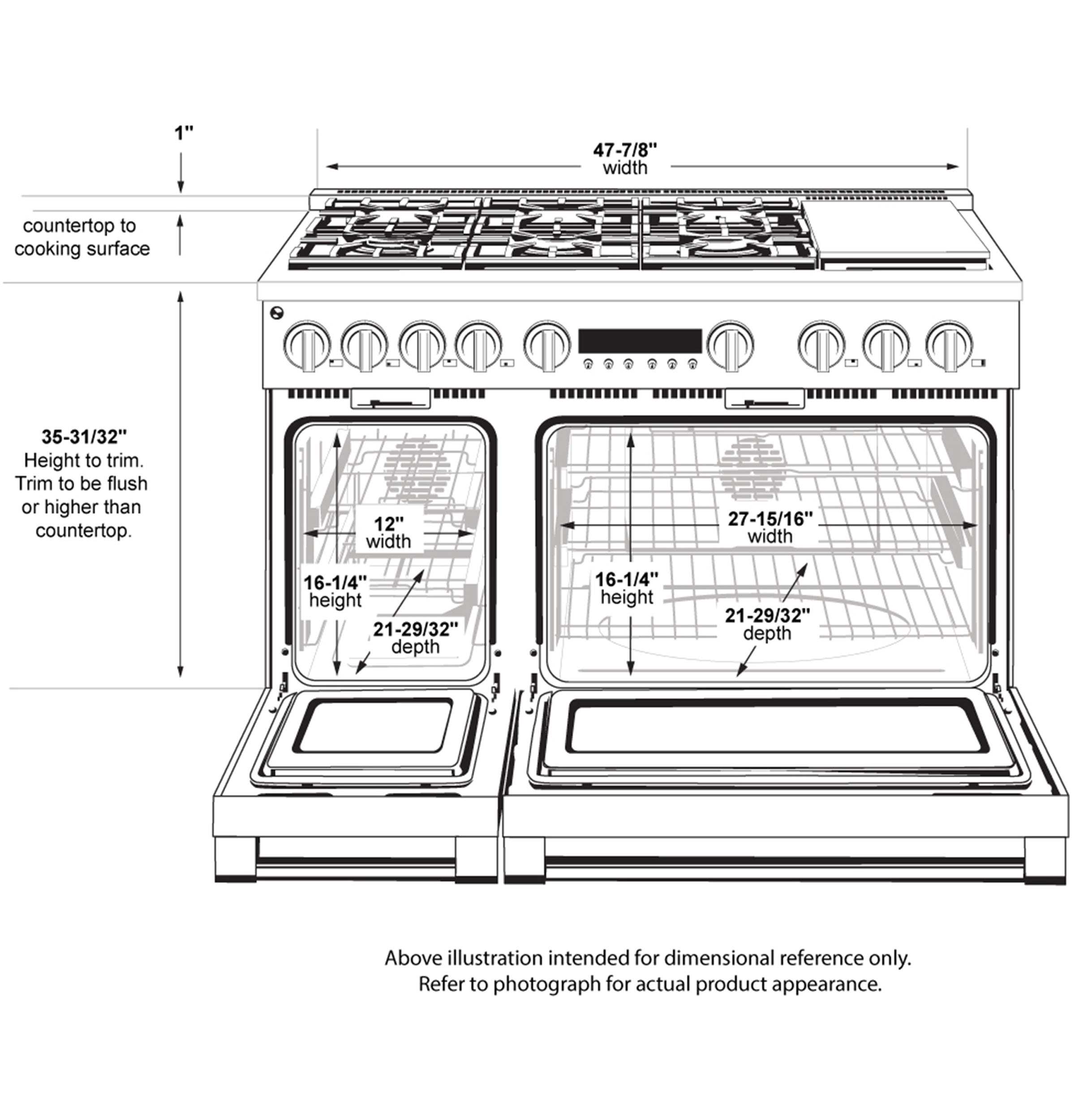

WEIGHTS & DIMENSIONS
| Cabinet Width | 48 in |
| Overall Width | 47.875 in |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Height to Cooking Surface (in.) | 35.25 - 36.75 |
| Height w/ Legs Retracted - Minimum Height | 35.25 in |
| Approximate Shipping Weight | 672 |
| Net Weight | 576 |
WARRANTY
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance,Limited 5-year gas surface burners,Limited lifetime of oven racks |
Dimensions & Weight
| Width | 47.88 in. |
| Height | 35.25 in. |
| Length | 28.5 in. |
| Weight | 576 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 40.25 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 616 lbs. |
| Total of Shipping Weight | 616 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.83 ft³ |
| Dimensional Weight | 346.02 lbs. |
| Total of Cubes | 27.83 ft³ |
| Total of Dimensional Weight | 346.02 lbs. |
