24" Wide Electric Range & Convertible Hood - REXH24RSS

This product has been discontinued by the manufacture and is no longer available.

24" Wide Electric Range & Convertible Hood

Model: REXH24RSS

24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS24" Wide Electric Range & Convertible Hood REXH24RSS
24" Wide Electric Range & Convertible Hood REXH24RSS
24" Wide Electric Range & Convertible Hood REXH24RSS
24" Wide Electric Range & Convertible Hood REXH24RSS
24" Wide Electric Range & Convertible Hood REXH24RSS
24" Wide Electric Range & Convertible Hood REXH24RSS
+7more

Color : Black

product image
Black

Type : Electric

Key Features

  • Range/hood set

  • Under cabinet range hood in stainless steel

  • Easy 1-step conversion

  • 24" width

  • Convertible hood

  • Versatile top or rear exhaust

  • Filters included

  • Smooth ceramic glass top

Read More

Description

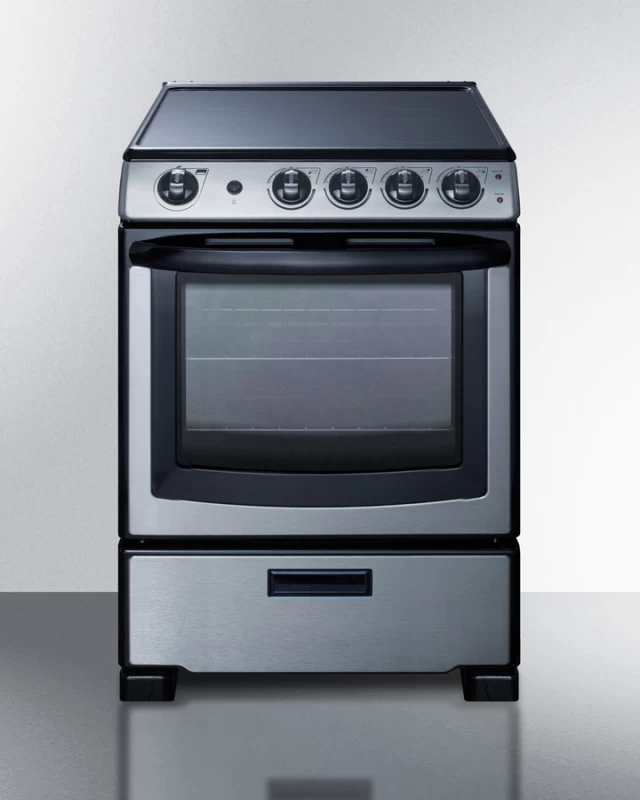

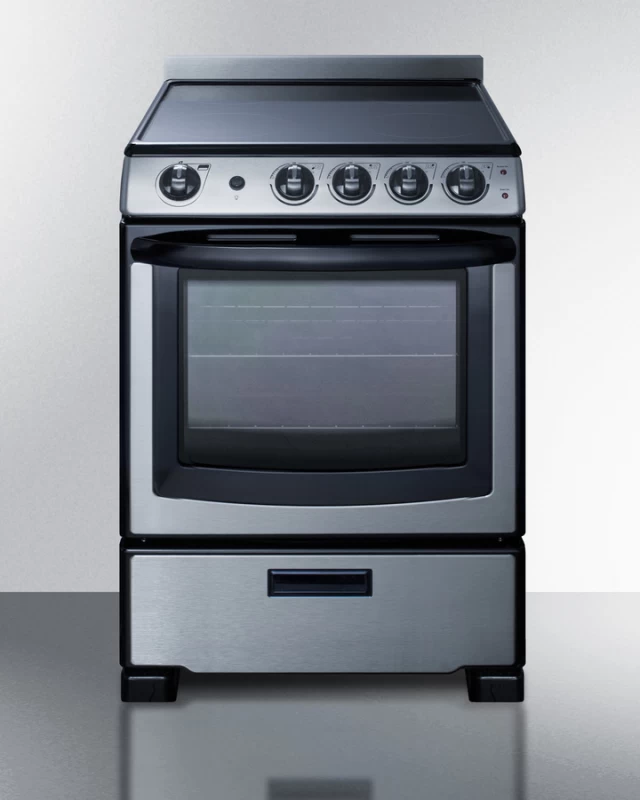

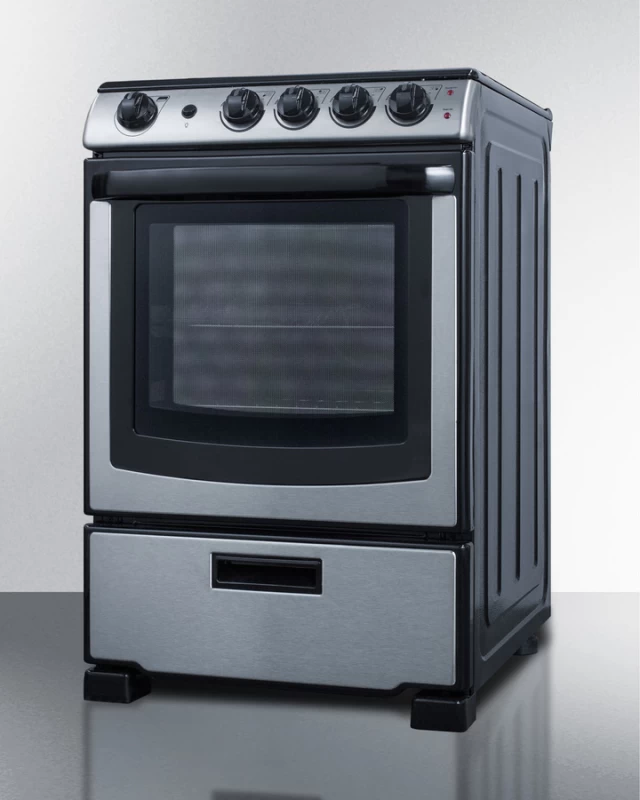

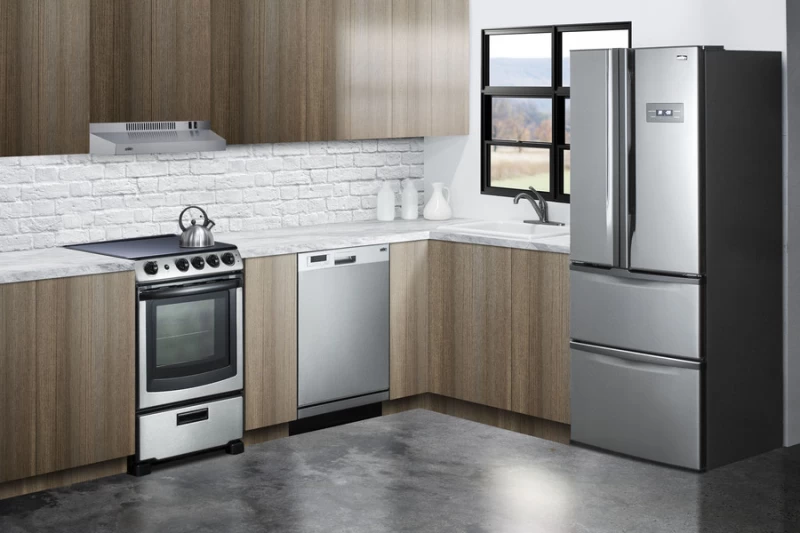

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets. The REXH24RSS combines our popular REX2451SSRT North American-made smooth-top electric range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation options and an attractive finish in black and stainless steel. The REX2451SSRT is a 220V electric range sized at just under 24" wide. The front manifold, oven door, and lower drawer feature a stainless steel finish, with a black trimmed oven window and handle for a modern look. The versatile design includes a removable 2" high stainless steel backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REX2451SSRT features a slide-out drawer, perfect for storing your pots and pans and freeing up more kitchen space. The smooth ceramic glass surface includes two 2000W elements to accommodate larger pots and pans, as well as two standard 1500W elements and a hot surface indicator light for added safety. Inside, the REX2451SSRT features a large 2.9 cu.ft. oven made from durable porcelain enamel. The waist-high broiler function is easy to use, with slide-out oven racks that can be adjusted in four different glide positions for the best fit. We include a small two-piece porcelain broiler tray with a grill cover. The large oven window and interior light make it easy to monitor your cooking. The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove. The REXH24RSS ships together on one pallet. For a convertible gas stove and hood combination, see the RGH24RSS.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Range/hood set

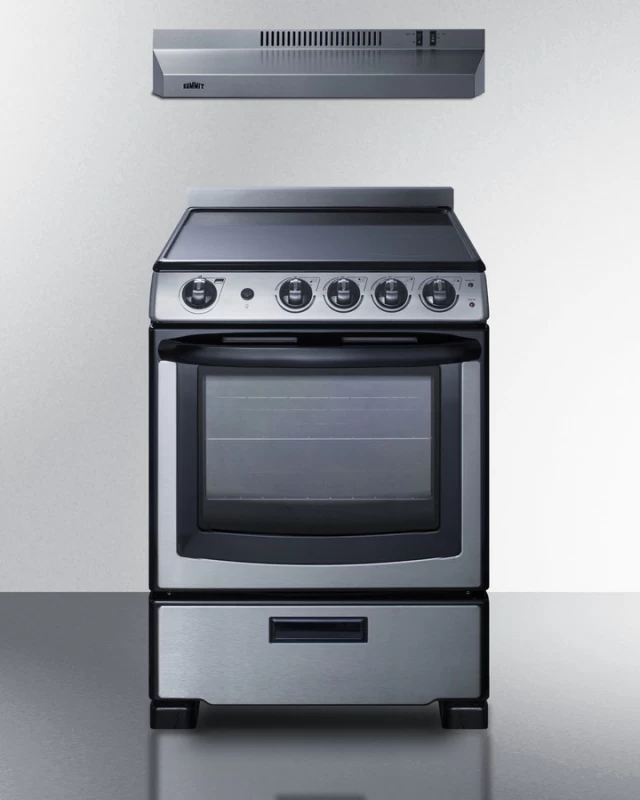

Includes our REX2451SSRT smooth-top electric range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens

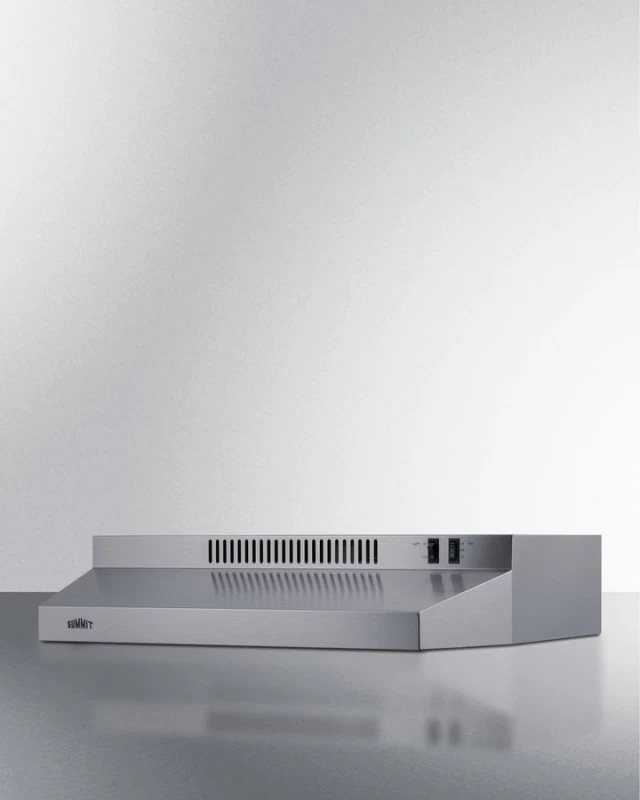

Under cabinet range hood in stainless steel

Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain

Easy 1-step conversion

Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

24" width

Perfectly sized for apartments and smaller home kitchens

Convertible hood

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Versatile top or rear exhaust

Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Filters included

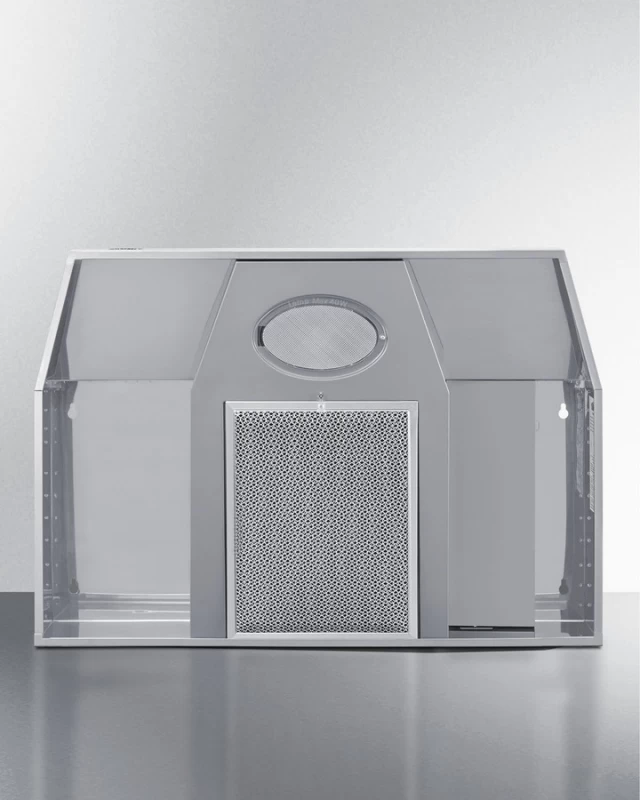

Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode

Smooth ceramic glass top

Smooth cooking surface ensures improved safety and easy cleanability

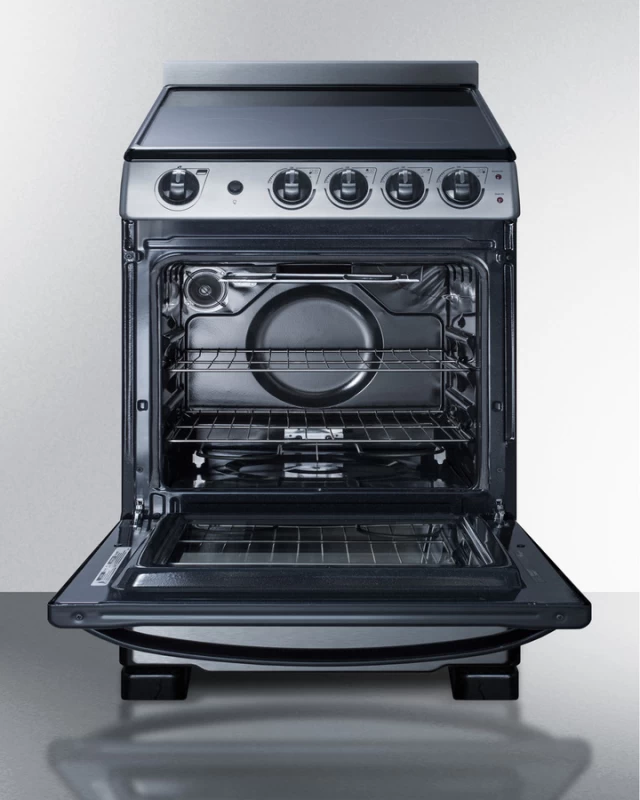

Oven window with light

Easier monitoring of your cooking with an oven window and on/off light

Storage drawer

Save even more space by storing your pots and pans in this pull-out compartment

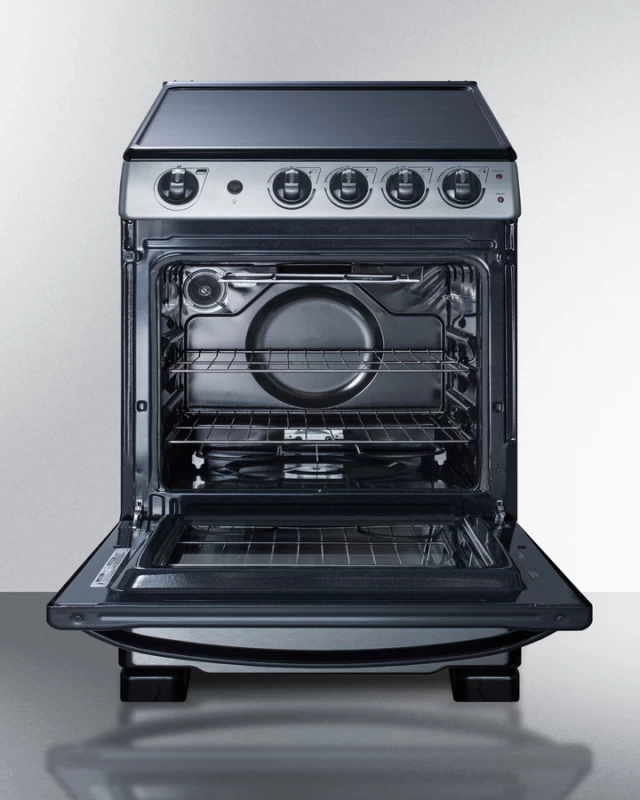

Removable backguard

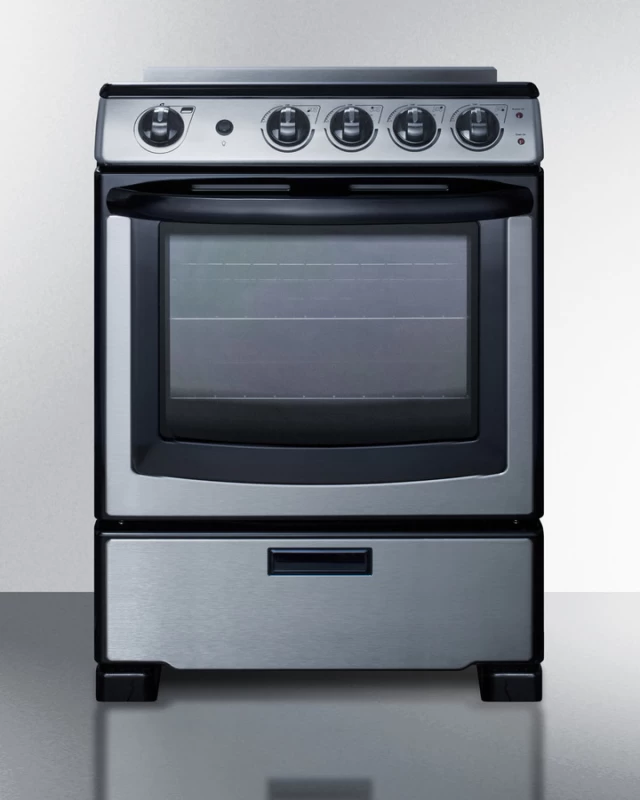

Unit ships with low stainless steel backguard but can be easily converted to a traditional slide-in style for a more integrated look

Waist-high broiler

Broiler is located inside the oven, making it easier to use

Upfront controls

Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Push-to-turn knobs

To prevent accidents, knobs require a small amount of force when turning

Four cooking zones

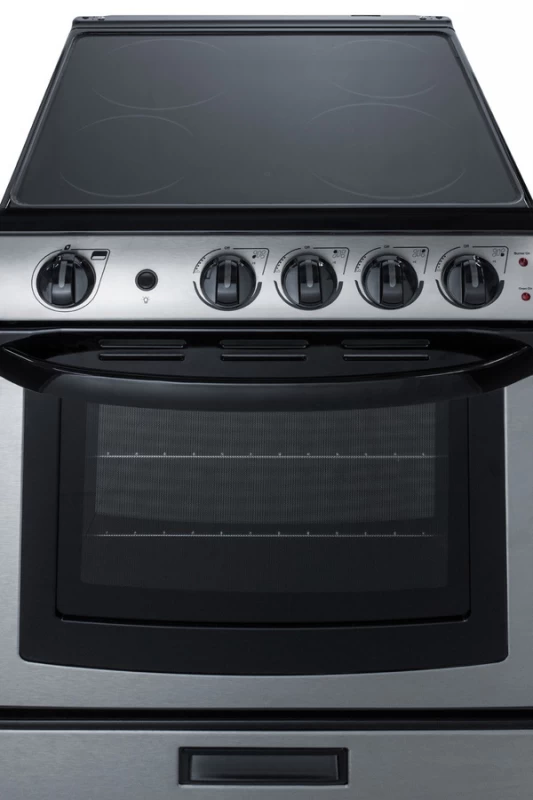

Surface features two 8" and two 6" elements to accommodate a range of sizes and cooking needs

Safety burners

Cooking elements will cycle off before reaching dangerous flashpoint temperatures to prevent cooking fires, and will cycle back on to resume heating

Stainless steel finish

Oven door, storage drawer, and control panel feature a stainless steel finish

Adjustable racks

Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

Hot surface indicator

Indicator light shows if the cooking surface is still too hot to touch

Indicator lights

Control panel includes an 'on' light for the oven and burners for added safety when using the range

Porcelain construction

Oven interior features high quality porcelain construction for long-lasting durability

Anti-tip bracket

Included for user installation to help prevent accidents

Compact broiler tray

Two-piece pan and cover included

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords

Specifications

Overview

Height of Cabinet36.5" (93 cm)
Width23.75" (60 cm)
Depth24.25" (62 cm)
Depth with Handle26.25" (67 cm)
Depth with door at 90°43.5" (110 cm)
DoorBlack/SS
CabinetBlack
US Electrical SafetyUL
Amps40.0
Voltage/Frequency220 V AC/60 Hz
Weight160.0 lbs. (73 kg)
Shipping Weight195.0 lbs. (88 kg)
Parts & Labor Warranty1 Year
UPC761101088013

Electric Range

Oven Capacity2.9 cu.ft. (82 L)
Cooktop SurfaceGlass
Element TypeGlasstop
Number of Elements4
Element #1 Size8.0" (20 cm)
Element #1 Wattage2000.0
Element #2 Size6.0" (15 cm)
Element #2 Wattage1500.0
Element #3 Size6.0" (15 cm)
Element #3 Wattage1500.0
Element #4 Size8.0" (20 cm)
Element #4 Wattage2000.0
Burner ControlsDial
Oven ControlsDial
Oven LightYes
BackguardYes
Cleaning TypeManual
Oven Rack Qty2
Oven WindowYes
Oven Interior Height15.25" (39 cm)
Oven Interior Width19.0" (48 cm)
Oven Interior Depth17.5" (44 cm)
Power Source220V
Storage CompartmentYes
Broiler LocationInside Oven

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width23.75 in.
Height36.5 in.
Length24.25 in.
Weight160 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.75 in.
Shipping Height41.5 in.
Shipping Length29.25 in.
Shipping Weight195 lbs.
Total of Shipping Weight195 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement12.17 ft³
Dimensional Weight151.24 lbs.
Total of Cubes12.17 ft³
Total of Dimensional Weight151.24 lbs.

Overview Electric Range

Nominal Height37.0" (94 cm)
Height of Cabinet36.5" (93 cm)
Nominal Width24.0" (61 cm)
Width23.75" (60 cm)
Nominal Depth25.0" (64 cm)
Depth24.25" (62 cm)
Depth with Handle26.25" (67 cm)
Depth with door at 90°43.5" (110 cm)
DoorStainless Steel
CabinetBlack
US Electrical SafetyUL
Amps40.0
Voltage/Frequency220 V AC/60 Hz
Weight160.0 lbs. (73 kg)
Parts & Labor Warranty1 Year
UPC761101088013
Oven Capacity2.9 cu.ft. (82 L)
Cooktop SurfaceGlass
Element TypeGlasstop
Number of Elements4
Element #1 Size8.0" (20 cm)
Element #1 Wattage2000.0
Element #2 Size6.0" (15 cm)
Element #2 Wattage1500.0
Element #3 Size6.0" (15 cm)
Element #3 Wattage1500.0
Element #4 Size8.0" (20 cm)
Element #4 Wattage2000.0
Burner ControlsDial
Oven ControlsDial
Oven LightYes
BackguardYes
Cleaning TypeManual
Oven Rack Qty2
Oven WindowYes
Oven Interior Height15.25" (39 cm)
Oven Interior Width19.0" (48 cm)
Oven Interior Depth17.5" (44 cm)
Power Source220V
Storage CompartmentYes
Broiler LocationInside Oven
