$2,784.00

Was$3,099.00Save $315.00 (10%)

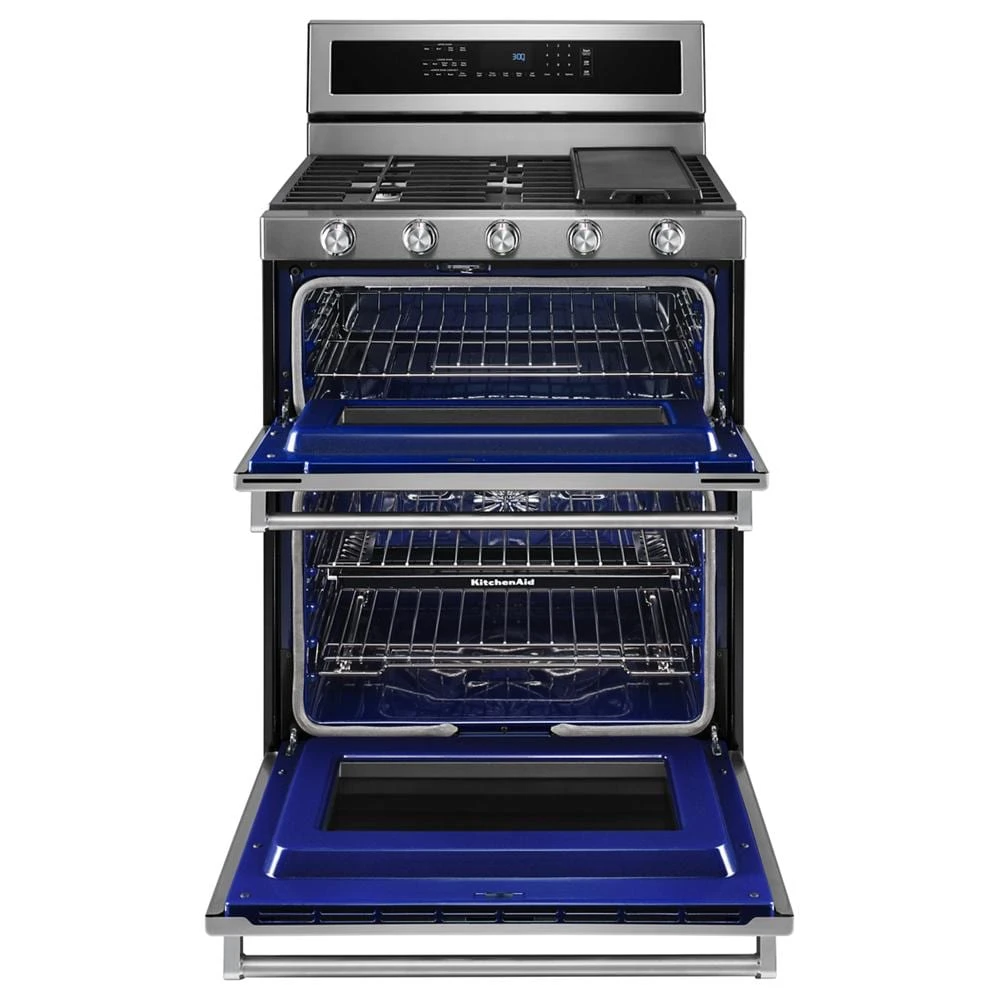

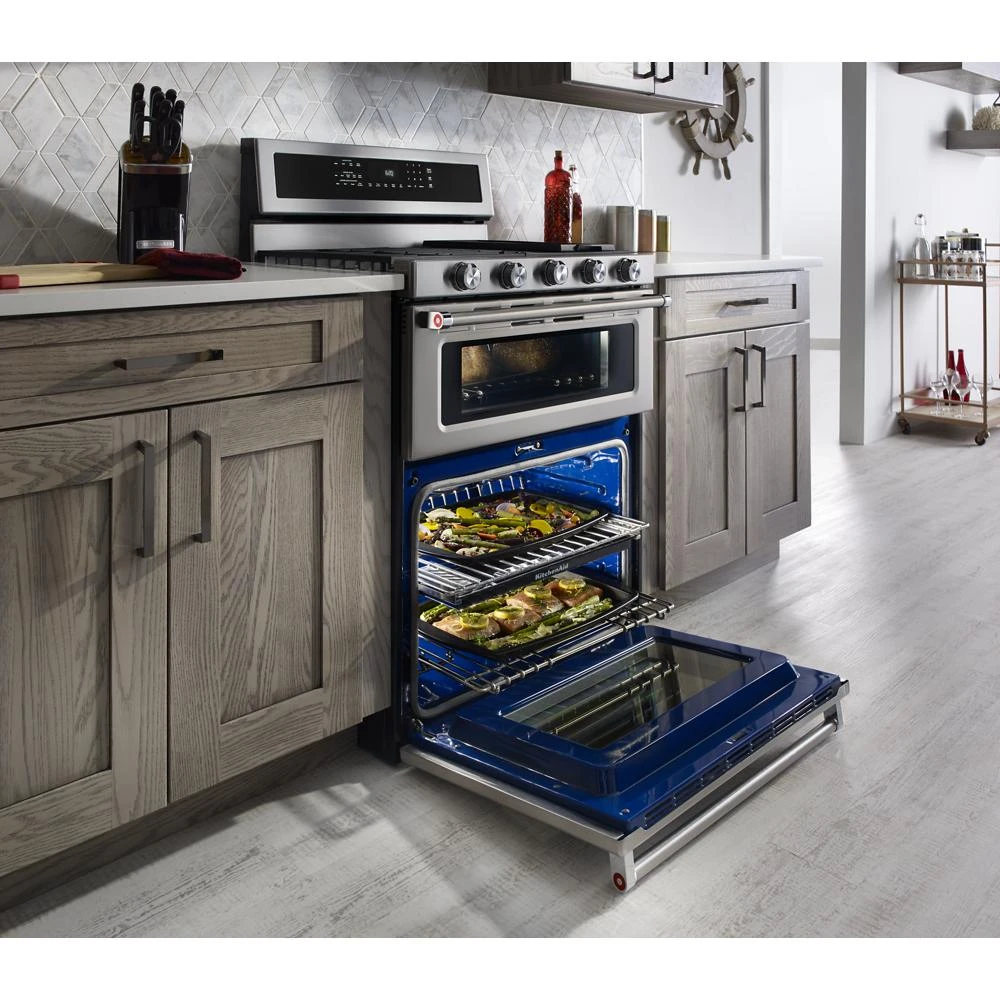

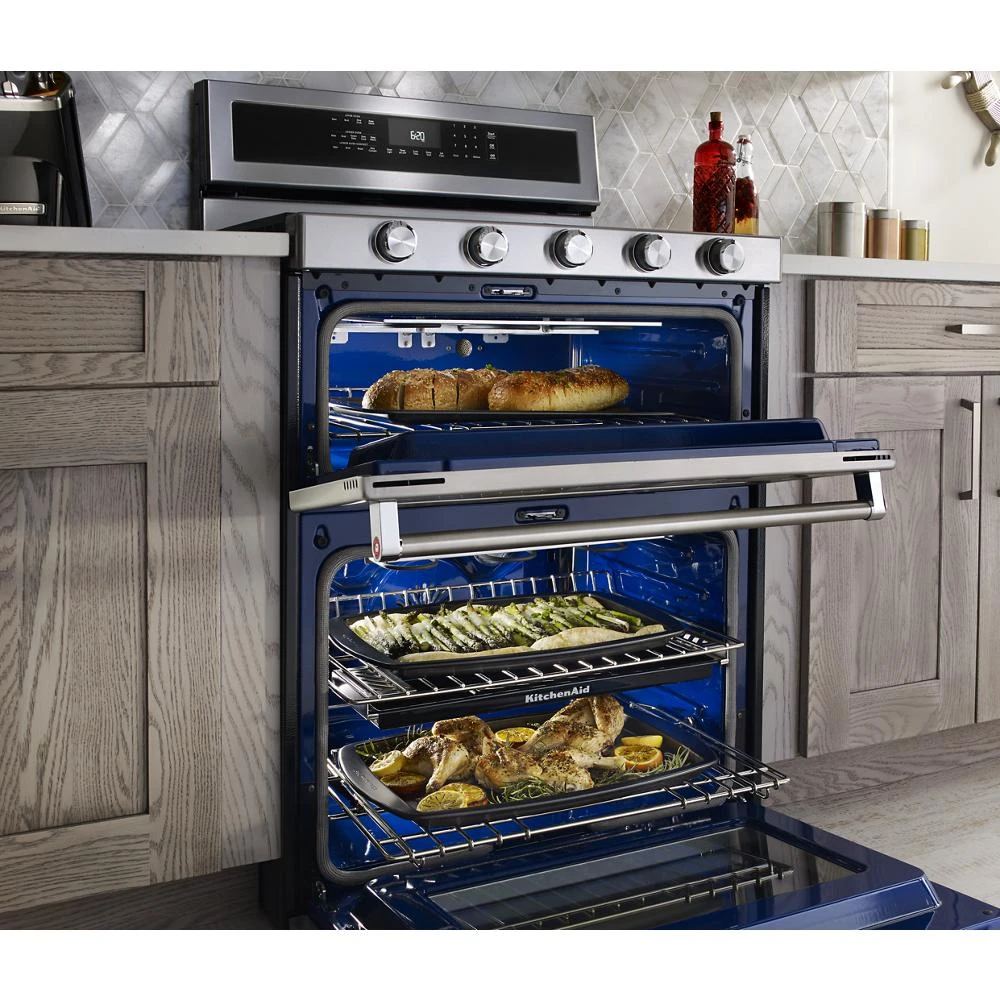

30" 5 Burner Dual Fuel Double Oven Convection Range - KFDD500ESS

30" 5 Burner Dual Fuel Double Oven Convection Range

Model: KFDD500ESS

30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
+5more

$2,784.00

Was$3,099.00Save $315.00 (10%)

rebate iconRebate Available

Color : Stainless Steel

30" 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS

$2,784.00

Stainless Steel

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026

Key Features

  • Steam Rack

  • Professionally-Inspired Design

  • 6.7 Cu. Ft. Total Capacity

  • 5 Burners (17k, 10k, 7.3k, 5k, 5k)

  • Glass Touch Controls

  • EasyConvect™ Conversion System

  • Even-Heat™ True Convection

  • Product Overview

Read More

Description

KitchenAid 30" Dual Fuel Range with Double Wall Oven and 5 Burners

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Steam Rack

Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.

Professionally-Inspired Design

combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

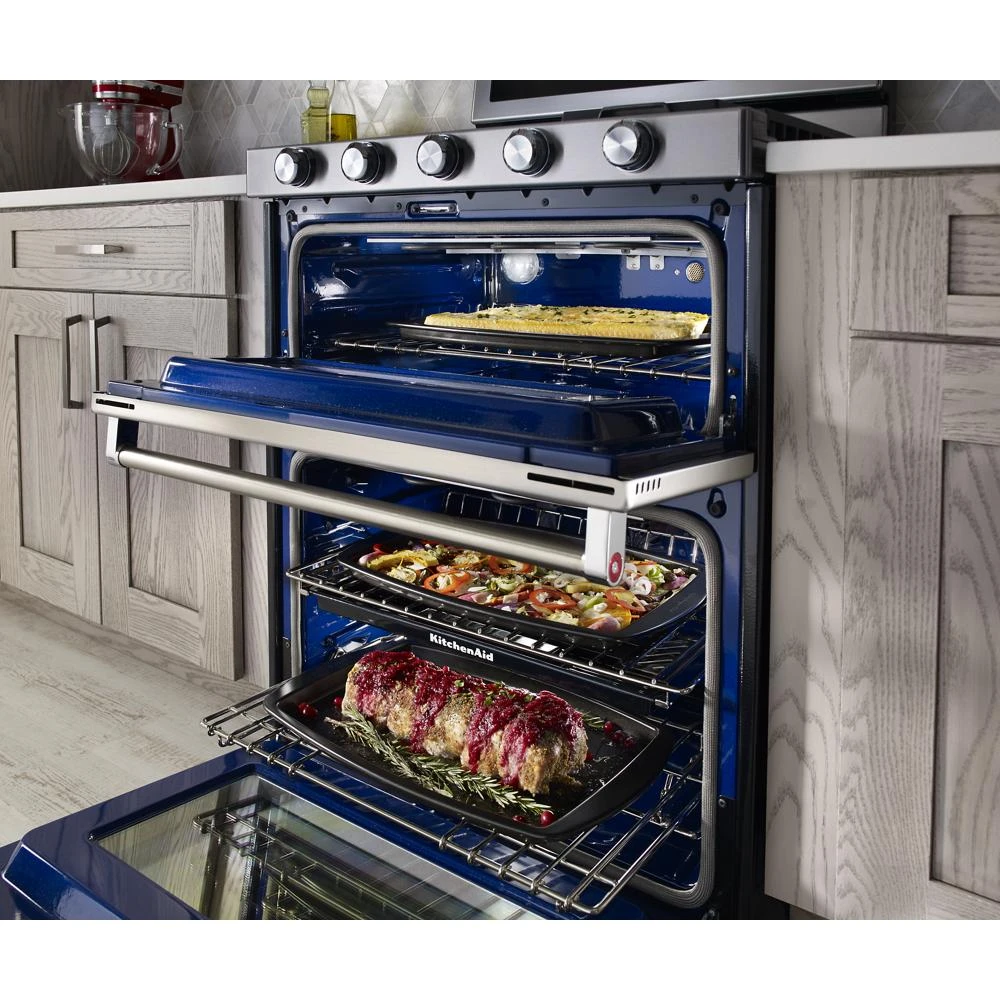

6.7 Cu. Ft. Total Capacity

Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.

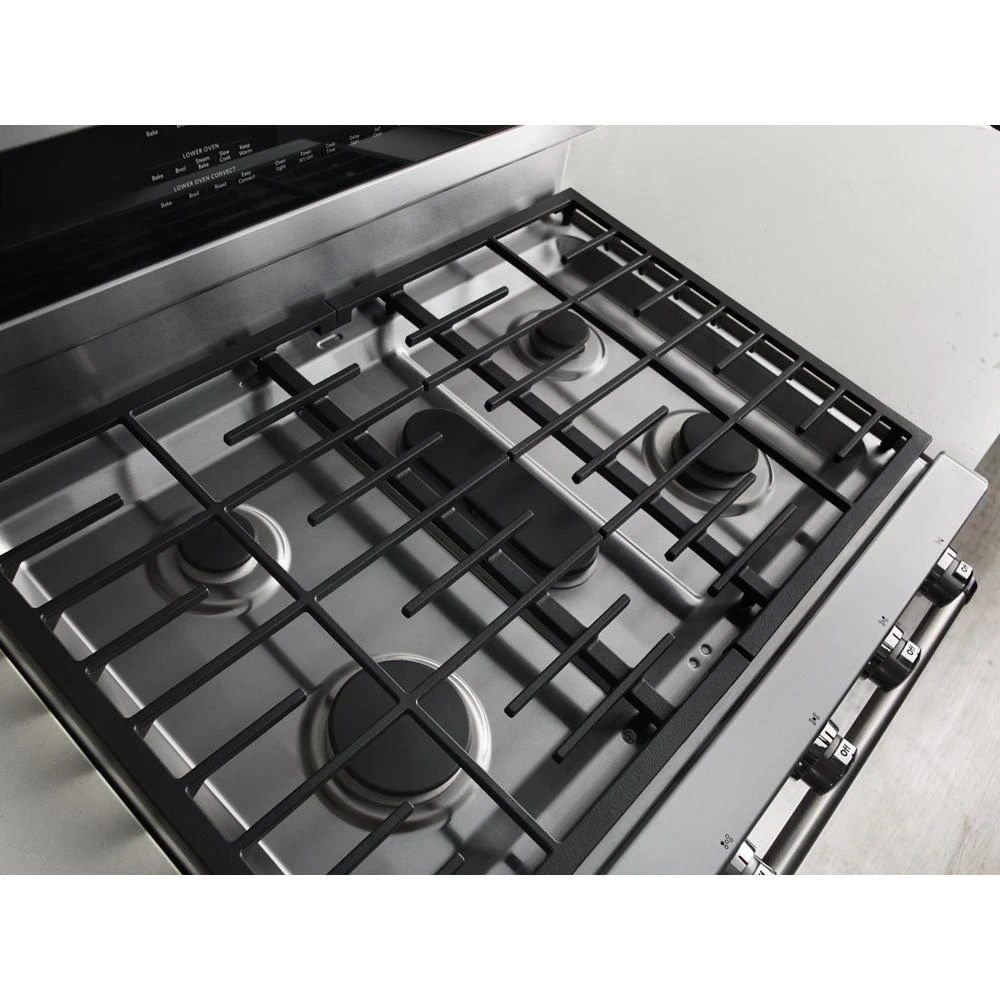

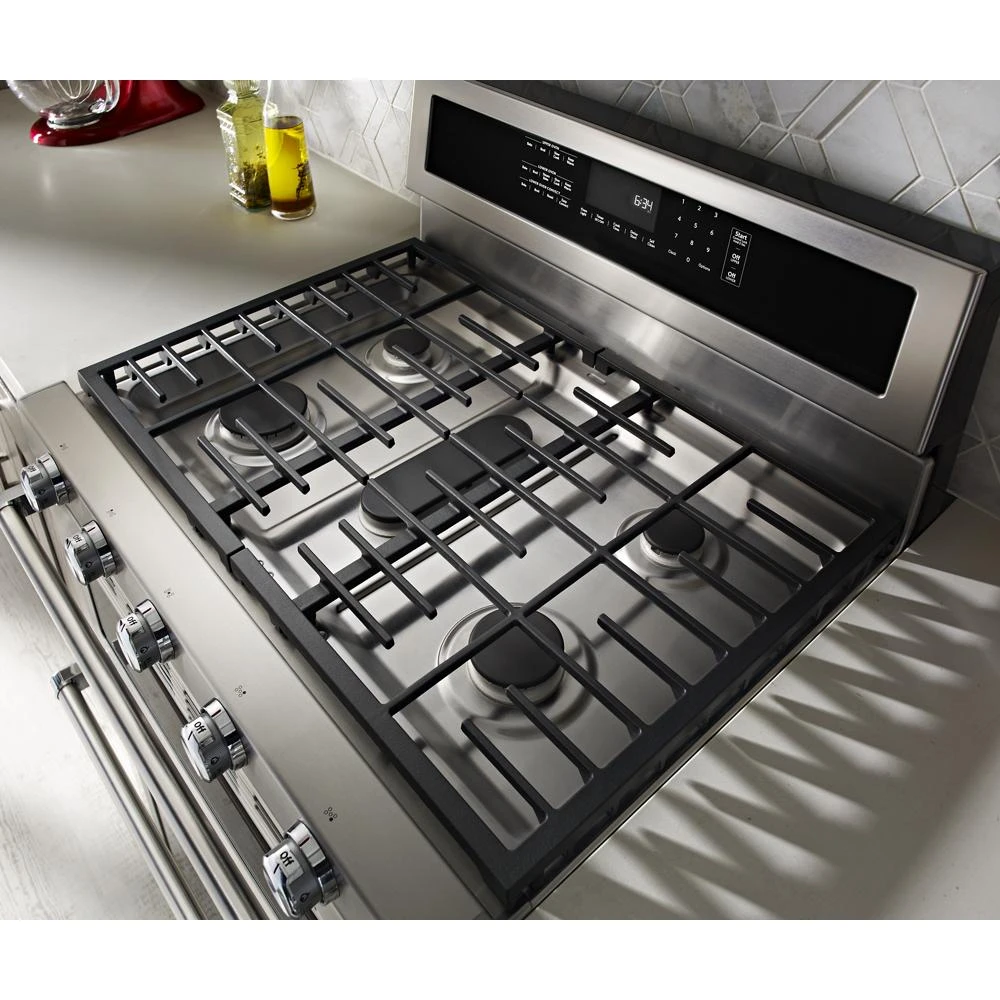

5 Burners (17k, 10k, 7.3k, 5k, 5k)

provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.

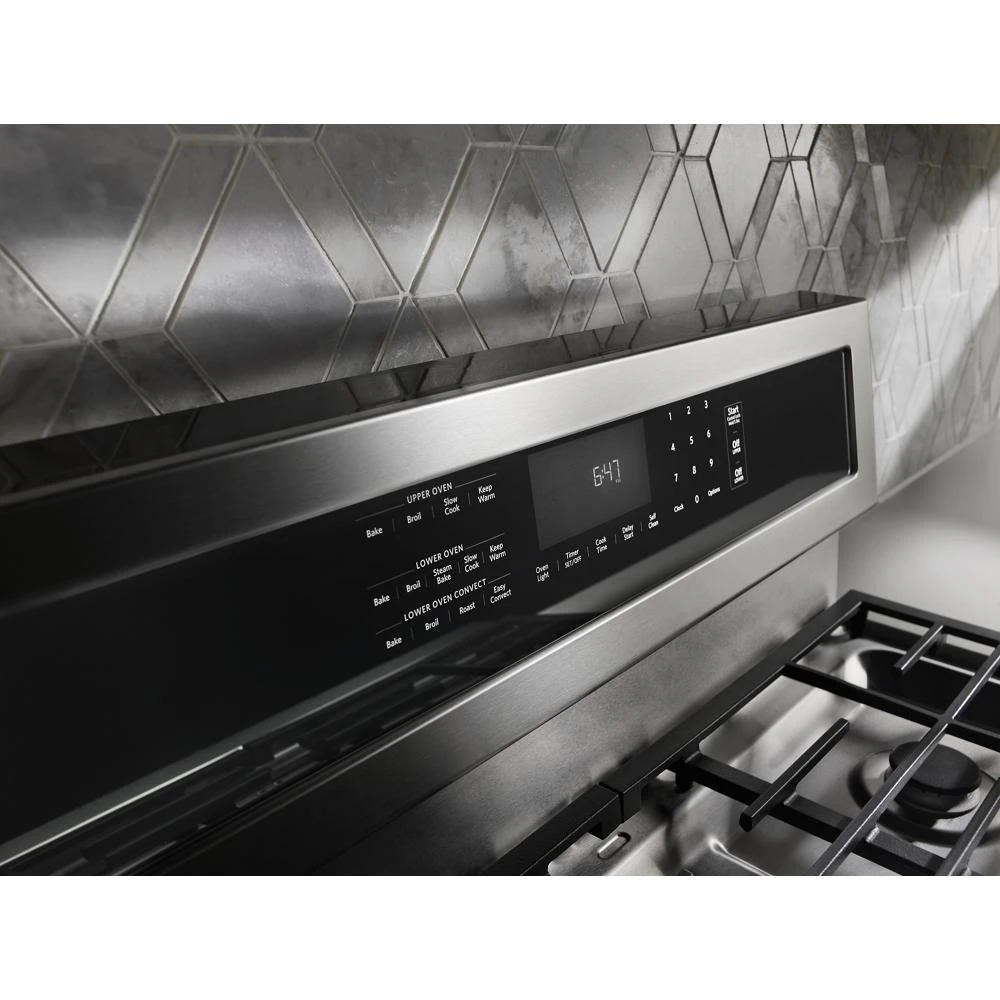

Glass Touch Controls

Offer an intuitive, easy-to-use touch screen experience.

EasyConvect™ Conversion System

Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

Even-Heat™ True Convection

features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Product Overview

Learn more about the KitchenAid® Double Oven Range

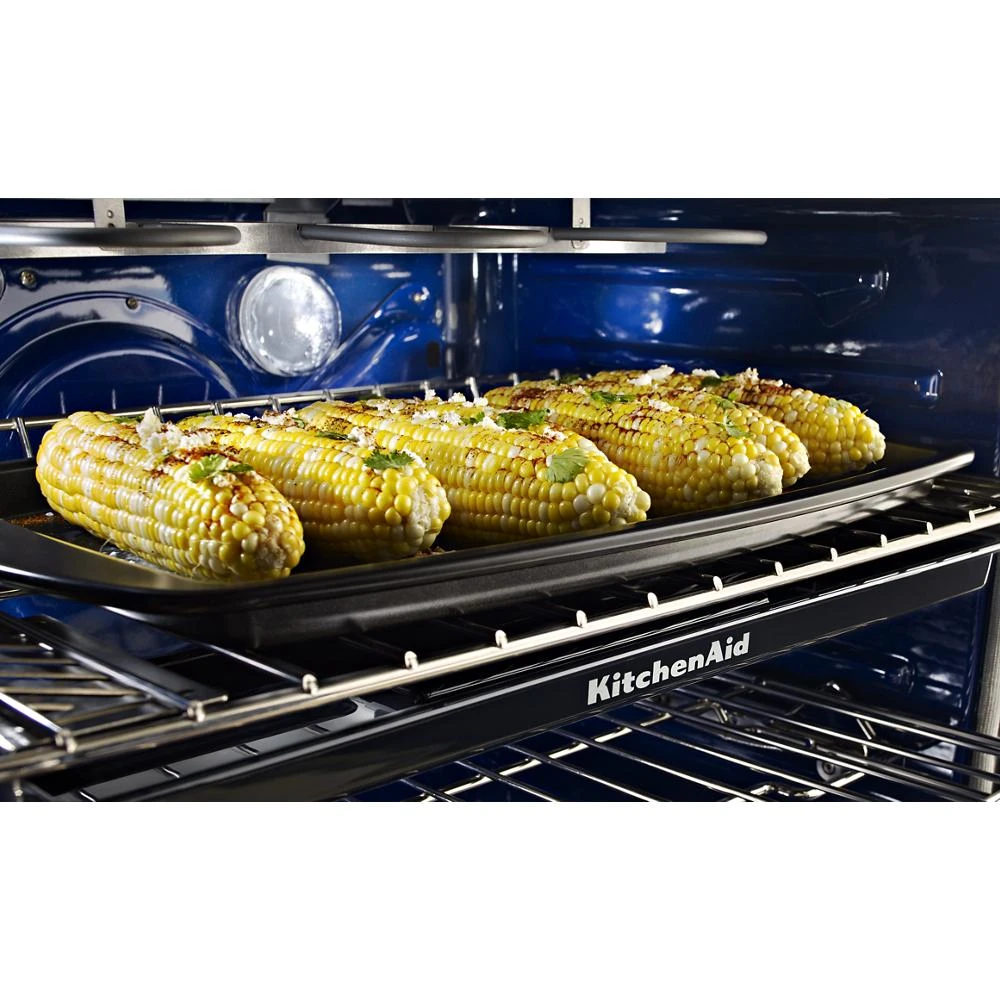

SatinGlide® Rack

Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.

Specifications

Controls

Display ColorRed, White
Electronic Display TypeDigital

Cooktop Details

Cooktop Control Knob ColorStainless Steel
Cooktop Control Knob TypeMetal
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorStainless
Cooktop Surface MaterialStainless Steel
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo

Certifications

Prop 65Standard
ULYes

Electrical

Amps40
Power Cord IncludedYes
Volts240

Dimensions & Weight

Width29.94 in.
Height47.38 in.
Length28.5 in.
Weight260 lbs.
Carton Depth30 1/4
Carton Height49 1/2
Carton Width30 3/4
Depth Closed Including Handles28 1/2
Depth With Door Open 90 Degree45
Gross Weight260
Net Weight239.6
Depth Closed Including Handles(IN,inches)28.5000
Depth With Door Open 90 Degree(IN,inches)45.0000
Net Weight(LB,pounds)240
Carton Depth(IN,inches)30.2500
Carton Height(IN,inches)49.5000
Carton Width(IN,inches)30.7500
Gross Weight(LB,pounds)260

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.94 in.
Shipping Height52.38 in.
Shipping Length33.5 in.
Shipping Weight300 lbs.
Total of Shipping Weight300 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.4 ft³
Dimensional Weight290.86 lbs.
Total of Cubes23.4 ft³
Total of Dimensional Weight290.86 lbs.

Details

Fuel TypeDual Fuel
Oven ConfigurationDouble Oven
Power On Indicator LightYes
Power Outage CompatibleNo
Range ConfigurationDouble Oven
Range TypeFreestanding Double Oven
Oven SelectionsDelay Start, Easy Convect Conversion, Sabbath Mode

Element/Burner Details

Center Rear Element-Burner TypeOval Burner
Cooktop Element StyleGas Burner
Left Front Element-Burner TypeBurner
Left Rear Element-Burner TypeBurner
Number of Cooking Element-Burners5
Right Front Element-Burner TypeBurner
Right Rear Element-Burner TypeBurner
Center Rear Element-Burner Power7,350 BTU
Left Front Element-Burner Power17,000 BTU
Left Rear Element-Burner Power5,000 BTU
Number of Grates2
Right Front Element-Burner Power10,000 BTU
Right Rear Element-Burner Power5,000 BTU

Exterior Details

Door TypeMetal & Glass
Oven Control LocationBackguard
Oven Control TypeElectronic Touch
Oven Window SizeLarge
Handle ColorStainless Steel
Handle MaterialMetal

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustYes
Bake Element Power2,000 W Both
Broiler Element Power3,600 W Both
Broiler LocationTop of Oven
Convection Element TypeFan
Convection FunctionsBake, Broil, Roast
Hidden Bake ElementYes
Interior ColorBlue
Number of Oven Lights1
Number of Oven Racks1 Upper-2 Lower
Number of Rack Guides2 Upper-5 Lower
Oven Cleaning TypeAquaLift® Self Clean
Oven Cooking SystemThermal Upper-Convection Lower
Oven Light TypeIncandescent
Oven Rack Type1 Gliding Roll-Out, 2 Heavy Duty
Convection Element Power1,600 w
Lower Oven Capacity4.2 cu. ft.
Upper Oven Capacity2.5 cu. ft.

Grate Details

Grate DetailsCast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

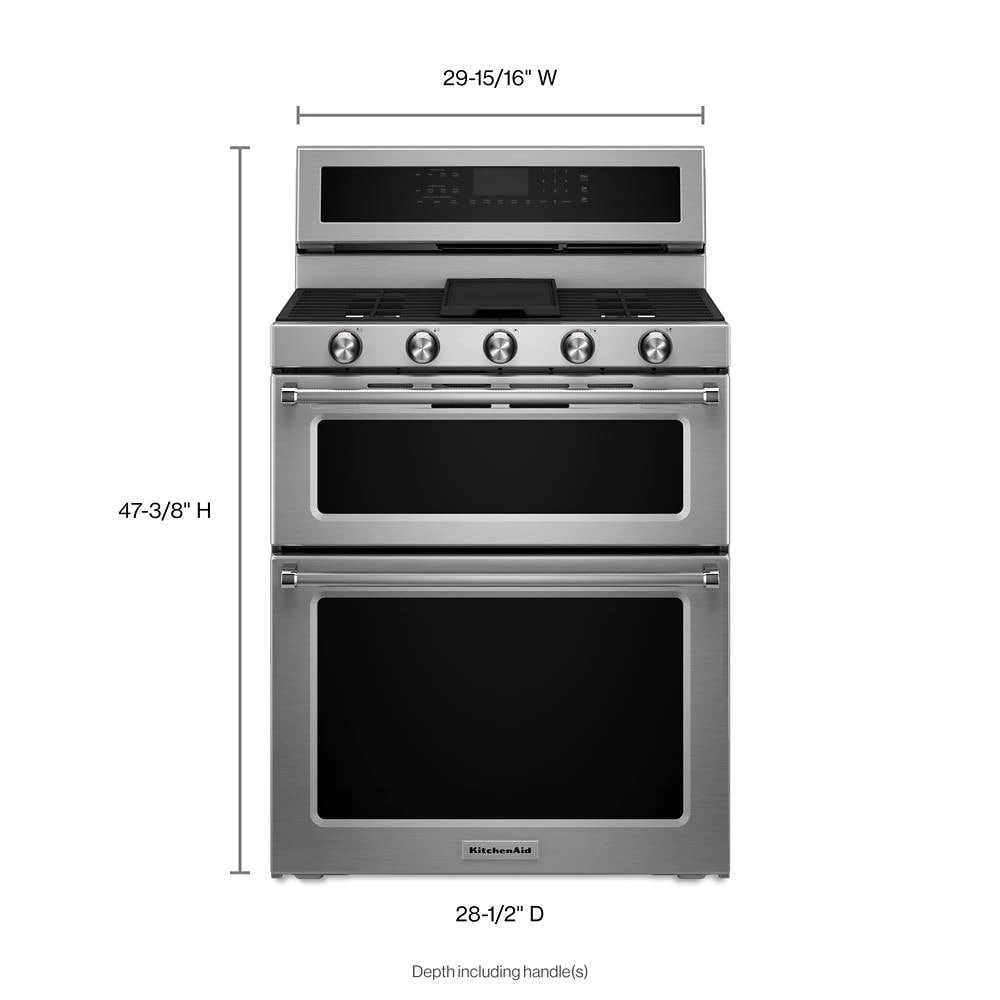

Dimensions

Capacity6.7 cu. ft.
Common Size30 in
Depth28-1/2 in
Depth Closed Including Handles28-1/2 in
Depth With Door Open 90 Degree45 in
Gross Weight260 lbs
Height47-3/8 in
Lower Oven Interior Depth18-3/4 in
Lower Oven Interior Height16 in
Lower Oven Interior Width25 in
Net Weight239-3/5 lbs
Upper Oven Interior Depth19-1/4 in
Upper Oven Interior Height8-1/2 in
Upper Oven Interior Width25 in
Width29-15/16 in
