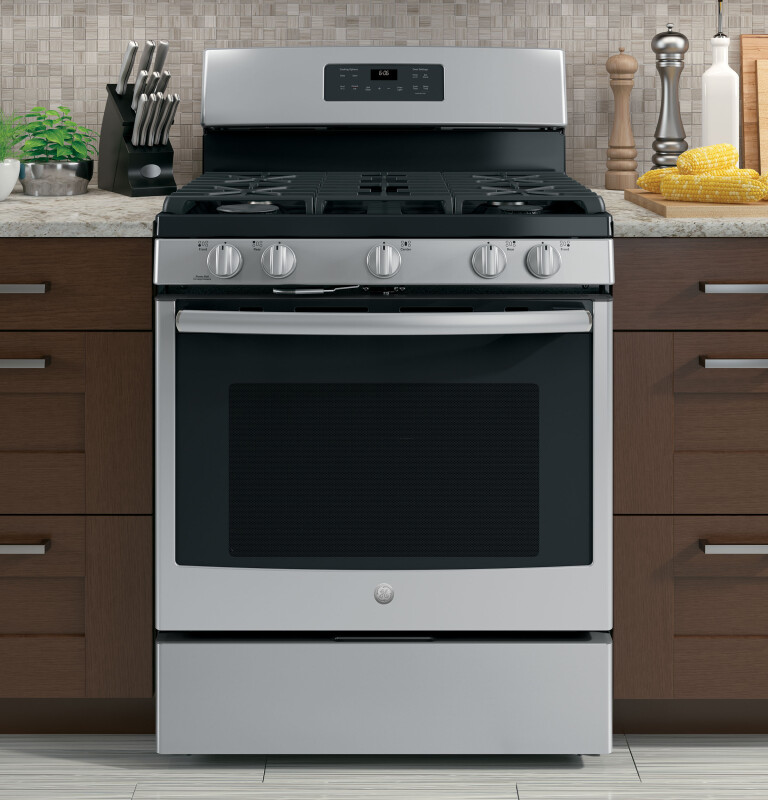

30" Free-Standing Gas Range - JGB660SEJSS
30" Free-Standing Gas Range
Model: JGB660SEJSS
Product Video
30" Free-Standing Gas Range
Model: JGB660SEJSS
Color : Stainless Steel
Key Features

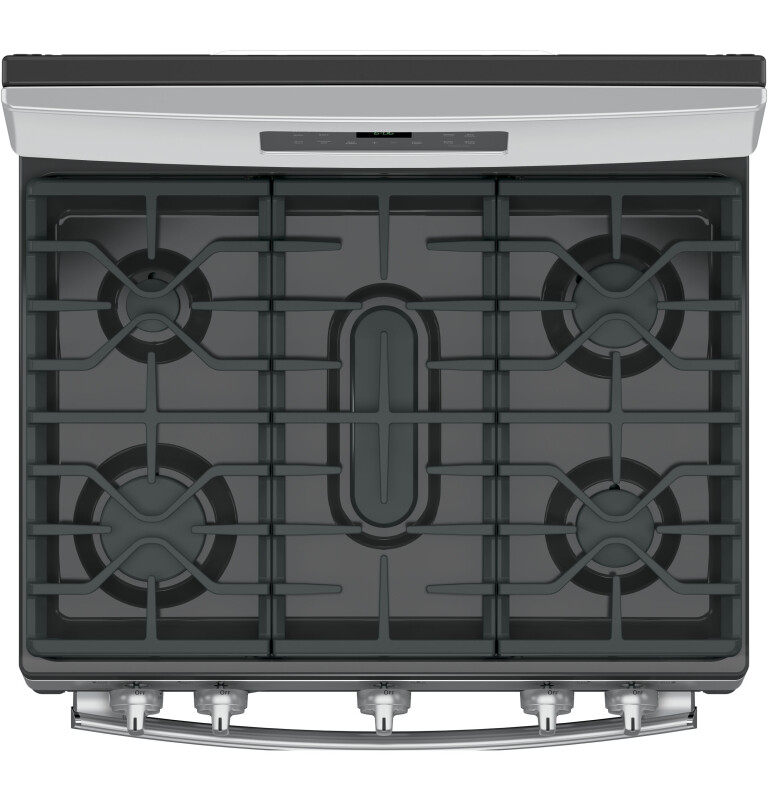

Edge-to-edge cooktop
18,000 BTU Power Boil burner
Center oval burner
Precise Simmer burner
Self-clean oven
5.0 cu. ft. oven capacity
Heavy duty, dishwasher safe grates
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

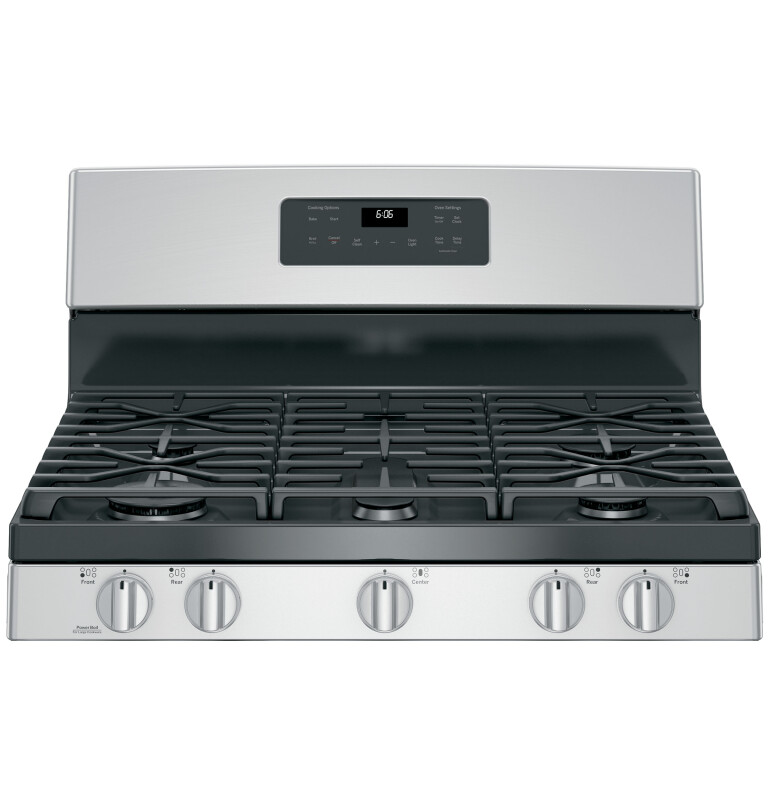

Edge-to-edge cooktop
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

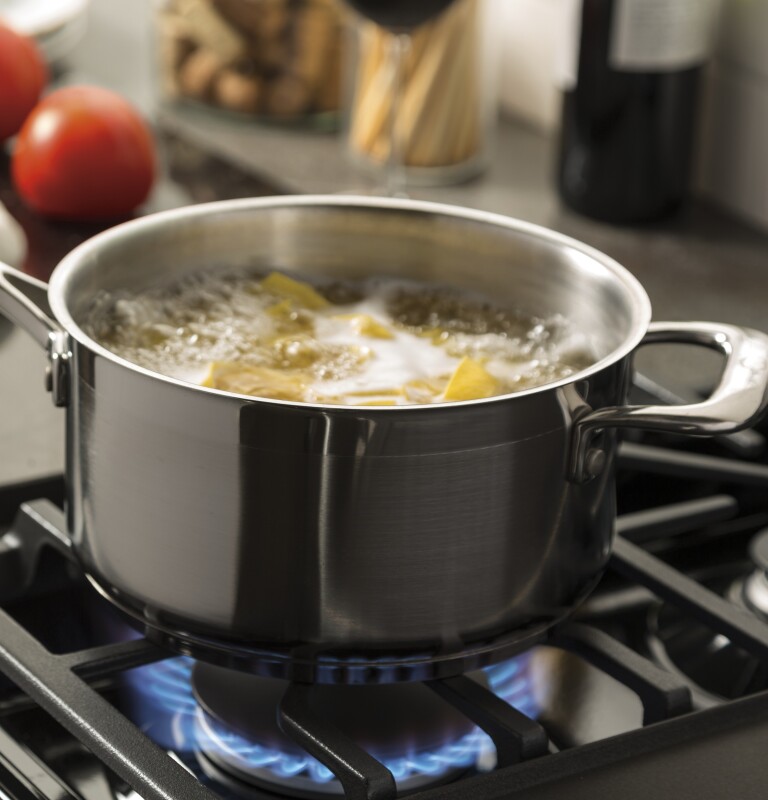

18,000 BTU Power Boil burner
Boil water fast with intense heat from this 18,000 BTU burner
Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware

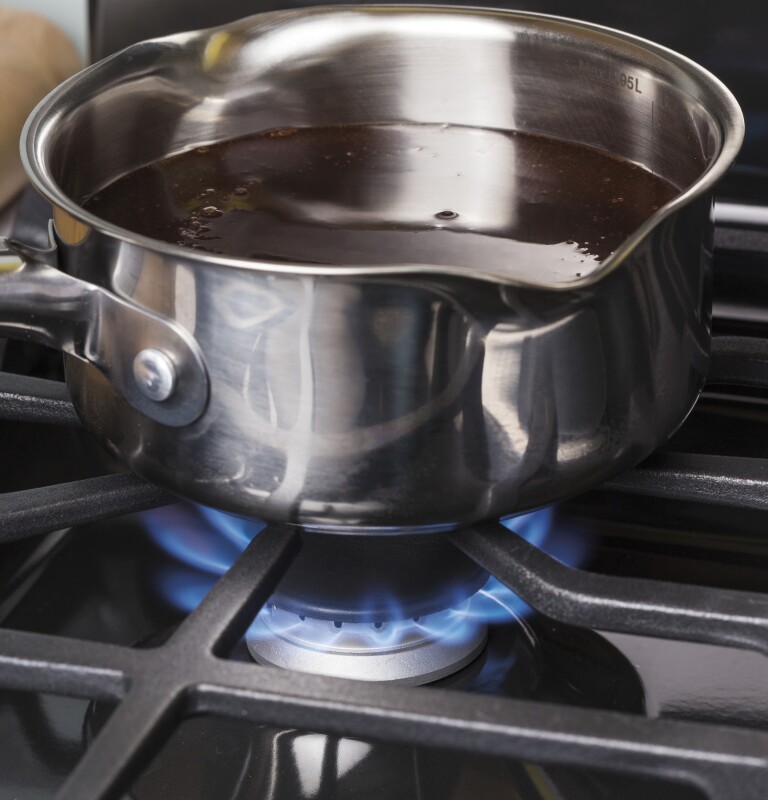

Precise Simmer burner
Delicate foods don’t burn with low, even heat
Self-clean oven
Cleans the oven cavity without the need for scrubbing

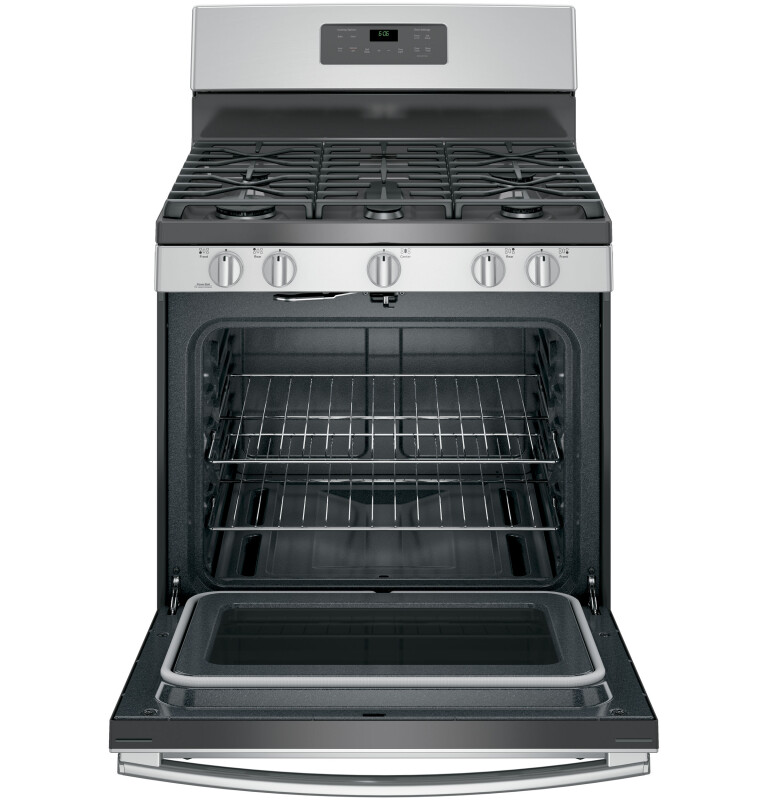

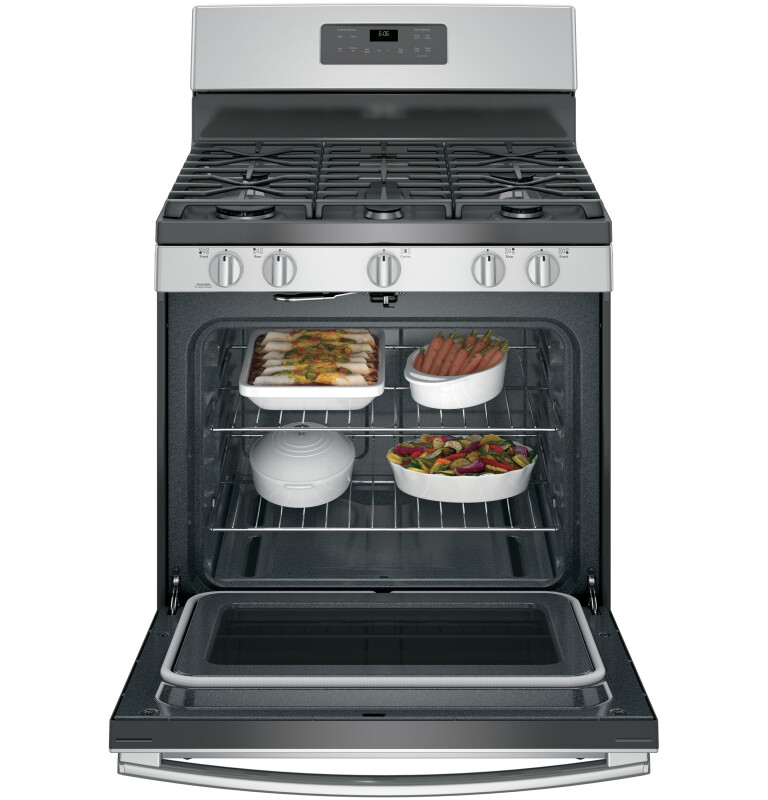

5.0 cu. ft. oven capacity
Cook more dishes at once

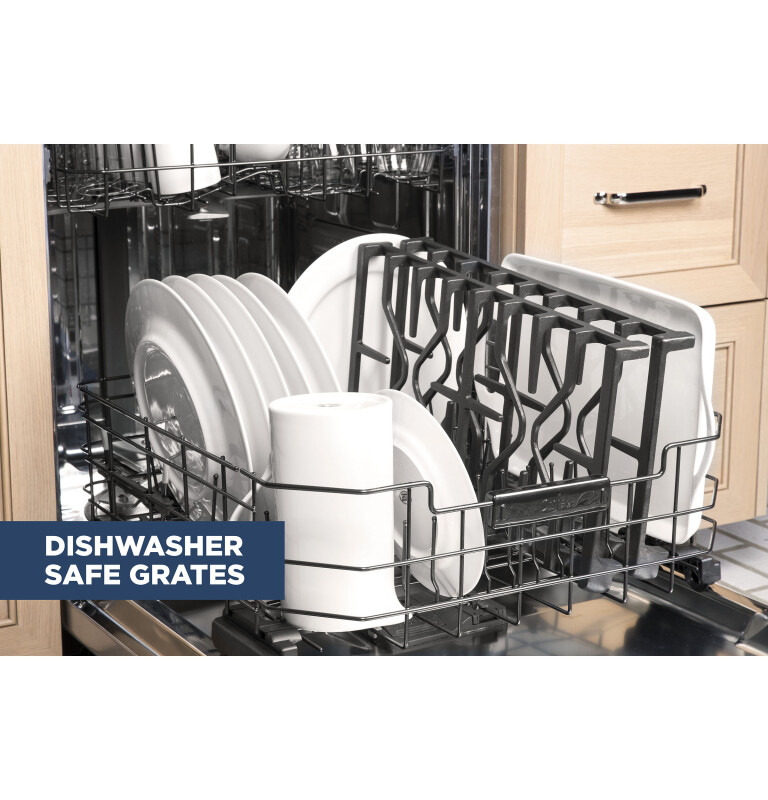

Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

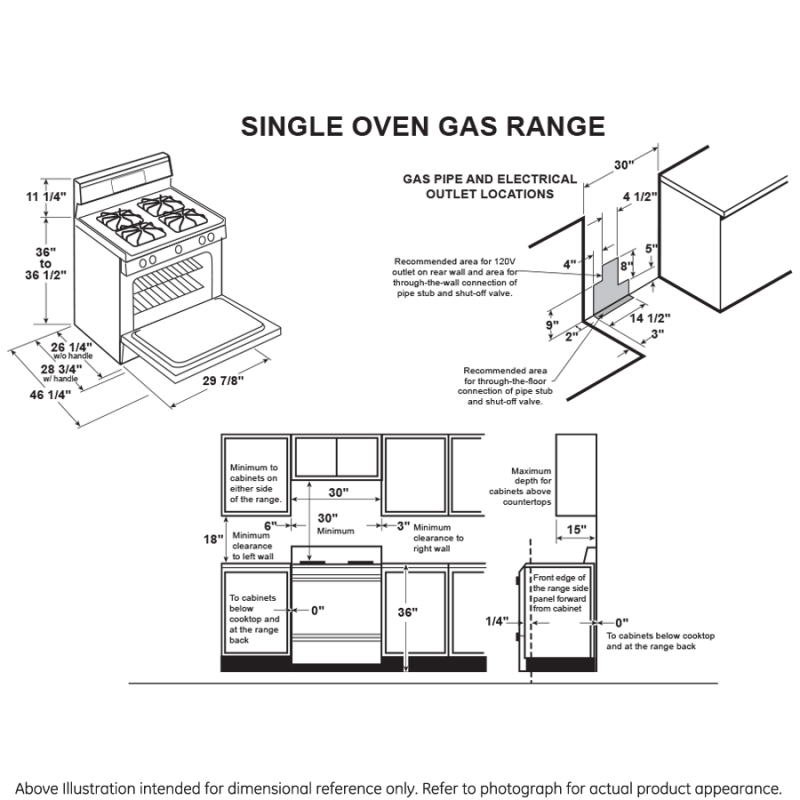

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 195 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 215 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Depth | 28 3/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 195 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 235 lbs. |
| Total of Shipping Weight | 235 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle Design | Designer Style |
| Handle Color | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| Color Appearance | Stainless Steel/Gray |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 12,000 BTU |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Griddle | Optional |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU Power Boil |
| Drawer Type | Storage |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 9,500 BTU |
| Cooktop Surface | Gray |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Delay Bake Option |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Surface | Edge-to-Edge |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Control Lock Capability |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
ACCESSORIES
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | WB31X24738 (Optional) |
| LP Conversion Kit | Included |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
