30" Free-Standing Gas Range - JGB630REFSS
30" Free-Standing Gas Range
Model: JGB630REFSS
Product Video
30" Free-Standing Gas Range
Model: JGB630REFSS
Color : Stainless Steel
Key Features
12,500 BTU burner
5.0 cu. ft. oven capacity

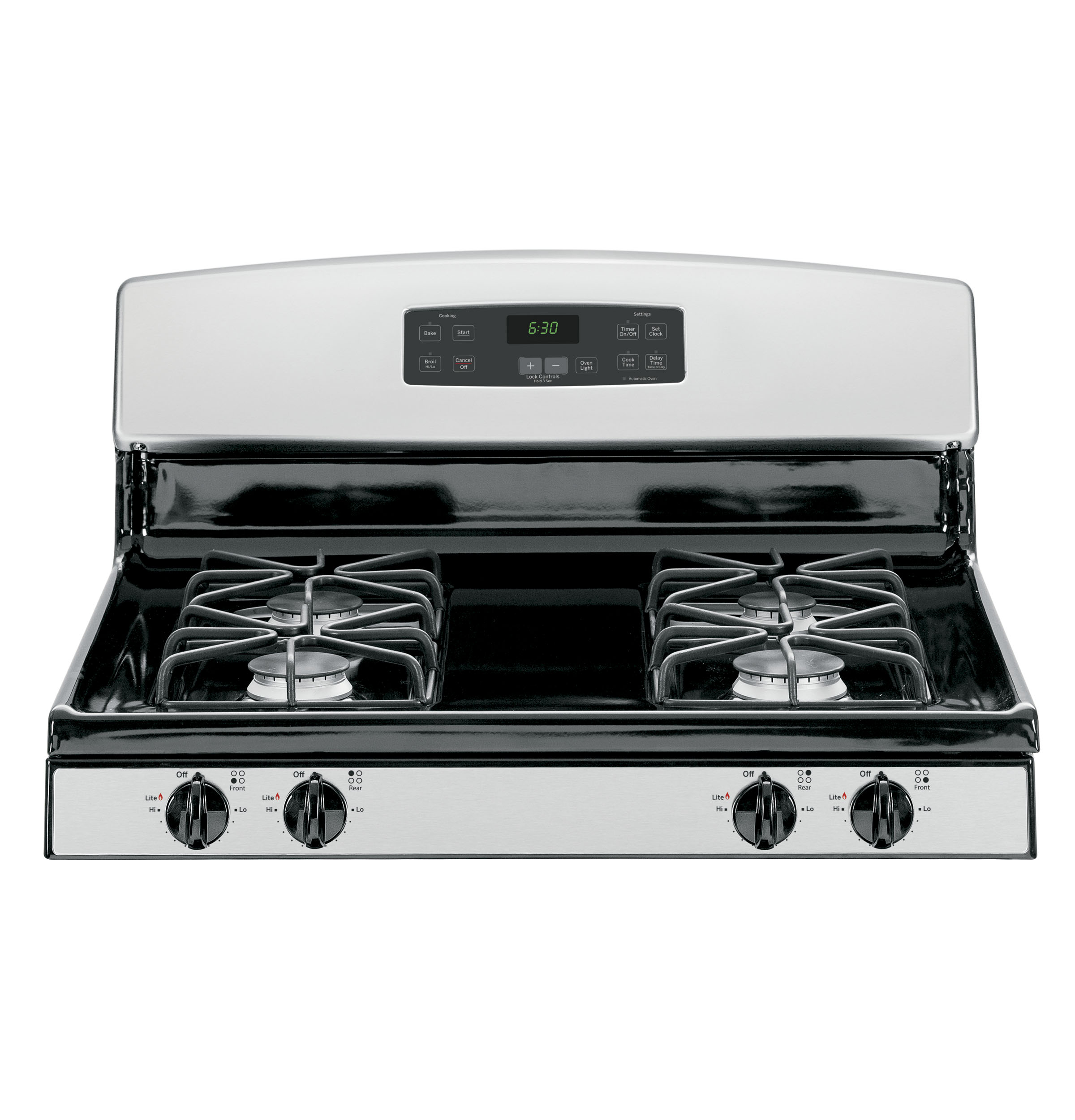

Sealed cooktop burners
In-oven broil
Precise Simmer burner
Self-clean oven
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

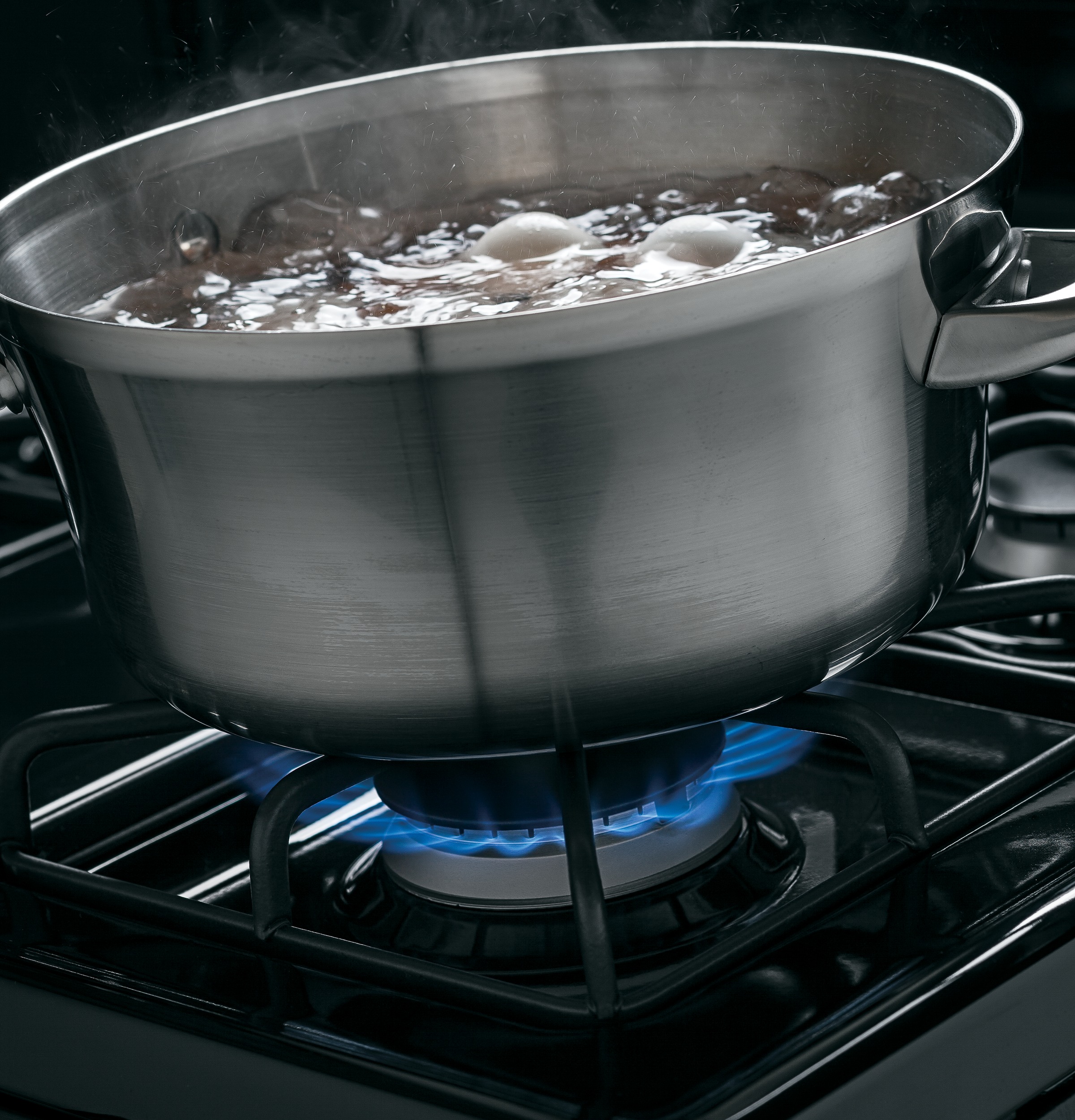

12,500 BTU burner
Quickly produces high heat

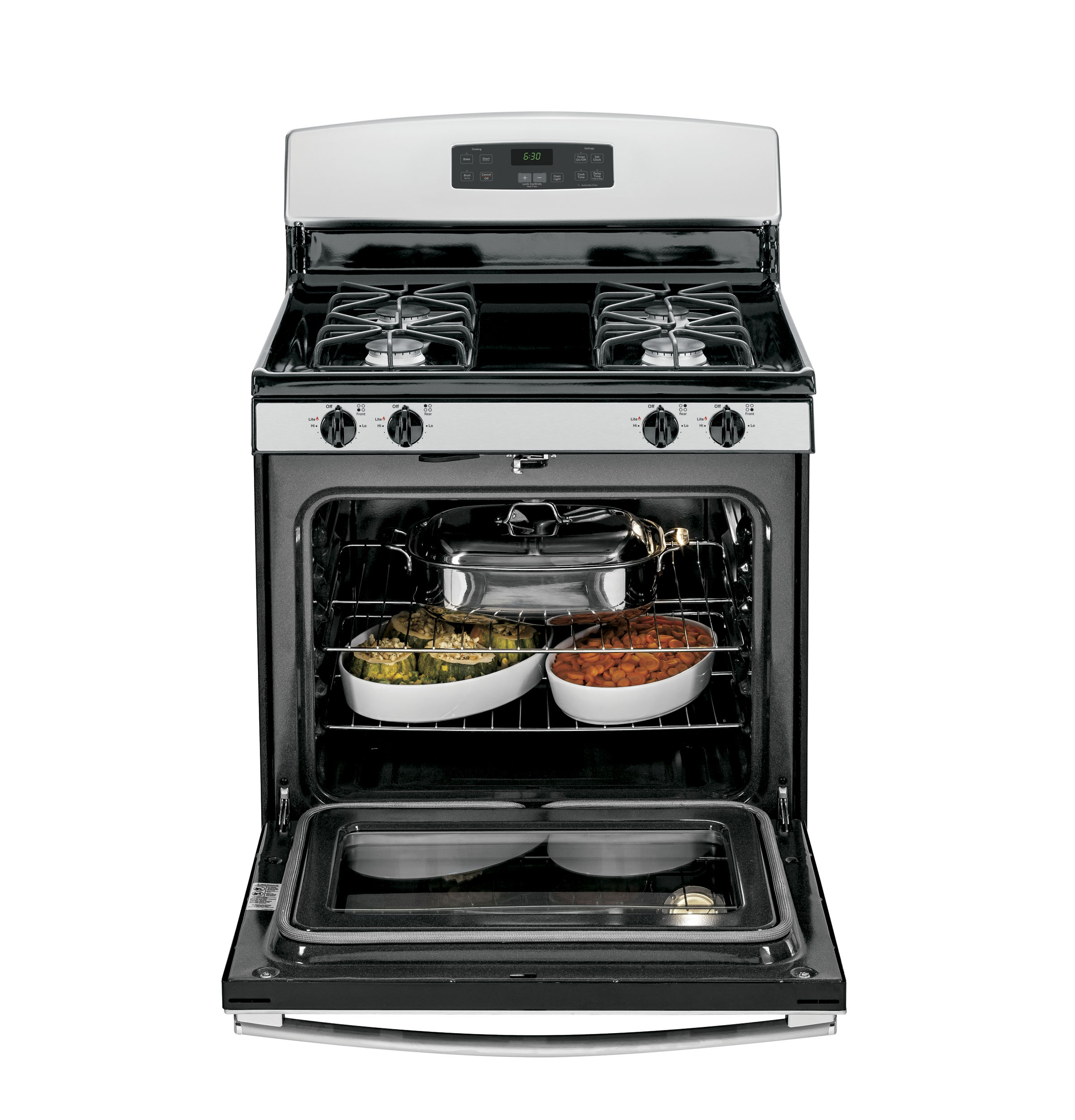

5.0 cu. ft. oven capacity
Cook more dishes at once
Sealed cooktop burners
Contains spills and make cleaning quick and easy
In-oven broil
Healthy meals are hassle-free with in-oven broiling

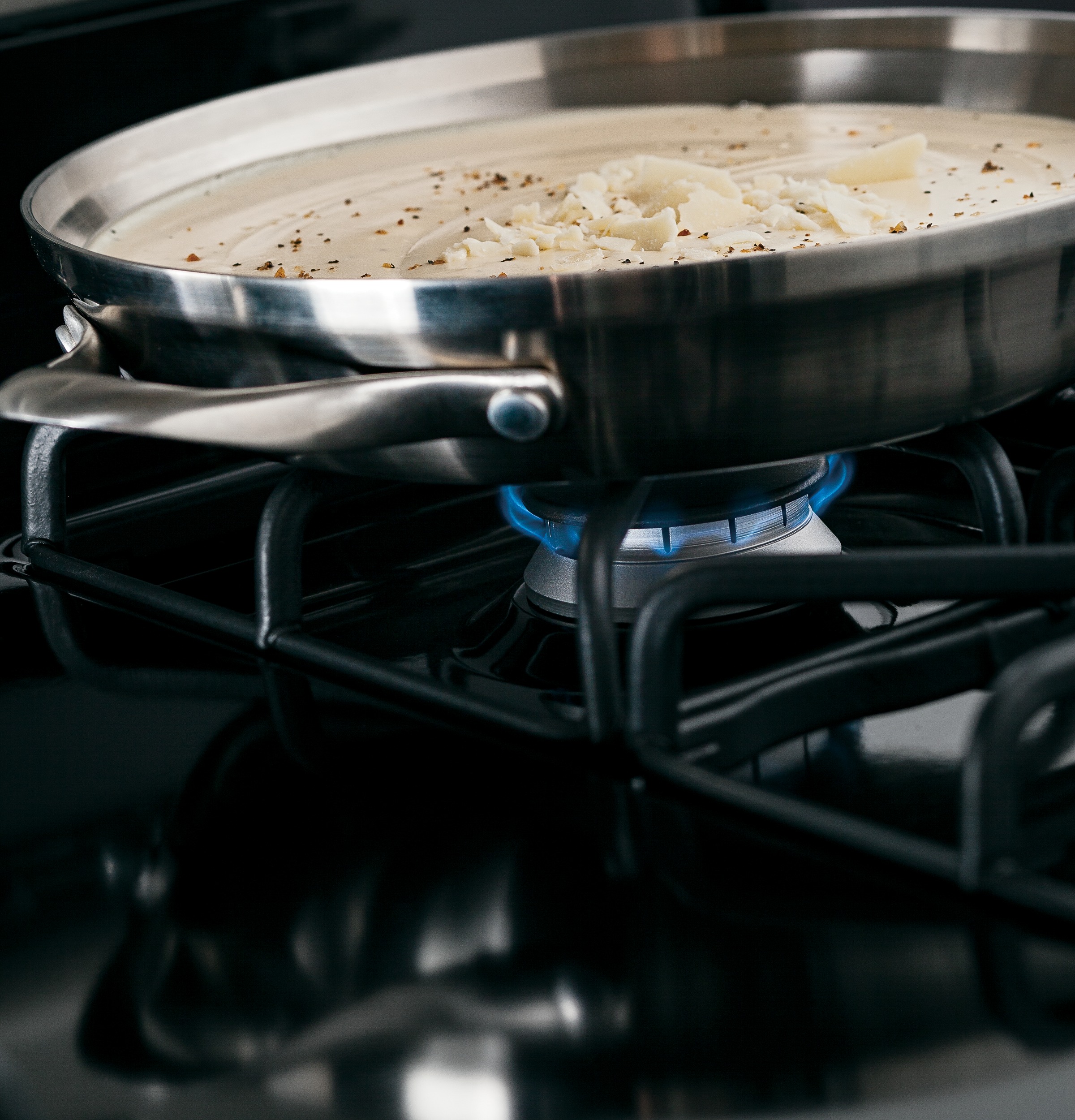

Precise Simmer burner
Delicate foods don’t burn with low, even heat

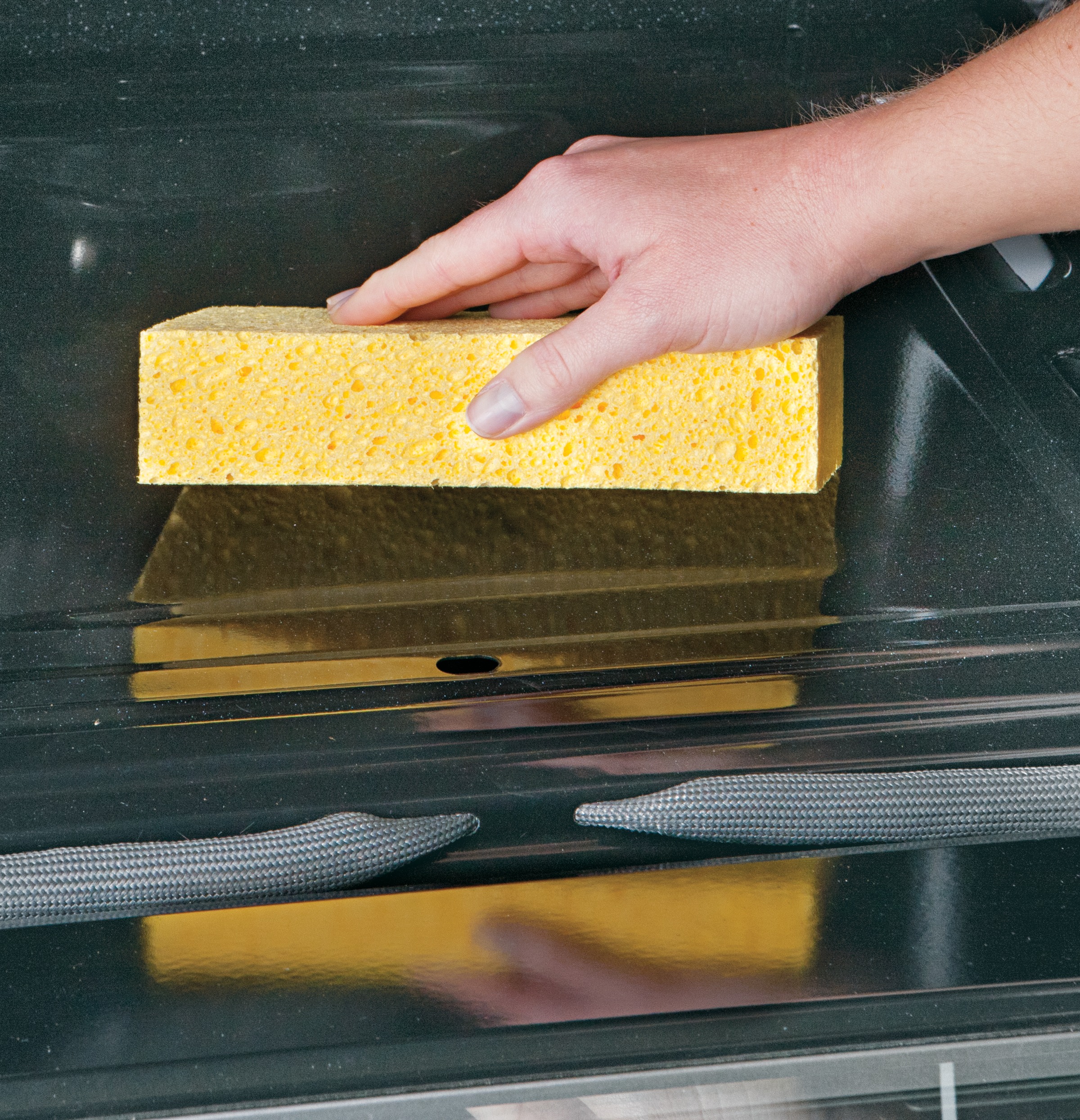

Self-clean oven
Cleans the oven cavity without the need for scrubbing
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

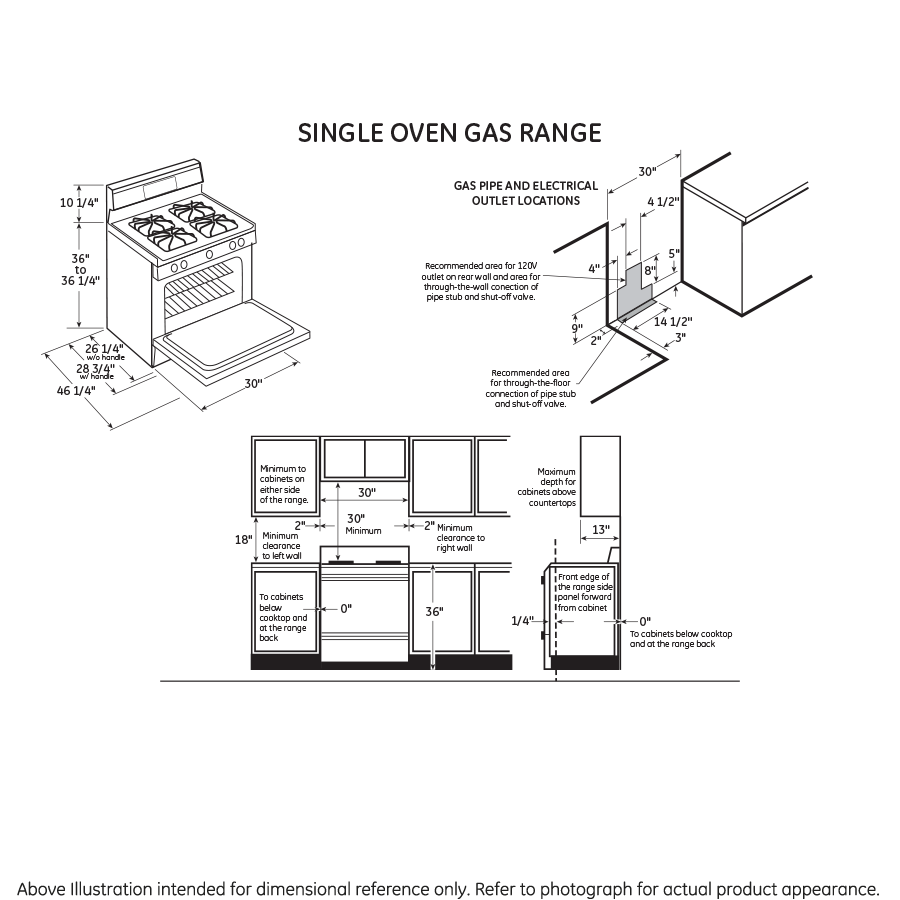

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 195 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 215 lb |
| Overall Depth | 28 3/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.25 |
FEATURES
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| Oven Control Features | Delay Bake Option |
| Cooktop Burner Type | Sealed |

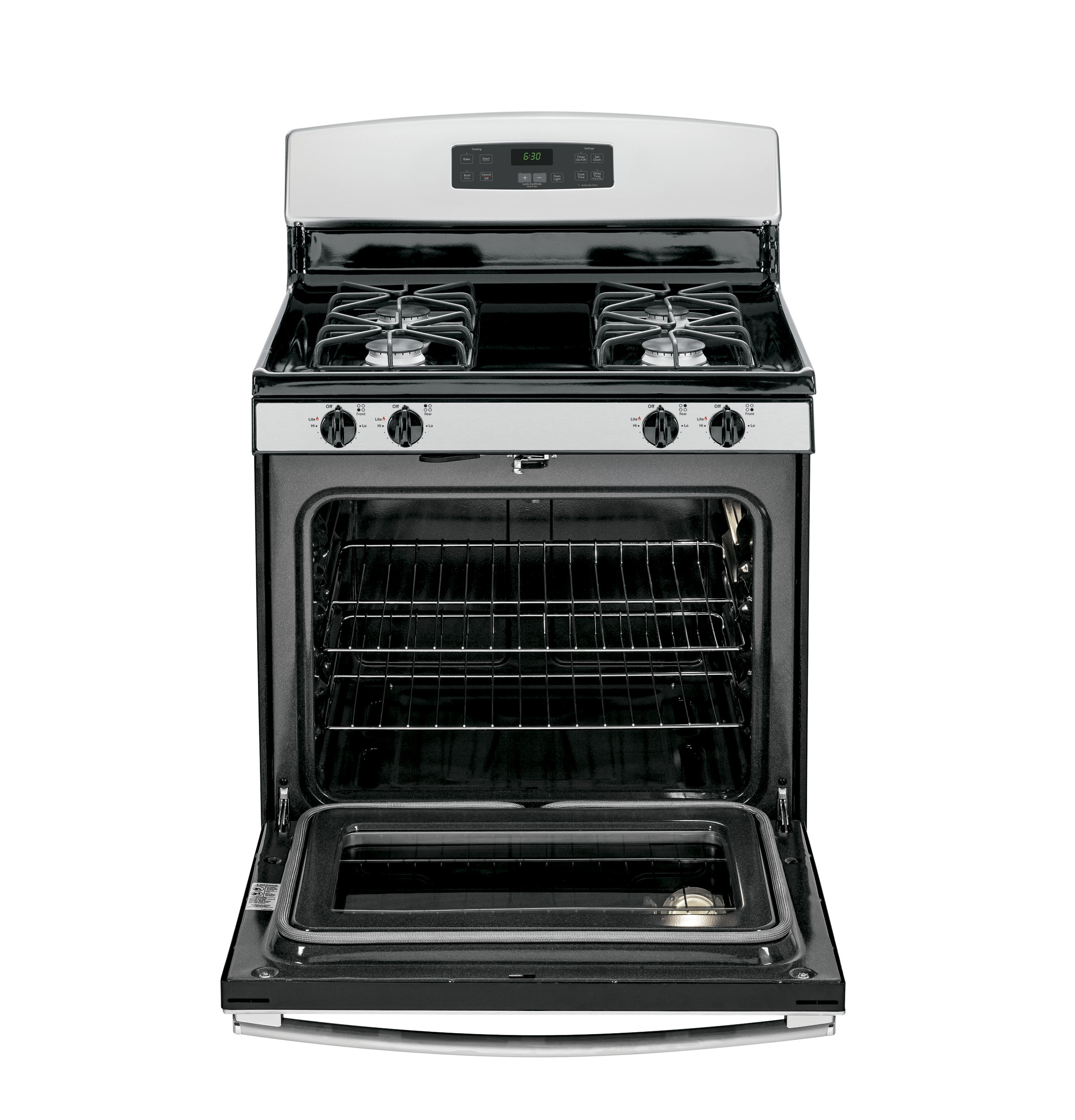

| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |

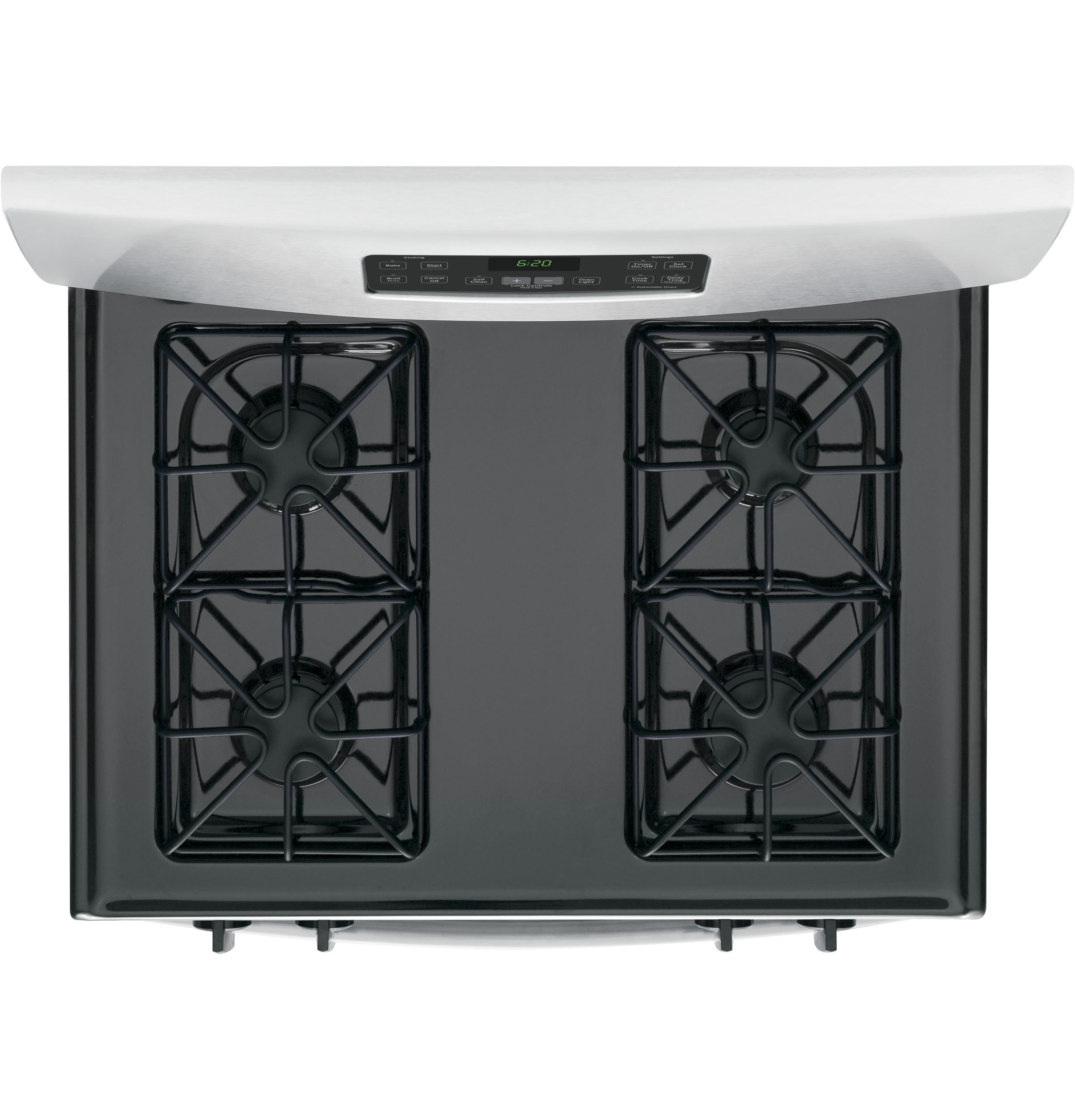

| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Extra-Heavy Steel |
| Burner - Right Front | 12,500 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,500 BTU |

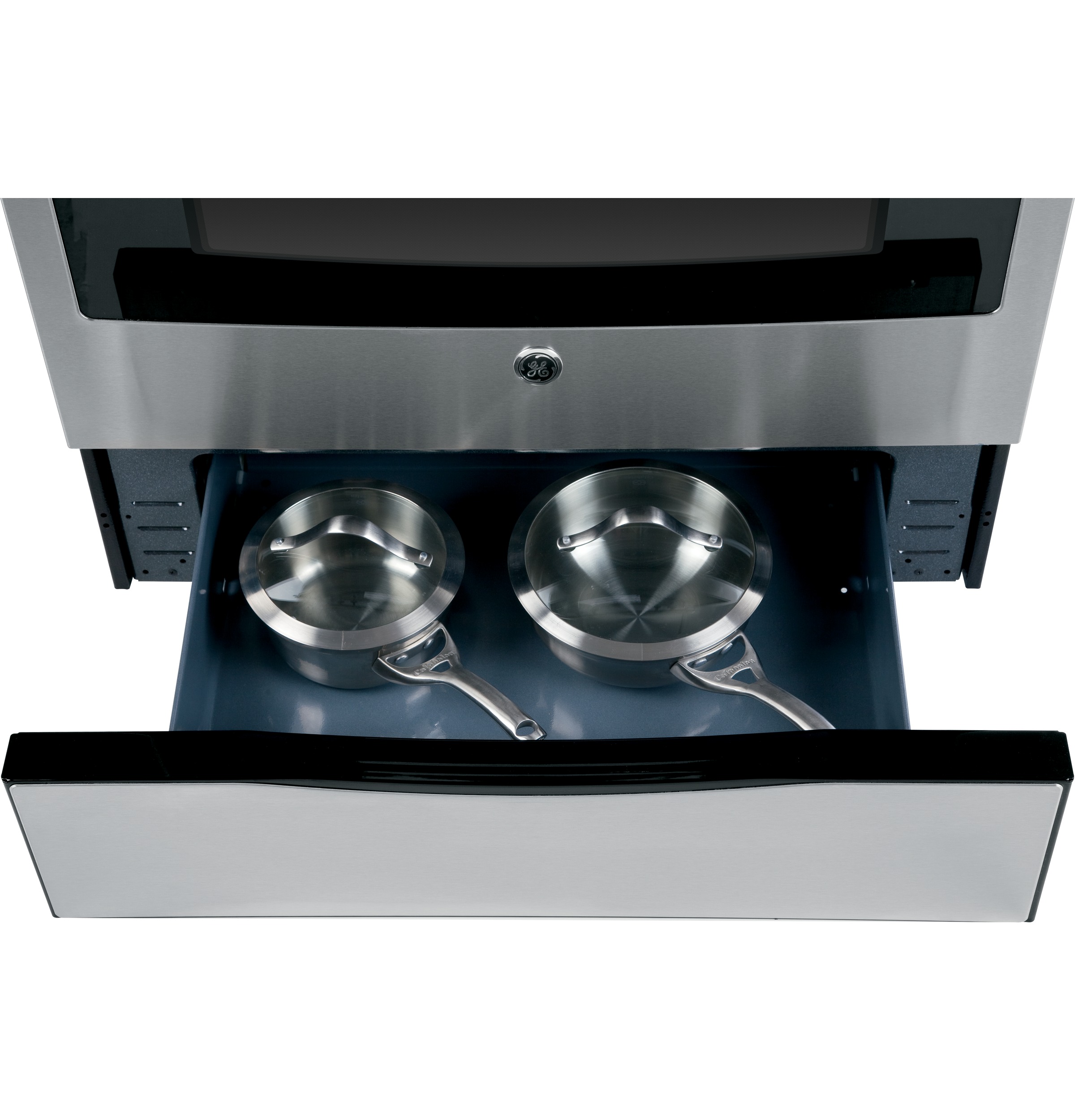

| Drawer Type | Storage |
| Control Type | Electronic Touch |
| One-Piece Drip Pans | Optional Accessory |
| Cooking Technology | Traditional |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Black |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Audible Preheat Signal |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle | Stainless Steel |
| Control Knobs | Gloss Black |
| Color Appearance | Stainless Steel/Black |
| Handle | Designer Style |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 11.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 28.75 in. |
| Weight | 195 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 235 lbs. |
| Total of Shipping Weight | 235 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.08 ft³ |
| Dimensional Weight | 286.98 lbs. |
| Total of Cubes | 23.08 ft³ |
| Total of Dimensional Weight | 286.98 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
