30" Single Wall Oven with Even-Heat True Convection - KOSE500EWH
This product has been discontinued by the manufacture and is no longer available.

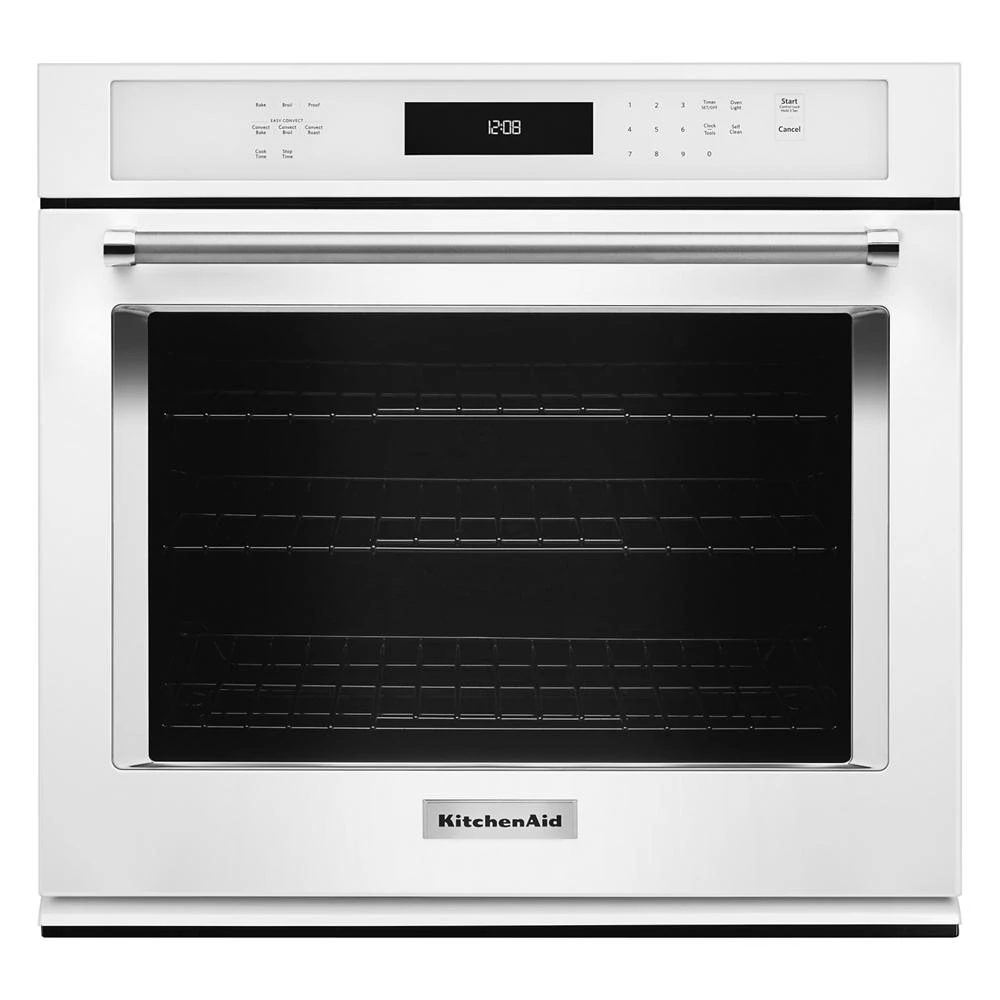

30" Single Wall Oven with Even-Heat True Convection
Model: KOSE500EWH
+2more
This product has been discontinued by the manufacture and is no longer available.
30" Single Wall Oven with Even-Heat True Convection
Model: KOSE500EWH
Color : White
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Specifications
Specifications
Controls
| Control Type | Glass Touch Digital Display |
| Display Color | White |
| Electronic Display Type | Digital |
| Language Conversion | English/French |
| Light Control | Oven Light Touch Pad |
Details
| Oven Automatic Shut-Off | Yes |
| Cooktop Combinations | KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569 |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Configuration | Single Oven |
| Oven Selections | Clock, Control Lock, Delay Start, Proofing, Sabbath Mode, Star K, Temperature Probe, Time Bake, Timer |
| Oven Type | Single |
Certifications
| ADA Compliant | No |
Electrical
| Amps | 20 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
Other
| Capacity (Cu Ft) | 5.00 |
Dimensions & Weight
| Width | 30 in. |
| Height | 28.75 in. |
| Length | 27.13 in. |
| Weight | 160 lbs. |
| Carton Depth | 30 13/16 |
| Carton Height | 30 3/4 |
| Carton Width | 34 13/16 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 28 |
| Cutout Width (in) | 28 1/2 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth With Door Open 90 Degree | 46 3/4 |
| Gross Weight | 160 |
| Net Weight | 144.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 28.0000 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth With Door Open 90 Degree(IN,inches) | 46.7500 |
| Net Weight(LB,pounds) | 144 |
| Carton Depth(IN,inches) | 30.8125 |
| Carton Height(IN,inches) | 30.7500 |
| Carton Width(IN,inches) | 34.8125 |
| Cutout Height Min(IN,inches) | 28.0000 |
| Gross Weight(LB,pounds) | 160 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 33.75 in. |
| Shipping Length | 32.13 in. |
| Shipping Weight | 200 lbs. |
| Total of Shipping Weight | 200 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.54 ft³ |
| Dimensional Weight | 168.31 lbs. |
| Total of Cubes | 13.54 ft³ |
| Total of Dimensional Weight | 168.31 lbs. |
Oven Cavity Details
| Bake Element Power | 2,800 W |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3,200 w |
| Convection Element Type | True |
| Convection Functions | Bake, Broil, Roast |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Interior Coating | Porcelain |
| Interior Color | Blue |
| Light Type | Halogen |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Oven Cooking System | Convection |
| Oven Rack Guide Type | Molded |
| Self-Cleaning Oven Racks | No |
| Temperature Conversion | Yes |
Exterior Details
| Door Lock | Yes |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Window Size | Extra Large |
Dimensions
| Capacity | 5 cu. ft. |
| Common Size | 30 in |
| Cutout Depth | 24 in |
| Cutout Height | 28 in |
| Cutout Width | 28-1/2 in |
| Depth | 27-1/8 in |
| Depth Closed Excluding Handles | 24-1/2 in |
| Depth With Door Open 90 Degree | 46-3/4 in |
| Gross Weight | 160 lbs |
| Height | 28-3/4 in |
| Net Weight | 144 lbs |
| Oven Capacity | 5 cu. ft. |
| Oven Interior Depth | 19 in |
| Oven Interior Height | 18 in |
| Oven Interior Width | 25 in |
| Width | 30 in |
