$3,729.00
Was$4,149.00Save $420.00 (10%)

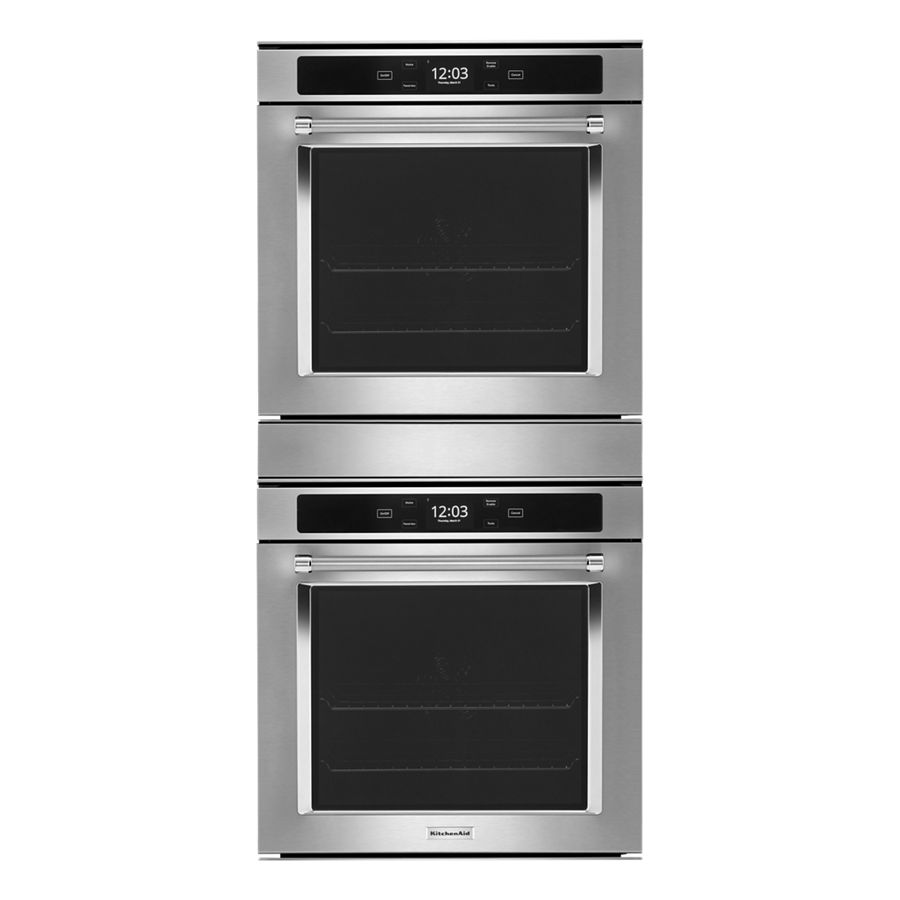

24" Smart Double Wall Oven with True Convection - KODC504PPS
$3,729.00
Was$4,149.00Save $420.00 (10%)
Current Rebates
Key Features
True Convection
Trim Kit Included
5.2 Cu. Ft. Total Capacity
Smart Appliance
Five-Level Rack Support (Both Ovens)
Flush Installation Option
Self-Cleaning Cycle (Upper Oven Only)
Touchscreen Controls
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
True Convection
uses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.

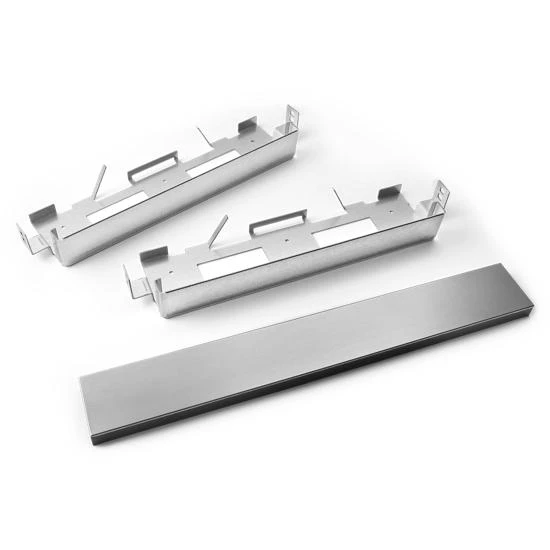

Trim Kit Included
for easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.

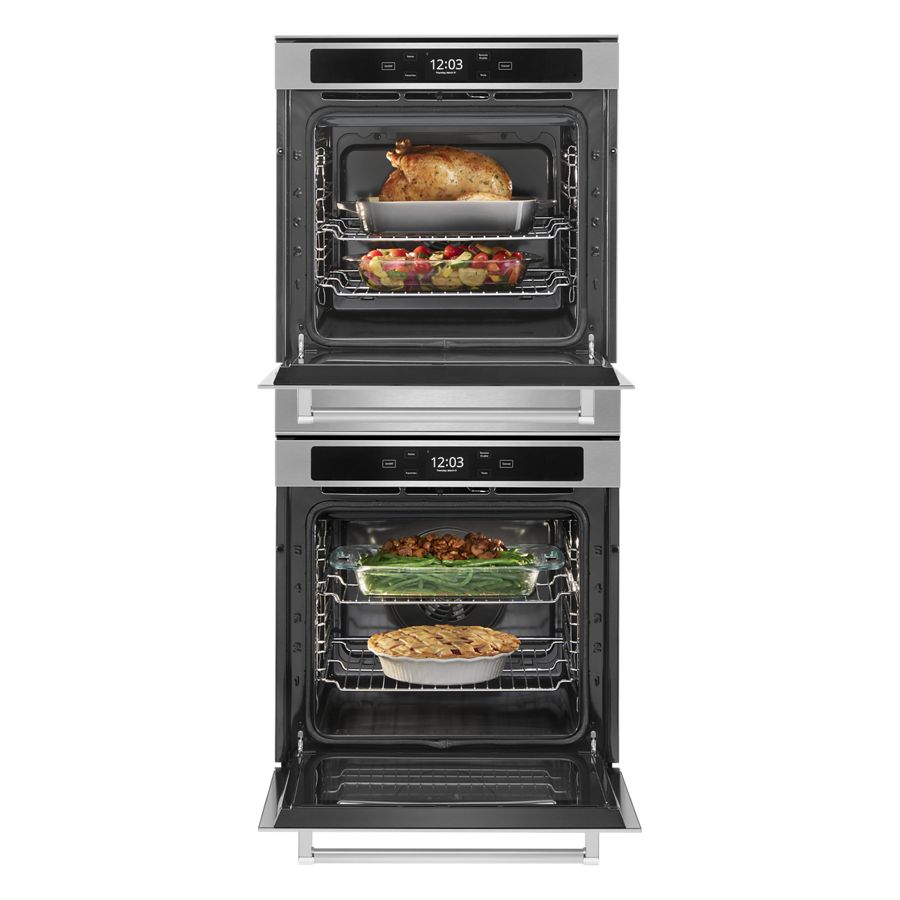

5.2 Cu. Ft. Total Capacity
shared between two equal-sized ovens provides extra space and the flexibility to cook multiple dishes at different temperatures. At 2.6 cu. ft. capacity each, both ovens provide plenty of room to cook a large roast.
Smart Appliance
gives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.** *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).

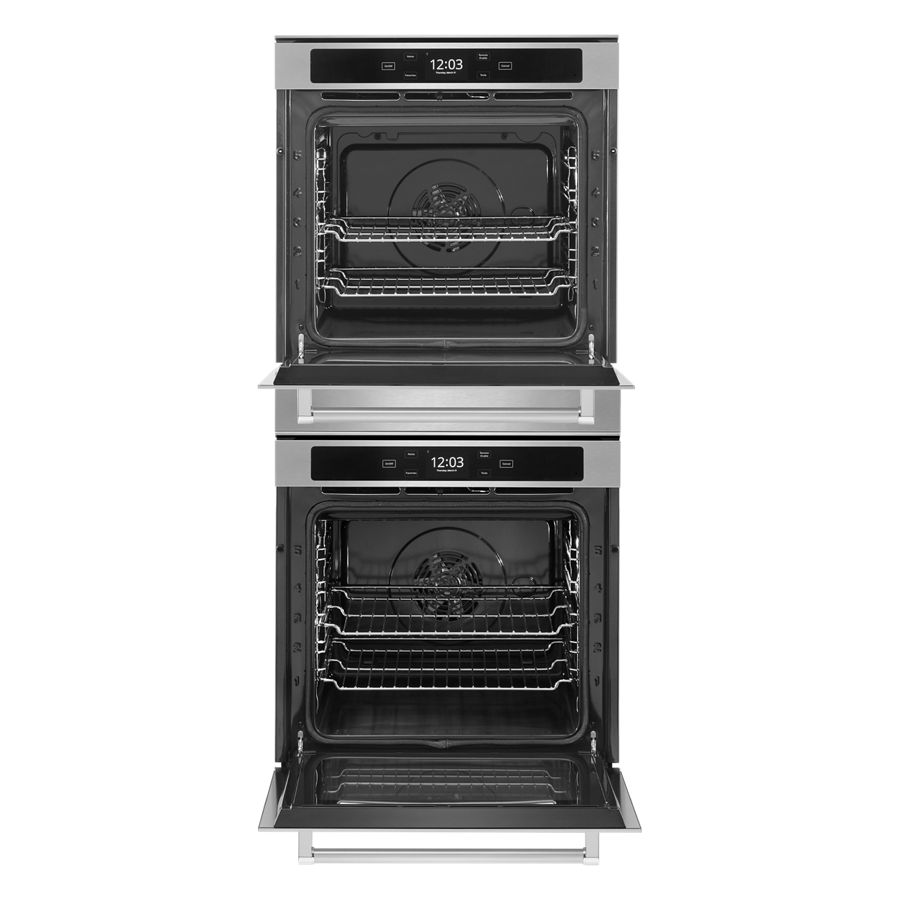

Five-Level Rack Support (Both Ovens)
inside both ovens makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.

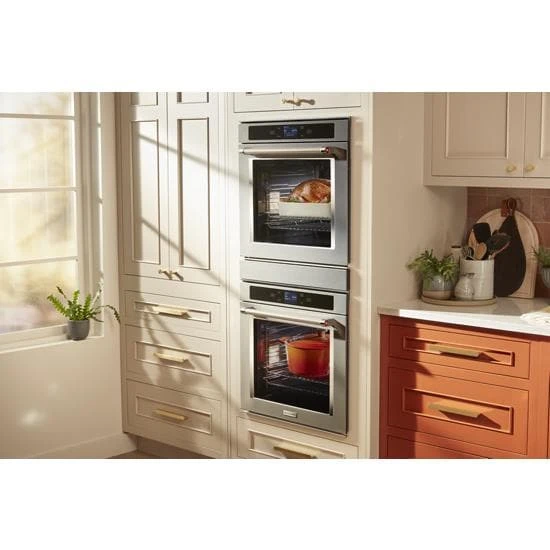

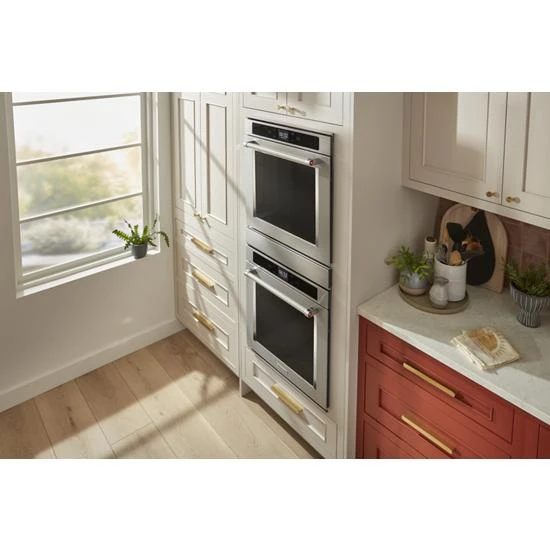

Flush Installation Option
provides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.
Self-Cleaning Cycle (Upper Oven Only)
uses high temperatures to loosen baked-on food residue in the upper oven cavity without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

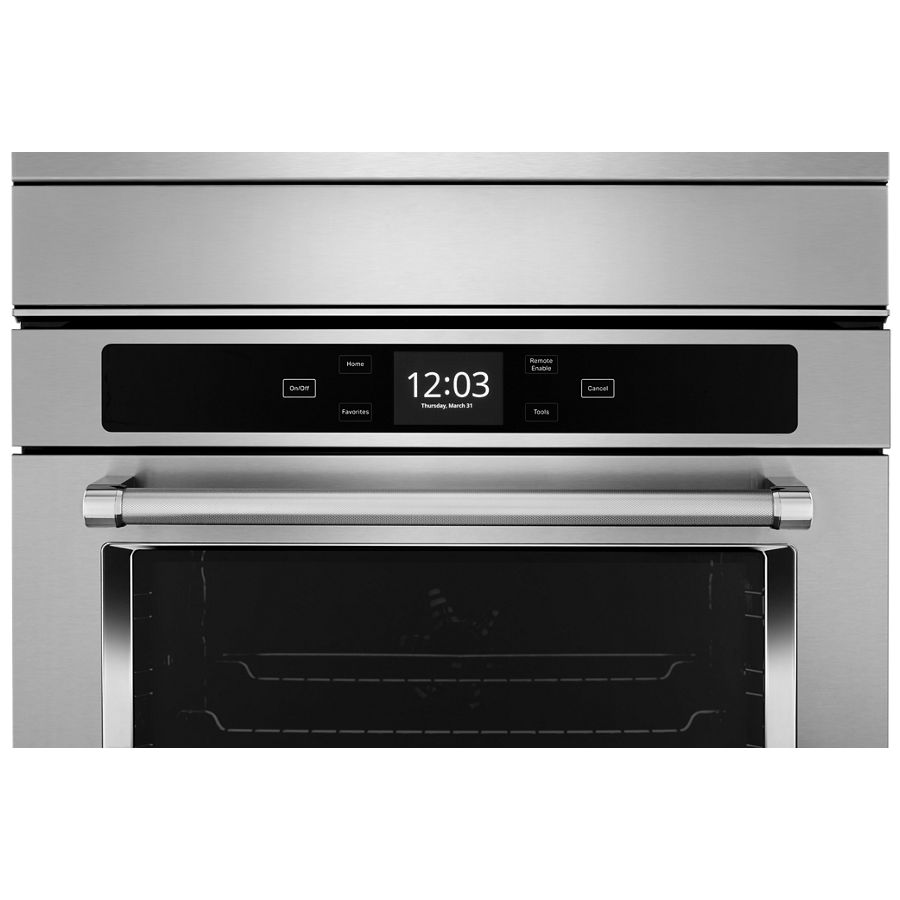

Touchscreen Controls
feature a 3.5" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.* *Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
Self-Close Doors
feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Specifications
Controls
| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | LCD Touch Screen |
| Language Conversion | English/French |
| Light Control | Oven Light Touch Pad |
Features
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Full Meal Cook, Keep Warm/Warm Hold, Language Conversion, Proofing, Sab |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Full Meal Cook, Keep Warm/Warm Hold, Language Conversion, Proofing, Sab |
| Wall Oven Features | Smart Appliance |
Details
| Oven Automatic Shut-Off | Yes |
| Delay Clean | Delay Clean (Upper Oven) |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Full Meal Cook, Keep Warm/Warm Hold, Language Conversion, Proofing, Sta |
Certifications
| CUL | Yes |
| Prop 65 | Standard |
| UL | Yes |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 208 |

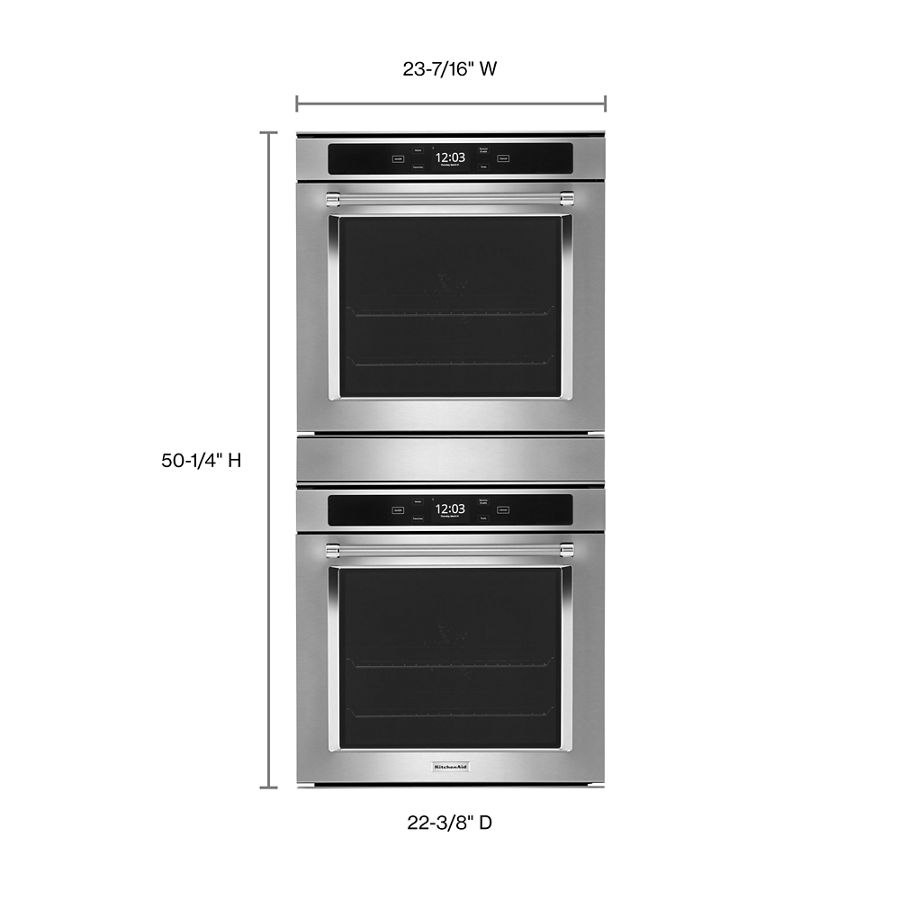

Dimensions & Weight
| Width | 23.44 in. |
| Height | 50.25 in. |
| Length | 22.5 in. |
| Weight | 179 lbs. |
| Carton Depth | 27 3/16 |
| Carton Height | 61 7/16 |
| Carton Width | 25 1/4 |
| Gross Weight | 179 |
| Net Weight | 167.6 |
| Cutout Depth(IN,inches) | 23.2500 |
| Cutout Height(IN,inches) | 49.7500 |
| Cutout Width(IN,inches) | 22.6250 |
| Depth Closed Excluding Handles(IN,inches) | 22.5000 |
| Depth Closed Including Handles(IN,inches) | 24.7500 |
| Depth With Door Open 90 Degree(IN,inches) | 40.5000 |
| Maximum Height(IN,inches) | 50.2500 |
| Carton Depth(IN,inches) | 27.1875 |
| Carton Height(IN,inches) | 61.4375 |
| Carton Width(IN,inches) | 25.2500 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.44 in. |
| Shipping Height | 55.25 in. |
| Shipping Length | 27.5 in. |
| Shipping Weight | 219 lbs. |
| Total of Shipping Weight | 219 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 15.34 ft³ |
| Dimensional Weight | 190.66 lbs. |
| Total of Cubes | 15.34 ft³ |
| Total of Dimensional Weight | 190.66 lbs. |
Exterior Details
| Door Type | Metal & Glass |
| Door Lock | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
Smart Compatibility
| Smart Appliance | Yes |
| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |
Oven Cavity Details
| Bake Element Power | 1,150 W |
| Broiler Element Power | 2,045 W |
| Broiler Location | Top of Oven |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil |
| Door Broil Position | Closed |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 2 |
| Number of Lower Rack Guides | 5 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning Upper/Manual Clean Lower |
| Temperature Conversion | Yes |
| Upper Oven Number of Oven Lights | 2 |
| Convection Element Power | 2,000 w |
Dimensions
| Capacity | 5.8 cu. ft. |
| Common Size | 24 in |
| Cutout Depth | 23-1/4 in |
| Cutout Height | 49-3/4 in |
| Cutout Width | 22-5/8 in |
| Depth | 22-1/2 in |
| Depth Closed Excluding Handles | 22-1/2 in |
| Depth Closed Including Handles | 24-3/4 in |
| Depth With Door Open 90 Degree | 40-1/2 in |
| Gross Weight | 178-3/5 lbs |
| Height | 50-1/4 in |
| Lower Oven Interior Depth | 17 in |
| Lower Oven Interior Height | 14-563/1000 in |
| Lower Oven Interior Width | 18 in |
| Maximum Height | 50-1/4 in |
| Net Weight | 167-3/5 lbs |
| Upper Oven Interior Depth | 17 in |
| Upper Oven Interior Height | 14-563/1000 in |
| Upper Oven Interior Width | 18 in |
| Width | 23-7/16 in |
