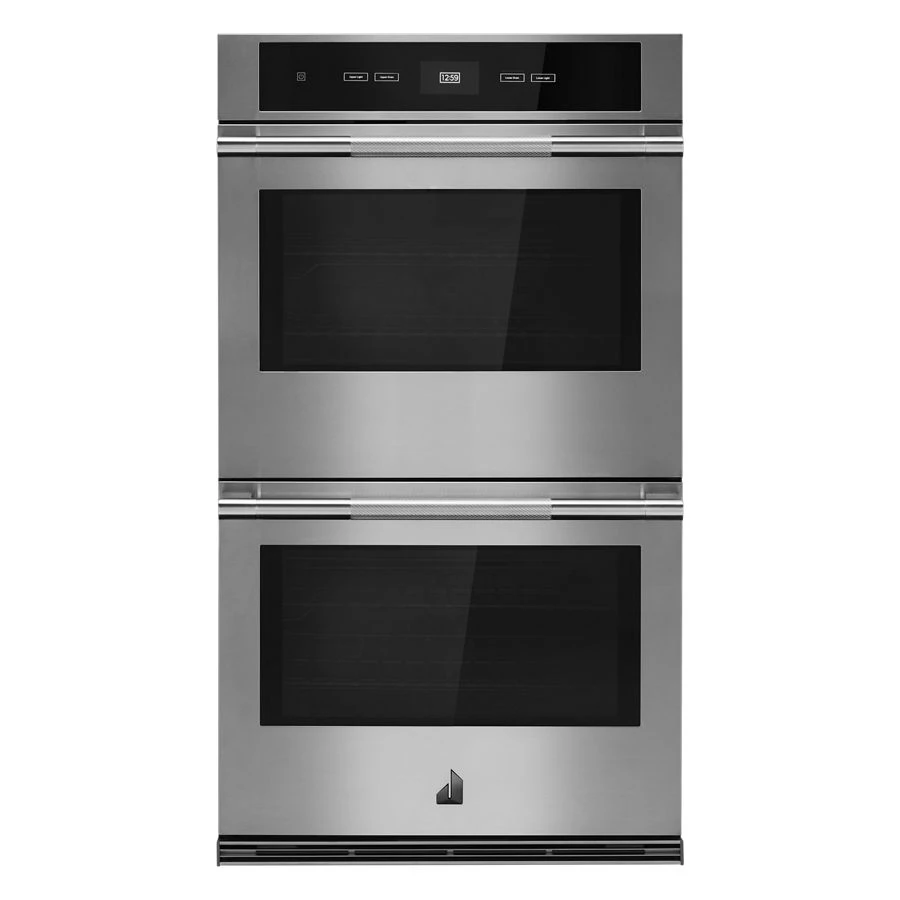

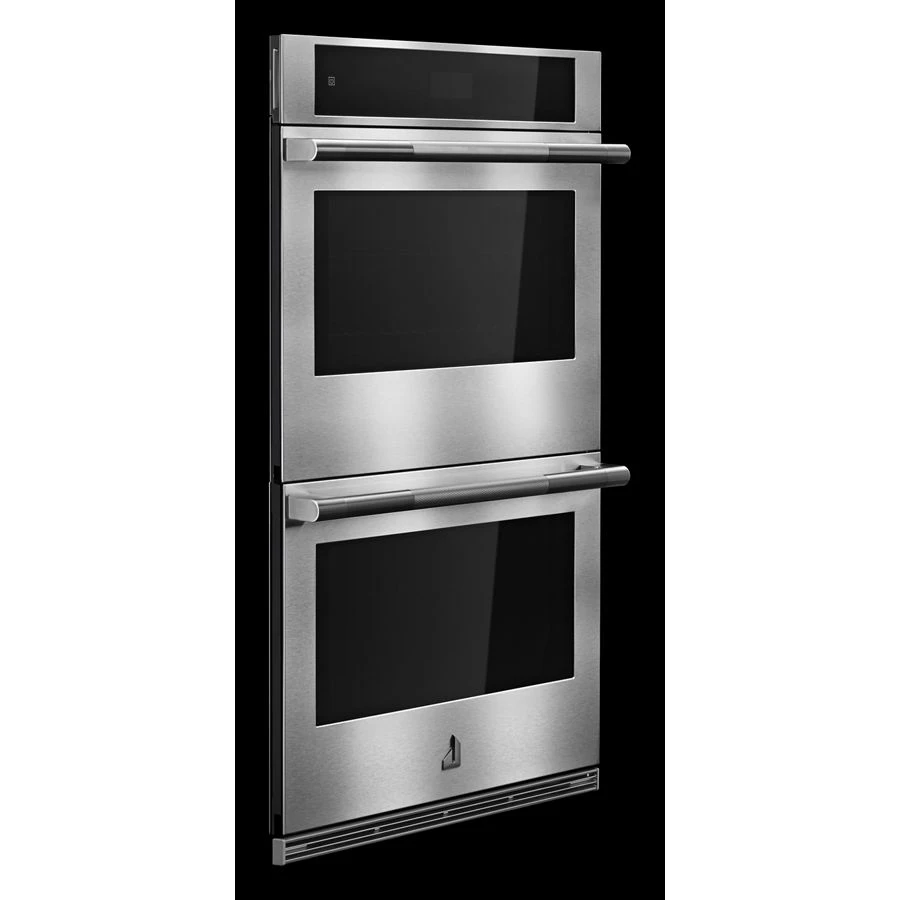

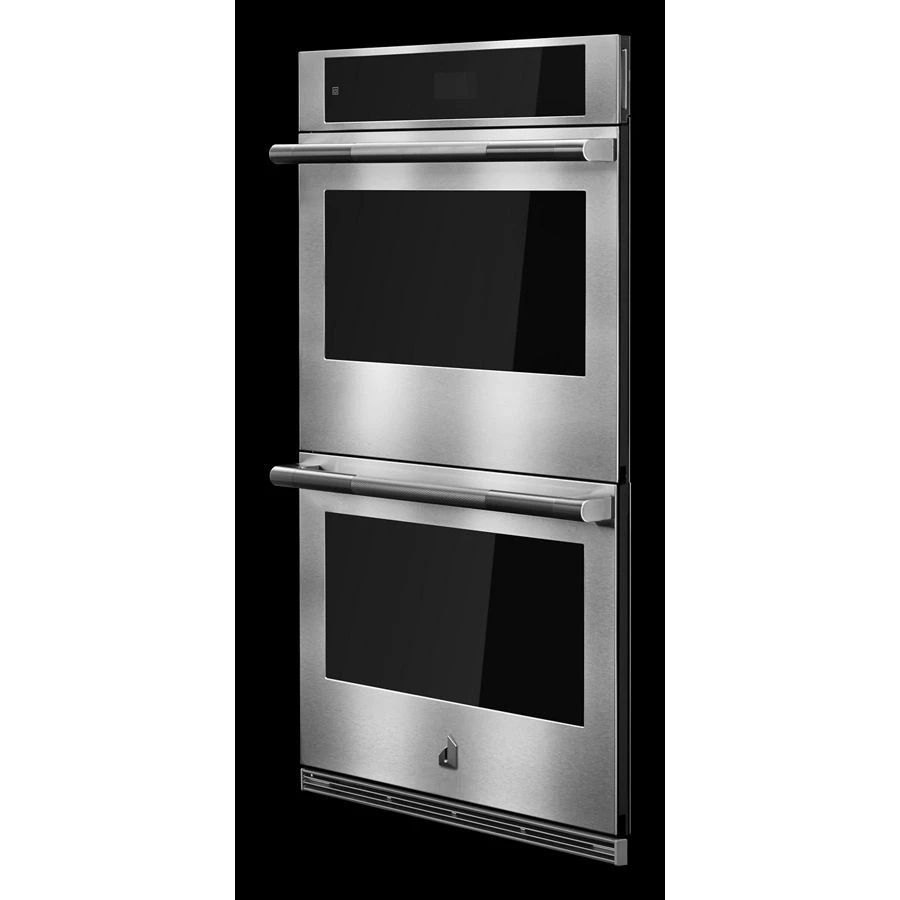

Rise™ 30" Double Wall Oven - JJW2830LL
Rise™ 30" Double Wall Oven
Model: JJW2830LL















Rise™ 30" Double Wall Oven
Model: JJW2830LL
Current Rebates
This model is on display at:
Key Features
4.3-Inch Full Color LCD Display
Temperature Probe
MultiMode® Convection System
No Preheat Baking
Glide Rack
My Creations
4,000-Watt Broil Element
8-Pass Reflective Broil Element
Documents
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

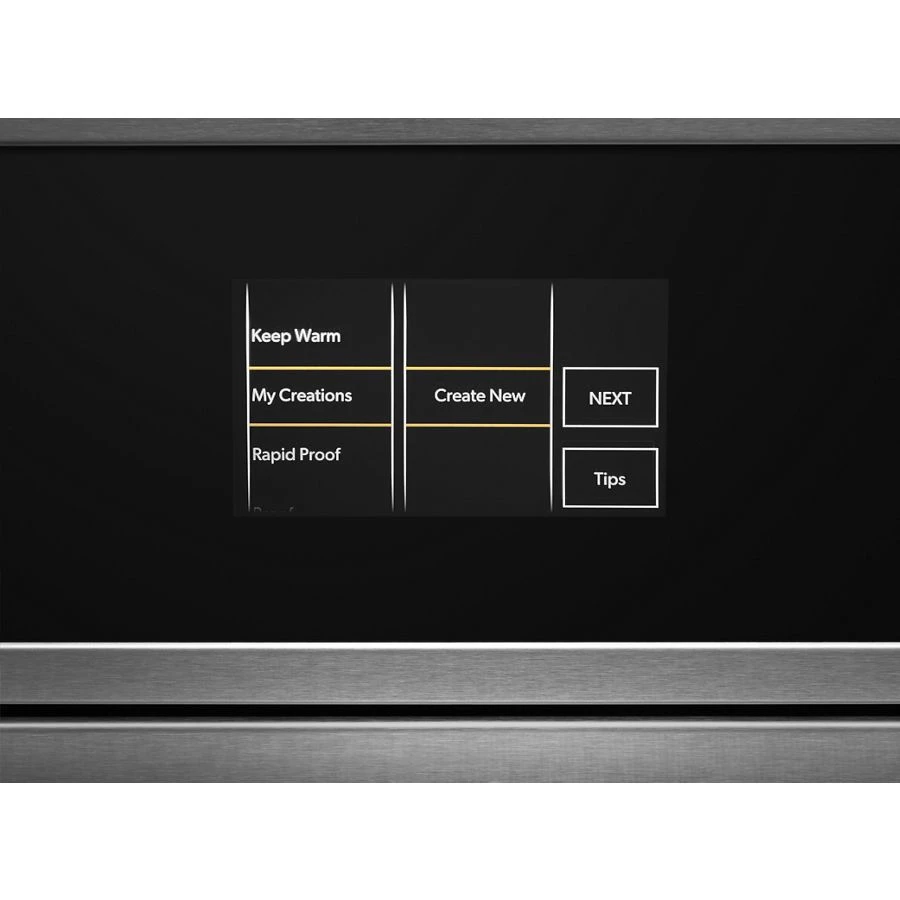

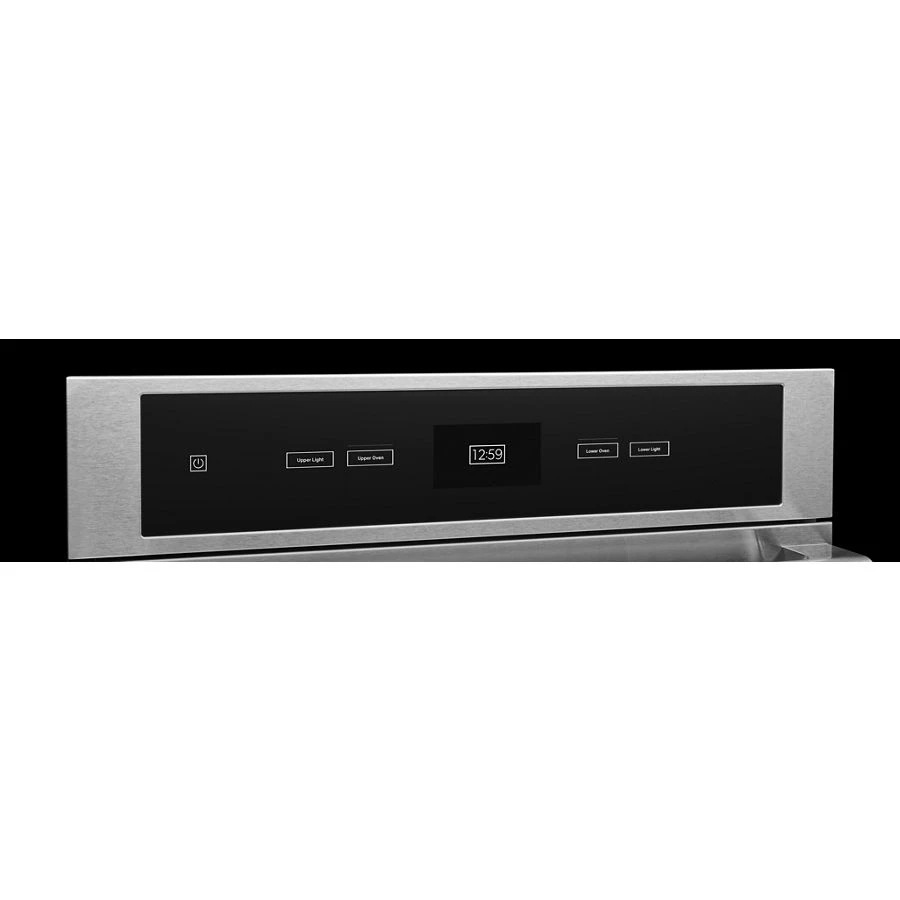

4.3-Inch Full Color LCD Display
A highly interactive, full-color LCD touchscreen is packed with dynamic features that allow you to navigate effortlessly through settings and cooking options including temperature and cooking mode.
Temperature Probe
Know when dinner is done without ever opening the door. 4 points of contact deliver temperature readings visible on the LCD screen.
MultiMode® Convection System
Steady heat is circulated by whirling metal blades, weaving around every flat tine. Wield your cooking prowess from marbled meats to succulent roasts.
No Preheat Baking
Bake on a single rack without the wait.
Glide Rack
Smooth moves. Glides in and out fluidly and quietly, even when fully loaded.
My Creations
My Creations allows you to seamlessly combine up to three cooking modes and save the settings for your favorite recipes.
4,000-Watt Broil Element
Tap into high-watt, even heat designed to broil meats with this 4,000-watt element for savory, caramelized crust.
8-Pass Reflective Broil Element
Maximum coverage. Even heat distribution. Beneath a stainless steel broil plate, this element radiates heat back onto cookware and food.
2,800-Watt Hidden Bake Element
Unleash hidden power. This 2,800-watt bake element is concealed beneath the oven floor, providing even heat and a smooth surface that is easy to clean.
3,200-Watt Convection Element
Power, controlled. Evenly bake breads and cook main dishes in a controlled environment powered by this 3,200-watt convection element.
Keep Warm™ Option
Reward anticipation. Low heat keeps tempting dishes ready and waiting for the right moment.
Manual Convection Modes
Select from presets like Convect Bake, Convect Roast and Convect Broil to let the cooking method guide you.
Rapid Preheat
Reduce preheat time in the lower oven while baking on up to two oven racks.
Versatile Cooking Modes
Uncompromising results, untroubled process. Automatically convection cook by food type, or manually select convection modes by cooking method. Take the guesswork out of convection cooking with automatic temperature and time conversions. Get even more versatile: No Preheat mode lets you bake on a single rack without the wait. Doughrises quickly and evenly with Proofing mode, and the Keep Warm™ setting lets you serve your entire menu at the same time.
Auto Convection Modes
Savor taste that leaves you wanting more. Choose your food type, and temperature and airflow automatically adjust for baking, broiling or roasting.
Control Lock
Control Lock prevents unintended use of the oven and ensures complete, simple cleaning of the controls.
Sabbath Mode
Select this function to bypass the oven’s automatic shutoff when observing the Sabbath and other religious holidays.
Auto Convection Conversion
Bake with abandon. The oven automatically converts temperature and cook time to make any recipe a convection recipe.
RISE™ Design Expression

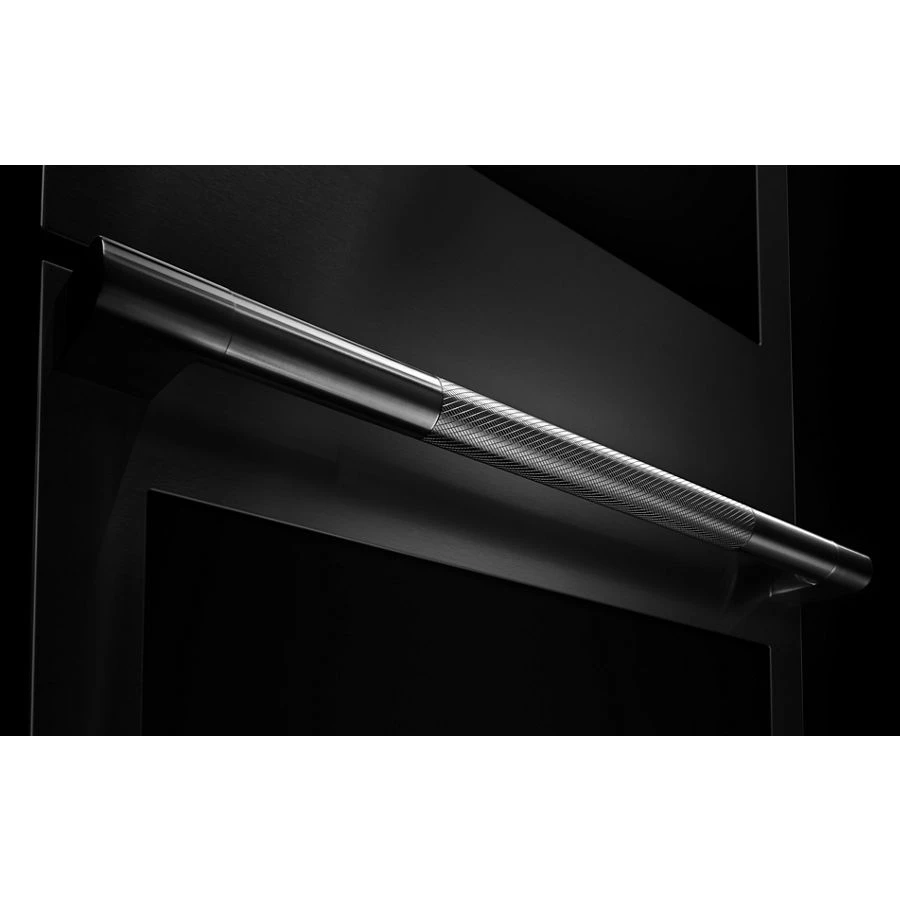

Forged for an era of striking proportions, robust lines draw the eye and an asymmetrical, diamond-knurled texture wraps around a strong, postured handle.
Badasses at the Ready
Our crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Proofing Option
Tame the temperamental. Low, consistent heat protects dough from temperature swings for an even, rapid rise.
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Other
| Capacity (Cu Ft) | 10.00 |
| Lower Oven Capacity (Cu Ft.) | 5.0 |
| Lower Oven Capacity | 5 |
| Upper Oven Capacity | 5 |
| Capacity (Cu Ft) | 10.00 |
| Capacity(FT3,cubic feet) | 10.00 |
| Lower Oven Capacity (Cu Ft.) | 5.0 |
| Upper Oven Capacity (Cu Ft.) | 5.0 |
| Lower Oven Capacity | 5 |
| Upper Oven Capacity | 5 |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 33.91 ft³ |
| Dimensional Weight | 421.51 lbs. |
| Total of Cubes | 33.91 ft³ |
| Total of Dimensional Weight | 421.51 lbs. |
Dimensions & Weight
| Width | 35 in. |
| Height | 54 in. |
| Length | 31 in. |
| Weight | 350 lbs. |
| Carton Depth | 31 |
| Carton Height | 54 |
| Carton Width | 35 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 52 3/16 |
| Cutout Width (in) | 28 1/2 |
| Depth Closed Excluding Handles | 24 5/16 |
| Depth Closed Including Handles | 27 1/8 |
| Depth Excluding Doors | 23 |
| Depth With Door Open 90 Degree | 45 7/16 |
| Gross Weight | 350 |
| Net Weight | 324.0 |
| Gross Weight | 350 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 52.1875 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.3125 |
| Depth Closed Including Handles(IN,inches) | 27.1250 |
| Depth Excluding Doors(IN,inches) | 23.0000 |
| Depth With Door Open 90 Degree(IN,inches) | 45.4375 |
| Depth(IN,inches) | 23.2500 |
| Carton Depth(IN,inches) | 31.0000 |
| Carton Height(IN,inches) | 54.0000 |
| Carton Width(IN,inches) | 35.0000 |
| Cutout Depth | 24 |
| Cutout Height | 52.188 |
| Cutout Width | 28.5 |
| Depth Closed Excluding Handles | 24.313 |
| Depth Closed Including Handles | 27.125 |
| Depth Excluding Doors | 23 |
| Depth With Door Open 90 Degree | 45.438 |
| Lower Oven Interior Depth | 19 |
| Lower Oven Interior Height | 18 |
| Lower Oven Interior Width | 25 |
| Upper Oven Interior Depth | 19 |
| Upper Oven Interior Height | 18 |
| Upper Oven Interior Width | 25 |
| carton depth | 31 |
| carton height | 54 |
| carton width | 35 |
| gross weight | 350 |
| net weight | 324 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 54 in. |
| Shipping Length | 36 in. |
| Shipping Weight | 390 lbs. |
| Total of Shipping Weight | 390 lbs. |
| Source | Calculation |
Exterior Details
| Door Lock | Yes |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Stainless Steel |
Oven Cavity Details
| Convection Element Type | Single Fan |
| Convection Functions | Bake Broil Roast Both |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Interior Coating | Porcelain |
| Interior Color | Black |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 3 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |

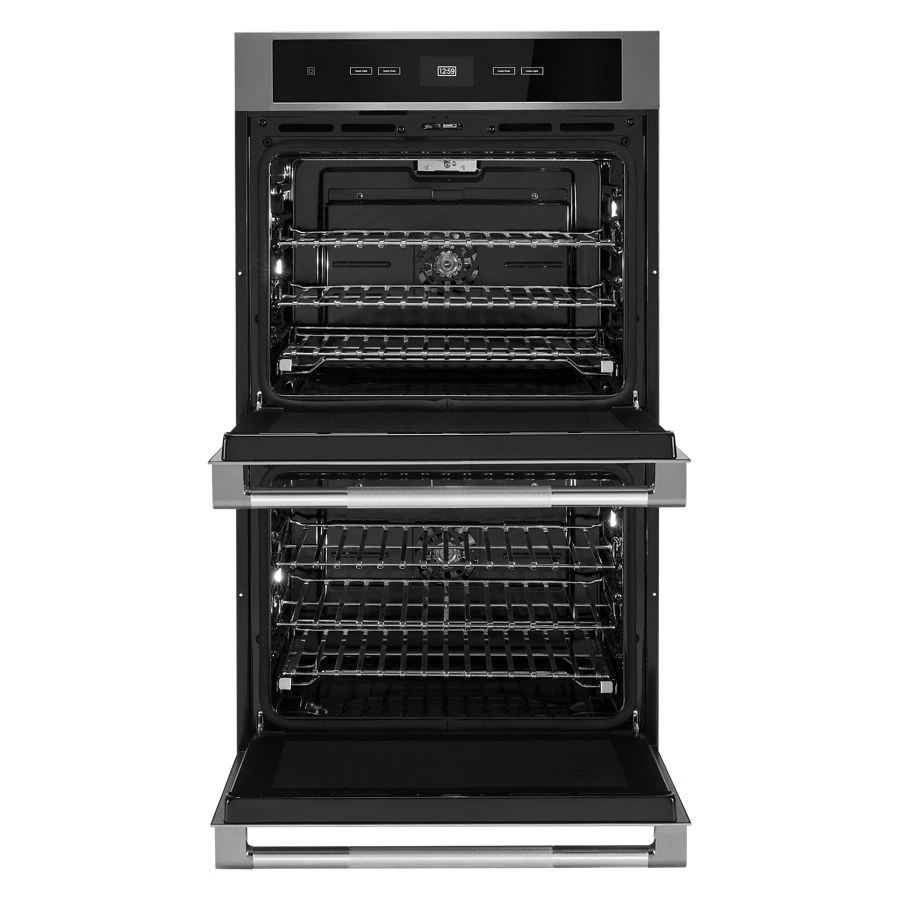

| Number of Lower Oven Racks | 3 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 3 |
| Number of Upper Rack Guides | 6 |
| Self-Cleaning Oven Racks | No |
| Upper Oven Number of Oven Lights | 3 |
| Bake Element Power | 2,800 W Both |
| Broiler Element Power | 4,000 W Both |
| Broiler Location | Top Of Oven |
| Convection Element Power | 3,200 Both W |
| Lower Oven Capacity | 5 Cu. Ft. |
| Oven Cleaning Type | Self-cleaning |
| Oven Cooking System | Multimode® True Convection |
| Upper Oven Capacity | 5 Cu. Ft. |
Details
| Convection Element Type | Single Fan |
| Delay Clean | Yes |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Double Oven |
| Oven Type | Double |
| Power On Indicator Light | Yes |
| Design Expression | Rise™ |
| Oven Selections | Assisted Cooking, Audible Signal, Automatic Door Latch, Bake, Broil, Cancel/off, Clock, Control Lock, Cook Time Indicator, Cook And Hold, Delay Start, Favorites, Language Conversion, Proofing |
Certifications
| CUL | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
| ADA Compliant | Ada Height And Side And Front Reach Compliant, Ada Height And Side And Front Reach Compliant |
| Star K Certified | Yes, Yes |
Controls
| Control Type | Tap Touch |
| Light Control | Oven Light Touch Pad |
| Electronic Display Type | 4.3-inch Full Color Lcd |
| Language Conversion | English/french |
Electrical
| Amps | 40 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |
| Watts | 8 |
Smart Compatibility
| Works With | No |

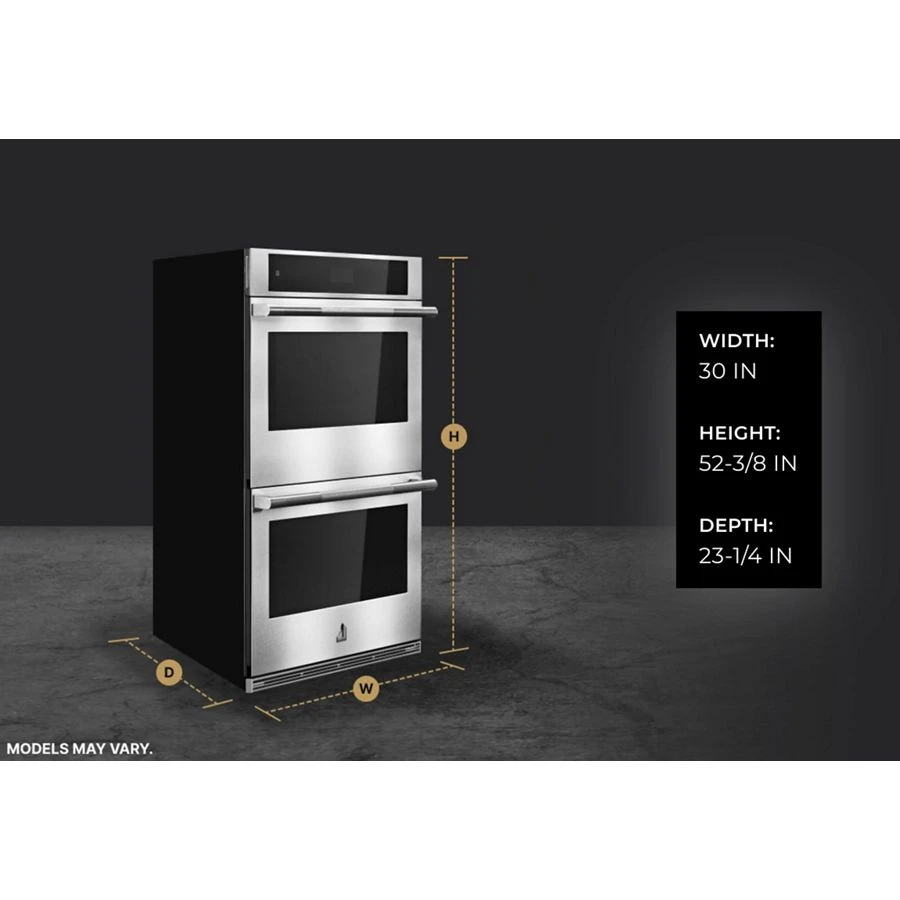

Dimensions
| Capacity | 10 Cu. Ft. |
| Common Size | 30 In |
| Cutout Depth | 24 In |
| Depth Excluding Doors | 23 In |
| Gross Weight | 350 Lbs |
| Lower Oven Interior Depth | 19 In |
| Lower Oven Interior Height | 18 In |
| Lower Oven Interior Width | 25 In |
| Net Weight | 324 Lbs |
| Upper Oven Interior Depth | 19 In |
| Upper Oven Interior Height | 18 In |
| Upper Oven Interior Width | 25 In |
| Width | 30 In |
| Cutout Height | 52.188 In |
| Cutout Width | 28.5 In |
| Depth | 23.25 In |
| Depth Closed Excluding Handles | 24.313 In |
| Depth Closed Including Handles | 27.125 In |
| Depth With Door Open 90 Degree | 45.438 In |
| Height | 52.375 In |
