$5,999.00

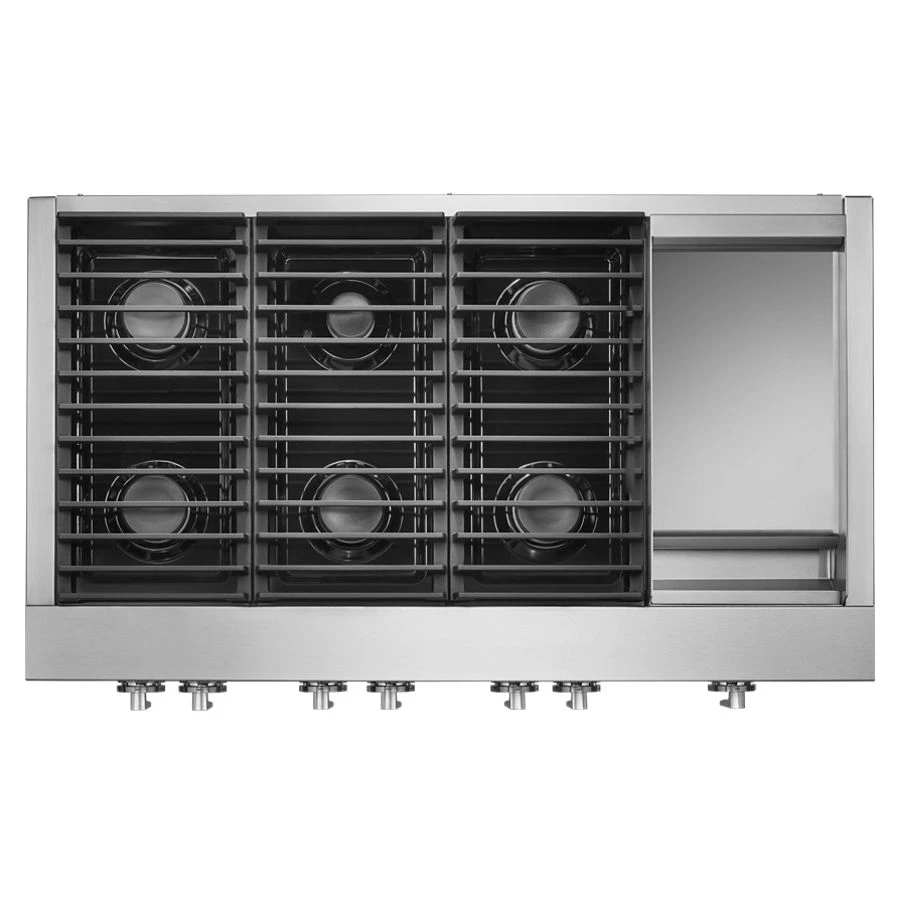

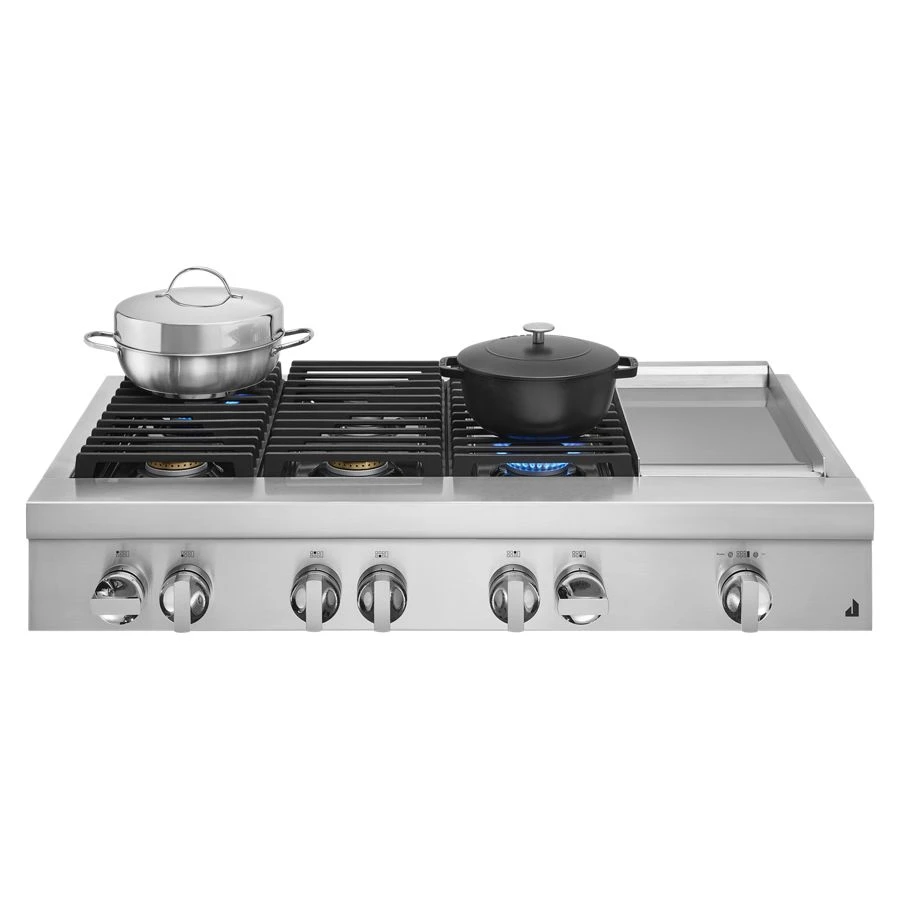

NOIR 48" Gas Rangetop - JGCP548HM
$5,999.00
Rebate AvailableColor : Stainless Steel
$5,999.00
$5,999.00
Current Rebates
Key Features
Electronic Ignition with Flame-Sensing Reignition
Cast Iron Grates
NOIR Design Expression
Halo-Effect Knobs
Chrome-Infused Griddle
20,000 BTU Dual-Stacked PowerBurner
18,000 BTU Dual-Stacked PowerBurner
Electronic Ignition with Flame-Sensing™ Reignition
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Electronic Ignition with Flame-Sensing Reignition
Burnout banned. If a sudden draft blows out a flame, intelligent Flame-Sensing reignition automatically sparks it back to life.
Cast Iron Grates
Robust geometric grates form one graceful surface, crafted to withstand heavy woks and cookware.
NOIR Design Expression
Sculpted in stainless steel, the NOIR Design Expression features structured grates and an illusive badge. Explore the artful mystery of a minimalist design that rejects dated ideals of beauty.

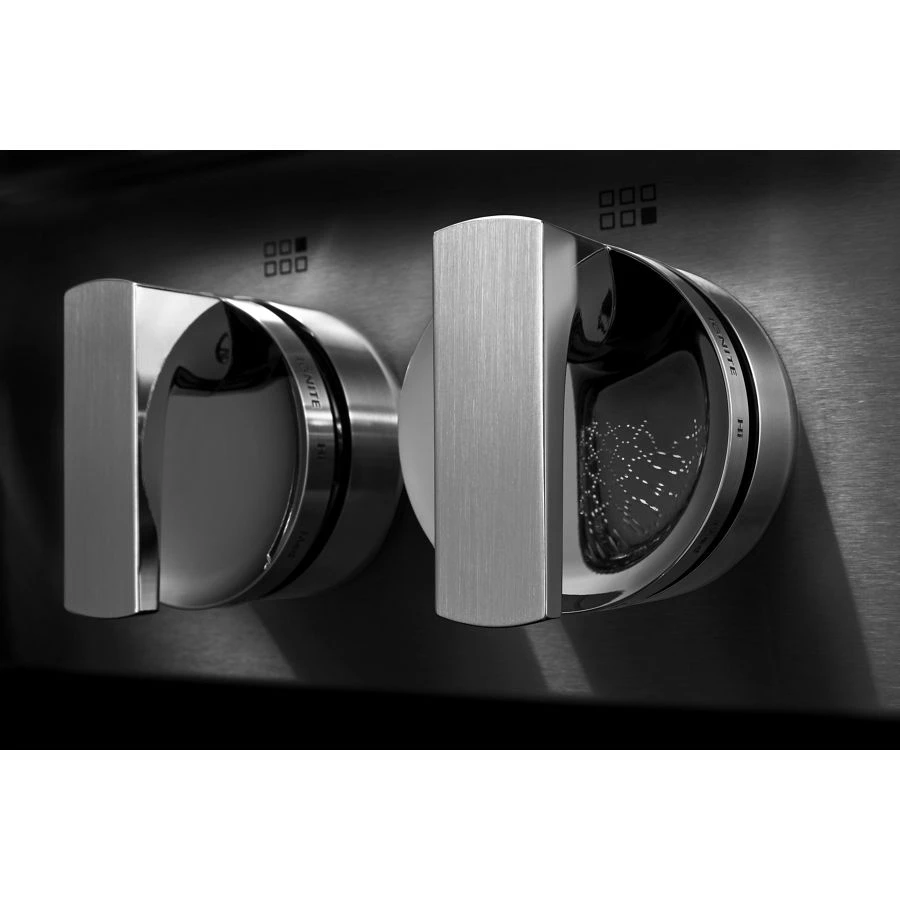

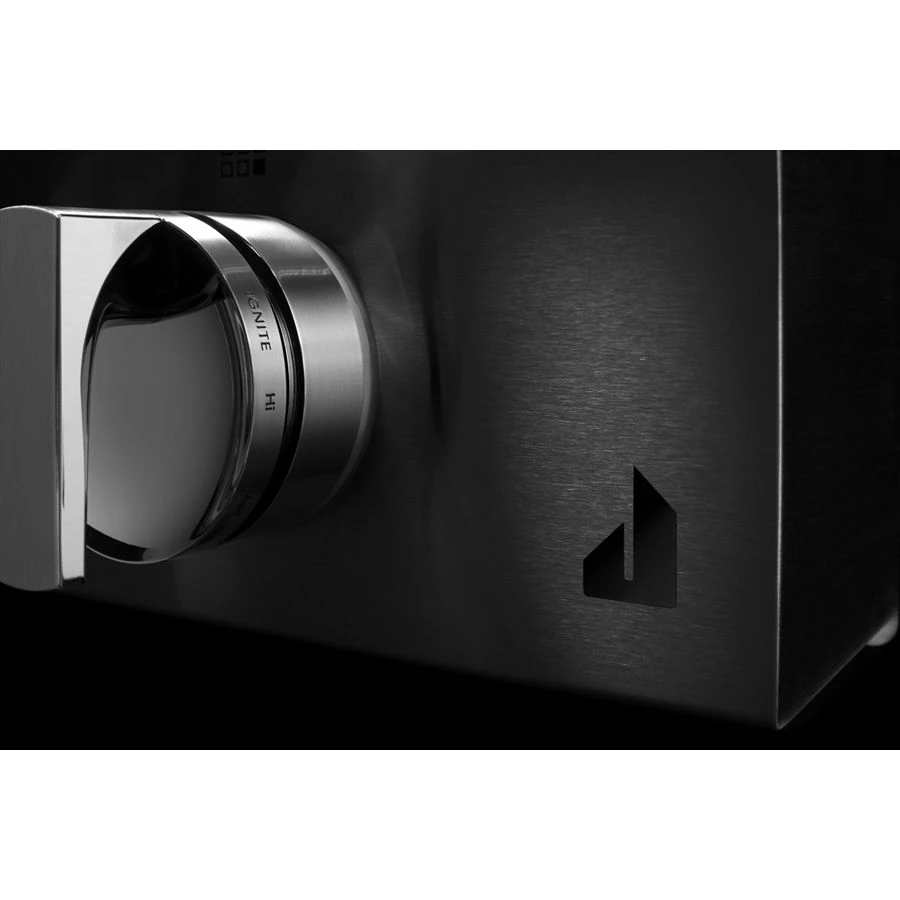

Halo-Effect Knobs
A halo of luminary LEDs glows softly when the burner is lit or the oven is on.

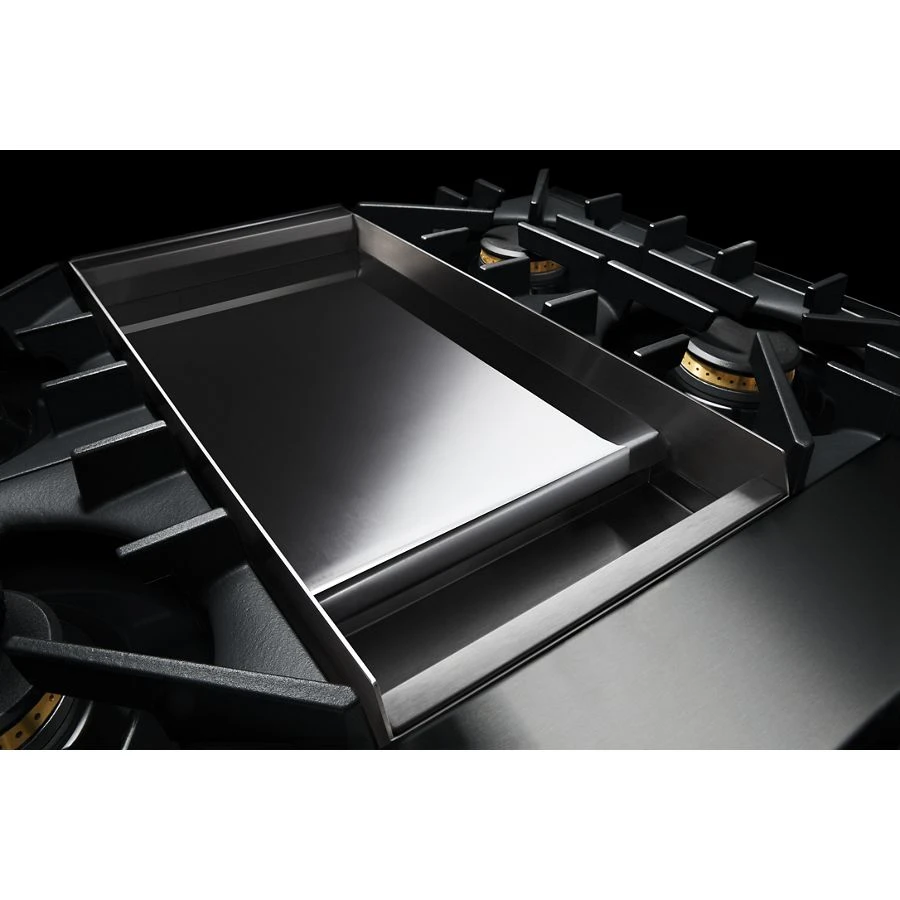

Chrome-Infused Griddle
Cast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage.
20,000 BTU Dual-Stacked PowerBurner
This 20,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
18,000 BTU Dual-Stacked PowerBurner
This 18,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
Electronic Ignition with Flame-Sensing™ Reignition
Burnout banned. If a sudden draft blows out a flame, intelligent Flame-Sensing™ reignition automatically sparks it back to life.
Specifications
Controls
| Control Location | Front |
| Control Type | Knobs |
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Yes, Integrated |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | No |
| Installs Over Built-In Oven | No |
| Ignition Type | Flame-sensing™ Re-ignition |
Certifications
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Electrical
| Power Cord Included | Yes |
| 208V Compatible | No |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.1 ft³ |
| Dimensional Weight | 249.89 lbs. |
| Total of Cubes | 20.1 ft³ |
| Total of Dimensional Weight | 249.89 lbs. |
Details
| Fuel Type | Gas |
| Installs Over Built-In Oven | No |
| LP Convertible | Yes - Kit Included |
| Digital Display | No |
| Cooktop Configuration | Burners With Integrated Griddle |
| Design Expression | Noir™ |
| Power Outage Compatible | Yes (gas Cooktop Burners Only) |
Element/Burner Details
| Center Front Element-Burner Type | Dual |
| Center Rear Element-Burner Type | Dual |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Rangetop |
| Left Front Element-Burner Type | Dual |
| Number of Cooking Element-Burners | 6 |
| Power Boost | No |
| Automatic Pan Detection | No |
| Center Front Element-Burner Power | 20,000 Btu |
| Center Rear Element-Burner Power | 9,000 Btu |
| Left Front Element-Burner Power | 20,000 Btu |
| Left Rear Element-Burner Power | 18,000 Btu |
| Left Rear Element-Burner Type | Dual-stacked Burner |
| Right Front Element-Burner Power | 20,000 Btu |
| Right Rear Element-Burner Power | 18,000 Btu |
| Right Rear Element-Burner Type | Dual-stacked Burner |
Ventilation Details
| Downdraft Vent | No |
Dimensions & Weight
| Width | 51.63 in. |
| Height | 19.5 in. |
| Length | 34.5 in. |
| Weight | 164 lbs. |
| Carton Depth | 34 1/2 |
| Carton Height | 19 1/2 |
| Carton Width | 51 11/16 |
| Cutout Depth (in) | 22 1/4 |
| Cutout Width (in) | 47 3/8 |
| Gross Weight | 164 |
| Maximum Height | 11 15/16 |
| Net Weight | 138.0 |
| Gross Weight | 164 |
| Cutout Depth Min(IN,inches) | 22.2500 |
| Cutout Width Max(IN,inches) | 47.8750 |
| Cutout Width Min(IN,inches) | 47.3750 |
| Depth(IN,inches) | 27.5000 |
| Maximum Height(IN,inches) | 11.9375 |
| Net Weight(LB,pounds) | 138 |
| Carton Depth(IN,inches) | 34.5000 |
| Carton Height(IN,inches) | 19.5000 |
| Carton Width(IN,inches) | 51.6875 |
| Gross Weight(LB,pounds) | 164 |
| Cutout Depth | 22.25 |
| Cutout Depth Min | 22.25 |
| Cutout Width | 47.375 |
| Cutout Width Max | 47.875 |
| Cutout Width Min | 47.375 |
| carton depth | 34.5 |
| carton height | 19.5 |
| carton width | 51.63 |
| gross weight | 187 |
| net weight | 161 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 51.69 in. |
| Shipping Height | 19.5 in. |
| Shipping Length | 39.5 in. |
| Shipping Weight | 204 lbs. |
| Total of Shipping Weight | 204 lbs. |
| Source | Calculation |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Metal |
Dimensions
| Common Size | 48 |
| Cutout Depth | 22-1/4 In |
| Cutout Depth Min | 22-1/4 In |
| Cutout Width | 47-3/8 In |
| Cutout Width Max | 47-7/8 In |
| Depth | 27-1/2 In |
| Gross Weight | 164 Lbs |
| Height | 7-7/16 In |
| Net Weight | 138 Lbs |
| Width | 47-7/8 In |
Grate Details
| Grate Details | Continuous, Dishwasher Safe, Individual, Matte Finish, Porcelain Coated Cast Grates |
