$2,244.00

Was$2,499.00Save $255.00 (10%)

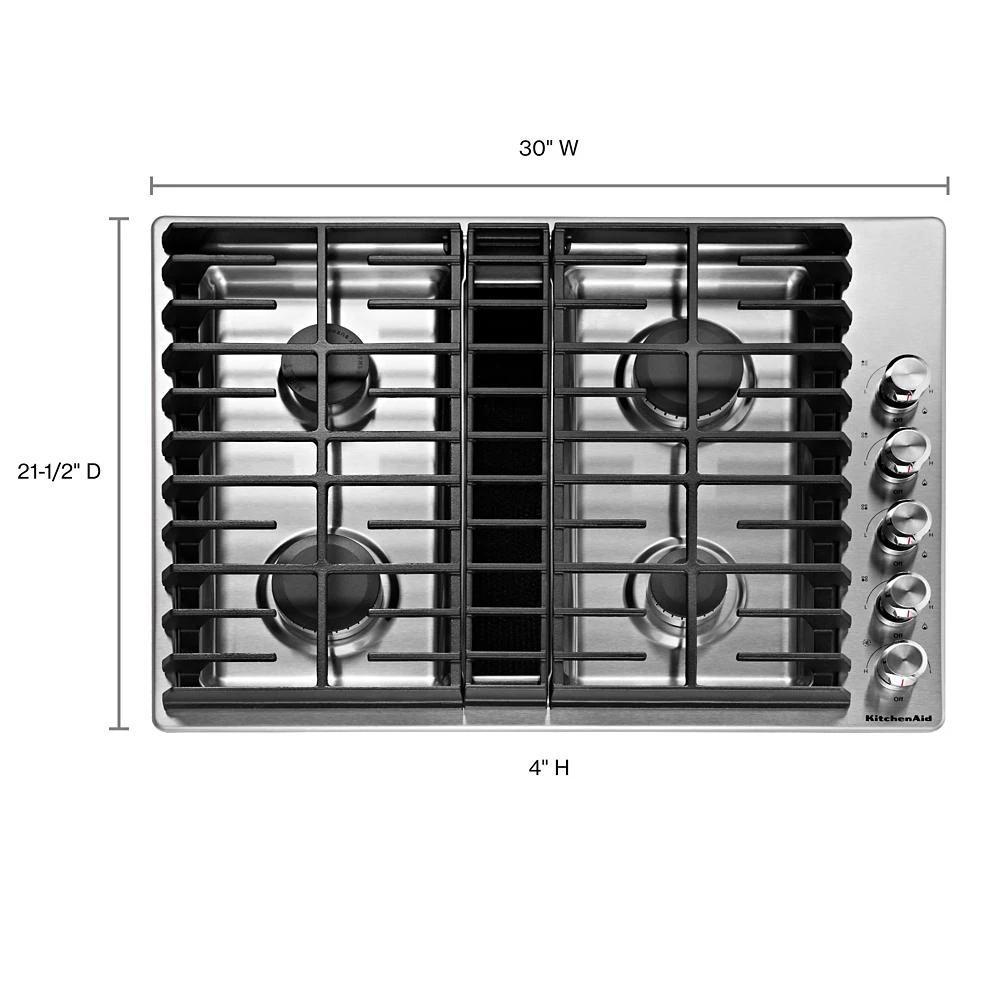

30" 4 Burner Gas Downdraft Cooktop - KCGD500GSS

30" 4 Burner Gas Downdraft Cooktop

Model: KCGD500GSS

30" 4 Burner Gas Downdraft Cooktop KCGD500GSS30" 4 Burner Gas Downdraft Cooktop KCGD500GSS30" 4 Burner Gas Downdraft Cooktop KCGD500GSS
30" 4 Burner Gas Downdraft Cooktop KCGD500GSS
30" 4 Burner Gas Downdraft Cooktop KCGD500GSS
30" 4 Burner Gas Downdraft Cooktop KCGD500GSS

$2,244.00

Was$2,499.00Save $255.00 (10%)

rebate iconRebate Available

Color : Stainless Steel

30" 4 Burner Gas Downdraft Cooktop KCGD500GSS

$2,244.00

Stainless Steel

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026

Key Features

  • Downdraft Ventilation

  • Stainless Steel Knobs

  • Full-Width Cast-Iron Grates

  • LP Conversion Kit

  • 17K BTU Professional Burner

  • 300 CFM Exhaust Rating

  • 3-Speed Fan Control

  • 15K BTU Professional Burner

Read More

Description

KitchenAid 30" Gas Cooktop with Downdraft Ventilation, 4 Burners, and Full-Width Cast-Iron Grates

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Downdraft Ventilation

Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.

Stainless Steel Knobs

Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.

Full-Width Cast-Iron Grates

Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

LP Conversion Kit

Allows you to convert the cooktop so it can be used with LP gas.

17K BTU Professional Burner

Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.

300 CFM Exhaust Rating

Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.

3-Speed Fan Control

Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.

15K BTU Professional Burner

Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.

Convertible to Duct-Free Ventilation

Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.

Melt Cap

Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.

Electronic Ignition and Automatic Re-Ignition

Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.

5K BTU Even-Heat™ Simmer Burner

A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.

Specifications

Controls

Control LocationRight Side
Control TypeKnobs
Infinite Heat ControlsYes

Cooktop Details

Number of Open BaysN/A
Cooktop Surface MaterialStainless Steel
Digital DisplayNo
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo

Certifications

ADA CompliantNo
ULYes
prop65Standard

Electrical

Power Cord IncludedYes

Dimensions & Weight

Width30 in.
Height18.44 in.
Length21.5 in.
Weight78 lbs.
Carton Depth26 7/16
Carton Height23 13/16
Carton Width35 1/8
Gross Weight78
Net Weight66.0
Cutout Depth(IN,inches)19.9375
Cutout Width(IN,inches)28.6250
Net Weight(LB,pounds)66
Carton Depth(IN,inches)26.4375
Carton Height(IN,inches)23.8125
Carton Width(IN,inches)35.1250
Gross Weight(LB,pounds)78

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height23.44 in.
Shipping Length26.5 in.
Shipping Weight118 lbs.
Total of Shipping Weight118 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement6.88 ft³
Dimensional Weight85.57 lbs.
Total of Cubes6.88 ft³
Total of Dimensional Weight85.57 lbs.

Details

Automatic Pan DetectionNo
Fuel TypeGas
Installs Over Built-In OvenNo
LP ConvertibleYes
Number of Vent Speeds3
Power Outage CompatibleYes

Dimensions

Cutout Depth19.938
Cutout Width28.625
carton depth26.38
carton height23.78
carton width35.12
gross weight78
net weight66

Element/Burner Details

Cooktop Element StyleSealed Burner
Cooktop TypeDowndraft
Left Front Element-Burner Power17, 000 BTU
Left Front Element-Burner TypeBurner
Left Rear Element-Burner Power5, 000 BTU
Left Rear Element-Burner TypeEven-Heat™
Number of Cooking Element-Burners4
Power BoostNo
Right Front Element-Burner Power10, 000 BTU
Right Front Element-Burner TypeBurner
Right Rear Element-Burner Power15, 000 BTU
Right Rear Element-Burner TypeBurner

Grate Details

Grate DetailsCast Iron Grates; Continuous; Matte Finish
Number of Grates3

Ventilation Details

CFM Motor Class300
Downdraft VentYes
