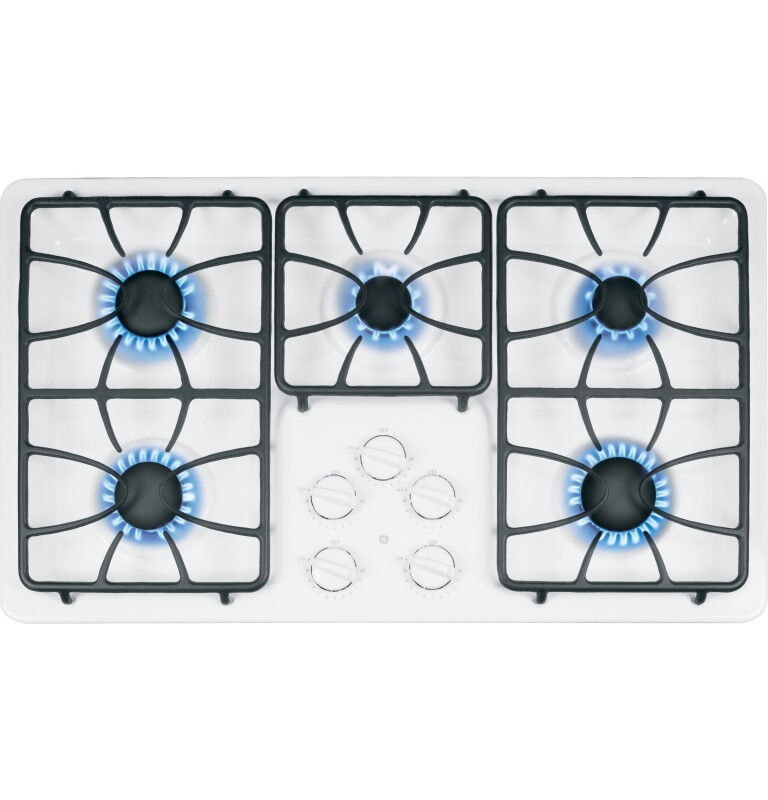

36" Built-In Gas Cooktop - JGP633DETWW
36" Built-In Gas Cooktop
Model: JGP633DETWW
Product Video
36" Built-In Gas Cooktop
Model: JGP633DETWW
Color : White
Key Features
Fit Guarantee
Deep-recessed cooktop
Sealed cooktop burners
11,000 BTU all-purpose burner
Precise Simmer burner
Matte black medium-cast grates
Dishwasher-safe grates and knobs
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Deep-recessed cooktop
Contains spills for quick and easy cleaning
Sealed cooktop burners
Keep spillover contained on cooktop, making cleaning quick and easy
11,000 BTU all-purpose burner
Delivers a wide range of heat output for most cooking needs
Precise Simmer burner
Delivers a low setting of 140 degrees
Matte black medium-cast grates
Hold cookware securely over burners
Dishwasher-safe grates and knobs
Safe to clean in the dishwasher
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

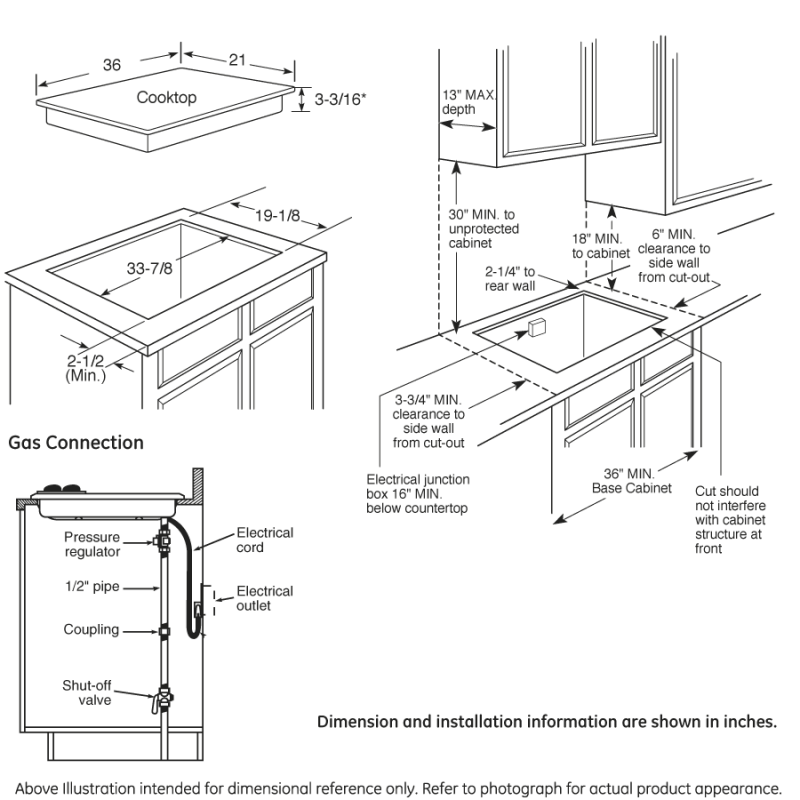

WEIGHTS & DIMENSIONS
| Overall Width | 36 in |
| Overall Depth | 21 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 51 lb |
| Net Weight | 46 lb |
| Overall Height | 3 3/16 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.19 in. |
| Length | 21 in. |
| Weight | 46 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.19 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 86 lbs. |
| Total of Shipping Weight | 86 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.39 ft³ |
| Dimensional Weight | 17.34 lbs. |
| Total of Cubes | 1.39 ft³ |
| Total of Dimensional Weight | 17.34 lbs. |
FEATURES
| Burner - Right Front | 11,000 BTU |
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Fuel Type | Natural Gas |
| Control Location | Front Center |
| Ignition System | Electronic |
| Burner - Center | 5,000 BTU Precise Simmer |
| Cooktop Surface | Deep Porcelain-Enamel |
| Burner - Left Rear | 9,500 BTU |
| Control Type | Manual |
| Cooktop Burner Grate Material | Medium Cast |
| Burner - Left Front | 9,500 BTU |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Cooktop Burner Grate Features | Matte Black |
| Control Type | Lo (1-9) Hi |
| Cooktop Burner Grate Features | Continuous Grates |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 10.0; (2) 9.1; (2) 5.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 11.0; (2) 9.5; (2) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES
| LP Conversion Kit | Included |
APPEARANCE
| Color Appearance | White on White |
| Control Knobs | Plastic |
| Control Knobs | Dishwasher Safe |
