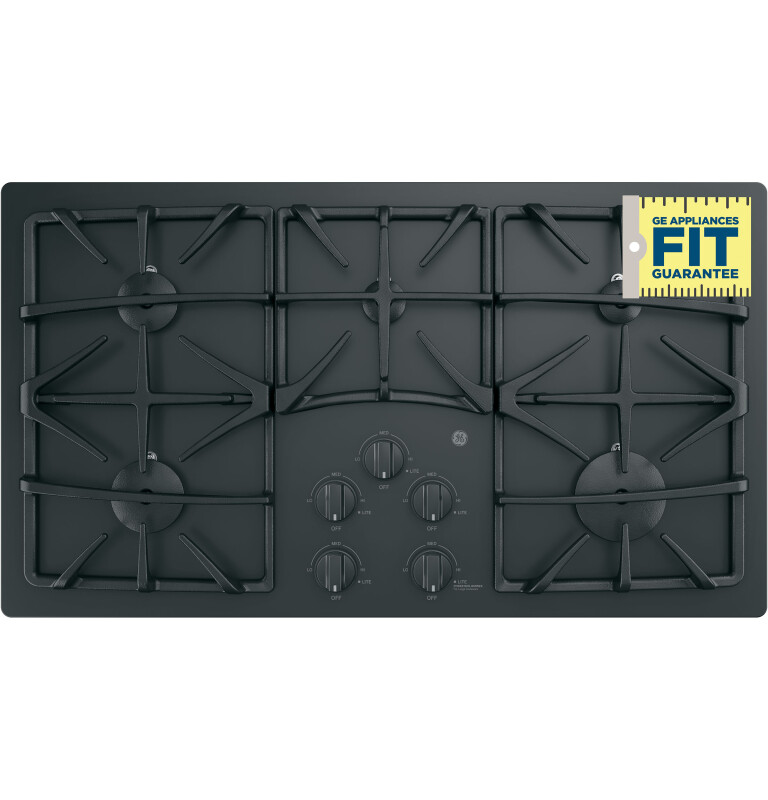

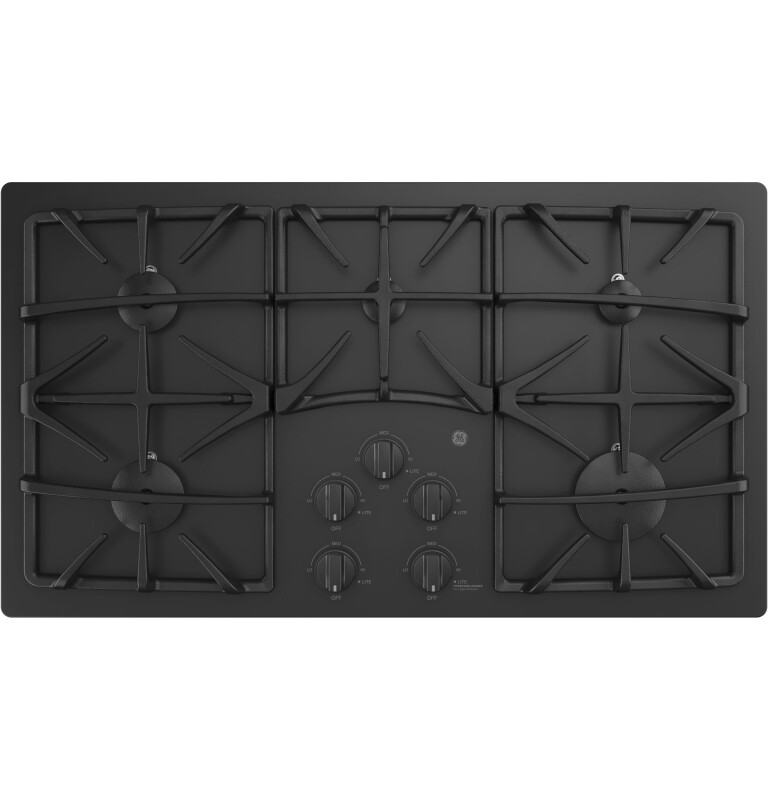

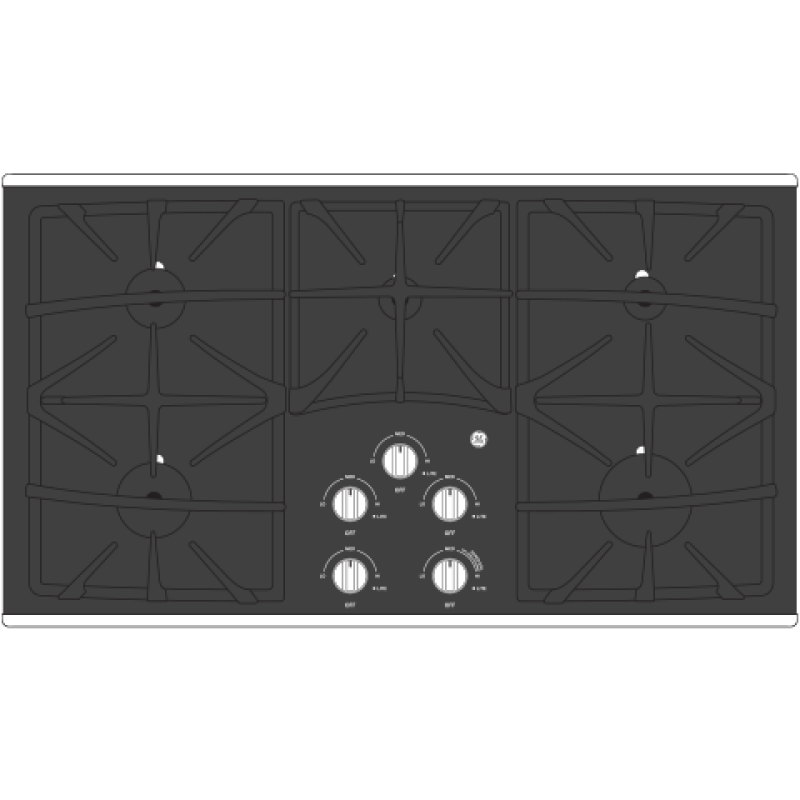

36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates - JGP5536DLBB
36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates
Model: JGP5536DLBB
Product Video
36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates
Model: JGP5536DLBB
Color : Black
Key Features
36" Cooktop with 5 Burners
Gas on Glass Cooktop
Spend Less Time Cleaning Up
Maximize Your Cooking Space
Dishwasher-Safe Grates
Start Cooking Faster with Power Boil
Precise Simmer Burner
Control Lock Capability
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
36" Cooktop with 5 Burners
Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners
Gas on Glass Cooktop
Sleek and easy to clean cooking surface

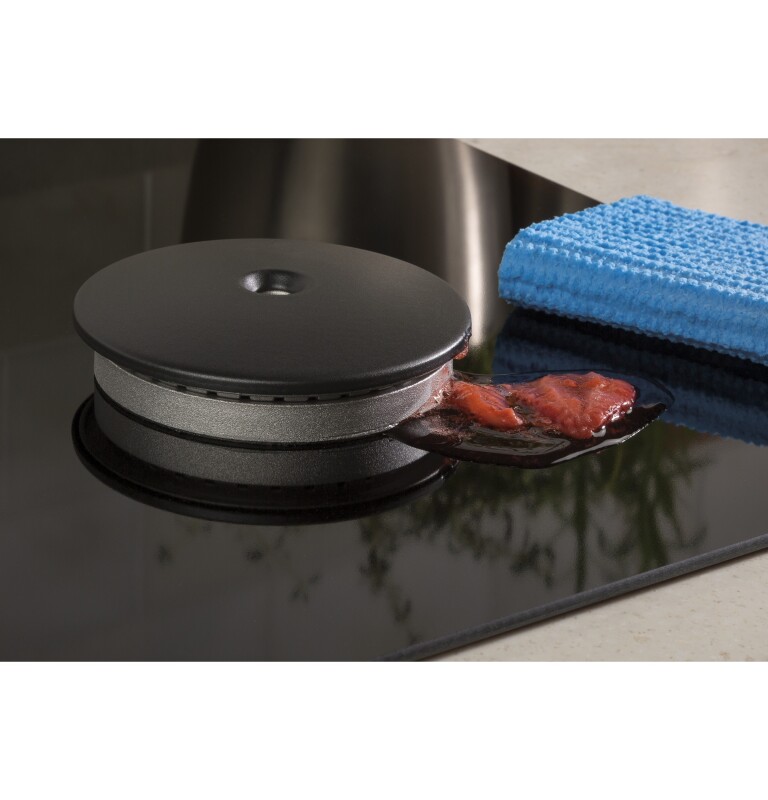

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy

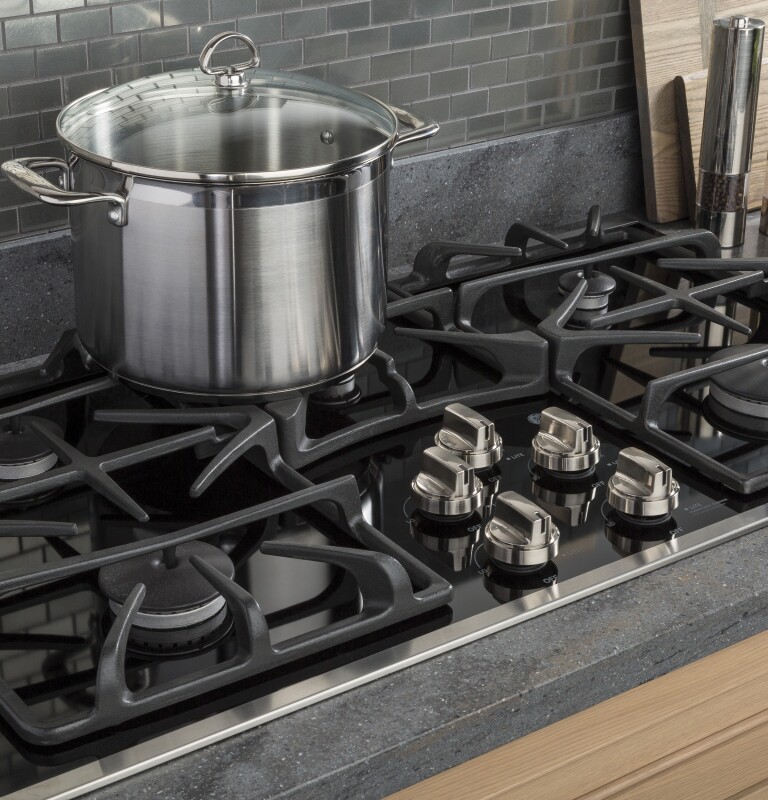

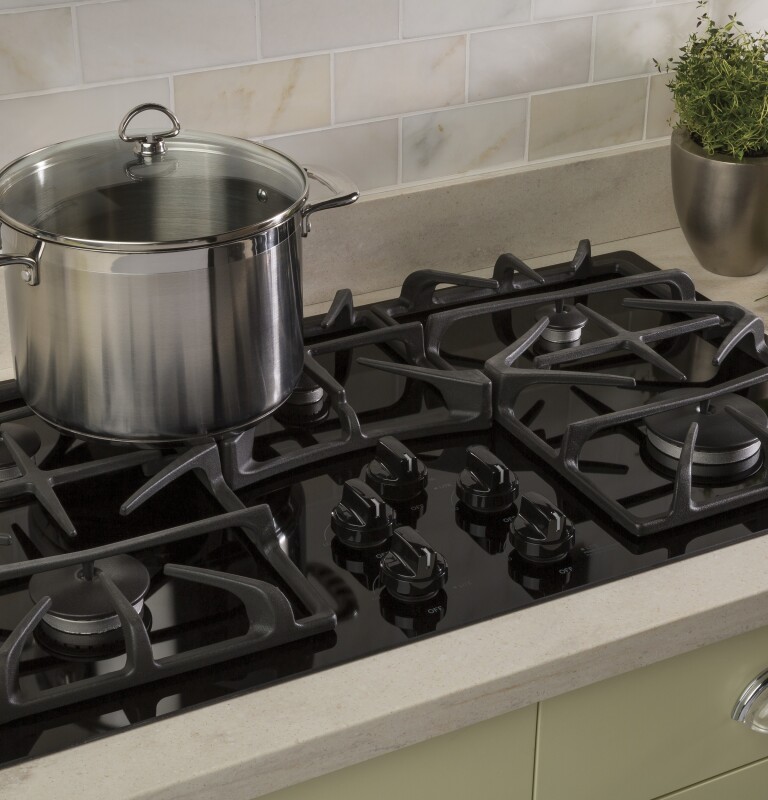

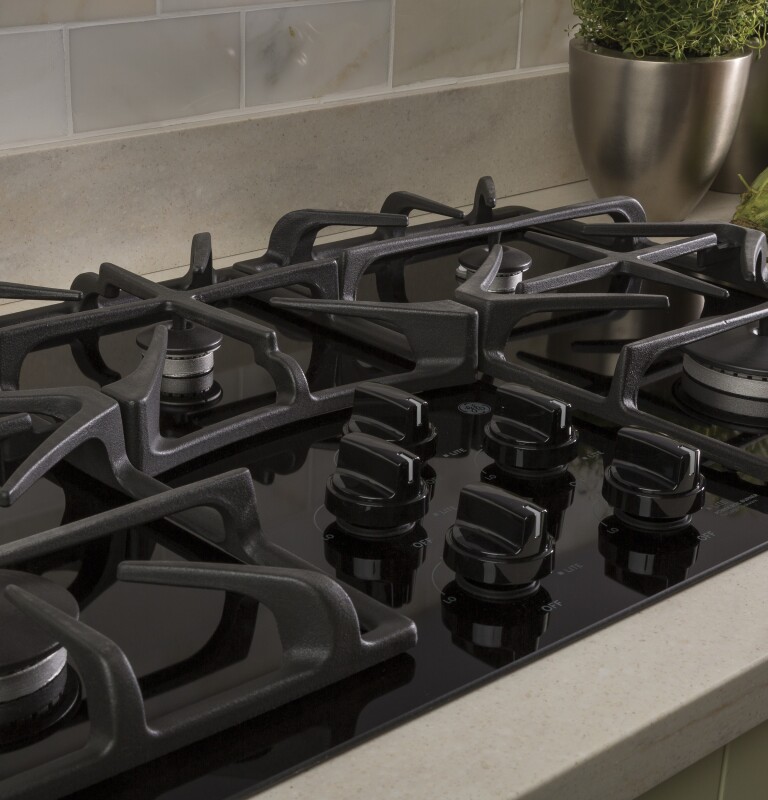

Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware
Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher
Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling

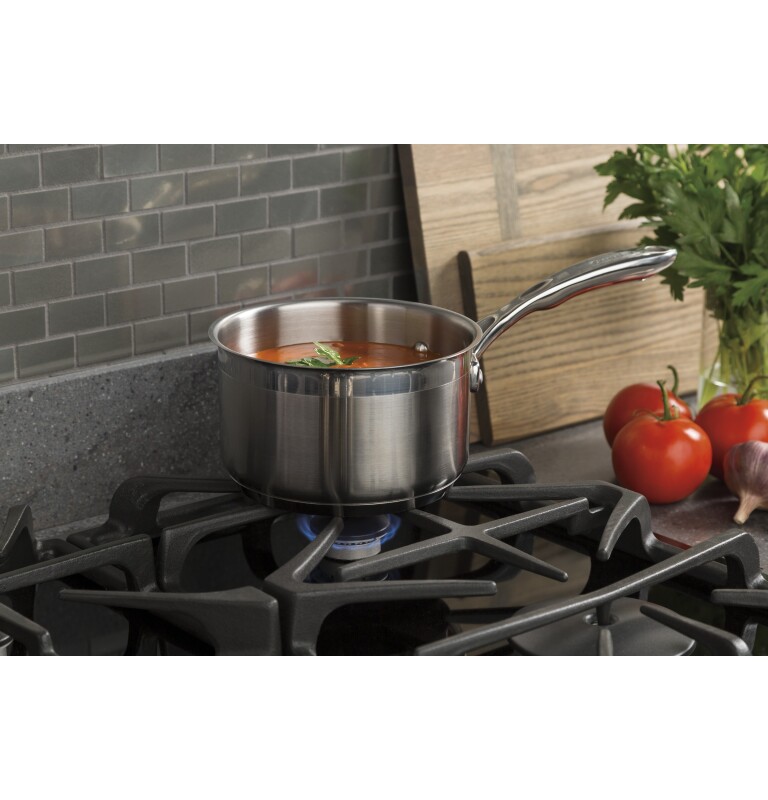

Precise Simmer Burner
Protect delicate foods with low, even heating
Control Lock Capability
Protects against unintended activation
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

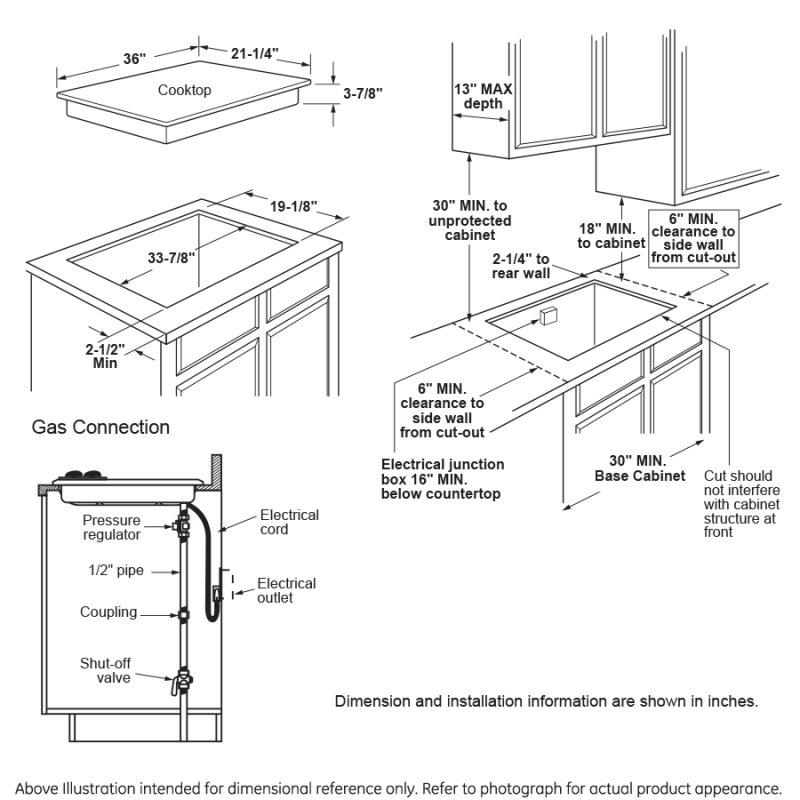

WEIGHTS & DIMENSIONS
| Overall Height | 3.875 in |
| Overall Width | 36 in |
| Overall Depth | 21.25 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 56 lb |
| Net Weight | 49 lb |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.88 in. |
| Length | 21.25 in. |
| Weight | 49 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.88 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 89 lbs. |
| Total of Shipping Weight | 89 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.72 ft³ |
| Dimensional Weight | 21.33 lbs. |
| Total of Cubes | 1.72 ft³ |
| Total of Dimensional Weight | 21.33 lbs. |
FEATURES
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 6,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Control Location | Front Center |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Burner - Center | 6,000 BTU |
| Cooktop Surface | Gas-On-Glass Ceramic |
| Burner - Left Rear | 9,100 BTU |

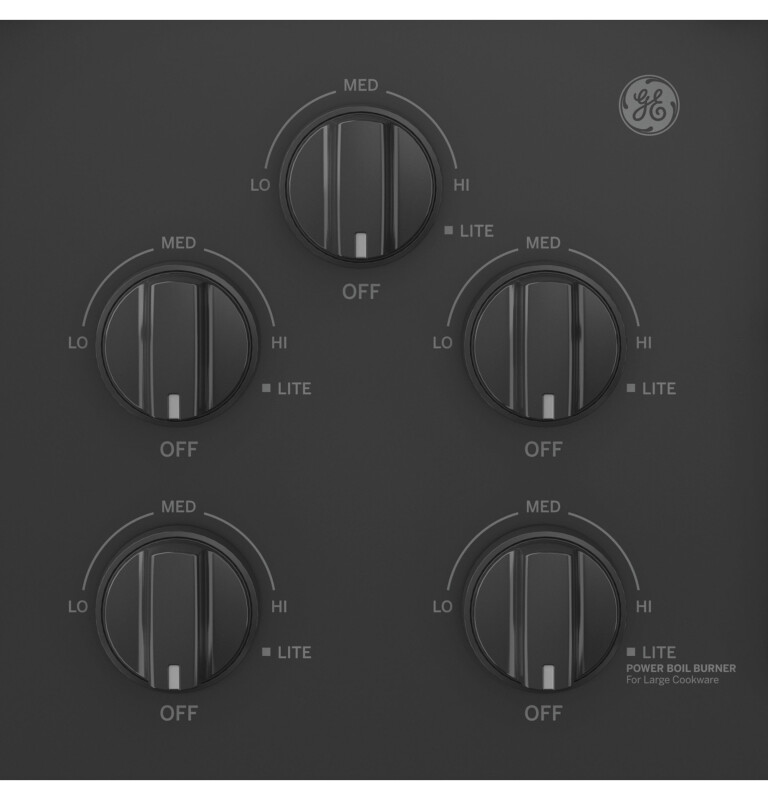

| Control Type | Knob |
| Cooktop Burner Grate Material | Deluxe Cast |
| Burner - Left Front | 11,000 BTU |
| Product Type | Cooktop |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Cooktop Burner Grate Features | Matte Black |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | Black |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 13.0; (1) 9.1; (1) 8.1; (2) 6.0 |
| Hertz | 60 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 11.0; (1) 9.1; (2) 6.0 |
| Electrical Requirements | 120V |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES
| LP Conversion Kit | Included |
| Cooktop Cleaning | Cream (WB64X5027) |
APPEARANCE
| Color Appearance | Black |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Gloss Black |
| Control Knobs | Dishwasher Safe |
