$2,999.00

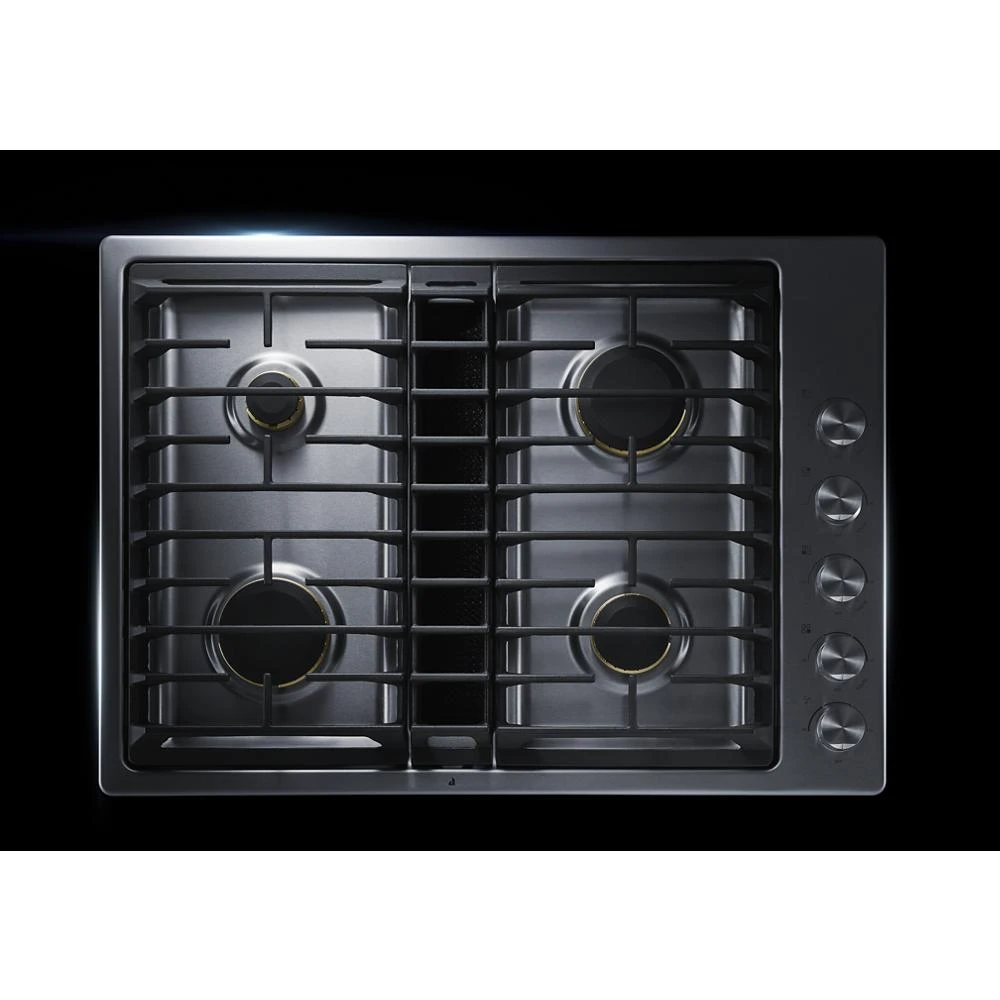

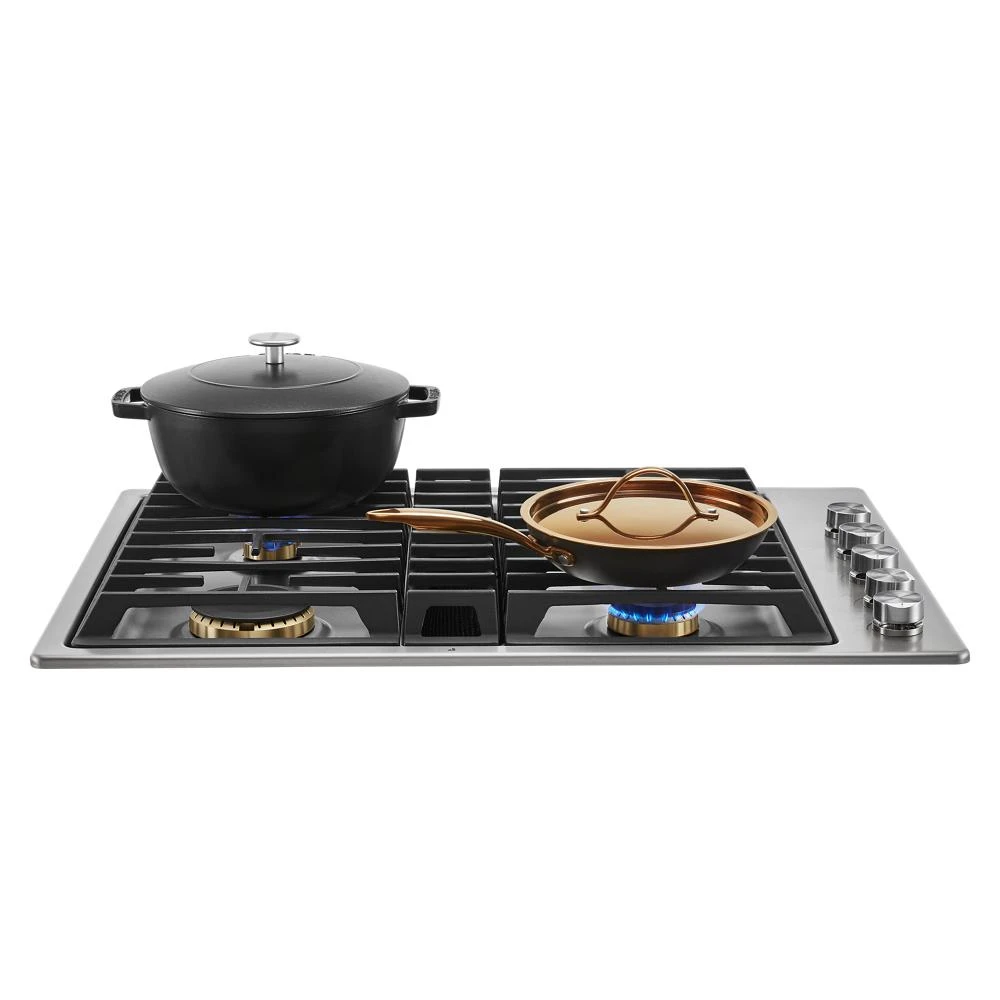

30” JX3™ Gas Downdraft Cooktop - JGD3430GS
$2,999.00
Rebate AvailableColor : Stainless Steel
$2,999.00
$2,999.00
Current Rebates
Key Features
17,000 BTU Ultra-High Output Burner
Brass Burners with Removable Base
JX3™ Downdraft Ventilation System with 3 Speeds
DuraFinish® Protection
5,000 BTU Ultra-Low Output Burner with Melt Cap
Convertible to Duct-Free Ventilation
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
17,000 BTU Ultra-High Output Burner
Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.

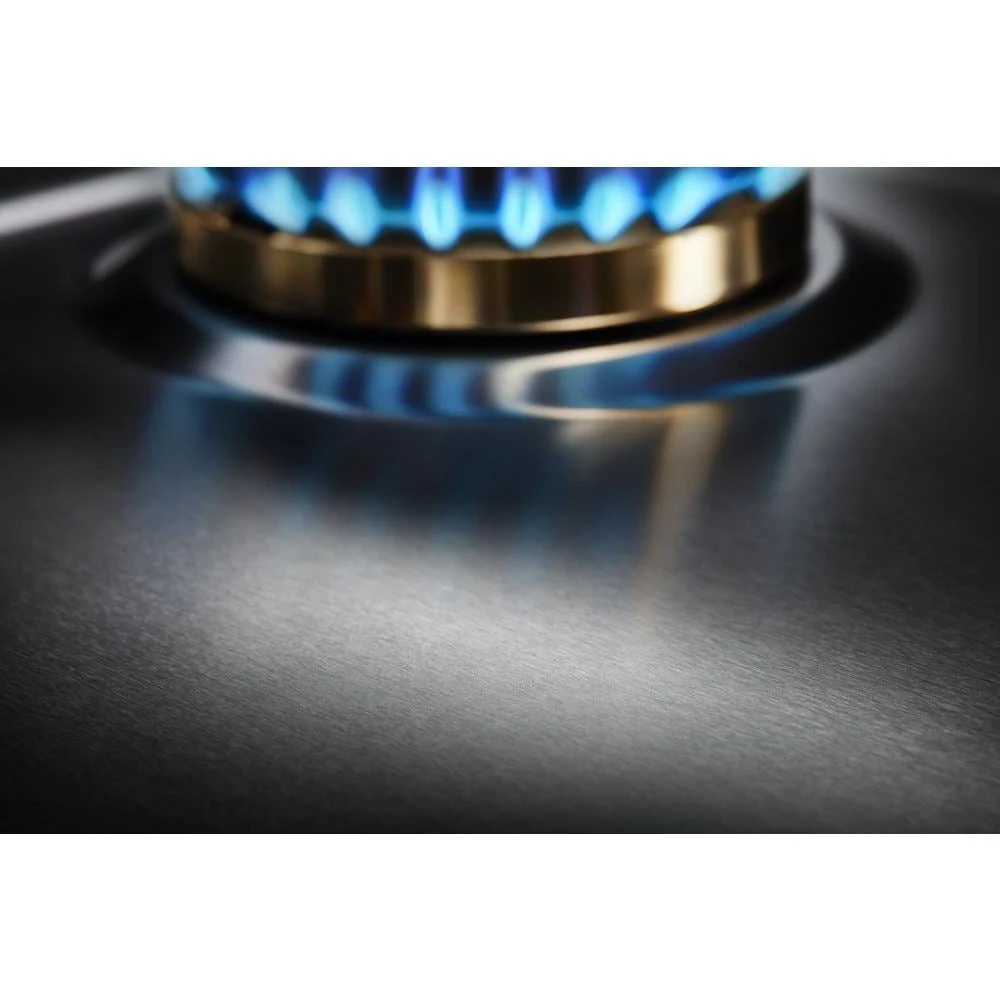

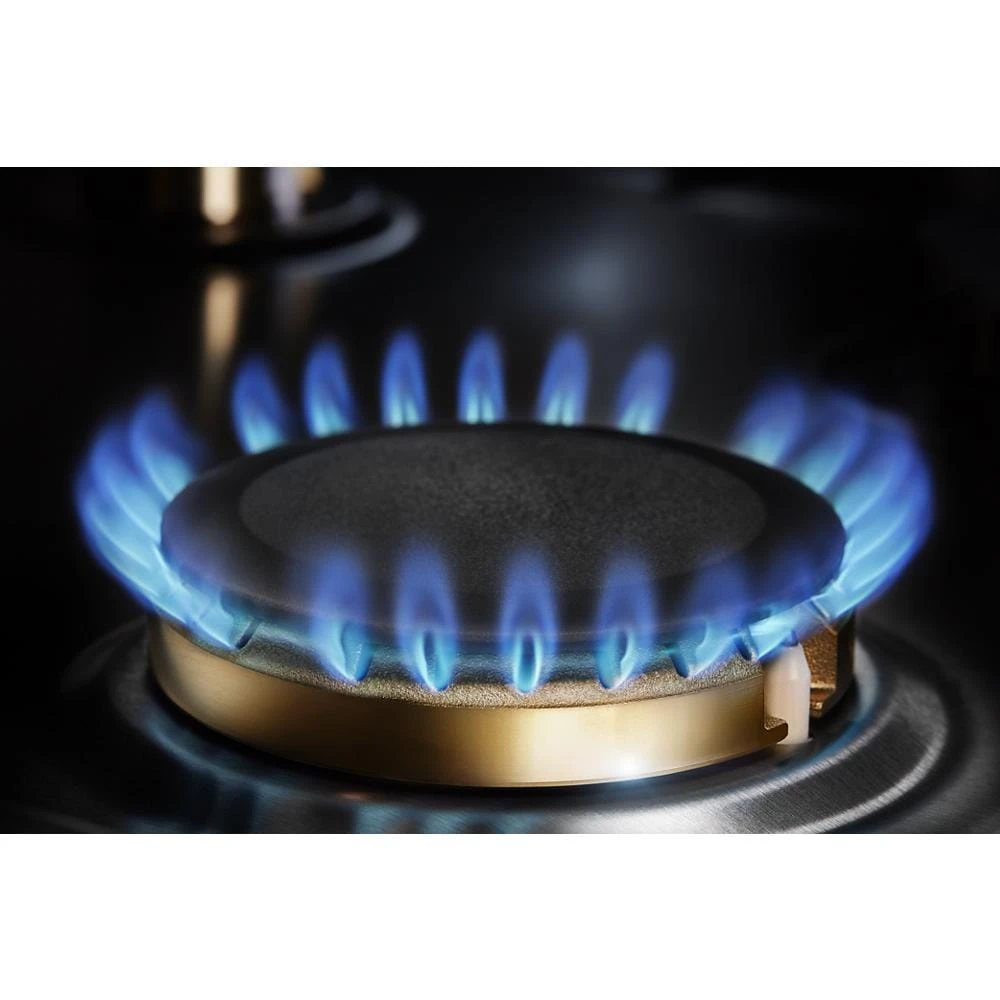

Brass Burners with Removable Base
Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.

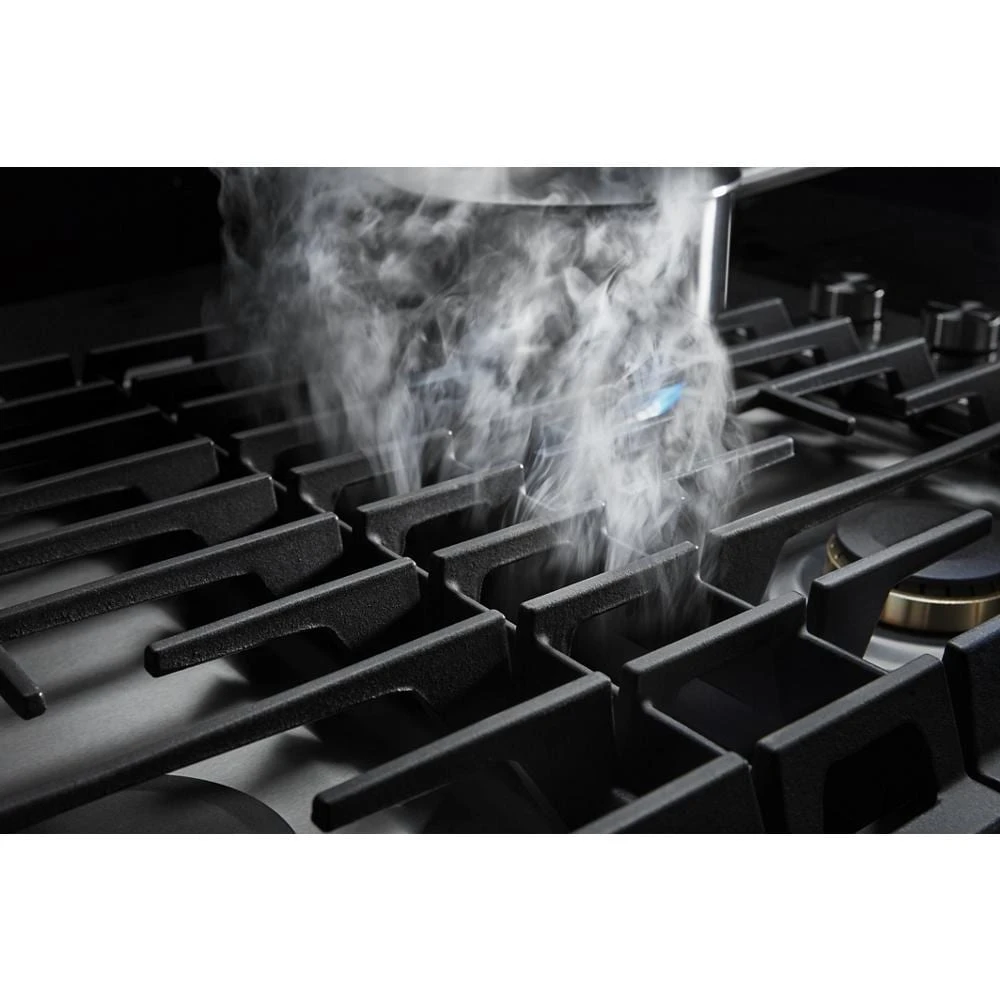

JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
DuraFinish® Protection
With excellence in every detail, DuraFinish® Protection helps keep your cooktop’s surface looking like new, resisting yellowing, staining and scratching.
5,000 BTU Ultra-Low Output Burner with Melt Cap
Provides the optimal temperature for gently cooking delicate sauces and foods.
Convertible to Duct-Free Ventilation
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Specifications
Cooktop Details
| Cooktop Surface Color | Stainless |
| Hot Surface Indicator Light | No |
| Heating Element On Indicator Light | No |
| Installs Over Built-In Oven | No |
| Cooktop Selections | Convertible To Duct Free Ventilation, Melt Cap |
| Griddle Included | N/a |
| Ignition Type | Flame-sensing™ Re-ignition |
Electrical
| Hz | 60 |
| Volts | 120 |
| Power Cord Included | Yes |
| Amps | 40 |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.75 ft³ |
| Dimensional Weight | 158.47 lbs. |
| Total of Cubes | 12.75 ft³ |
| Total of Dimensional Weight | 158.47 lbs. |
Dimensions & Weight
| Width | 35.12 in. |
| Height | 23.78 in. |
| Length | 26.38 in. |
| Weight | 58 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |

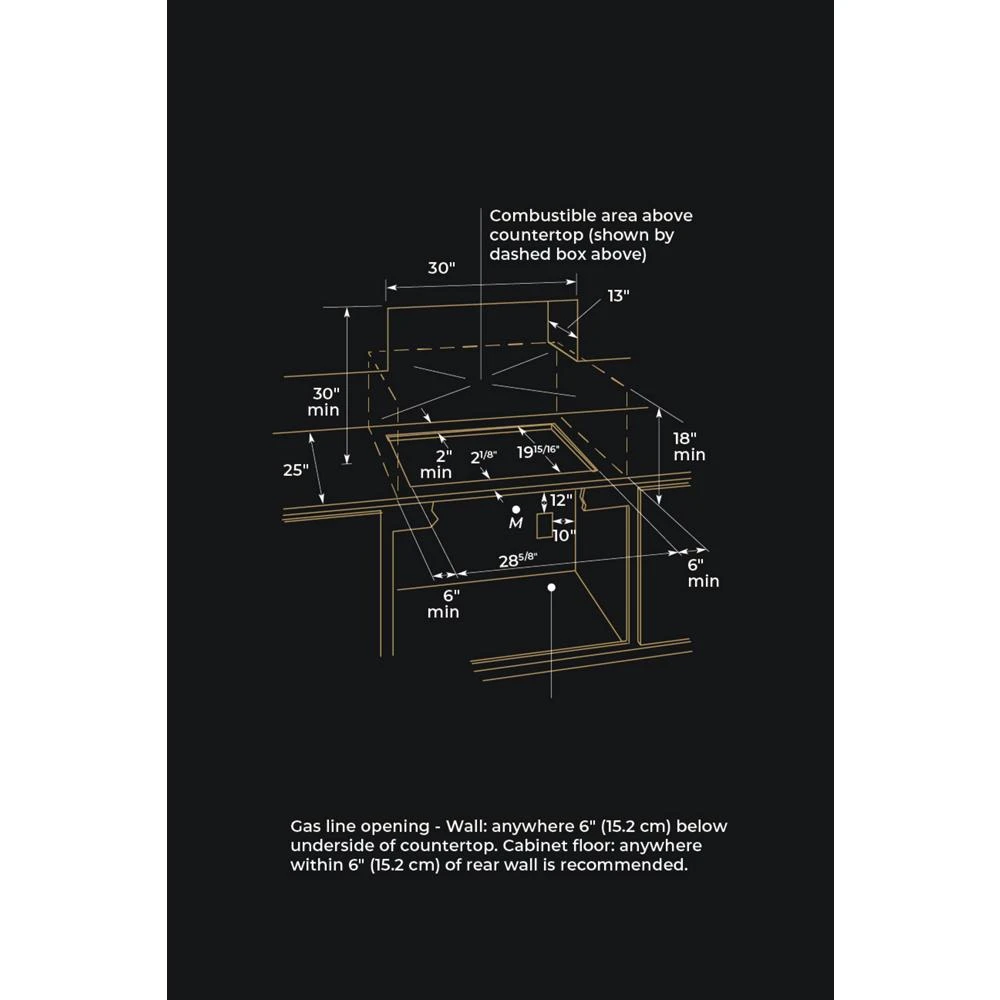

| Cutout Depth (in) | 19 15/16 |
| Cutout Height (in) | 4 |
| Cutout Width (in) | 28 5/8 |
| Gross Weight | 58 |
| Maximum Height | 18 7/16 |
| Net Weight | 46.0 |
| Gross Weight | 58 |
| Cutout Depth(IN,inches) | 19.9375 |
| Cutout Width(IN,inches) | 28.6250 |
| Depth(IN,inches) | 21.5000 |
| Maximum Height(IN,inches) | 18.4375 |
| Net Weight(LB,pounds) | 46 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Cutout Height Min(IN,inches) | 4.0000 |
| Gross Weight(LB,pounds) | 58 |
| Cutout Depth | 19.938 |
| Cutout Width | 28.625 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 58 |
| net weight | 46 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.13 in. |
| Shipping Height | 23.81 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 98 lbs. |
| Total of Shipping Weight | 98 lbs. |
| Source | Calculation |
Details
| LP Convertible | Yes - Kit Included |
| Fuel Type | Gas |
| Power Outage Compatible | Yes |
| Digital Display | No |
| Design Expression | Stainless Steel |
Certifications
| ADA Compliant | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
Element/Burner Details
| Cooktop Element Style | Sealed Burner |
| Left Front Element-Burner Type | Burner |
| Cooktop Type | Downdraft |
| Left Rear Element-Burner Type | Burner |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Type | Burner |
| Number of Grates | 3 |
| Left Front Element-Burner Power | 17,000 Btu |
| Left Rear Element-Burner Power | 5,000 Btu |
| Right Front Element-Burner Power | 10,000 Btu |
| Right Rear Element-Burner Power | 15,000 Btu |
Controls
| Control Location | Right Side |
| Control Type | Knobs |
| Number of Vent Speeds | 3 |
Ventilation Details
| CFM Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
Exterior Details
| Knob Color | Stainless Steel |
| Knob Type | Metal |
Dimensions
| Common Size | 30, 30 |
| Cutout Depth | 19-469/500 In |
| Cutout Width | 28-5/8 In |
| Depth | 21-1/2 In |
| Gross Weight | 58 Lbs |
| Height | 4 In |
| Maximum Height | 18-7/16 In |
| Net Weight | 46 Lbs |
| Width | 30 In |
Grate Details
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
