$2,349.00

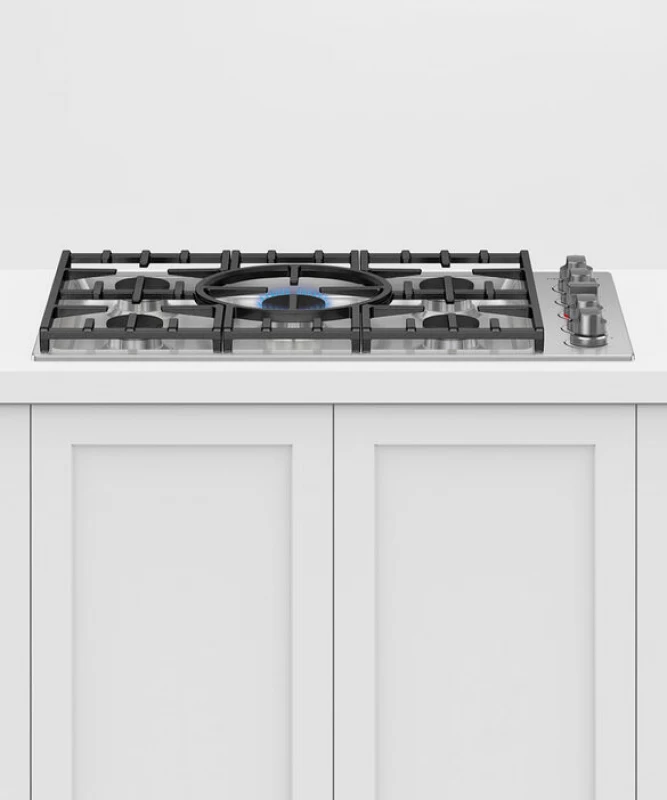

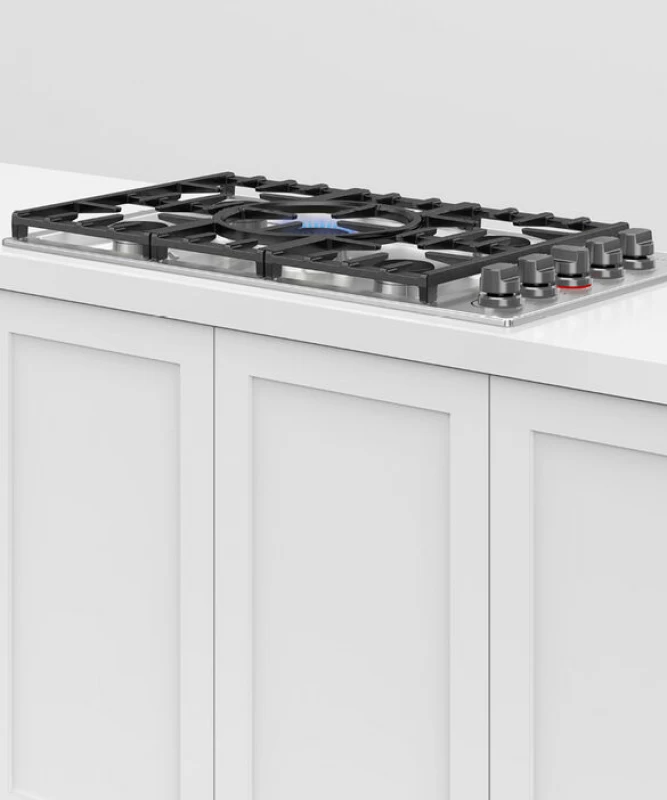

Gas Cooktop, 36" - CDV3365HN
$2,349.00
Color : Stainless Steel
Key Features
Cooktop Power
Precise Control
Cooking Flexibility
Easy To Clean
Information At A Glance
Complementary Design
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Specifications
Features
Cooktop Power
Precise Control
Cooking Flexibility
Easy To Clean
Information At A Glance
Complementary Design
Specifications
Other
| Yes |
Burner ratings
| Yes | |
| Max burner power | Yes |
| Power back left | 15,000 BTU |
| Power back right | 15,000 BTU |
| Power front centre | 20,000 BTU |
| Power front left | 15,000 BTU |
| Power front right | 15,000 BTU |
| Total cooktop power | 80,000 BTU |
Controls
| Yes | |
| Metal illuminated dials | Yes |
| Titanium coated, illuminated metal dials | Yes |
Gas Requirements
| Yes | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Performance
| Yes | |
| Sealed Dual Flow Burners™ | 5 |
| Sealed cooking surface | Yes |
| Simmer on all burners | 140°F |
Power requirements
| Yes | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Recommended Back Guards Ventilation
| Yes | |
| Downdraft | HD36 |
| Minimum CFM | 600 BTU |
| Pro hood | HCB36-12 N / HCB36-6 N |
| Traditional hood | ES36 |
Safety
| Yes | |
| ADA compliant | Yes |
Warranty
| Yes | |
| Parts and labor | 2 years |
Dimensions & Weight
| Width | 36 in. |
| Height | 5 in. |
| Length | 21 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 10 in. |
| Shipping Length | 26 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.19 ft³ |
| Dimensional Weight | 27.19 lbs. |
| Total of Cubes | 2.19 ft³ |
| Total of Dimensional Weight | 27.19 lbs. |
