$898.00
Was$1,449.00Save $551.00 (38%)
30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements - WCE97US0KB
30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements
Model: WCE97US0KB











30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements
Model: WCE97US0KB
$898.00
Was$1,449.00Save $551.00 (38%)
Key Features
5-Element Cooktop
FlexHeat™ Dual Radiant Element
Tap Touch Controls
Control Lock Mode
Easy-Wipe Ceramic Glass Cooktop
Warm Zone Element
Kitchen Timer
30 & 40 Amp Installation
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
5-Element Cooktop
Provides five independent cooking surface areas.
FlexHeat™ Dual Radiant Element
Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.

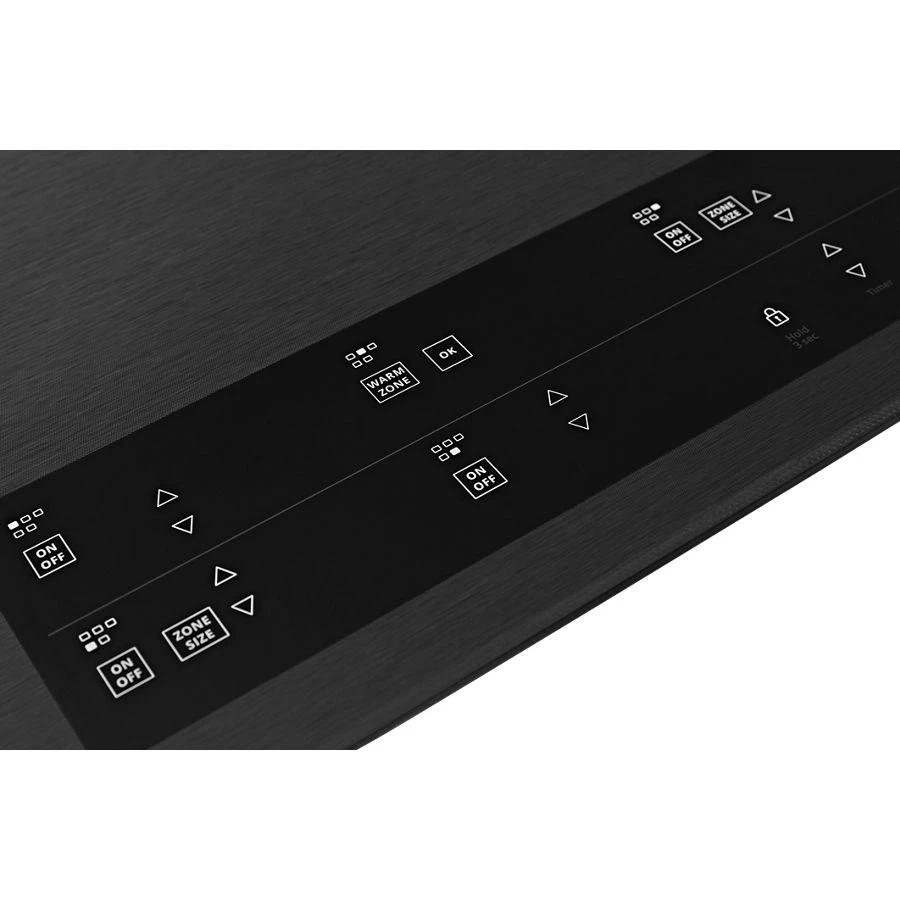

Tap Touch Controls
Clean the controls as easily as you use them.
Control Lock Mode
Disable the control panel to avoid unintended use and easily clean controls.
Easy-Wipe Ceramic Glass Cooktop
Wiping up spills is simple with the easy-to-clean cooktop.
Warm Zone Element
Keep food warm while you're finishing the rest of the meal using this low-powered element.
Kitchen Timer
Keep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the Tap Touch Controls.
30 & 40 Amp Installation
Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
Hot Surface Indicator Light
See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
Wall Oven Compatible
Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.
8" Extra Element
Cook small dishes like sides and sauces on the 8" Extra Element.
6" Extra Element
Cook small dishes like sides and sauces on the 6" Extra Element.
ADA compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
5 Element Cooktop
Cook more of your family's favorites and enjoy added versatility with a fifth element.
Specifications
Other
| Common Size | 30 in |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.14 ft³ |
| Dimensional Weight | 26.55 lbs. |
| Total of Cubes | 2.14 ft³ |
| Total of Dimensional Weight | 26.55 lbs. |
Cooktop Details
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Combination Match with Oven | WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0, WOSA2EC0 |
| Cooktop Surface Color | Black |
| Installs Over Built-In Oven | Yes |
Element/Burner Details
| Center Front Element-Burner Size | 6in. |
| Center Front Element-Burner Type | Standard |
| Center Rear Element-Burner Power | 100W |
| Center Rear Element-Burner Size | 6in. |
| Center Rear Element-Burner Type | Round |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 3000W/1900W |
| Left Front Element-Burner Size | 10in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Size | 8in. |
| Left Rear Element-Burner Type | Standard |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Rear Element-Burner Power | 3000W/1900W |
| Right Rear Element-Burner Size | 10in./6in. |
| Right Rear Element-Burner Type | Dual |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Center Front Element-Burner Power | 1,200W |
| Left Rear Element-Burner Power | 1,800W |
Electrical
| 208V Compatible | Yes |
| Power Cord Included | No |
| Amps | 40 |
| Hz | 60 |
| Volts | 240 |
Details
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-In Oven | Yes |
| LP Convertible | No |
| Power Outage Compatible | No |
| Digital Display | Yes |
Controls
| Control Location | Right Front |
| Control Type | Tap Touch |
Ventilation Details
| Downdraft Vent | No |
Certifications
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |

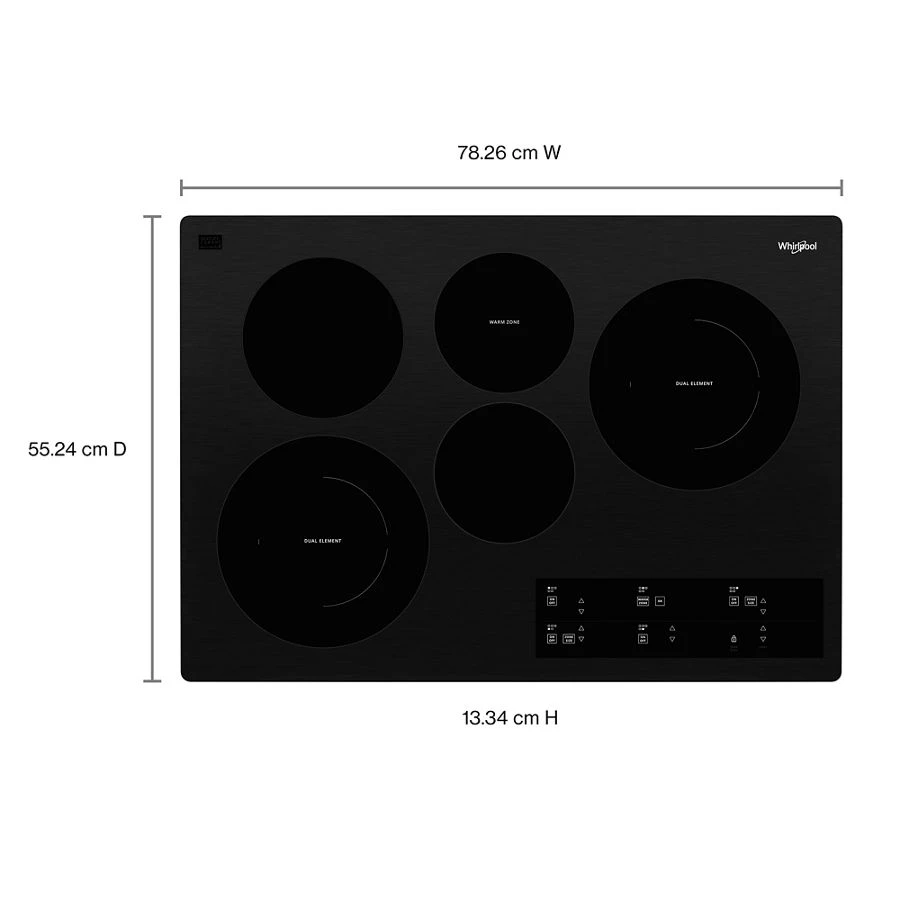

Dimensions & Weight
| Width | 30.81 in. |
| Height | 5.25 in. |
| Length | 22.81 in. |
| Weight | 46 lbs. |
| Cutout Depth Max | 20-563/1000 in |
| Cutout Depth Min | 20-3/8 in |
| Cutout Width Max | 29-563/1000 in |
| Gross Weight | 46 lbs |
| Net Weight | 41 lbs |
| Cutout Depth Max | 20.563 in |
| Cutout Depth Min | 20.375 in |
| Cutout Width Max | 29.563 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 9.25 in. |
| Shipping Length | 27.81 in. |
| Shipping Weight | 86 lbs. |
| Total of Shipping Weight | 86 lbs. |
| Source | Calculation |
Capacity
| Volume | 4.684 Cu.Ft. |
