Series 30" Built-In Electric Cooktop - PP945SMSS
Series 30" Built-In Electric Cooktop
Model: PP945SMSS
Series 30" Built-In Electric Cooktop
Model: PP945SMSS
Color : Stainless Steel
Key Features
Electronic touch controls
Ribbon heating elements
Precise Digital Control System
12"/9"/6" tri-ring element
8"/5" Power Boil element
Stainless steel frame
Control lock capability
Precise Digital Control System™
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Electronic touch controls
Provide a flat and smooth, easy-to-clean surface
Ribbon heating elements
Consistent heat and glass surface provide fast, even heating
Precise Digital Control System
Delivers accurate cooktop control
12"/9"/6" tri-ring element
Three heating elements in one offer flexibility

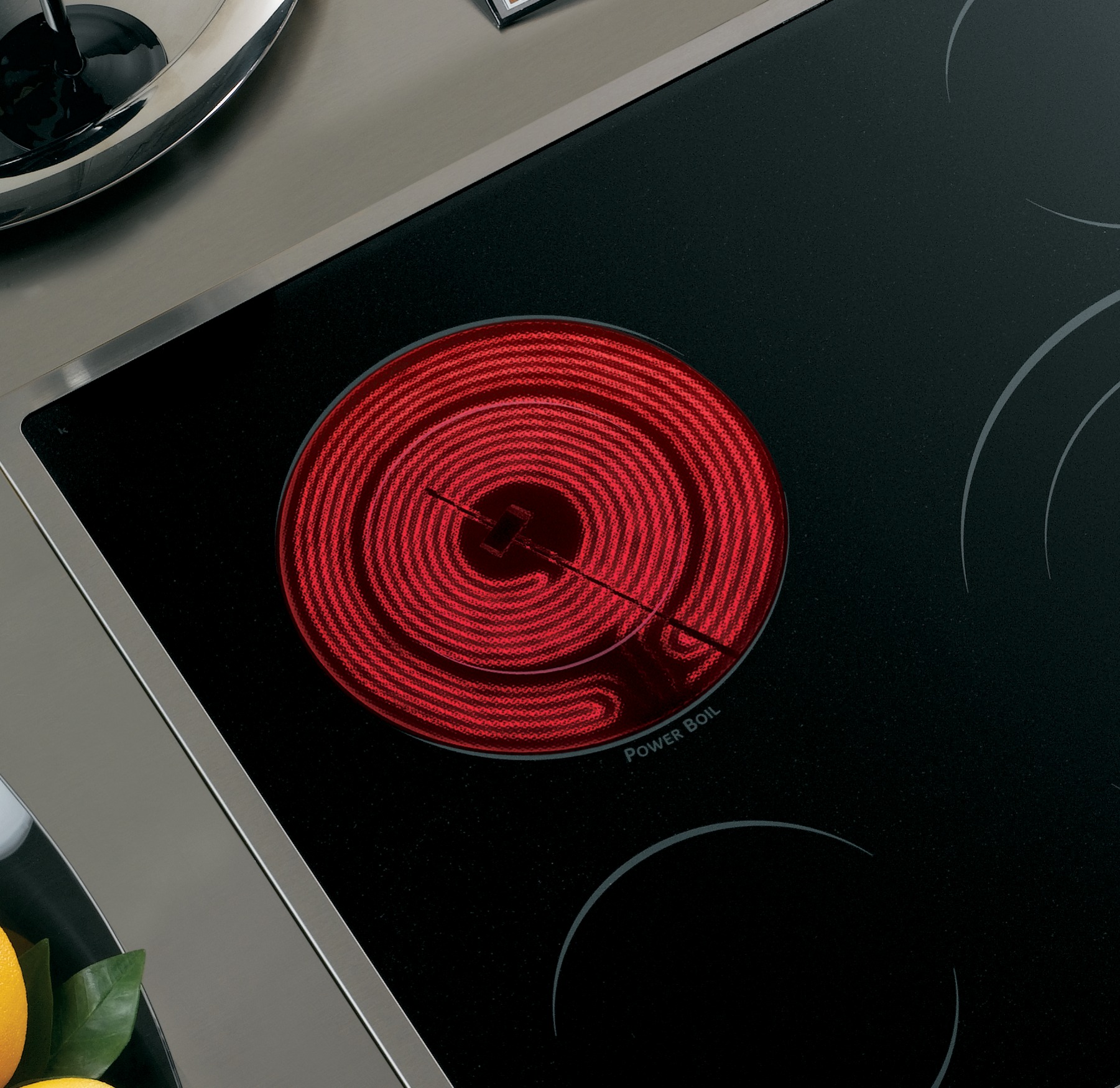

8"/5" Power Boil element
Produces rapid, powerful heat
Stainless steel frame
Compliments all other stainless steel appliances in the kitchen
Control lock capability
Protects against unintended activation
Precise Digital Control System™
Delivers accurate cooktop control
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Approximate Shipping Weight | 41 lb |
| Net Weight | 36 lb |
| Overall Depth | 21 1/2 in |
| Overall Height | 3 1/4 in |
| Overall Height at Conduit (rear) | 6 1/4 in |
| Overall Width | 29 7/8 in |

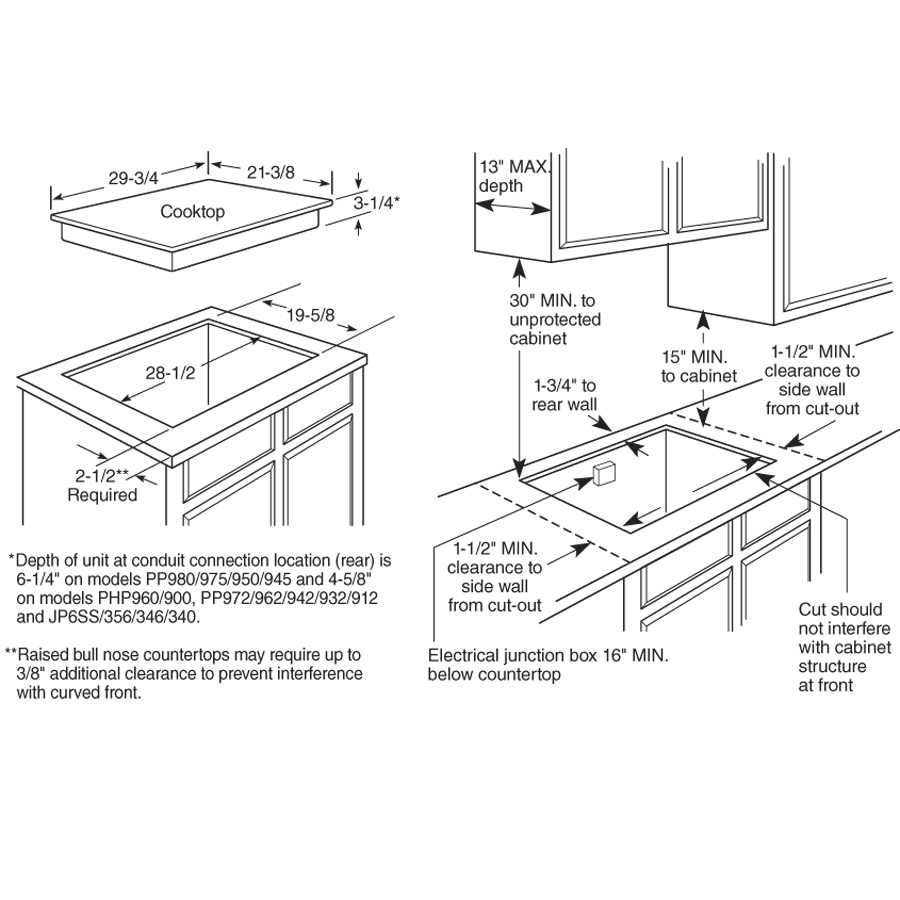

| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Cooktop Burner Type | Smoothtop |
| Element - Left Front | 6" 1200W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 12"/9"/6" 3000W Tri-ring |
| Control Location | Right Side |
| Cooktop Surface | Black Patterned Glass Ceramic with Stainless Steel Trim |
| Cooktop Control Features | Child Lock |
| Element - Left Rear | 8"/5" 2400W Power Boil |
| Control Type | Electronic Touch |
| Element - Right Rear | 6" 1200W |
| Cooktop Burner Type | 4 Ribbon |
| Indicator Lights | 4 Hot Surface |
WARRANTY
| Parts Warranty | Limited 5-year glass cooktop/radiant surface units |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | Stainless Steel |
POWER / RATINGS
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 5.9 |
| KW Rating at 240V | 7.8 |
| Amp Rating at 208V | 30 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 3.25 in. |
| Length | 21.5 in. |
| Weight | 36 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.5 in. |
| Shipping Weight | 76 lbs. |
| Total of Shipping Weight | 76 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.21 ft³ |
| Dimensional Weight | 15.02 lbs. |
| Total of Cubes | 1.21 ft³ |
| Total of Dimensional Weight | 15.02 lbs. |
