Series 30" Built-In Electric Cooktop - PP945BMBB

GE ProfileGE Profile brand logo
This product is discontinued and has been replaced by the model below.

Series 30" Built-In Electric Cooktop

Model: PP945BMBB

Series 30" Built-In Electric Cooktop PP945BMBBSeries 30" Built-In Electric Cooktop PP945BMBBSeries 30" Built-In Electric Cooktop PP945BMBBSeries 30" Built-In Electric Cooktop PP945BMBBSeries 30" Built-In Electric Cooktop PP945BMBBSeries 30" Built-In Electric Cooktop PP945BMBB
Series 30" Built-In Electric Cooktop PP945BMBB
Series 30" Built-In Electric Cooktop PP945BMBB
Series 30" Built-In Electric Cooktop PP945BMBB
Series 30" Built-In Electric Cooktop PP945BMBB
Series 30" Built-In Electric Cooktop PP945BMBB
+1more

Color : Black

Series 30" Built-In Electric Cooktop PP945BMBB
Black
Replaced By

30" Built-In knob Control Electric Cooktop

Model: JEP5030DTBB

Product - JEP5030DTBB

$794.00

Was$1,499.00Save $705.00 (47%)

View Product

Key Features

  • Electronic touch controls

  • Precise Digital Control System

  • Ribbon heating elements

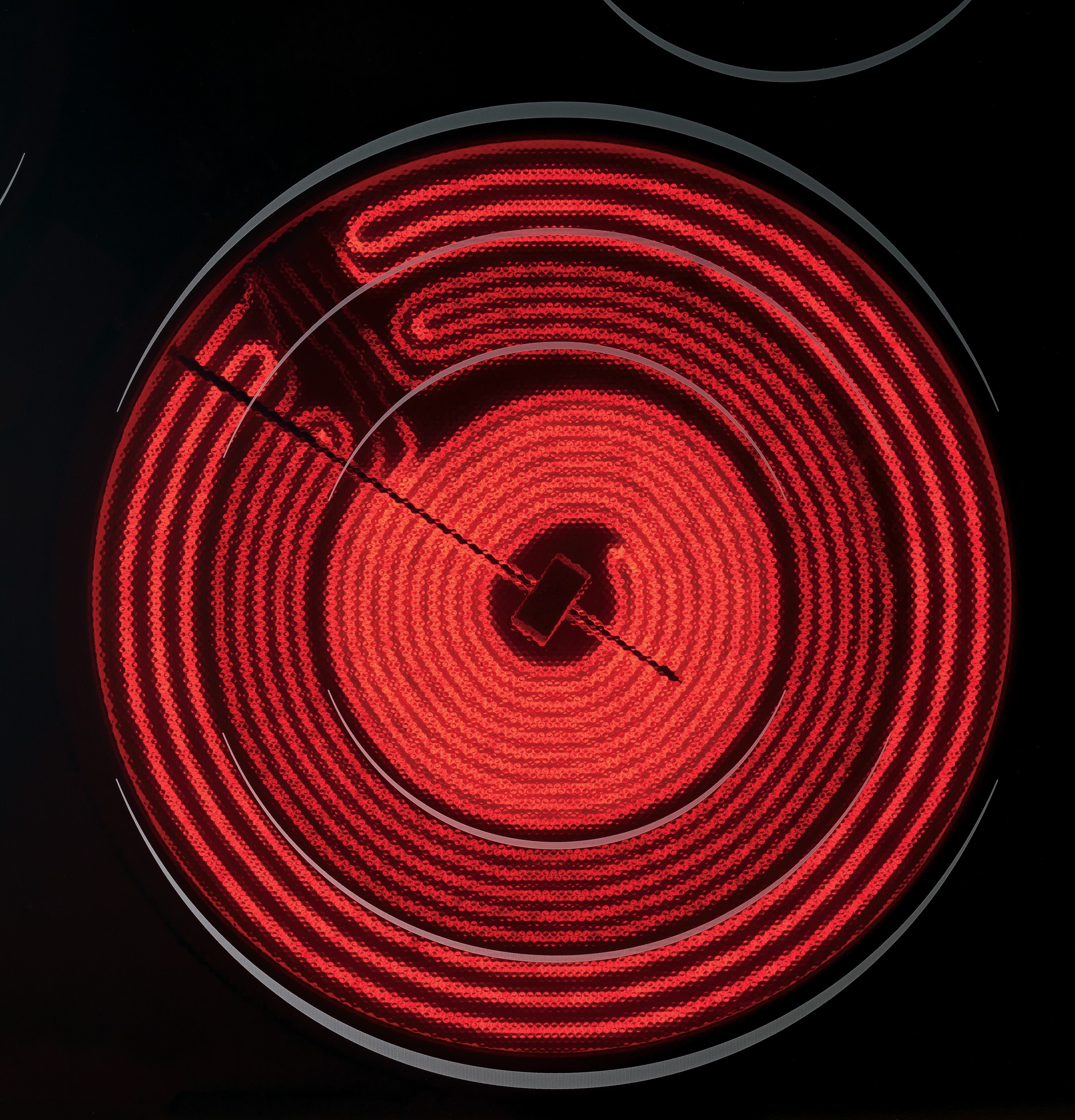

  • 12"/9"/6" tri-ring element

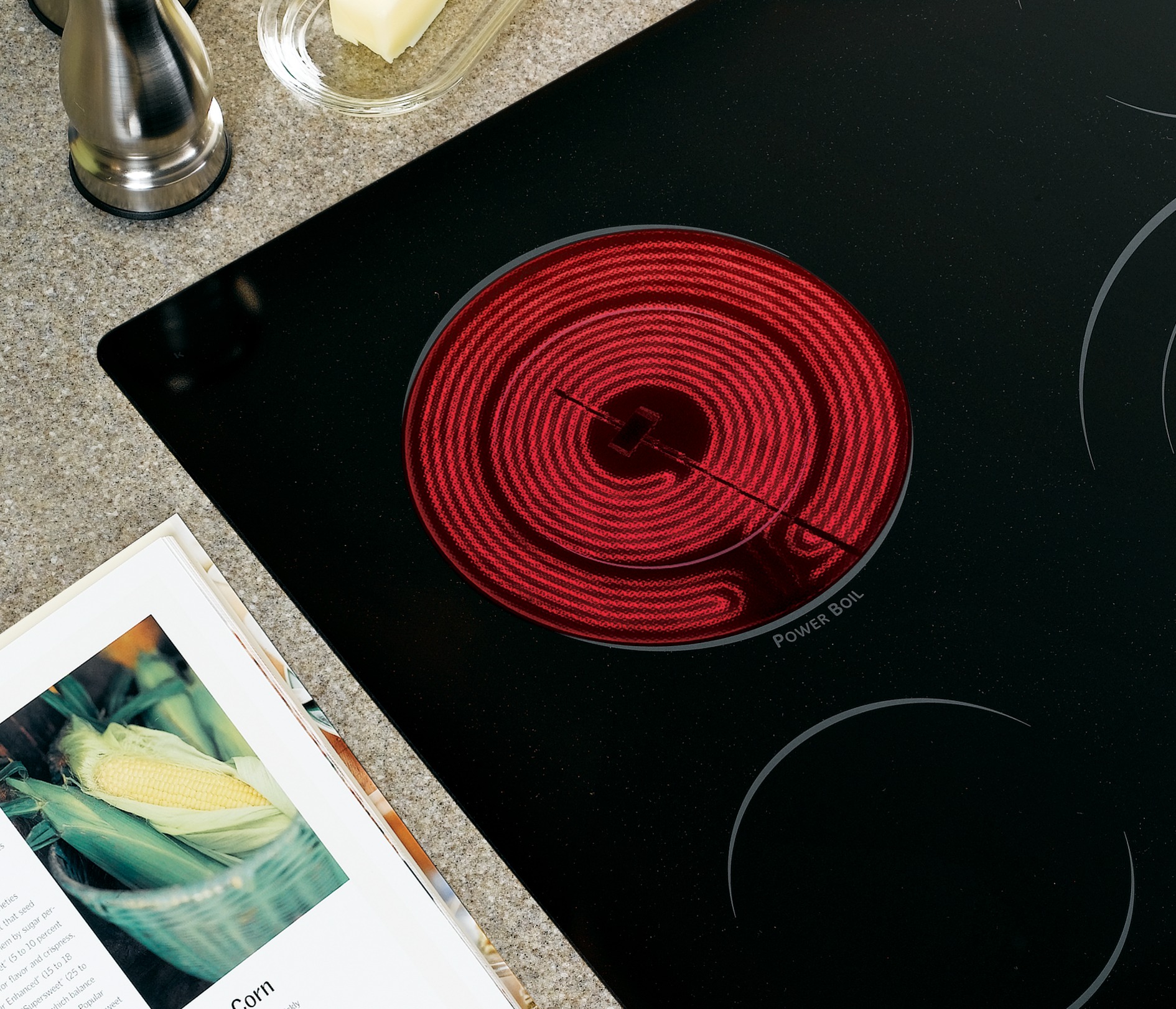

  • 8"/5" Power Boil element

  • Control lock capability

  • Precise Digital Control System™

Description

Delivers accurate cooktop control.Consistent heat and glass surface provide fast, even heating.3 1/4 H x 29 3/4 W x 21 3/8 D

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications
Certifications

Features

Electronic touch controls

Provide a flat and smooth, easy-to-clean surface

Precise Digital Control System

Delivers accurate cooktop control

Ribbon heating elements

Consistent heat and glass surface provide fast, even heating

12"/9"/6" tri-ring element

Three heating elements in one offer flexibility

8"/5" Power Boil element

Produces rapid, powerful heat

Control lock capability

Protects against unintended activation

Precise Digital Control System™

Delivers accurate cooktop control

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

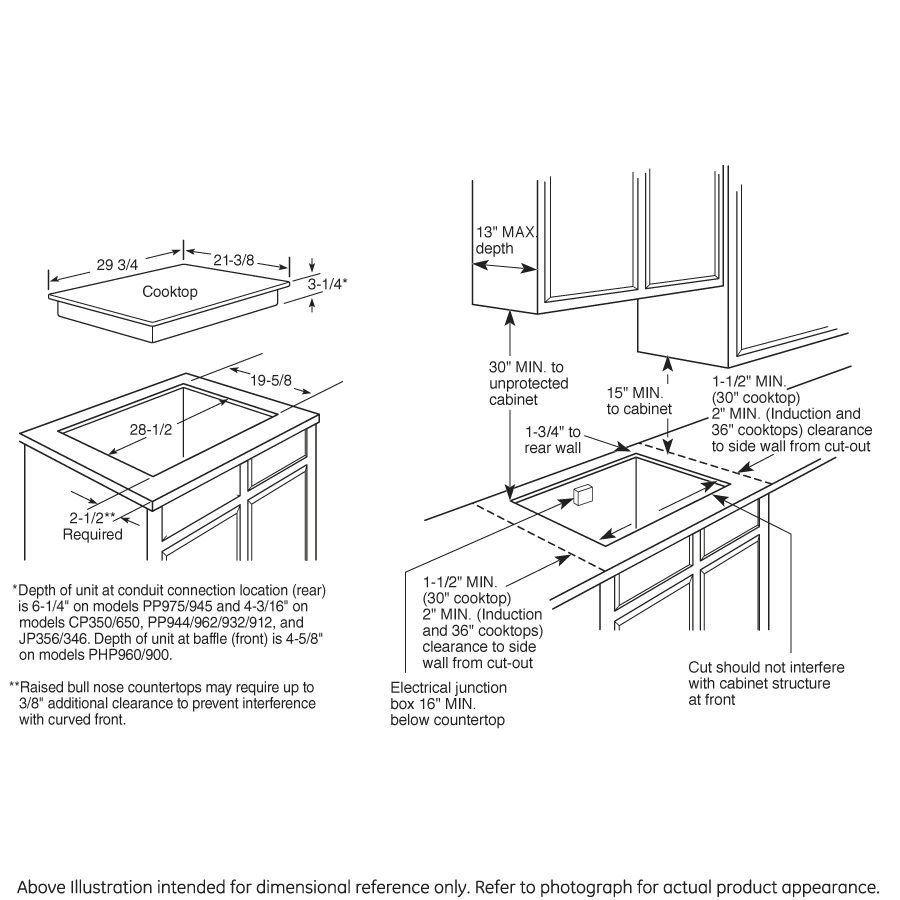

WEIGHTS & DIMENSIONS

Cabinet Width30 in
Cooktop Size30 in
Approximate Shipping Weight41 lb
Net Weight36 lb
Overall Depth21 3/8 in
Overall Height3 1/4 in
Overall Height at Conduit (rear)6 1/4 in
Overall Width29 3/4 in
Cutout Width (in)28.5
Cutout Depth (in)19.625

FEATURES

Cooktop Burner TypeSmoothtop
Element - Left Front6" 1200W
Indicator LightsSurface Element "ON"
Element - Right Front12"/9"/6" 3000W Tri-ring
Control LocationRight Side
Cooktop SurfacePatterned Black on Black Glass Ceramic
Cooktop Control FeaturesChild Lock
Element - Left Rear8"/5" 2400W Power Boil
Control TypeElectronic Touch
Element - Right Rear6" 1200W
Cooktop Burner Type4 Ribbon
Indicator Lights4 Hot Surface

WARRANTY

Parts WarrantyLimited 5-year glass cooktop/radiant surface units
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance

APPEARANCE

Color AppearanceBlack on Black
FramelessYes

POWER / RATINGS

KW Rating at 208V5.9
Amp Rating at 240V40
KW Rating at 240V7.8
Amp Rating at 208V30

Other

Cooktop Size30 in

Dimensions & Weight

Width29.75 in.
Height3.25 in.
Length21.38 in.
Weight36 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height8.25 in.
Shipping Length26.38 in.
Shipping Weight76 lbs.
Total of Shipping Weight76 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.2 ft³
Dimensional Weight14.87 lbs.
Total of Cubes1.2 ft³
Total of Dimensional Weight14.87 lbs.
