36" Built-In Knob Control Electric Cooktop - JP3036SLSS
36" Built-In Knob Control Electric Cooktop
Model: JP3036SLSS
Product Video
36" Built-In Knob Control Electric Cooktop
Model: JP3036SLSS
Rebate AvailableColor : Stainless Steel
Current Rebates
Key Features
Five radiant cooking elements
Power Boil Dual-Ring Element
Keep Warm Setting
Warming Zone
Melt Setting
Hot surface indicator lights
Cooktop "On" indicator light
Fit Guarantee
Description
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
Five radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Dual-Ring Element
Use different pan sizes on this flexible 2,700-watt element
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Warming Zone
Provides low-heat capability for keeping food warm
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Specifications
WEIGHTS & DIMENSIONS
| Overall Height | 3.375 in |
| Overall Width | 36.125 in |
| Overall Depth | 20.375 in |
| Cooktop Size | 36 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 53 lb |
| Net Weight | 46 lb |

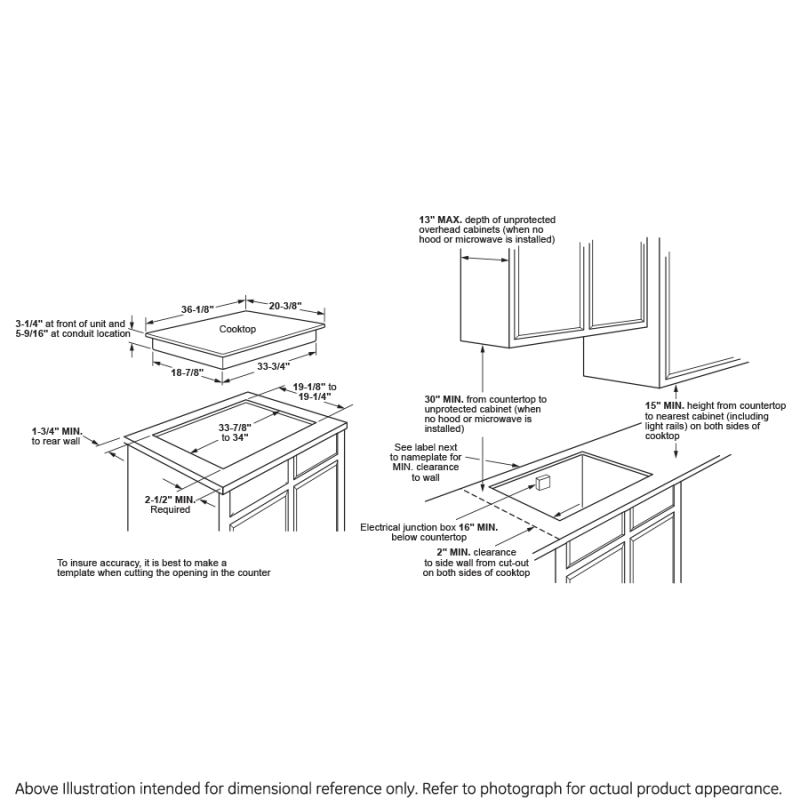

| Cutout Width (in) | 33.875 |
| Cutout Height (in) | 5.5625 |
| Cutout Depth (in) | 19.125 |
Dimensions & Weight
| Width | 36.13 in. |
| Height | 3.38 in. |
| Length | 20.38 in. |
| Weight | 46 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41.13 in. |
| Shipping Height | 8.38 in. |
| Shipping Length | 25.38 in. |
| Shipping Weight | 86 lbs. |
| Total of Shipping Weight | 86 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.87 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.87 lbs. |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 7" 1500W |
| Dual Ring Burners | Yes |
| Element - Right Front | 8" 2500W Power Boil |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim |
| Cooktop Control Features | Fifth Element Warming Zone |
| Element - Left Rear | 6" 120W Warming Zone |
| Control Type | Knob (Infinite switch) |
| Element - Center | 12"/9" 2700W dual |
| Element - Right Rear | 6" 1200W (Melt) |
| Product Type | Cooktop |
| Indicator Lights | Red |
| Indicator Lights | Surface Element "ON" |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 5 Hot Surface |
APPEARANCE
| Frame Color / Material | Stainless Steel |
| Color Appearance | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.0 |
| Hertz | 60 |
| Max. Current Draw (Amps) at 240V | 37.5 |
| Max. Connected Load (kW) at 208V | 7.1 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.3 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
