$3,099.00
Black Floating Glass 36" JX3™ Electric Downdraft Cooktop - JED3536GB
$3,099.00
Current Rebates
Key Features
JX3™ Downdraft Ventilation System with 3 Speeds
DuraFinish® Glass Protection
Color-Coordinating Die-Cast Metal Knobs
Oblivion Glass Design
Semi-Flush Installation
Perimetric Extraction
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features

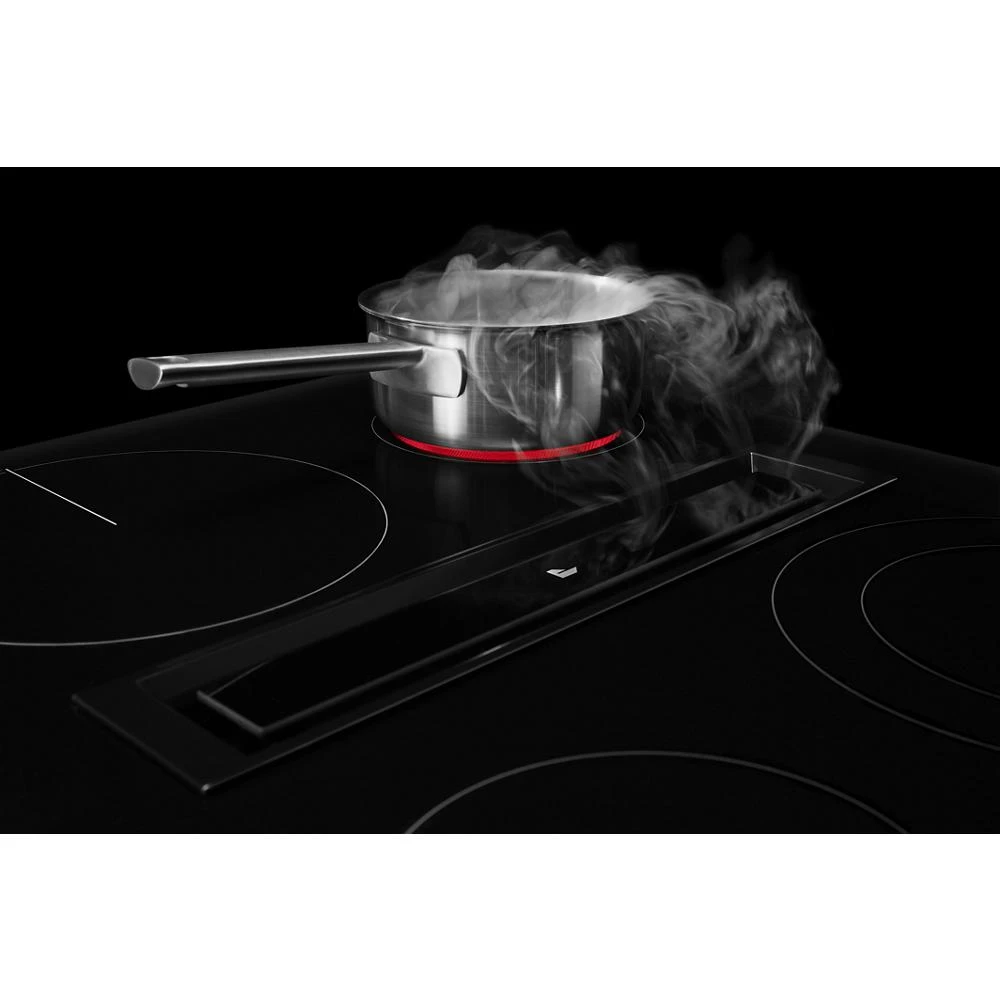

JX3™ Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
DuraFinish® Glass Protection
DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
Color-Coordinating Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
Specifications
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Installs Over Built-In Oven | No |
| Cooktop Selections | Convertible To Duct Free Ventilation, Downdraft |
| Griddle Included | N/a |
Electrical
| Amps | 40 |
| Volts | 220 |
| Power Cord Included | No |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 15.06 ft³ |
| Dimensional Weight | 187.25 lbs. |
| Total of Cubes | 15.06 ft³ |
| Total of Dimensional Weight | 187.25 lbs. |
Dimensions & Weight
| Width | 41.5 in. |
| Height | 23.78 in. |
| Length | 26.38 in. |
| Weight | 82 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 41 1/2 |
| Cutout Depth (in) | 21 1/8 |
| Cutout Width (in) | 34 9/16 |
| Gross Weight | 82 |
| Net Weight | 69.0 |
| Gross Weight | 82 |
| Cutout Depth(IN,inches) | 21.1250 |
| Cutout Width(IN,inches) | 34.5625 |
| Depth(IN,inches) | 22.0625 |
| Net Weight(LB,pounds) | 69 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 41.5000 |
| Gross Weight(LB,pounds) | 82 |
| Cutout Depth | 21.125 |
| Cutout Width | 34.563 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 41.5 |
| gross weight | 82 |
| net weight | 69 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41.5 in. |
| Shipping Height | 23.81 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 122 lbs. |
| Total of Shipping Weight | 122 lbs. |
| Source | Calculation |
Details
| Fuel Type | Electric Radiant |
| LP Convertible | No |
| Power Outage Compatible | No |
| Design Expression | Black Glass |
| Digital Display | No |
Certifications
| ADA Compliant | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
| Energy Star® Qualified | Energy Star® Qualified |
Ventilation Details
| CFM Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
Element/Burner Details
| Center Front Element-Burner Size | 10in. |
| Center Front Element-Burner Type | Single |
| Center Rear Element-Burner Size | 6in. |
| Center Rear Element-Burner Type | Single |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Type | Hyper |
| Left Front Element-Burner Size | 6in. |
| Left Rear Element-Burner Size | 8in. |
| Left Rear Element-Burner Type | Single |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Rear Element-Burner Size | 12in./9in./6in. |
| Right Rear Element-Burner Type | Triple |
| Automatic Pan Detection | No |
| Center Front Element-Burner Power | 3,200w |
| Center Rear Element-Burner Power | 1,200w |
| Left Front Element-Burner Power | 1,300w |
| Left Rear Element-Burner Power | 1,800w |
| Right Rear Element-Burner Power | 3000w/1950w/1050w |
Controls
| Control Location | Right Front |
| Control Type | Knobs |
| Number of Vent Speeds | 3 |
Exterior Details
| Knob Color | Black |
| Knob Type | Metal |
Dimensions
| Common Size | 36, 36 |
| Cutout Depth | 21-1/8 In |
| Cutout Width | 34-563/1000 In |
| Depth | 22-1/16 In |
| Gross Weight | 82 Lbs |
| Height | 3-11/16 In |
| Net Weight | 69 Lbs |
| Width | 36-5/16 In |
