Black Floating Glass 30" JX3™ Electric Downdraft Cooktop - JED3430GB
$2,899.00
Rebate AvailableColor : Black
$2,899.00
$2,899.00
Current Rebates
Key Features
DuraFinish® Glass Protection
Color-Coordinating Die-Cast Metal Knobs
Oblivion Glass Design
Semi-Flush Installation
Perimetric Extraction
10"/6" Dual-Choice™ Element
Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.
Features
DuraFinish® Glass Protection
DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

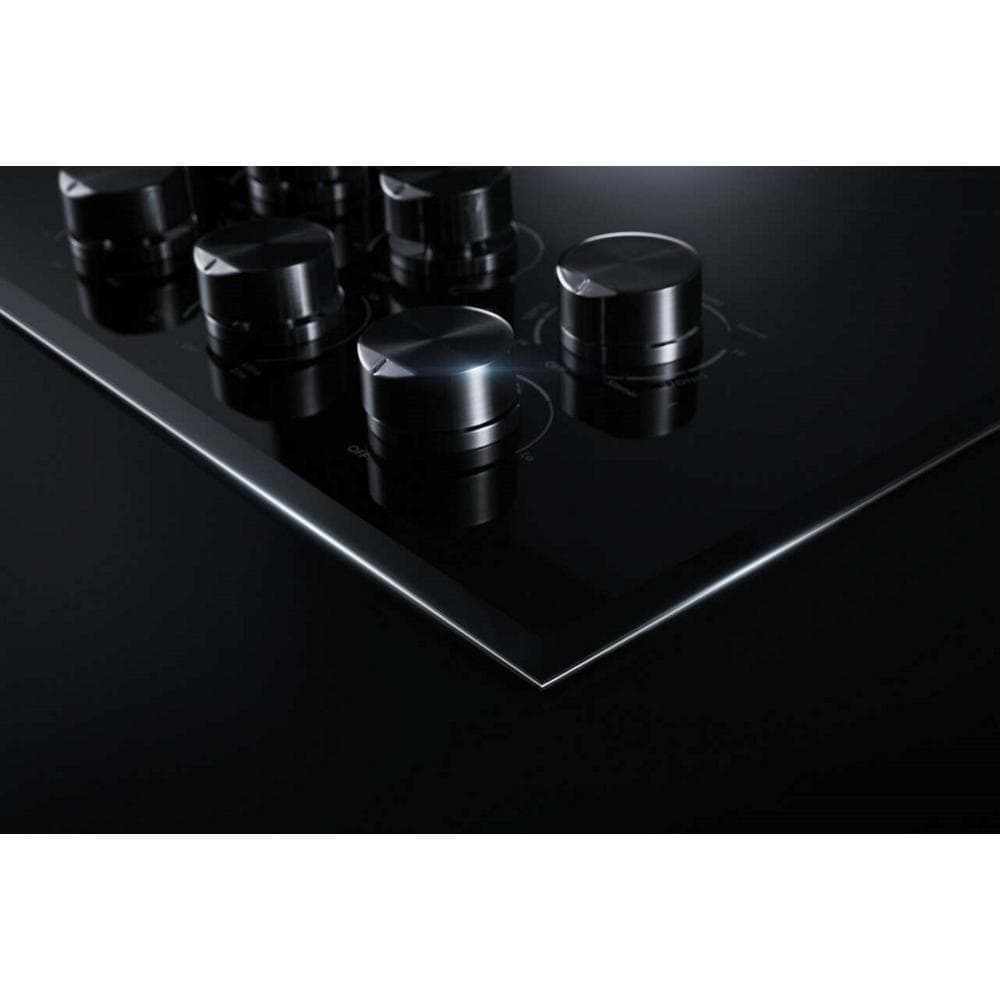

Color-Coordinating Die-Cast Metal Knobs
Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.

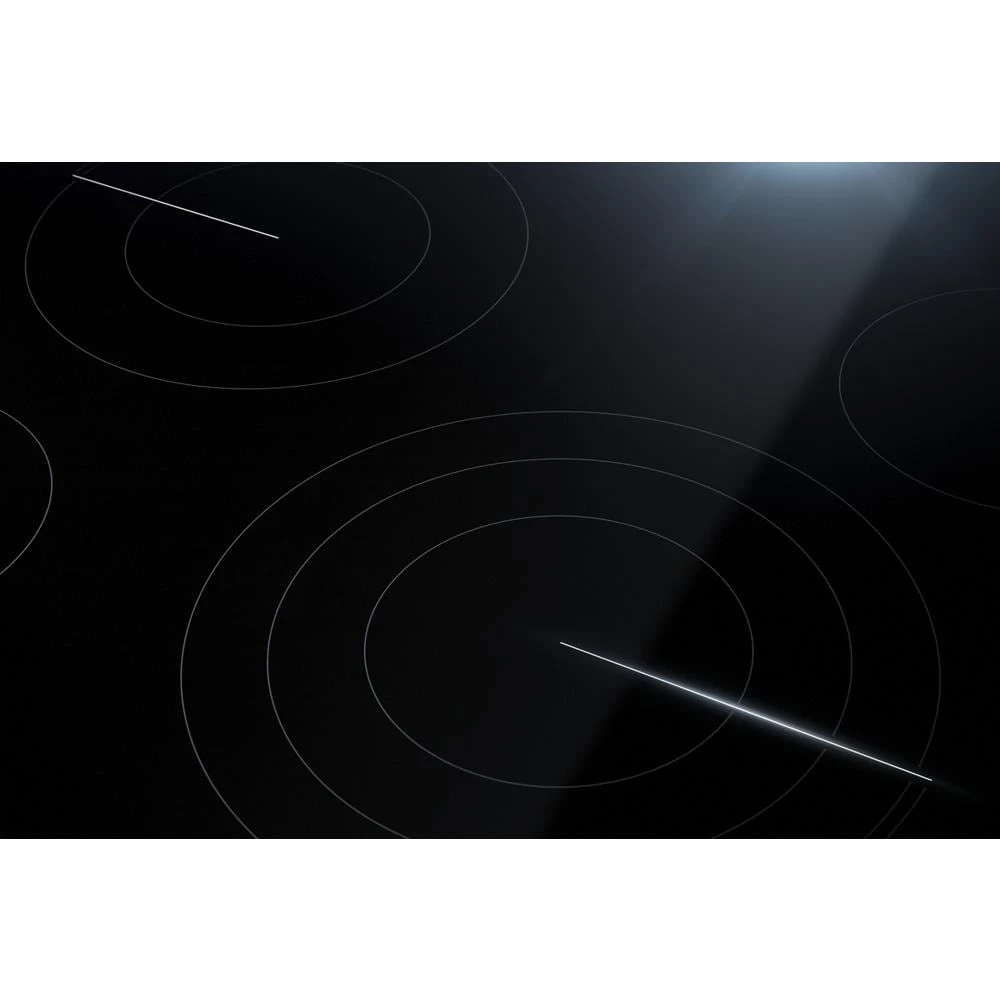

Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

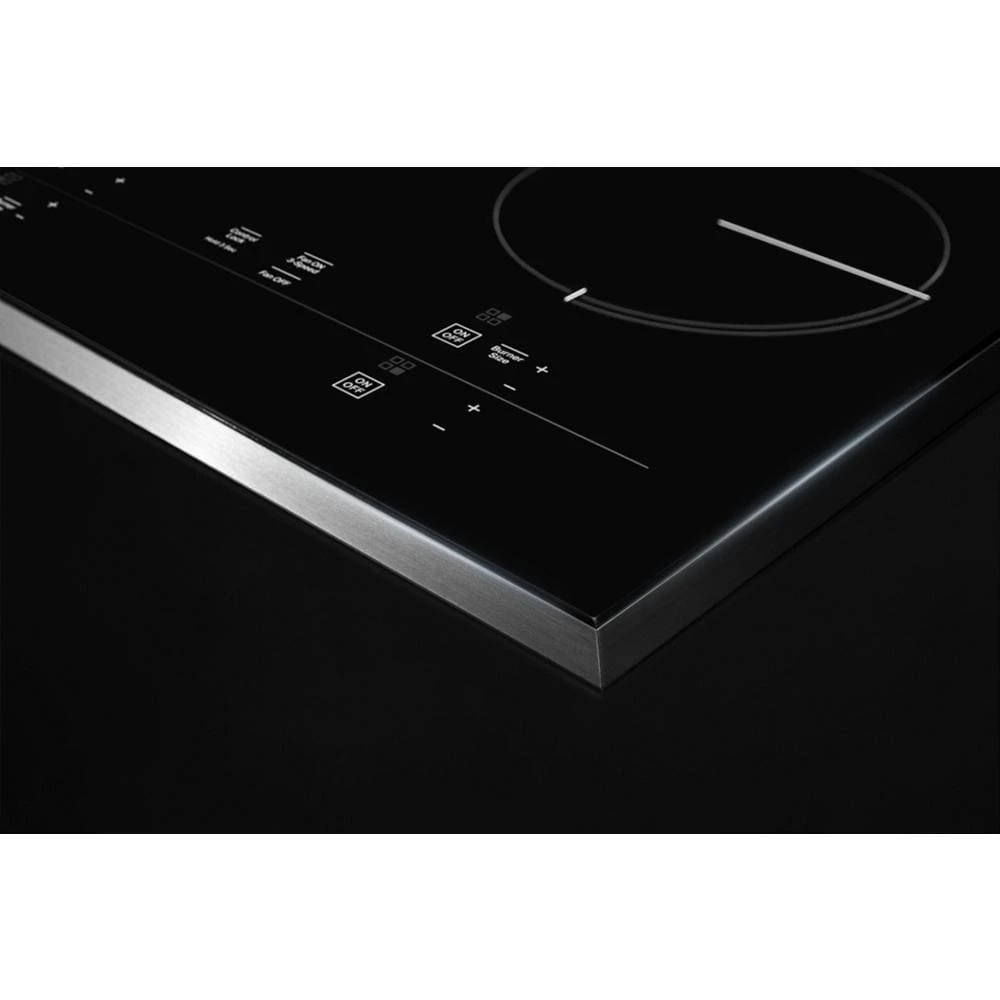

Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

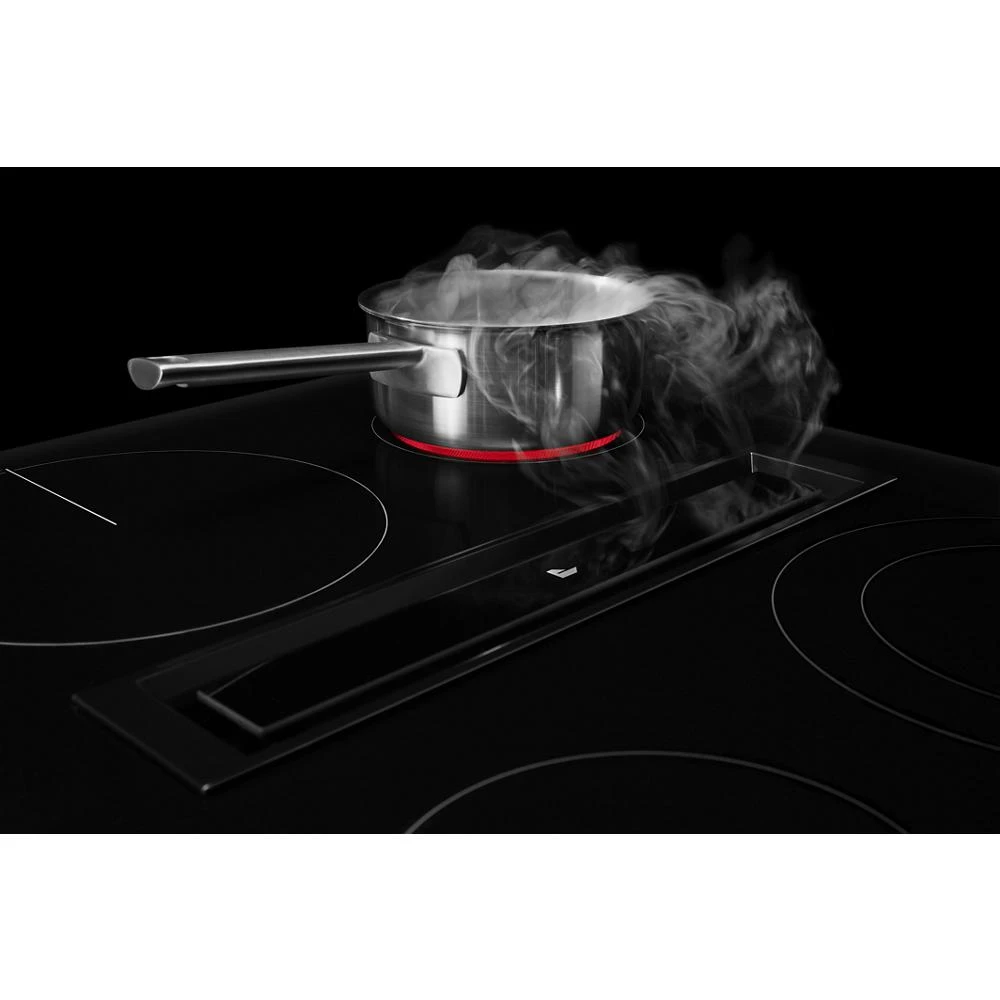

Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.

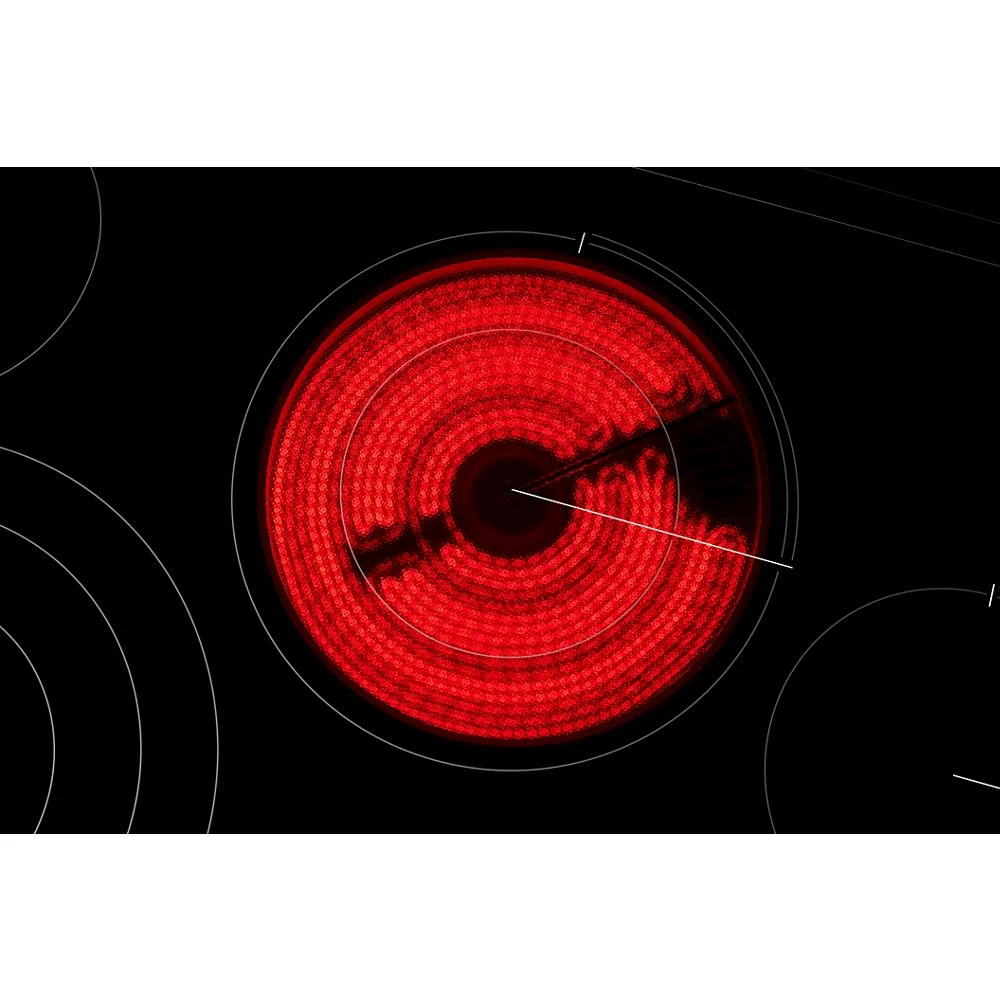

10"/6" Dual-Choice™ Element
An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
Specifications
Cooktop Details
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Installs Over Built-In Oven | No |
| Cooktop Selections | Convertible To Duct Free Ventilation, Downdraft |
| Griddle Included | N/a |
Electrical
| Amps | 40 |
| Volts | 220 |
| Power Cord Included | No |
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.96 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.96 lbs. |
Dimensions & Weight
| Width | 30.88 in. |
| Height | 3.07 in. |
| Length | 26.38 in. |
| Weight | 68 lbs. |
| Carton Depth | 26 7/16 |
| Carton Height | 23 13/16 |
| Carton Width | 35 1/8 |

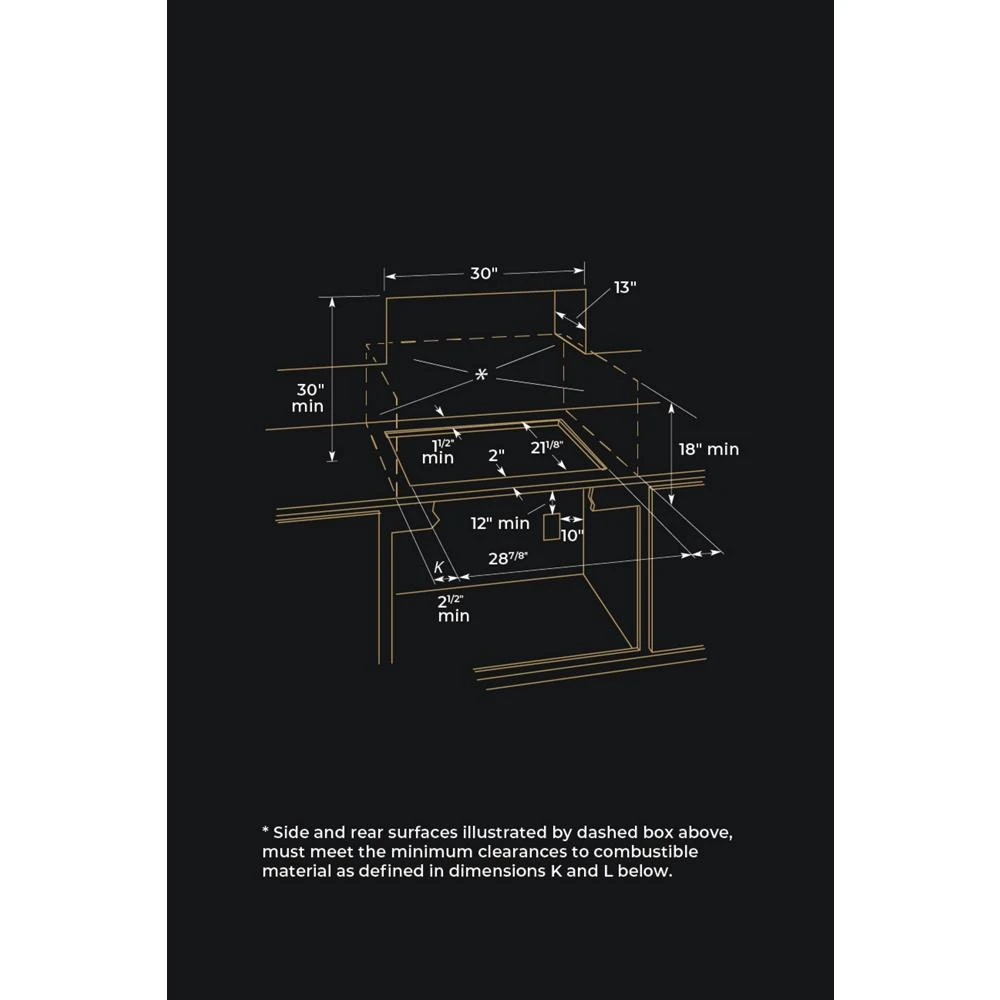

| Cutout Depth (in) | 21 1/8 |
| Cutout Width (in) | 28 7/8 |
| Gross Weight | 68 |
| Maximum Height | 18 23/32 |
| Net Weight | 56.0 |
| Gross Weight | 68 |
| Cutout Depth(IN,inches) | 21.1250 |
| Cutout Width(IN,inches) | 28.8750 |
| Depth(IN,inches) | 22.0625 |
| Maximum Height(IN,inches) | 18.7188 |
| Net Weight(LB,pounds) | 56 |
| Carton Depth(IN,inches) | 26.4375 |
| Carton Height(IN,inches) | 23.8125 |
| Carton Width(IN,inches) | 35.1250 |
| Gross Weight(LB,pounds) | 68 |
| Cutout Depth | 21.125 |
| Cutout Width | 28.875 |
| carton depth | 26.38 |
| carton height | 23.78 |
| carton width | 35.12 |
| gross weight | 82 |
| net weight | 70 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.13 in. |
| Shipping Height | 23.81 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 108 lbs. |
| Total of Shipping Weight | 108 lbs. |
| Source | Calculation |
Details
| LP Convertible | No |
| Fuel Type | Electric Radiant |
| Power Outage Compatible | No |
| Design Expression | Black Glass |
| Digital Display | No |
Element/Burner Details
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-Burner Size | 10in. |
| Left Front Element-Burner Type | Hyper |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Hyper |
| Number of Cooking Element-Burners | 4 |
| Power Boost | No |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Single |
| Right Rear Element-Burner Size | 10in./6in. |
| Automatic Pan Detection | No |
| Left Front Element-Burner Power | 3,200w |
| Left Rear Element-Burner Power | 1,300w |
| Right Front Element-Burner Power | 1200w |
| Right Rear Element-Burner Power | 3000w/1400w |
| Right Rear Element-Burner Type | Dual-stacked Burner |
Certifications
| ADA Compliant | Yes |
| UL | Yes |
| Prop 65 | California Residents Only - Warning: Cancer And Reproductive Harm - Www.p65warnings.ca.gov. |
| Energy Star® Qualified | Energy Star® Qualified |
Controls
| Control Location | Right Side |
| Control Type | Knobs |
| Number of Vent Speeds | 3 |
Ventilation Details
| CFM Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
Exterior Details
| Knob Color | Black |
| Knob Type | Metal |
Dimensions
| Common Size | 30, 30 |
| Cutout Depth | 21-1/8 In |
| Cutout Width | 28-7/8 In |
| Depth | 22-1/16 In |
| Gross Weight | 82 Lbs |
| Height | 3-6563/10000 In |
| Maximum Height | 18-1797/2500 In |
| Net Weight | 70 Lbs |
| Width | 30-7/8 In |
