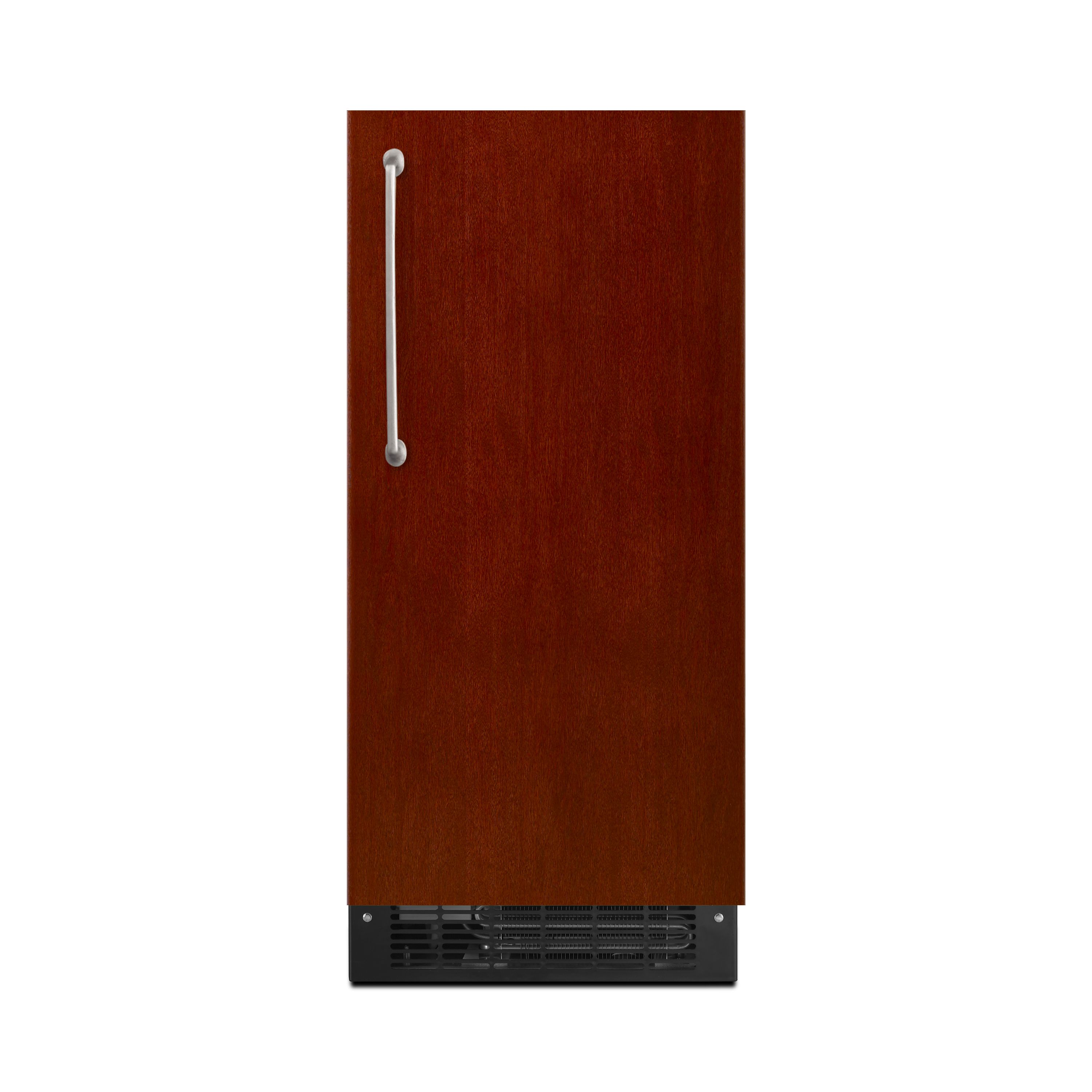

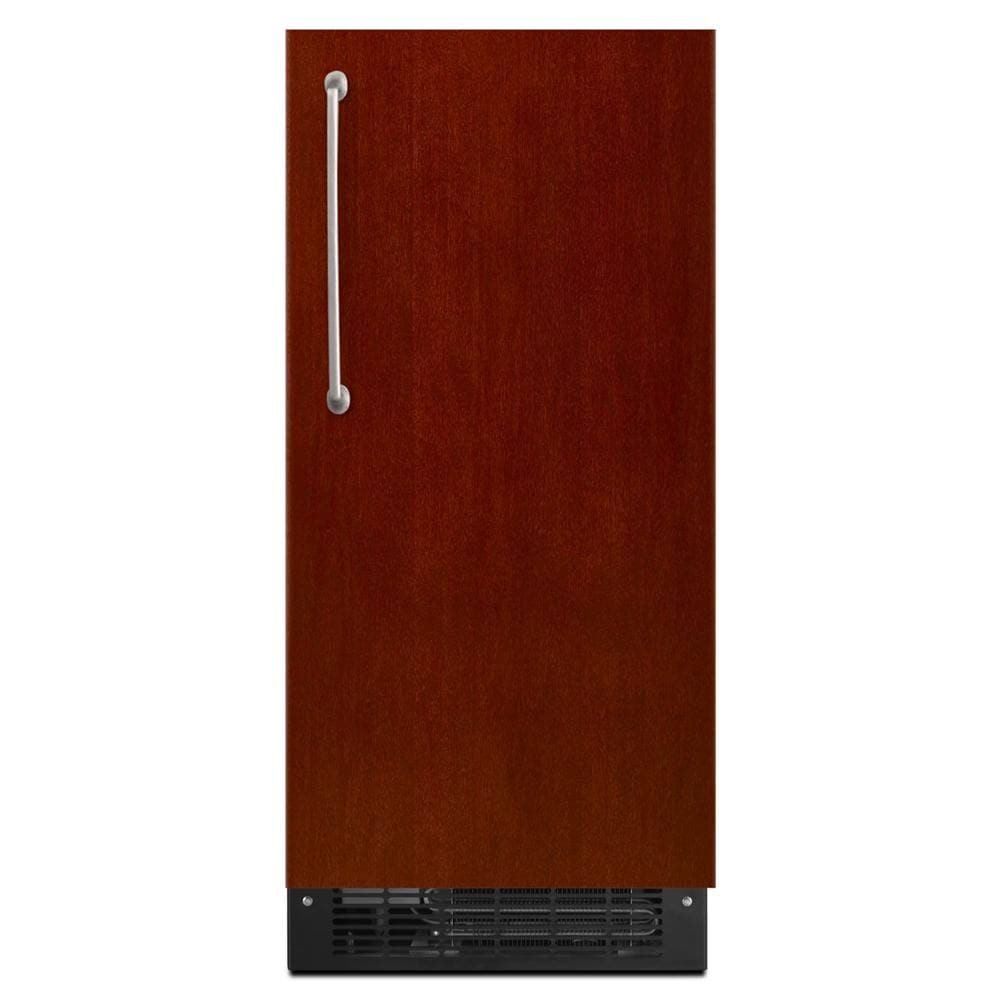

15'' Automatic Ice Maker - KUIX535HPA

This product has been discontinued by the manufacture and is no longer available.

15'' Automatic Ice Maker

Model: KUIX535HPA

15'' Automatic Ice Maker KUIX535HPA15'' Automatic Ice Maker KUIX535HPA
15'' Automatic Ice Maker KUIX535HPA
15'' Automatic Ice Maker KUIX535HPA

Color : Panel Ready

15'' Automatic Ice Maker KUIX535HPA
Panel Ready

Key Features

  • Fully Flush Installation with Articulating Hinge

  • Clear Ice Technology

  • Built-In Drain Pump System

  • Holds 25 Pounds of Ice

  • Max Ice

  • Filter-Ready

  • Reversible Door

  • PrintShield™ Finish

Read More

Description

Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.
Read More

Available from Mark's Appliance, serving customers throughout Southern IL & St. Louis, MO.

Features
Specifications

Features

Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

Clear Ice Technology

provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.

Built-In Drain Pump System

Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space

Holds 25 Pounds of Ice

ensures a generous supply of fresh ice is conveniently at your fingertips.

Max Ice

Filter-Ready

provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

Reversible Door

offers flexible installation options by allowing hinge installation on either side of the door.

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Self Cleaning Cycle

Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

Specifications

Warranty

Parts2 Year
Labor2 Year

Controls

Control LocationInterior Up Front
Control TypeElectronic Touch
Ambient Temperature Range55F to 110F

Details

Drain ConnectionRear Access 5/8in. OD
Drain PumpPump Included
Stainless Steel Cutting Grid3/4in. x 3/4in. Cubes
Water Inlet Connection1/4in. OD PEX Tubing
Door Opening DirectionRight
Ice Capacity Storage25
Water Supply Pressure30 - 120 psi

Certifications

ADA CompliantNo
ULYes
prop65Standard - Standard

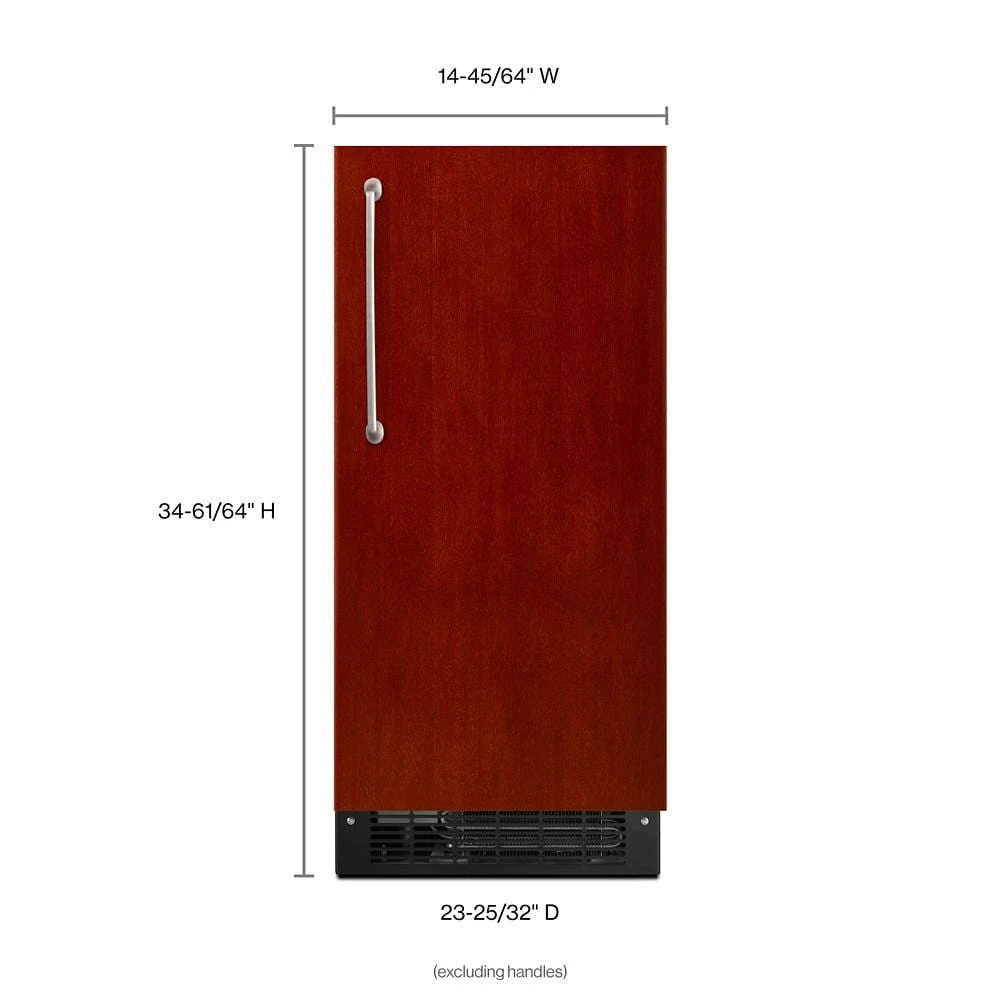

Dimensions & Weight

Width17.25 in.
Height36.07 in.
Length28.37 in.
Weight107 lbs.
Cabinet Width (in)14 7/8
Carton Depth28 3/8
Carton Height36 1/8
Carton Width17 1/4
Cutout Depth (in)25
Cutout Height (in)34 1/2
Cutout Width (in)15
Depth Closed Excluding Handles24 5/8
Depth Closed Including Handles26 1/16
Depth Excluding Doors22 1/8
Depth With Door Open 90 Degree39 1/2
Gross Weight107 lbs.
Height To Top Of Cabinet33 5/8
Height To Top Of Door Hinge34 1/16
Net Weight96.5
Cabinet Width (IN,inches)14.8750
Cutout Depth(IN,inches)25.0000
Cutout Height(IN,inches)34.5000
Cutout Width(IN,inches)15.0000
Depth Closed Excluding Handles(IN,inches)24.6250
Depth Closed Including Handles(IN,inches)26.0625
Depth Excluding Doors(IN,inches)22.0625
Depth With Door Open 90 Degree(IN,inches)39.5625
Height To Top Of Cabinet(IN,inches)33.6250
Height To Top Of Door Hinge(IN,inches)34.0625
Net Weight(LB,pounds)96
Carton Depth(IN,inches)28.3750
Carton Height(IN,inches)36.1250
Carton Width(IN,inches)17.2500
Gross Weight(LB,pounds)107

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width20 in.
Shipping Height41.13 in.
Shipping Length31.06 in.
Shipping Weight147 lbs.
Total of Shipping Weight147 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.17 ft³
Dimensional Weight101.62 lbs.
Total of Cubes8.17 ft³
Total of Dimensional Weight101.62 lbs.

Dimensions

Cutout Depth25
Cutout Height34.5
Cutout Width15
Height To Top Of Cabinet33.625
Height To Top Of Door Hinge34.063
carton depth28.37
carton height36.07
carton width17.25
gross weight107 lbs.
net weight96.5

Exterior Details

Cabinet FinishTextured
Cabinet MaterialPrepainted Steel
Handle LocationHorizontal
Reversible DoorYes

Filter Details

Water Filter Indicator/ResetYes
Water Filter LocationInterior
Water Filter Part NumberF2WC9I1

Freezer Details

Defrost TypeAutomatic Defrost

Icemaker Details

Ice Maker On/OffYes

Oven Details

Interior LightLED

Refrigerator Details

Interior Liner FinishPlastic
Liner ColorWhite

Capacity

Volume10.215 Cu.Ft.
